Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v

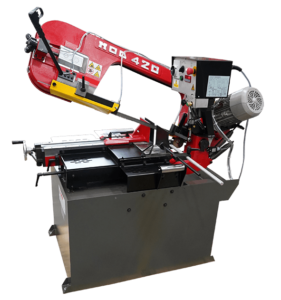

Bianco 420MS

The Bianco 280 and 420 MS Pull/Auto Down Single Mitre Bandsaws are renown for their quality cutting and precision. Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

Bianco 420MS
Bianco 420MSBianco 420MS
Video thumbnail showing the Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v
Video thumbnail showing the Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v
Video thumbnail showing the Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v
Front view - Bianco-MS-Single-Mitre-Manual-BandsawFront view - Bianco-MS-Single-Mitre-Manual-Bandsaw

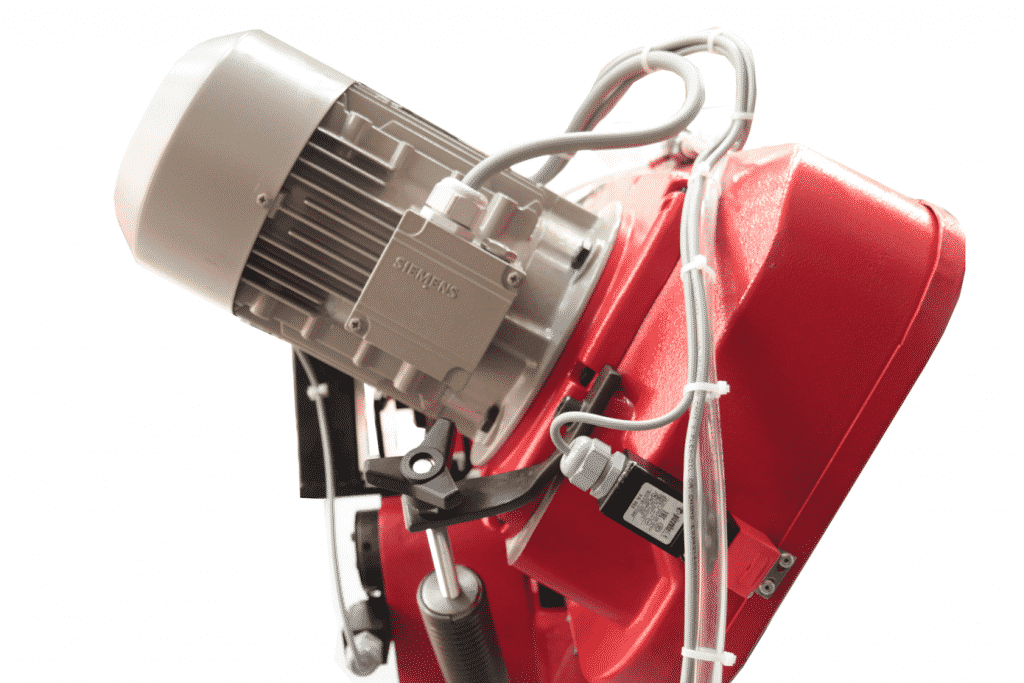

Close up detail of the Siemens Direct Drive MotorClose up detail of the Siemens Direct Drive Motor
Close up detail of the Mitring ScaleClose up detail of the Mitring Scale

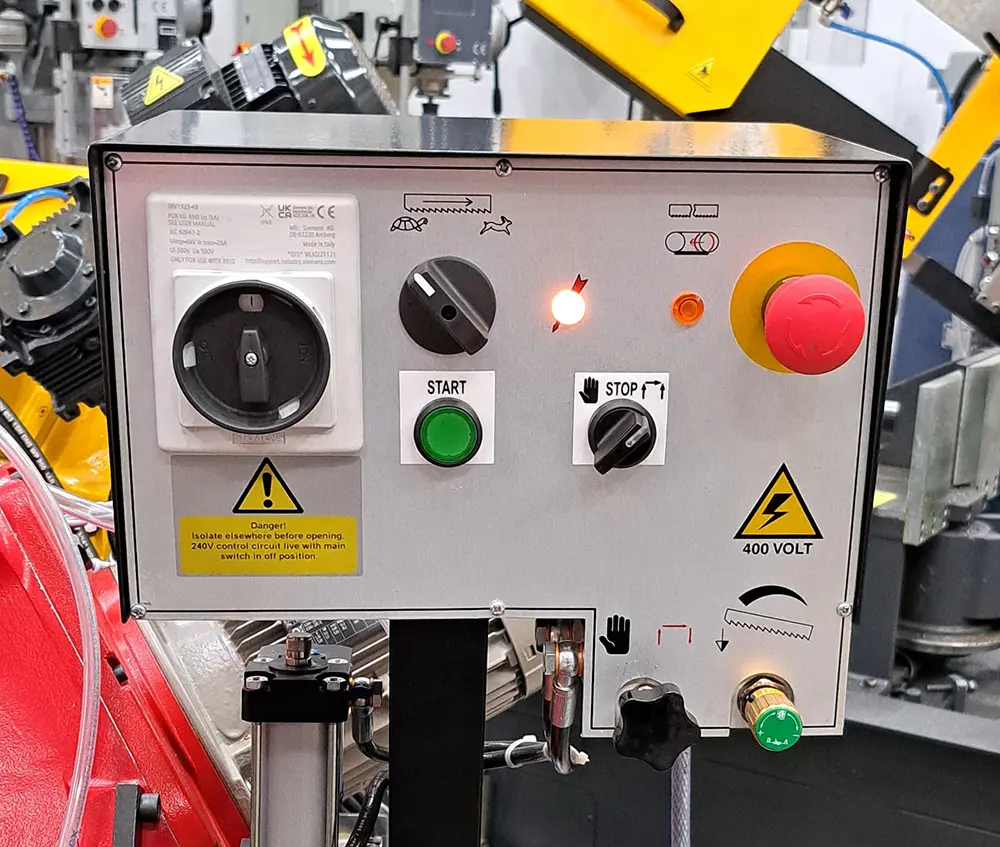

Detail of the Hydraulic Downfeed Controls on a Auto Down Feed Single Mitre BandsawDetail of the Hydraulic Downfeed Controls on a Auto Down Feed Single Mitre Bandsaw

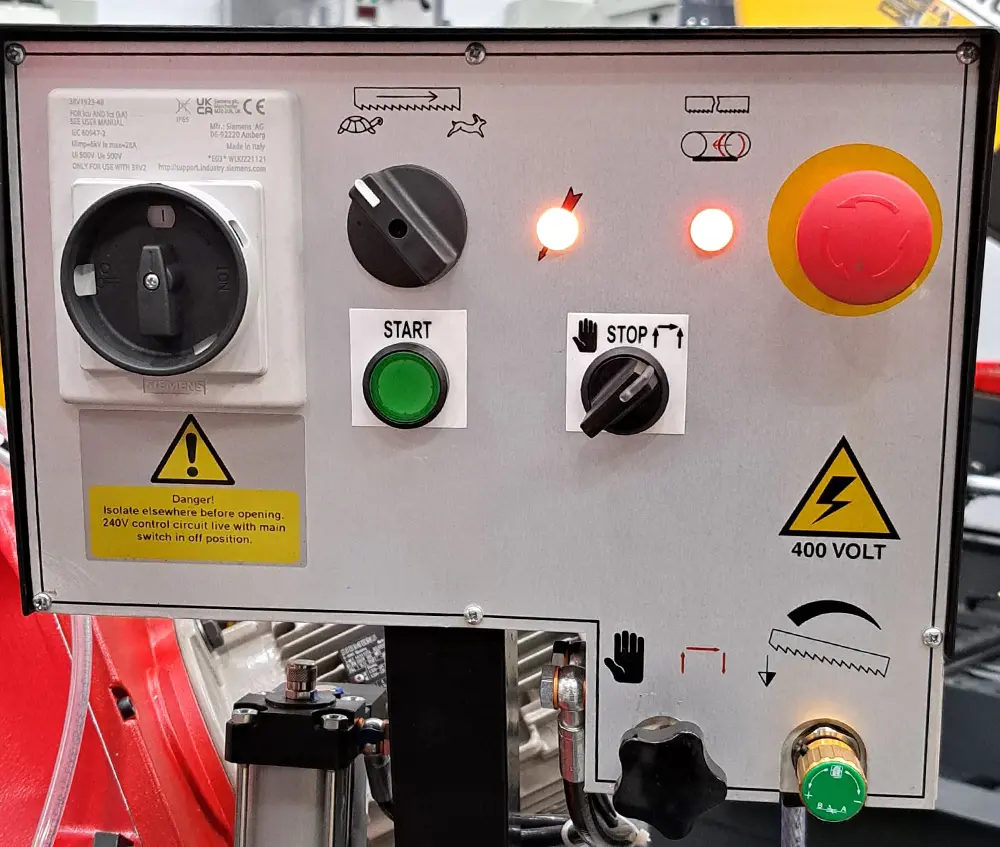

Close up detail of the Pull Down Auto Down Feed Bandsaw Control PanelClose up detail of the Pull Down Auto Down Feed Bandsaw Control Panel

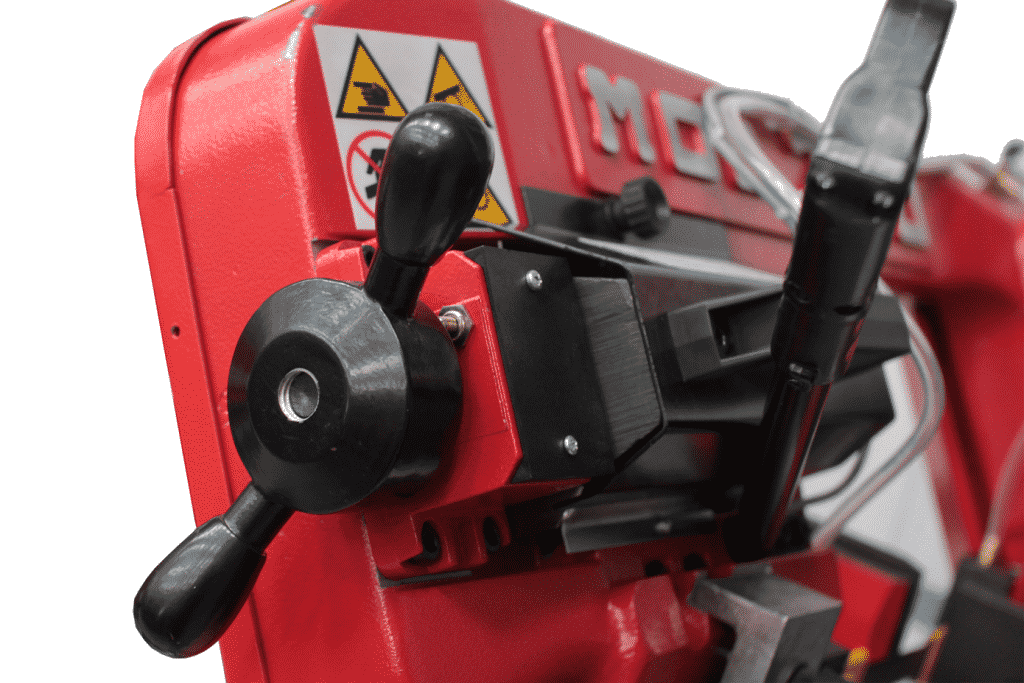

Close up detail of the blade tension with limit switchClose up detail of the blade tension with limit switch
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 11

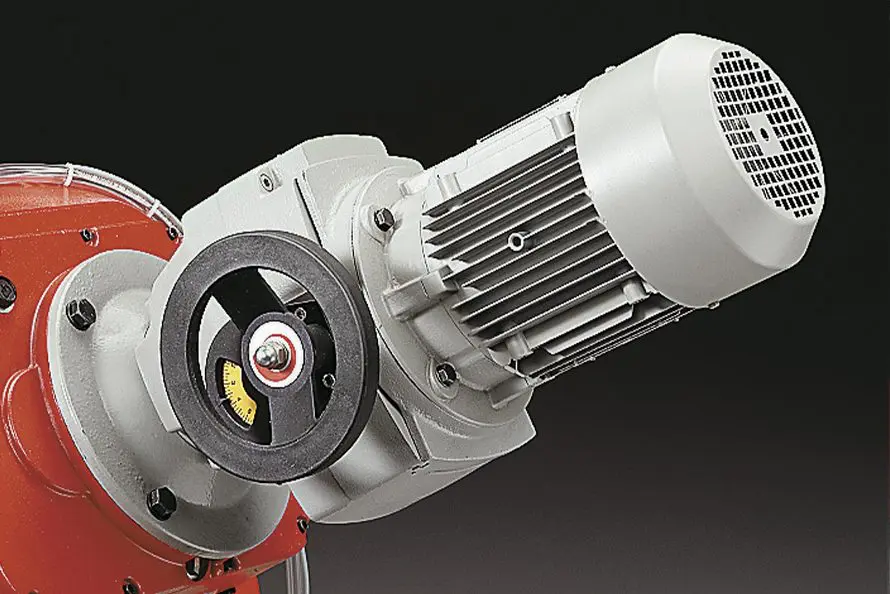

Variable Speed Motor
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 11
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 12

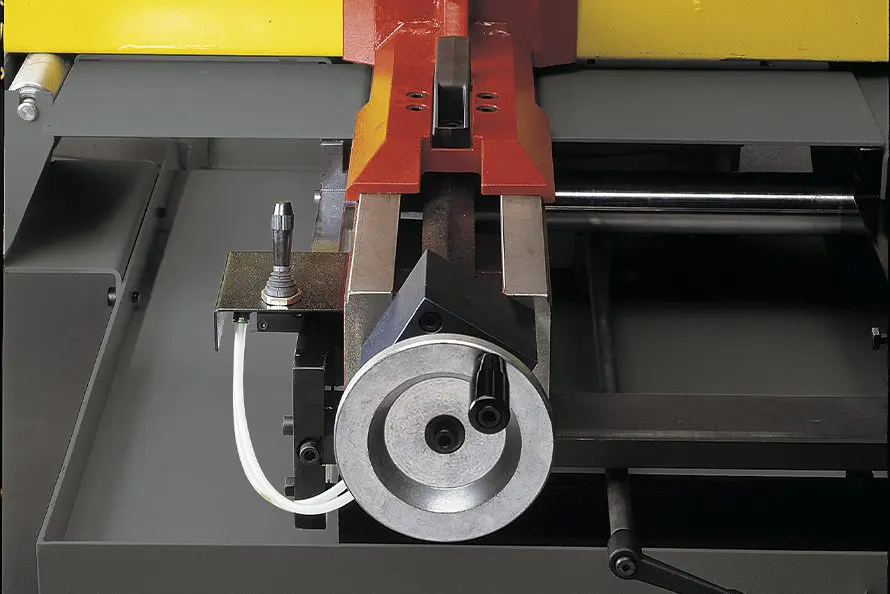

Pneumatic Vice (Optional)
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 12
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 13
Dry Cooling (Optional)
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 13
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 14

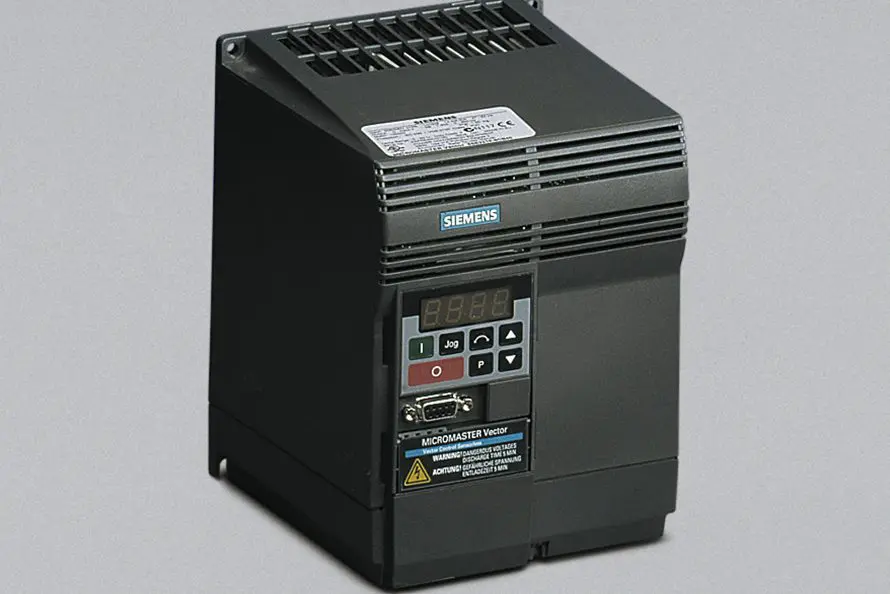

Frequency Inverter (Optional)
Bianco MS 280/420 Pull/Auto Down Single Mitre Bandsaw 415v image 14



MODEL 280M 280MS 330MS 420MS
STOCKCODE 15066 15069 15073 15083
Capacity 90° 45° 60° 90° 45° 60° 90° 45° 60° 90° 45° 60°
◯ Tube mm 220 160 95 220 160 95 260 200 120 300 240 170
▢ Box Section mm 220 155 95 220 155 95 220 190 115 260 230 170
▭ Widest Cut mm 260 x 140 160 x 140 95 x 95 260 x 140 160 x 140 95 x 95 330 x 140 200 x 130 120 x 100 420 x 180 250 x 180 170 x 170
Bed Height mm 970 970 830 830
Blade Size mm 2450 x 27 x 0.9 2450 x 27 x 0.9 3010 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 35/70 35/70 35/70 35/70
Motor Kw 0.5 – 1.1 0.5 – 1.1 0.7 – 1.4 0.7 – 1.4
Length mm 1200 1200 1400 1600
Width mm 800 800 900 1000
Height mm 1700 1700 1900 1900
Weight Kg 300 320 390 480
Operation Pull Down Pull Down/Auto Down Feed Pull Down/Auto Down Feed Pull Down/Auto Down Feed
Vice Manual Manual Manual Manual

Features

  • Special feature where you can choose between Instant pull down or switch to Automatic gravity down feed with variable control
  • Quick mitring swivel head up to 60°
  • Fast cutting
  • Cast bow construction
  • Carbide blade guides for high accuracy
  • 2 speed motor
  • Heavy Duty
  • Coolant System
  • Blade tension indicator
  • Safety interlock switch fitted to bandwheel cover
  • Material length stop

Options

  • Blade speed variation
  • Spray mist cooling system
  • Pneumatic Vice
  • Roller track and measuring systems

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

All M and MS models have quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees. Two speed motors allow for both the cutting of mild steel and stainless steel.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, plate and profiles, bandsaws like this are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
