Sterling SVR Vertical Bandsaws 415v
Sterling offer a wide range of sawing solutions including circular saws, horizontal bandsaws, twin column bandsaws and the SVR range of vertical bandsaws. The SVR range consists of four models of varying throat capacities. They are all equipped with blade shear, blade welder and grinder as standard equipment.

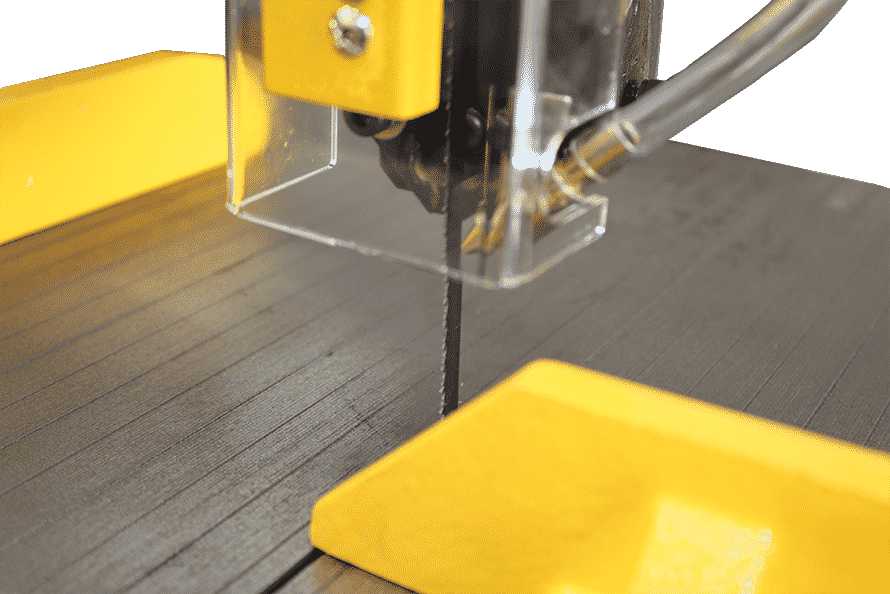

The blade can be set as narrow as 3mm, which is ideal for producing curved shapes and extends to 16mm. Together with the adjustable fence, this is perfect for straight cutting. With additional guards, the blades can extend up to a 27mm. Our range of vertical bandsaws are capable of cutting a variety of materials. These include: Iron, Steel, Plastic, Wood, Resin and paper. Constructed from fabricated steel, they are rigid, robust and made to last.
Vertical bandsaws are ideal for cutting angles, mitres and curved shapes. Vertical bandsaws are ideal for intricate work, where you need more finesse. Also, the blades are more flexible, and the machines themselves tend to be more economical than their horizontal bandsaw equivalents. They also take up less workshop space, ideal for small workshops where space is a premium.
We also supply bandsaw blades too, these can be purchased directly off our tooling website.
| Cutting height | Cutting depth | Table size | Cutting speed | Blade length | Blade width | Motor | Length | Width | Height | Weight | ||
| MODEL | STOCK CODE | mm | mm | mm | m/min | mm | mm | kw | mm | mm | mm | kg |
| SVR400 | 15456 | 300 | 410 | 600 x 500 | 20 – 500 | 3350 | 3.0 – 16 (Welded)
3.0 – 27 (Unwelded) |
1.5 | 1200 | 760 | 2100 | 440 |
| SVR500 | 15457 | 310 | 520 | 600 x 500 | 20 – 500 | 3880 | 1.5 | 1300 | 760 | 2140 | 500 | |
| SVR600 | 15458 | 340 | 610 | 600 x 500 | 20 – 500 | 3970 | 1.5 | 1420 | 760 | 2140 | 700 | |
| SVR1000 | 15459 | 340 | 1010 | Front: 600 x 500 Rear: 450 x 500 |
20 – 500 | 4540 | 1.5 | 1770 | 760 | 2140 | 800 |
Features
SVR400, SVR500 & SVR600
- Wide range of blade widths
- Swarf brush
- Low voltage work light

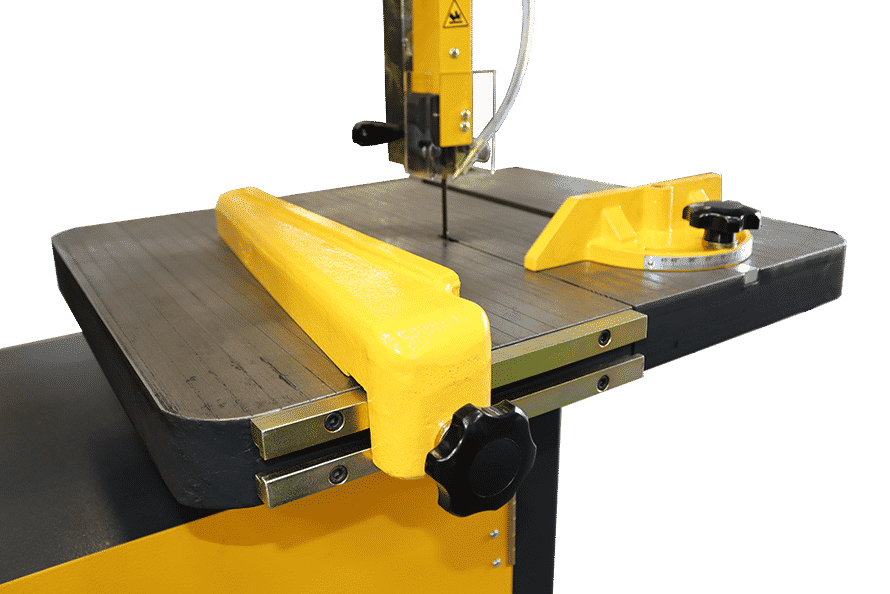

- Adjustable fence for straight cutting
- Variable protractor fence for angle cutting
- Inclinable table – 5 degrees left and 15 degrees right
- Variable 2 speed motor
SVR1000
- Accepts blade widths from 3 to 16mm
- Variable cutting speed
- Swarf removal brush

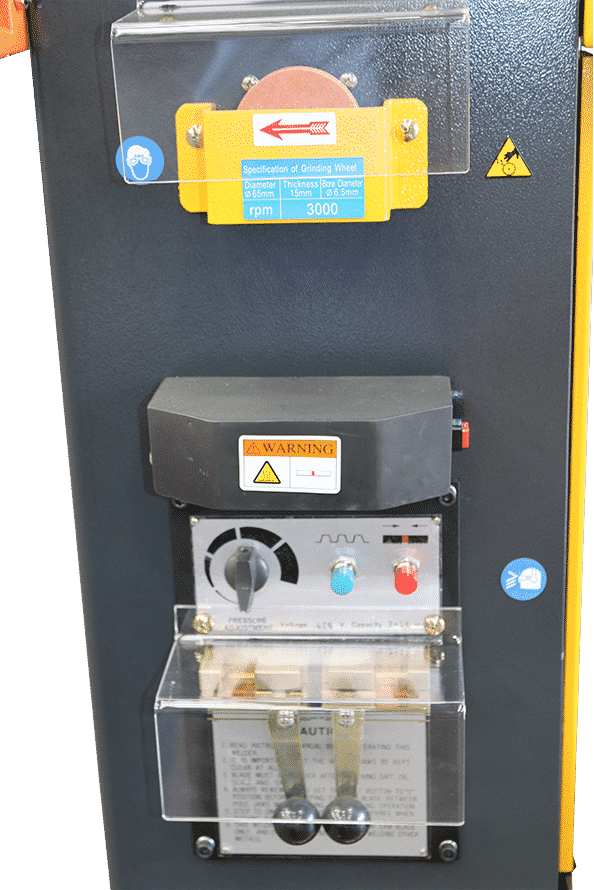

- Integrated blade welder and grinder
- Low voltage working light
Options
SVR1000 only
- Rip fence
- Mitre fence
Sterling offer a wide range of sawing solutions including circular saws, horizontal bandsaws, twin column bandsaws and the SVR range of vertical bandsaws. The SVR range consists of four models of varying throat capacities. They are all equipped with blade shear, blade welder and grinder as standard equipment.
The blade can be set as narrow as 3mm, which is ideal for producing curved shapes and extends to 16mm. Together with the adjustable fence, this is perfect for straight cutting. With additional guards, the blades can extend up to a 27mm. Our range of vertical bandsaws are capable of cutting a variety of materials. These include: Iron, Steel, Plastic, Wood, Resin and paper. Constructed from fabricated steel, they are rigid, robust and made to last.
Vertical bandsaws are ideal for cutting angles, mitres and curved shapes. Vertical bandsaws are ideal for intricate work, where you need more finesse. Also, the blades are more flexible, and the machines themselves tend to be more economical than their horizontal bandsaw equivalents. They also take up less workshop space, ideal for small workshops where space is a premium.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
