Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V

Sterling STC SA 810

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws with the Sterling STC SA twin column, semi automatic, single mitre bandsaw being no exception.

Sterling STC SA 810
Sterling STC SA 810Sterling STC SA 810
Video thumbnail showing the Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 3

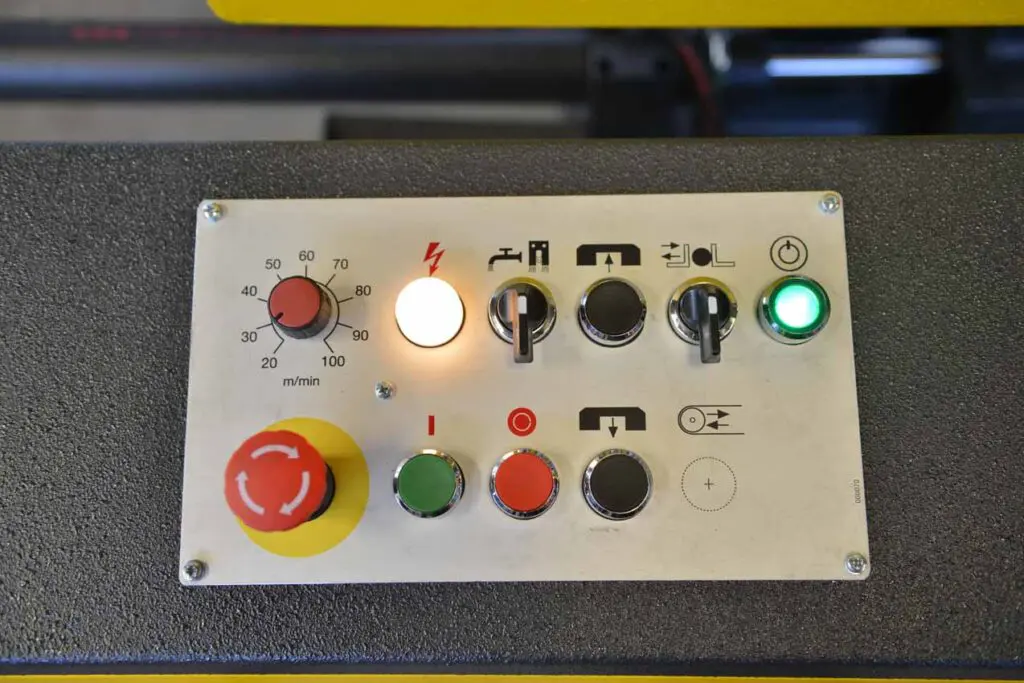

Control Panel (Panels will vary depending on selected options)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 3
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 4

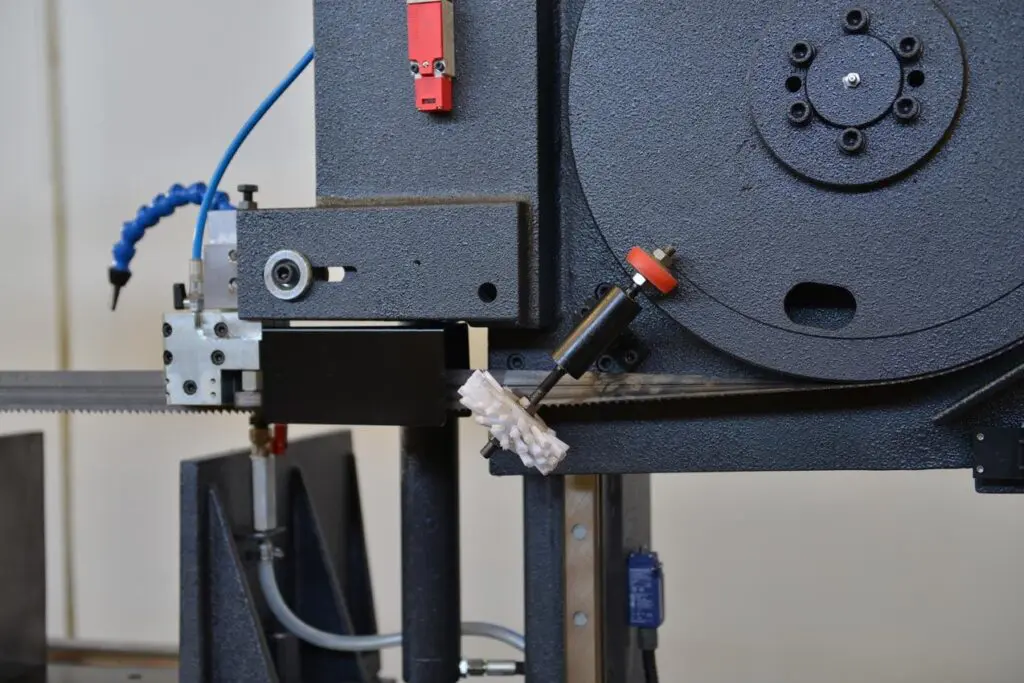

Swarf Brush
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 4
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 5

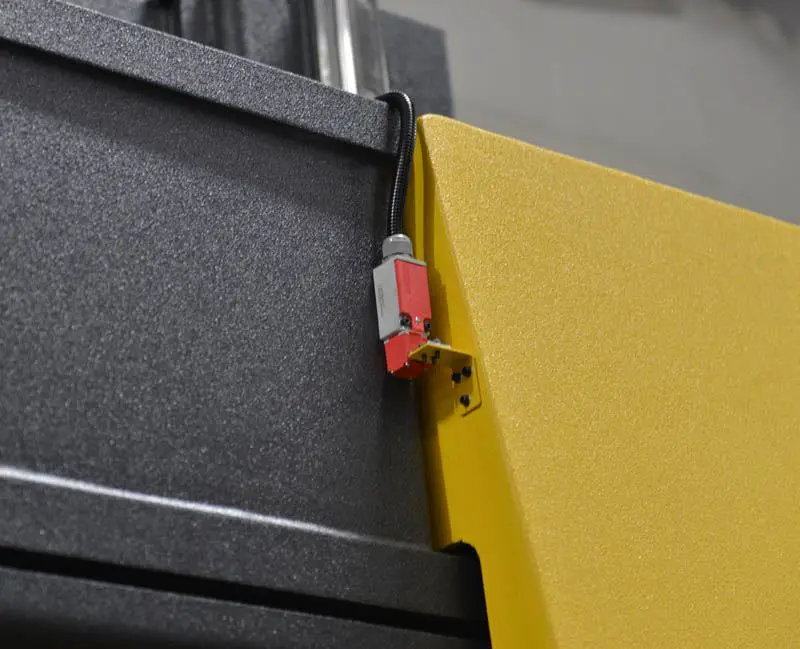

Security Switch
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 5
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 6

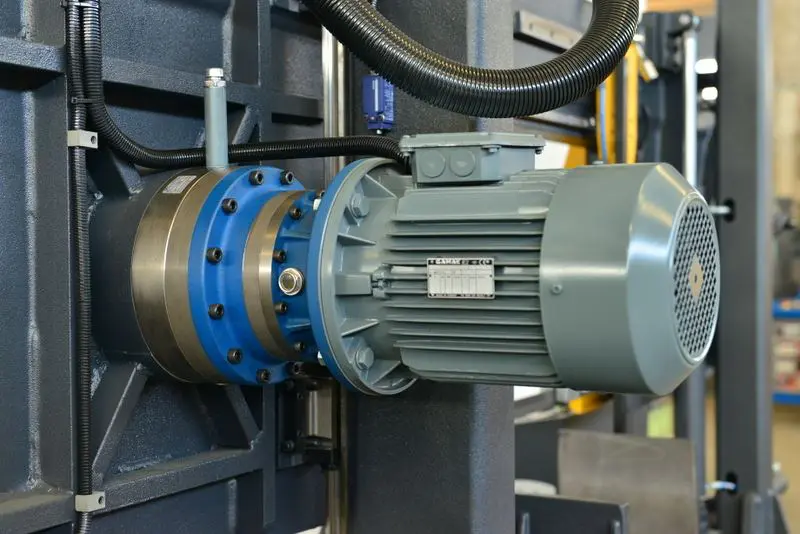

Heavy Duty Gearbox
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 6
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 7

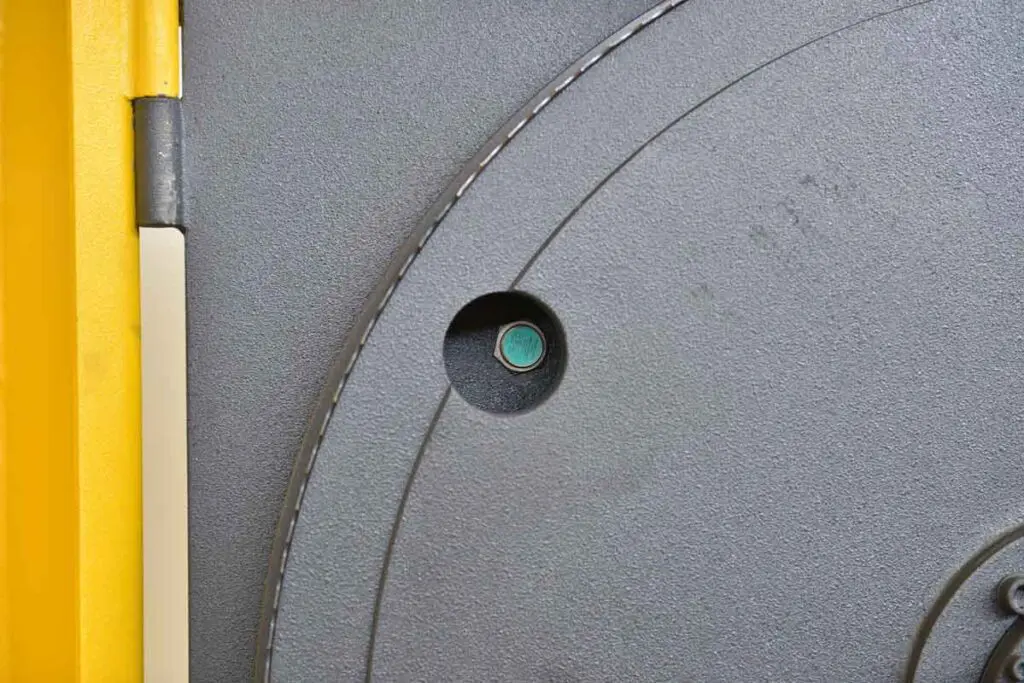

Proximity Switch for Sensing Blade Slippage
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 7
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 8

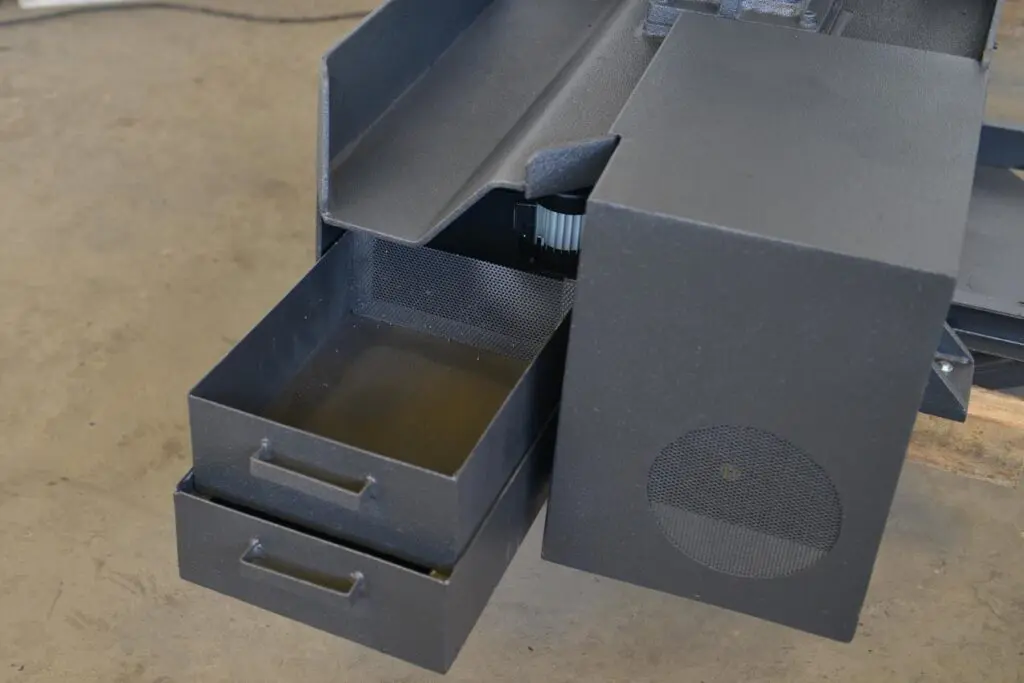

Coolant Pump
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 8
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 9

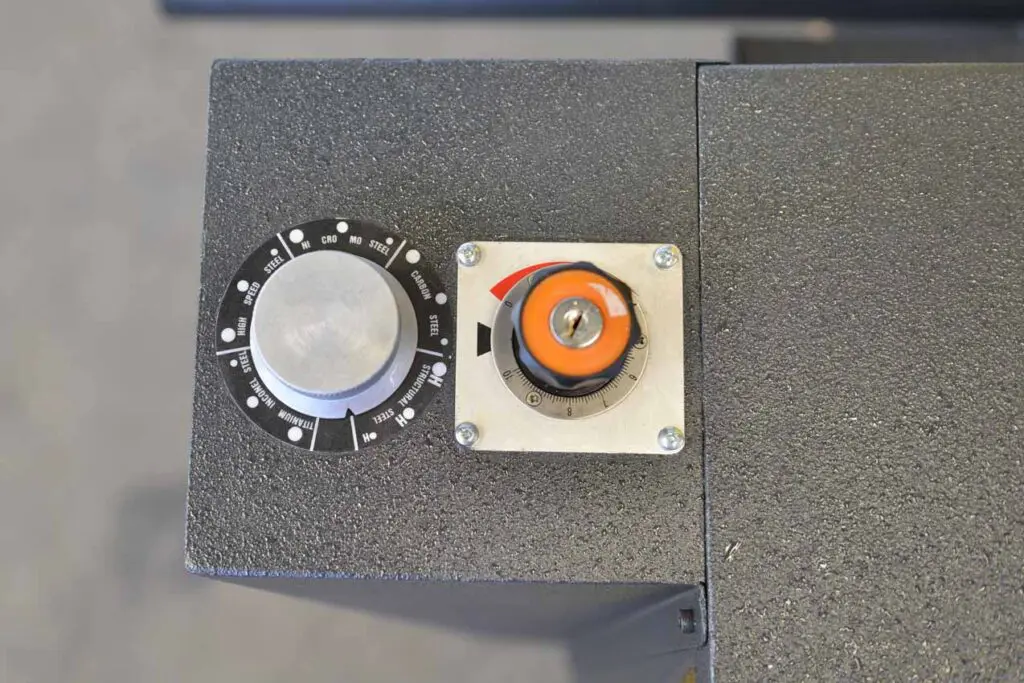

Variable Vice Pressure
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 9
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 10

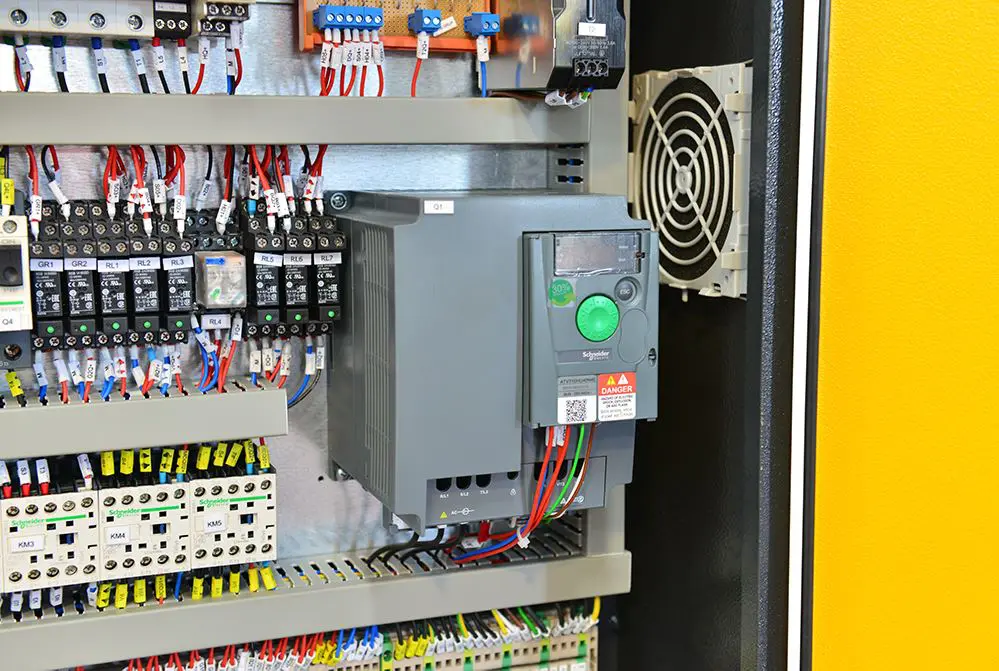

Inverter
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 10
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 11

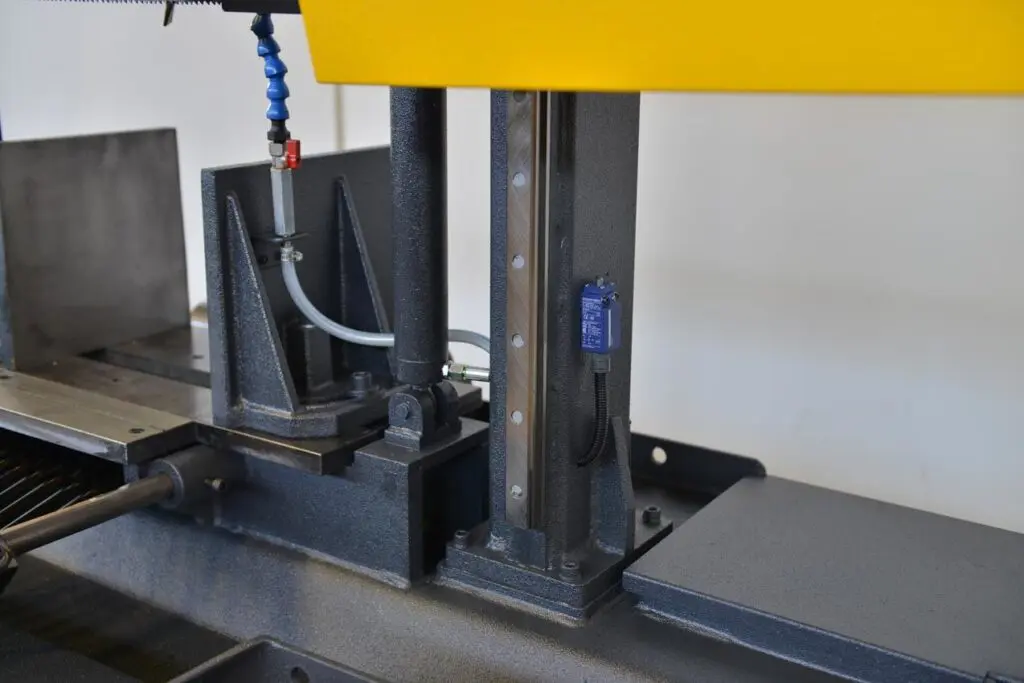

Linear Guides
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 11
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 12

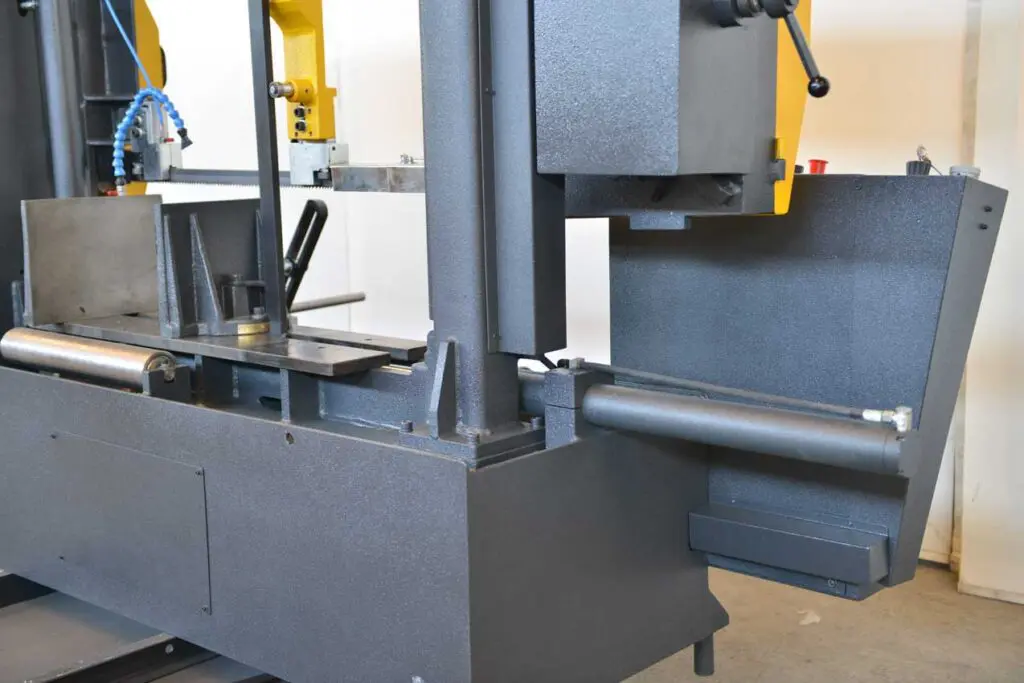

Hydraulic Vice
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 12
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 13

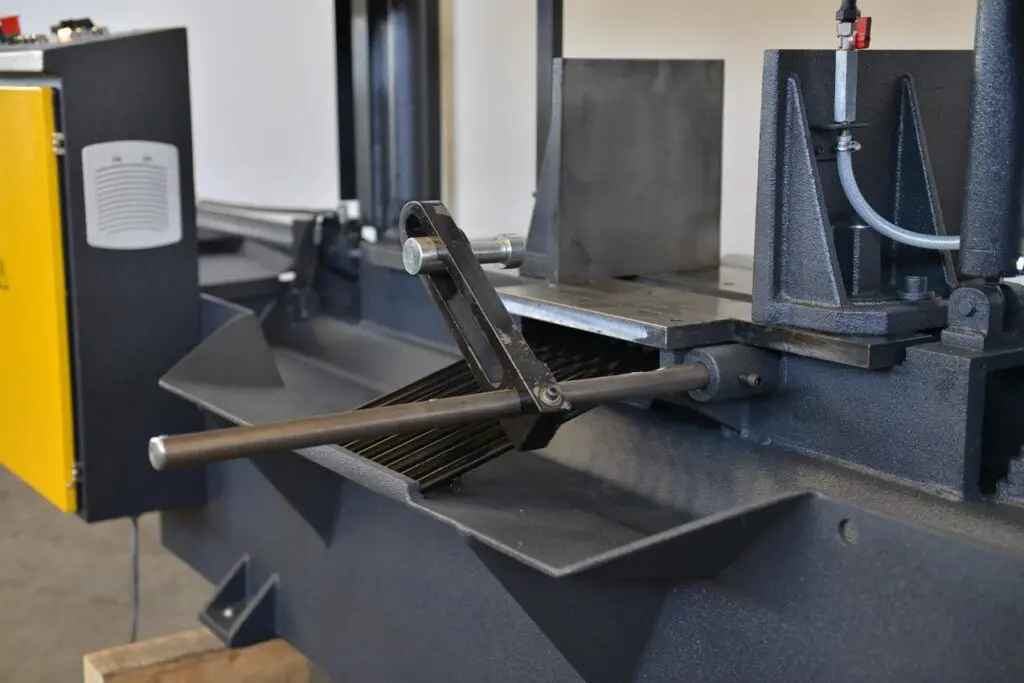

Material Limit Shaft
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 13
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 14

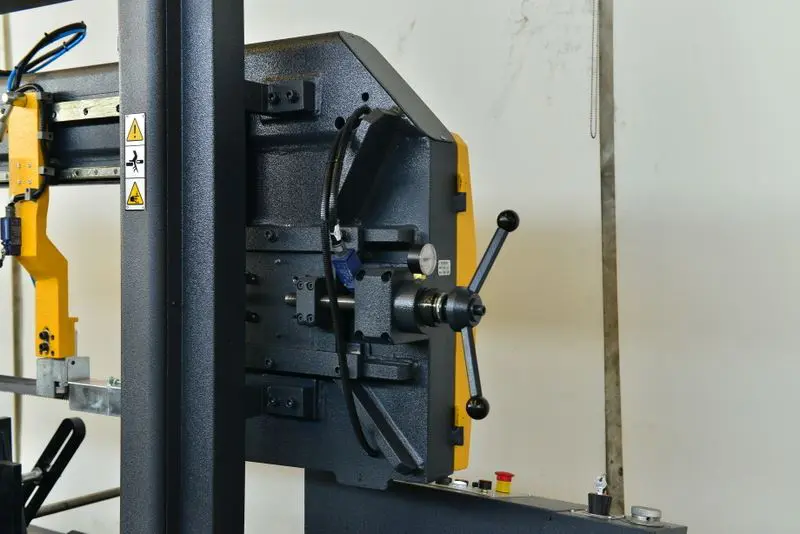

Hydromechanical Blade Tension
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 14
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 15

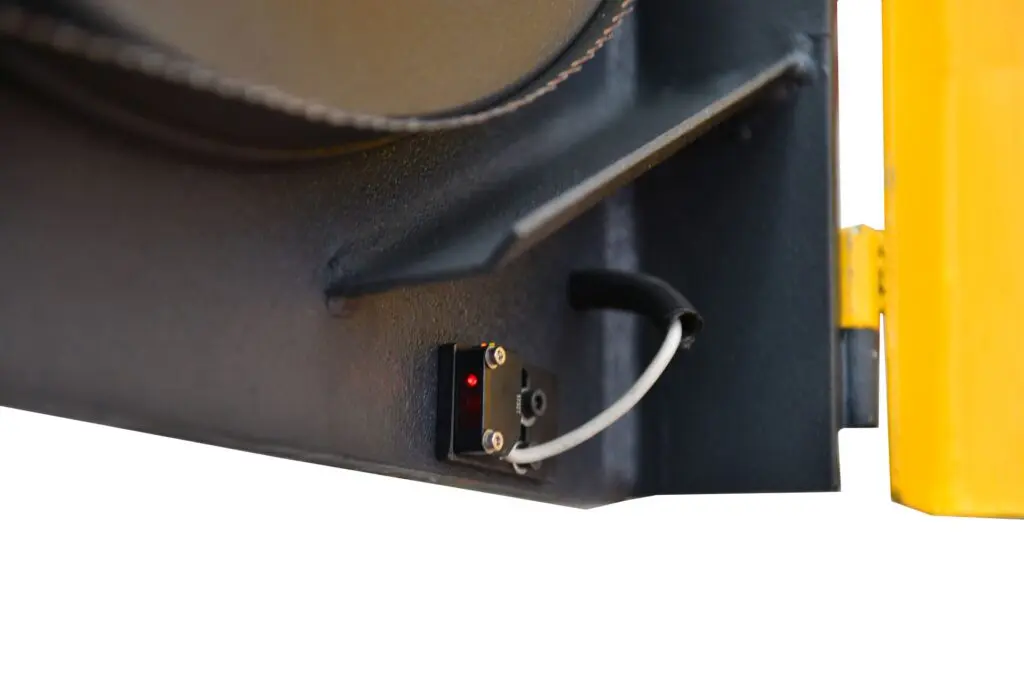

Optical Height Adjustment
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 15
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 16

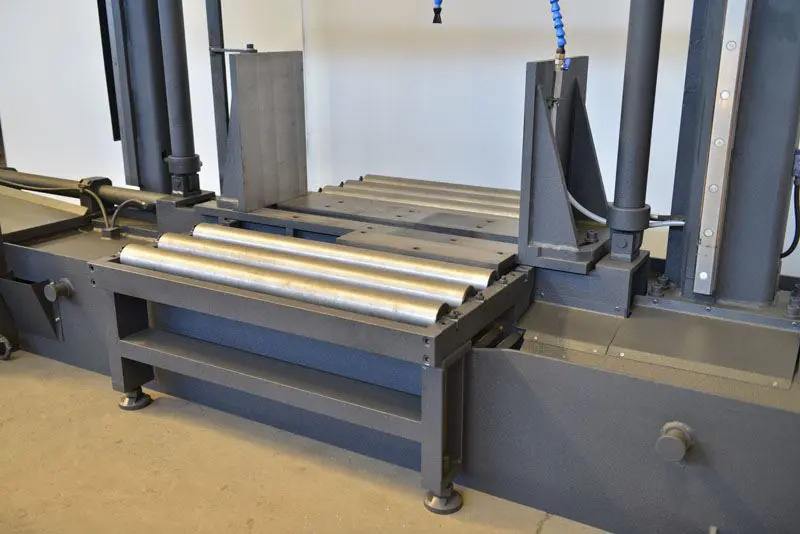

Input Output Feed Rollers (Exact configuration varies between models)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 16
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 17

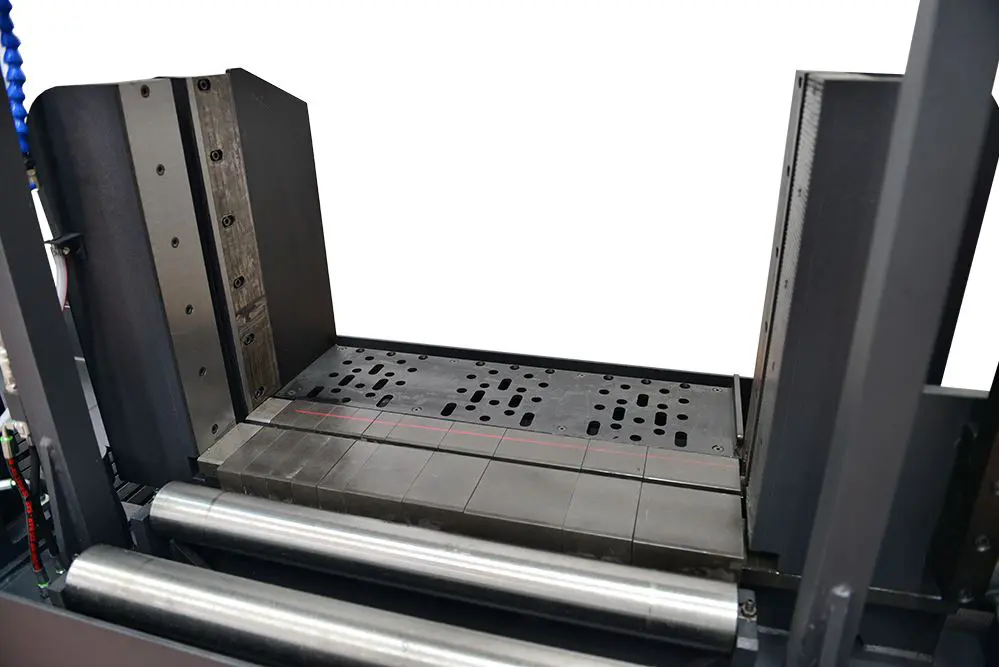

Split Vice (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 17
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 18

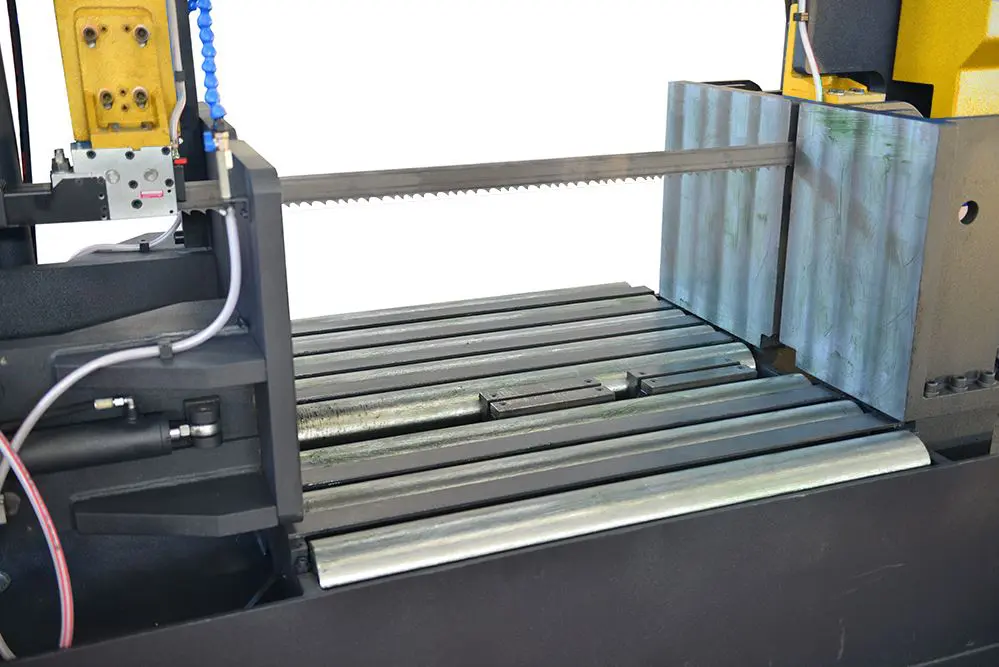

Second Vice (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 18
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 19

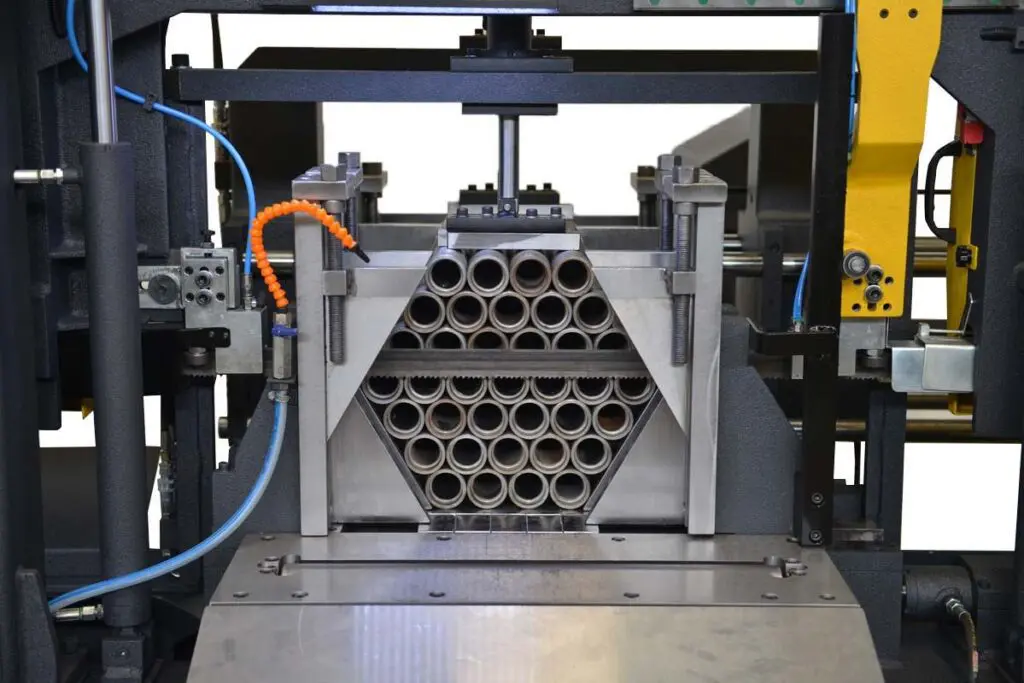

Hexagonal Vice for Bundle Cutting (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 19
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 20

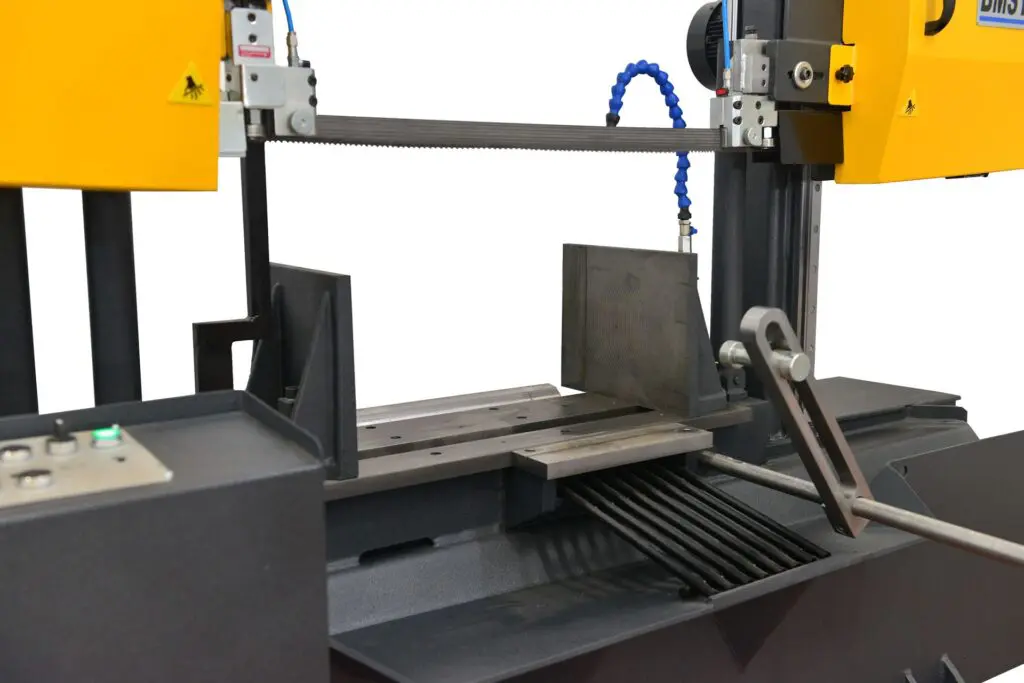

High Vice (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 20
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 21

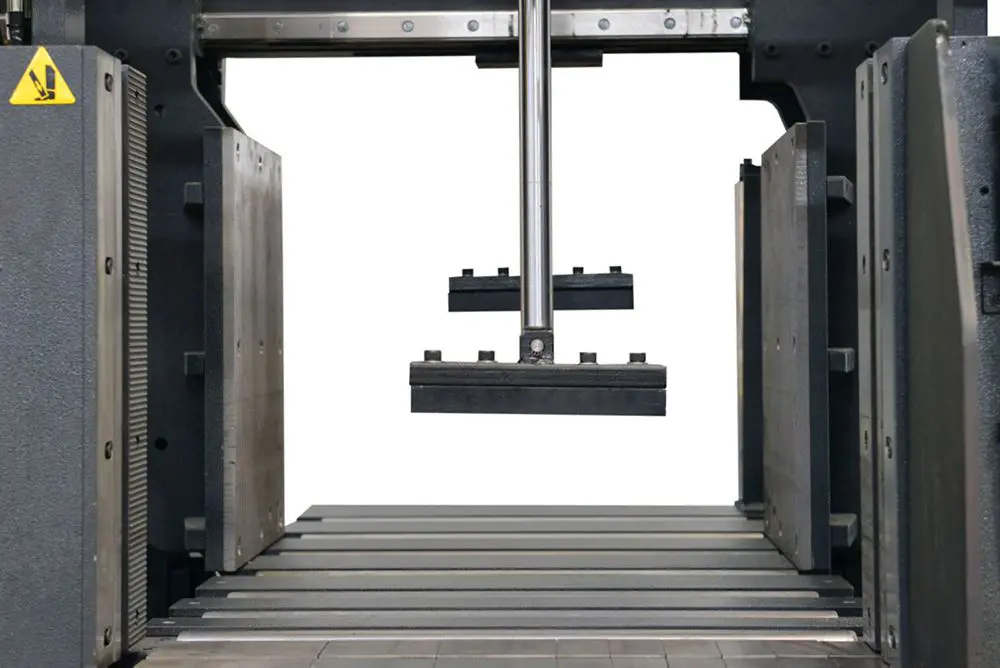

Hydraulic Top Clamping
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 21
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 22

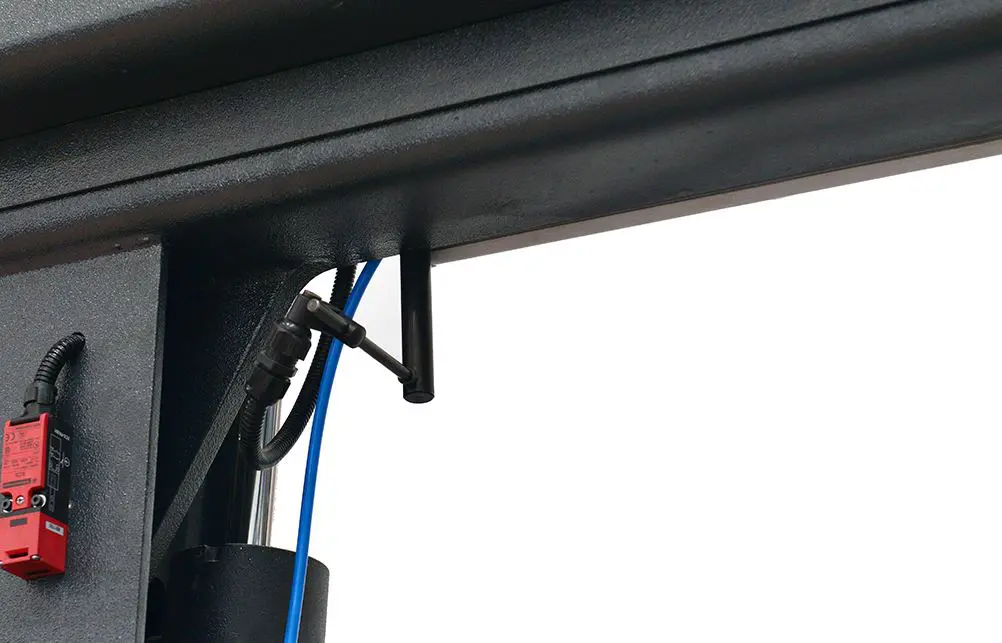

Laser Cutting Line (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 22
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 23

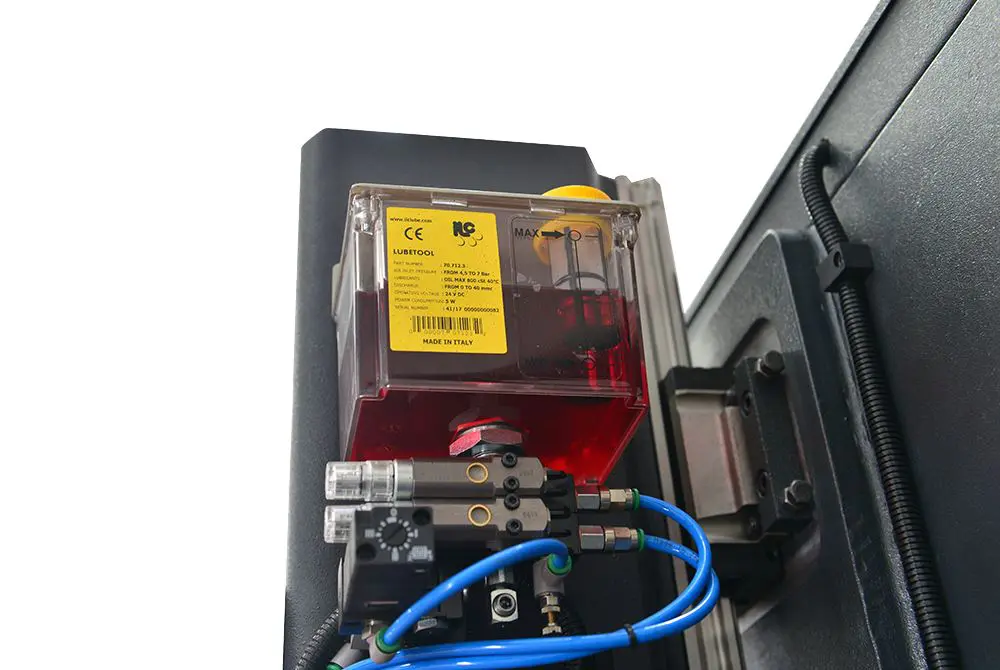

Spraymist Coolant (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 23
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 24

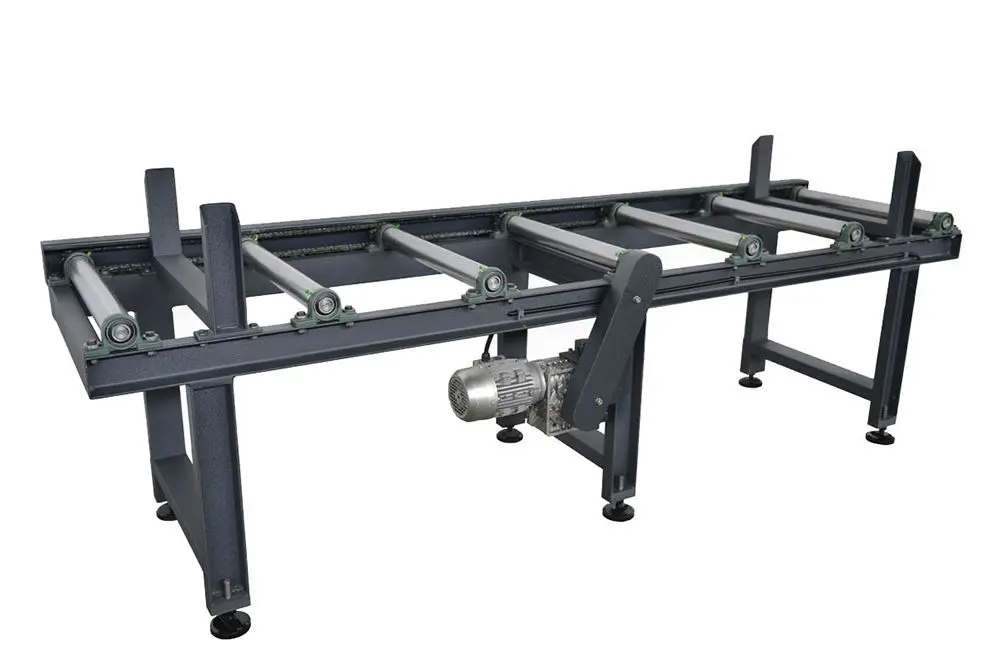

Motorised Roller Track (Optional)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 24
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 25

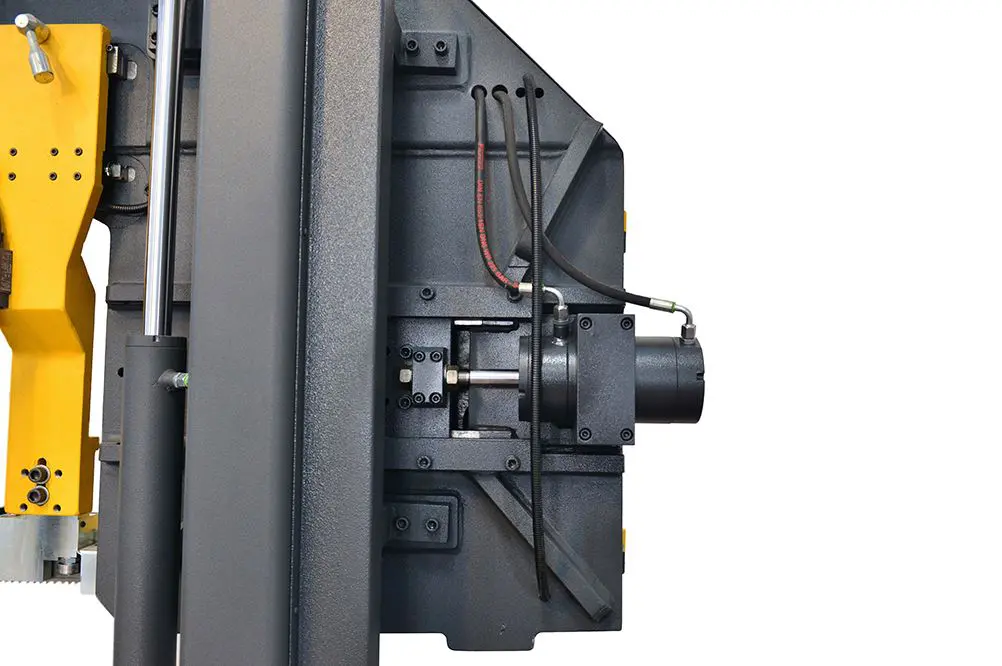

Hydraulic Blade Tension (Optional - standard on STC 1020SA and larger models)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 25
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 26

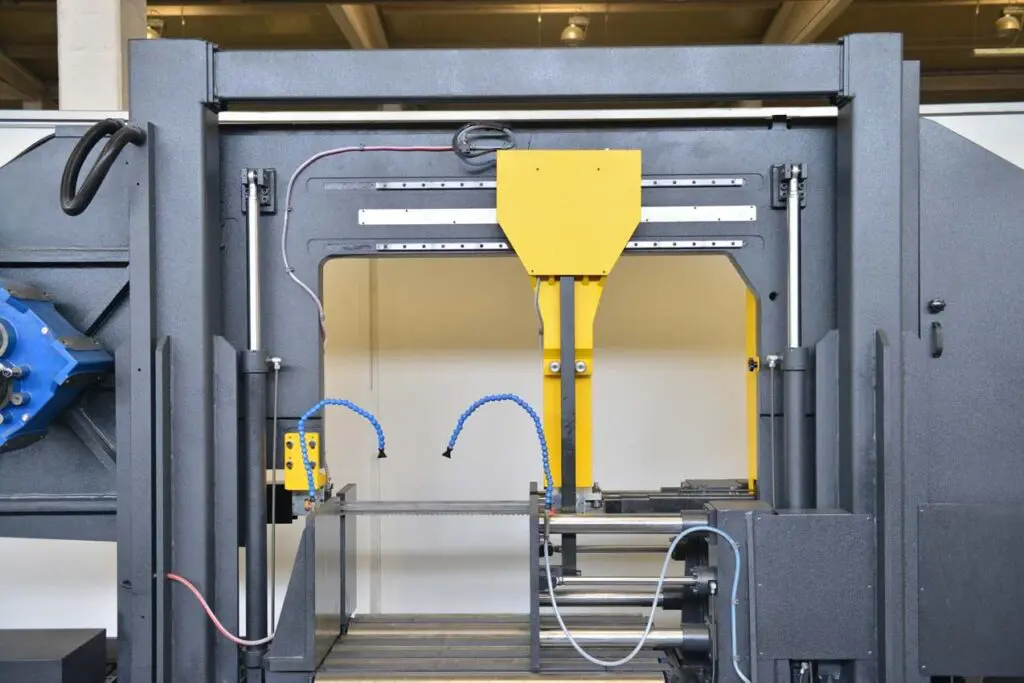

Synchronisation Moveable Arm Vice (STC 1110 and STC 1313 only)
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 26
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 27

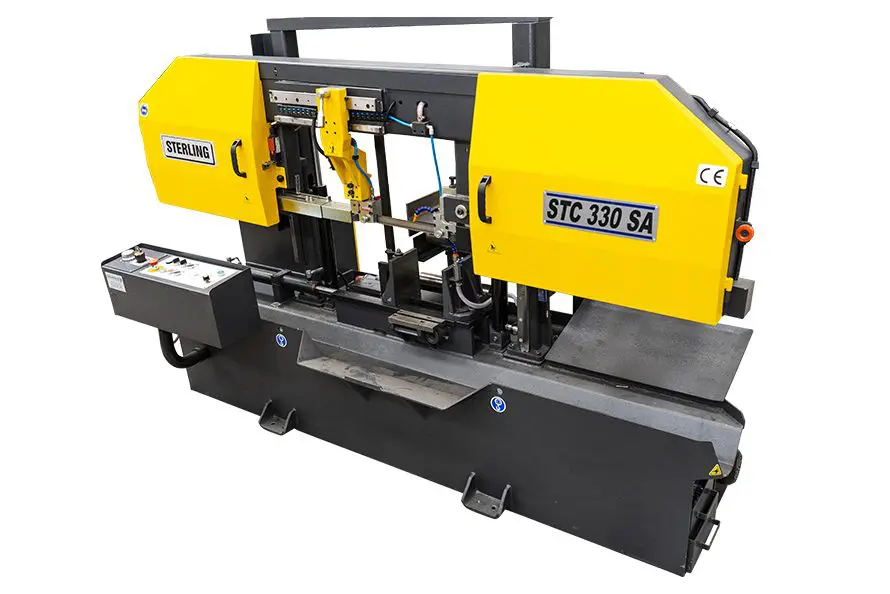

STC 330 SA
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 27
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 28

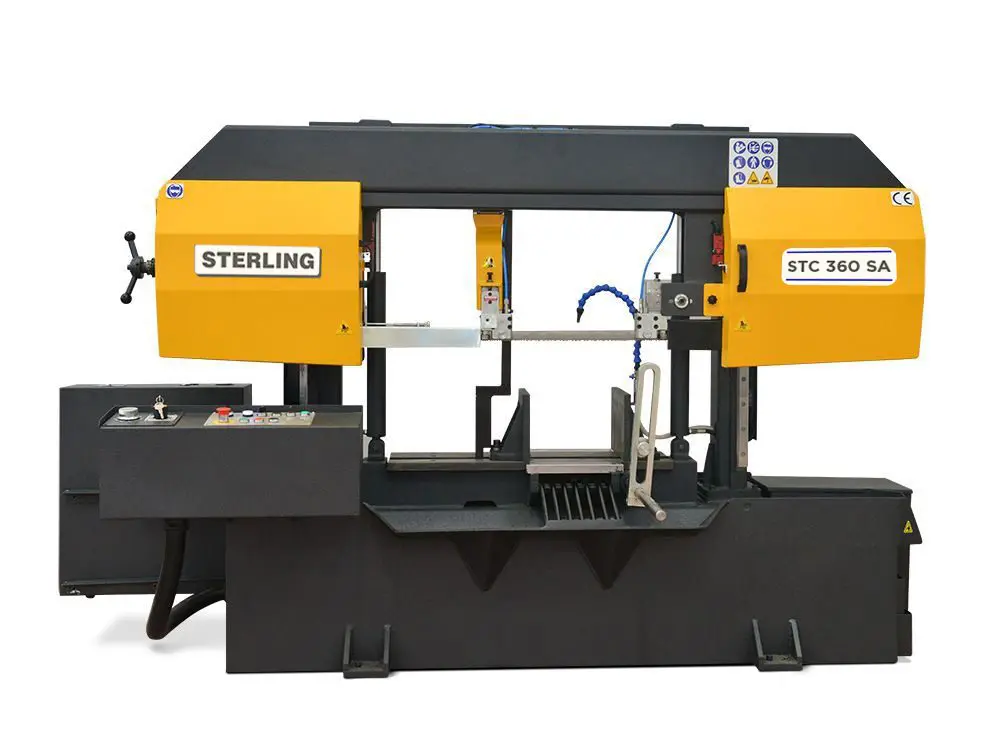

STC 360 SA
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 28
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 29

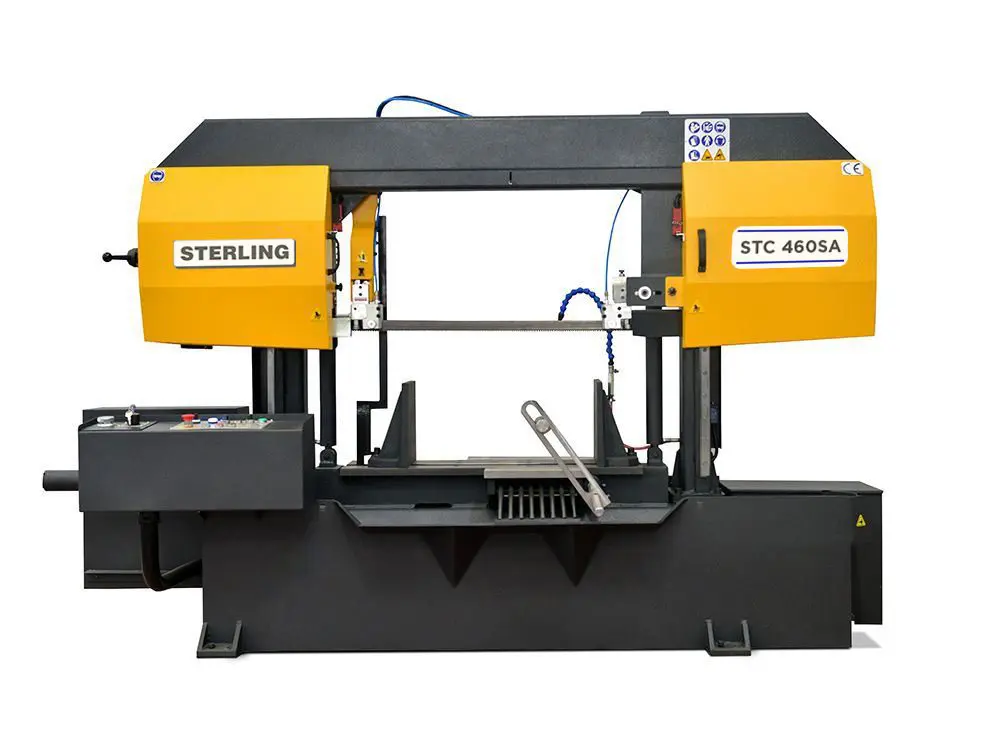

STC 460 SA
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 29
Sterling STC SA 810Sterling STC SA 810
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 31

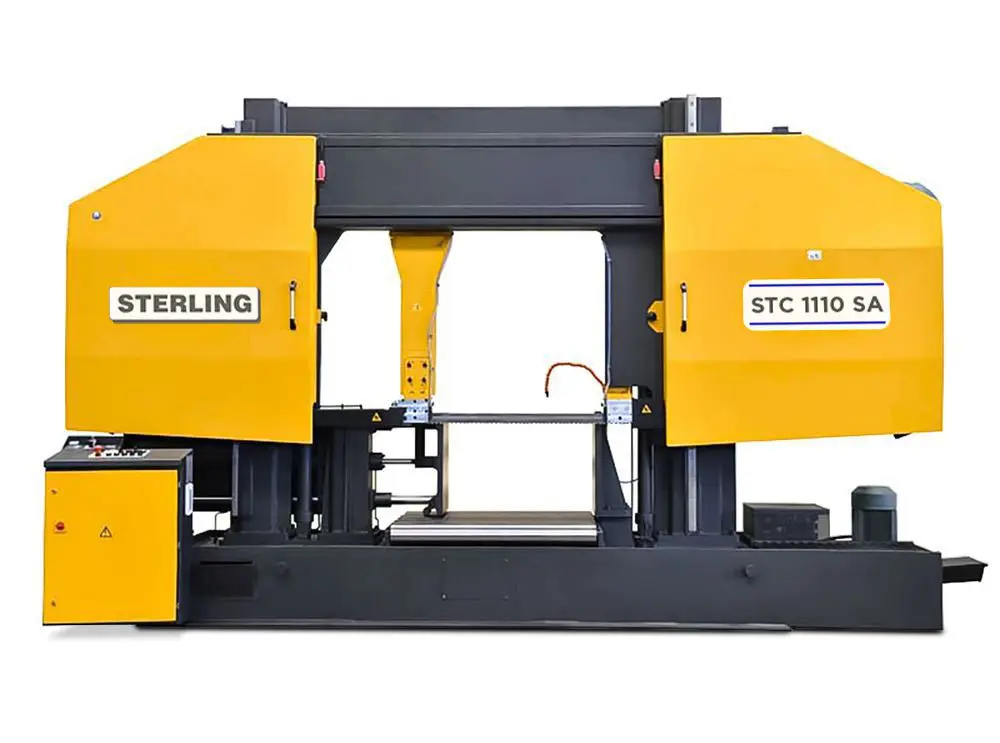

STC 1110 SA
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 31
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 32

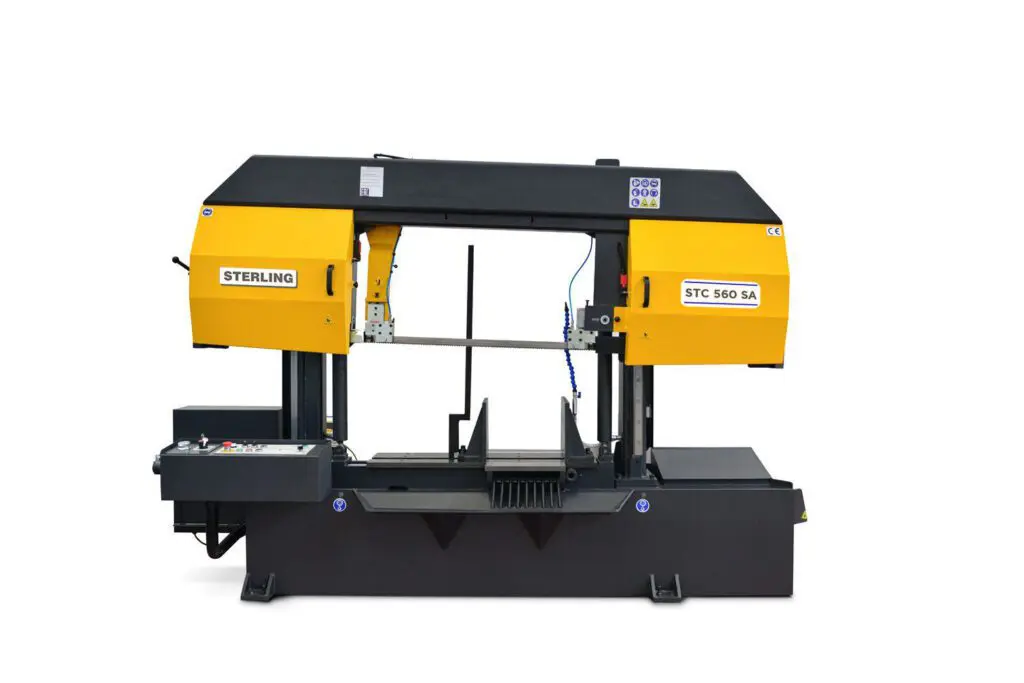

STC 560 SA
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 32
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 33

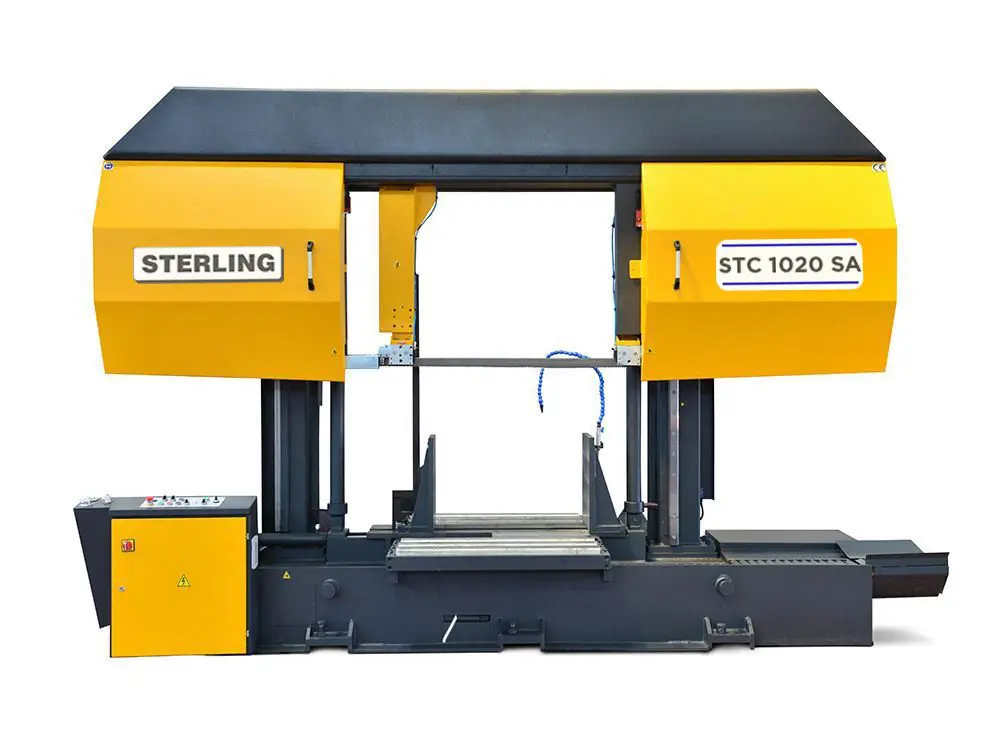

STC 1020 SA
Sterling STC SA Twin Column Semi-Automatic Bandsaw 415V image 33
MODEL   STC330 SA   STC360 SA   STC460 SA   STC560 SA   STC810 SA   STC820 SA   STC1020 SA   STC1110 SA STC1313 SA
STOCKCODE 15163 15151 15165 15188 15164 15166 15187 15165 15188
Capacity 90° 45° 90° 45° 90° 45° 90° 45° 90° 45° 90° 45° 90° 45° 90° 90°
◯ Round mm 330 300 380 300 460 380 560 410 810 480 820 480 1020 675 1110 1300
□ Square mm 330 300 380 300 460 380 560 410 810 480 820 480 1020 675 1110 1300
▭ Rectangle mm 360 x 330 300 x 380 520 x 380 300 x 380 650 x 460 380 x 460 750 x 560 410 x 560 850 x 810 480 x 810 850 x 820 480 x 820 1020 x 1020 675 x 1020 1110 x 1110 1300 x 1300
Bed Height mm 635 590 590 590 585 585 535 545 545
Blade Size mm 5000 x 34 x 1.1 4800 x 34 x 1.1 5200 x 41 x 1.3 6000 x 41 x 1.3 8200 x 41 x 1.3 8200 x 54 x 1.6 9500 x 54 x 1.6 10500 x 67 x 1.6 12100 x 67 x 1.6
Cutting Speed m/min 20 – 100 20 – 100 20 – 100 20 – 100 20 – 100 20 – 100 20 – 100 20 – 100 20 – 100
Motor Kw 3 3 4 4 4 7.5 7.5 11 11
Length mm 2830 2850 3100 3400 3900 3900 4500 4800 5300
Width mm 920 930 1000 1000 1200 1200 1700 1500 1500
Height mm 1630 1660 1800 2050 2350 2350 2750 2975 3175
Weight Kg 1030 1330 1520 2045 3080 3424 5860 10440 11500
Operation Semi-automatic Semi-automatic Semi-automatic Semi-automatic Semi-automatic Semi-Automatic Semi-automatic Semi-automatic Semi-automatic
Vice Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic Hydraulic

Features

  • Twin column rigidity
  • Linear guidance bearing
  • Inverter drive providing infinitely variable blade speed
  • Material limit shaft
  • Automatic bow return
  • Hydraulic vice
  • Hydromechanical Blade Tension indicator (Hydraulic as standard on STC 1020 and above)
  • Carbide blade guides
  • Flood Coolant system
  • Variable Vice Pressure
  • Optical Height Adjustment
  • Heavy Duty Gearbox
  • Interlocking Security Switches for CE compliance
  • Chip Conveyor (STC1110 SA and STC1313 SA only)
  • Synchronisation Moveable Arm / Vice (STC1110 SA and STC1313 SA only)

Options

  • Hydraulic blade tension (Standard on STC 1020 and above)
  • Hydraulic top clamps
  • Chip conveyor (Standard on STC1110 SA and STC1313 SA)
  • Spray mist lubrication
  • Laser cutting line
  • Digital bow return height
  • Roller track and measuring systems
  • Motorised Roller Track Segments (Infeed or Outfeed)
  • High Vice (for increased stability)
  • Split Vice (for increased stability)
  • Double / Second Vice (for increased stability)
  • Hexagonal Vice (for bundles of material)

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws with the Sterling STC SA twin column, semi automatic, single mitre bandsaw being no exception.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC SA Twin Column Semi-Automatic Bandsaw are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
