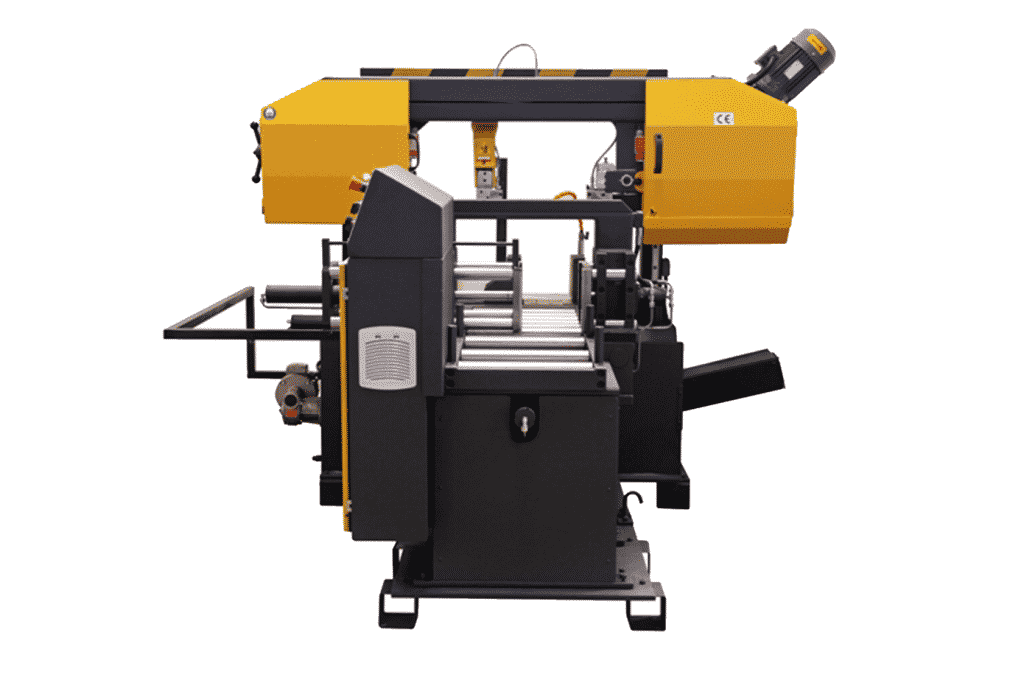

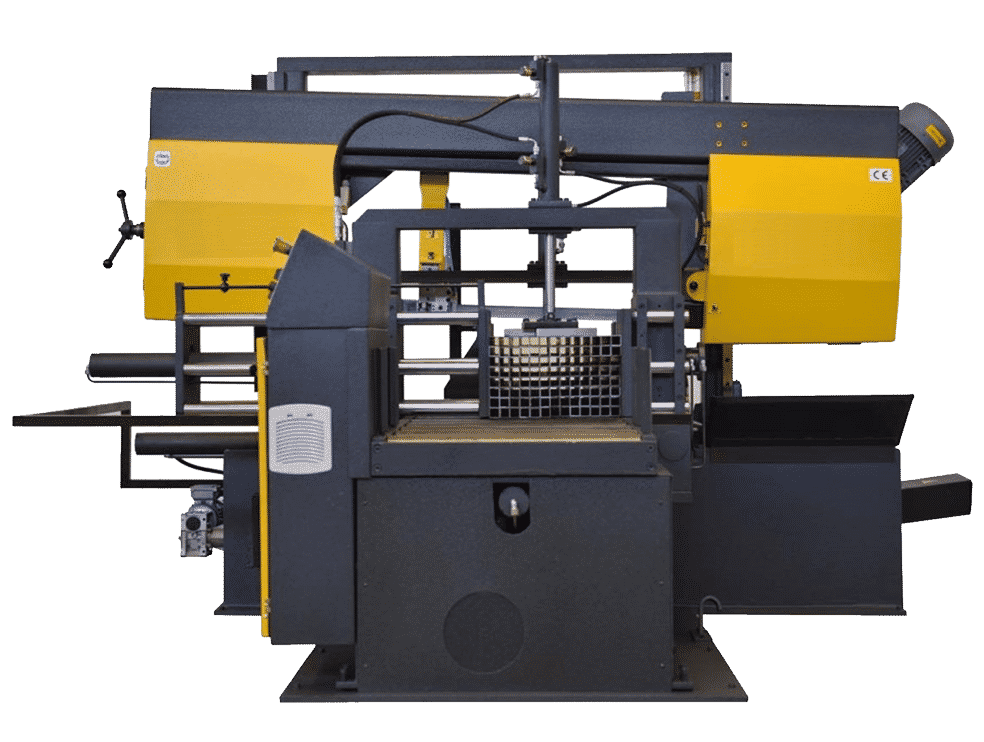

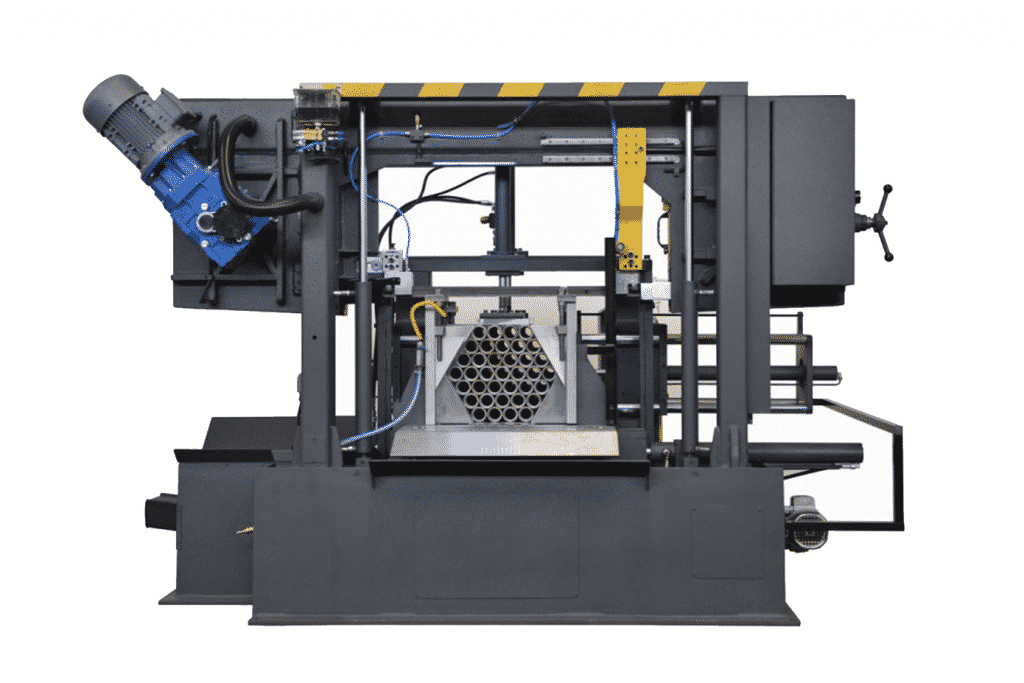

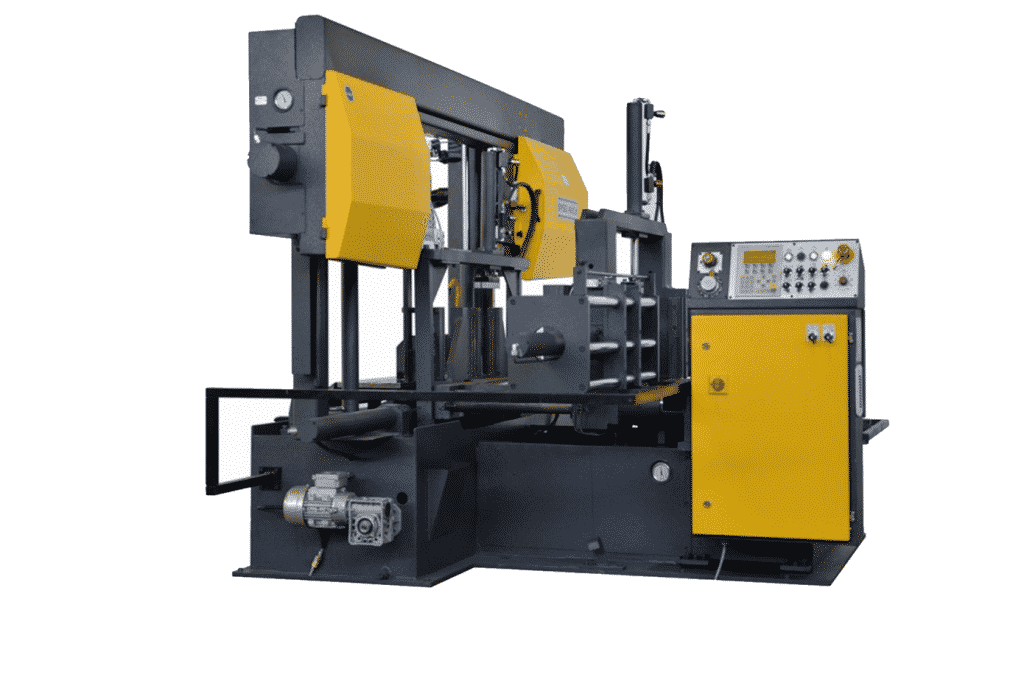

Sterling STC HA NC Twin Column Automatic Bandsaw
The Sterling range of heavy duty bandsaws follow the traditional pattern of manual, semi automatic and fully automatic models. The STC models are of highly rigid twin column design and include options of both straight cutting and mitring models with capacities ranging from 320mm round up to a huge 1100mm round. Automatic material feed is offered in both the traditional roller feed design and the modern shuttle vice feed with NC control. Models with inclined blades and mitring head configuration, particularly suited to structural work, are available. These include digital angle display and even powered mitring capability. All variations are finished to an exceptional standard and are constructed for a long working life.

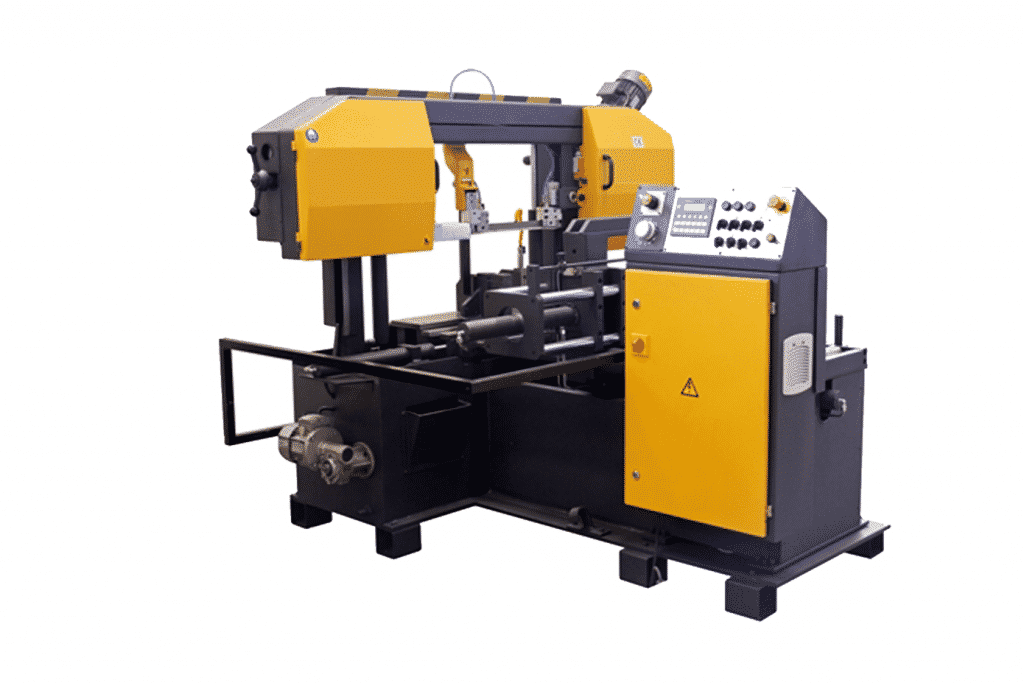

| MODEL | STC325 A NC | STC360 A NC | STC460 A NC | STC560 A NC | |
| STOCKCODE | 15194 | 15195 | 15178 | 15196 | |
| Capacity | 90° | 90° | 90° | 90° | |
| ◯ Round | mm | 325 | 360 | 460 | 560 |
| □ Square | mm | 325 | 360 | 460 | 560 |
| ▭ Rectangle | mm | 350 x 325 | 455 x 360 | 610 x 460 | 670 x 560 |
| Bed Height | mm | 650 | 650 | 645 | 645 |
| Blade Size | mm | 4380 x 34 x 1.1 | 4800 x 34 1.1 | 5200 x 41 x 1.3 | 6000 x 41 x 1.3 |
| Cutting Speed | m/min | 20 – 100 | 20 – 100 | 20 – 100 | 20 – 100 |
| Motor | Kw | 2.2 | 3 | 4 | 4 |
| Length | mm | 2300 | 2850 | 3100 | 3500 |
| Width | mm | 2200 | 2200 | 2200 | 2200 |
| Height | mm | 1550 | 1740 | 1950 | 2050 |
| Weight | Kg | 1600 | 1950 | 2700 | 3500 |
| Operation | Automatic | Automatic | Automatic | Automatic | |
| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features
- Heavy duty twin column rigidity with linear guidance bearing

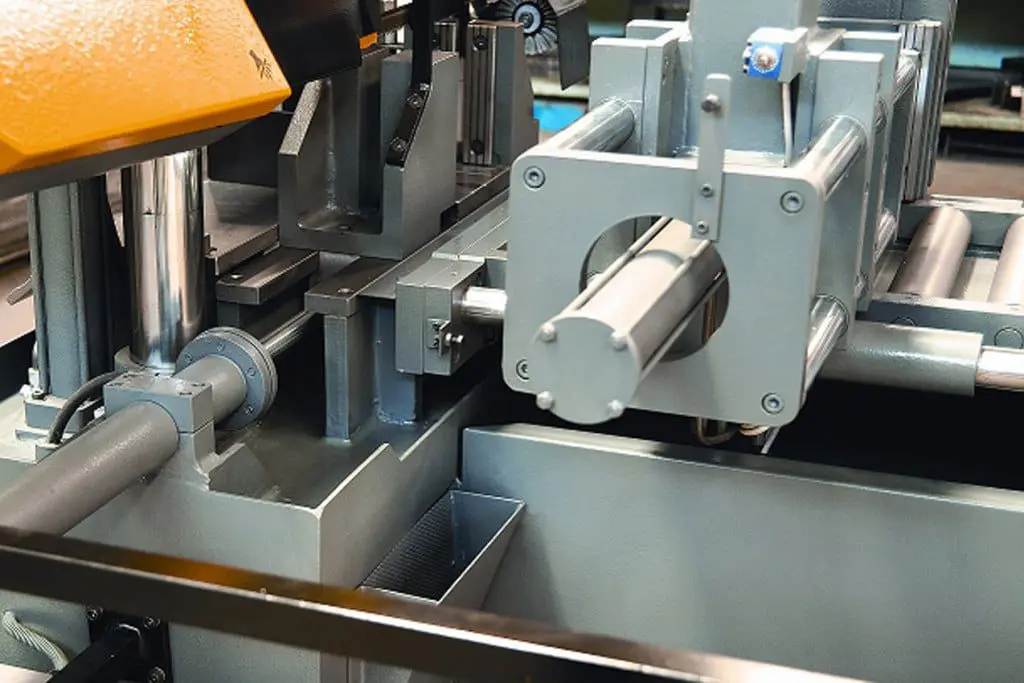

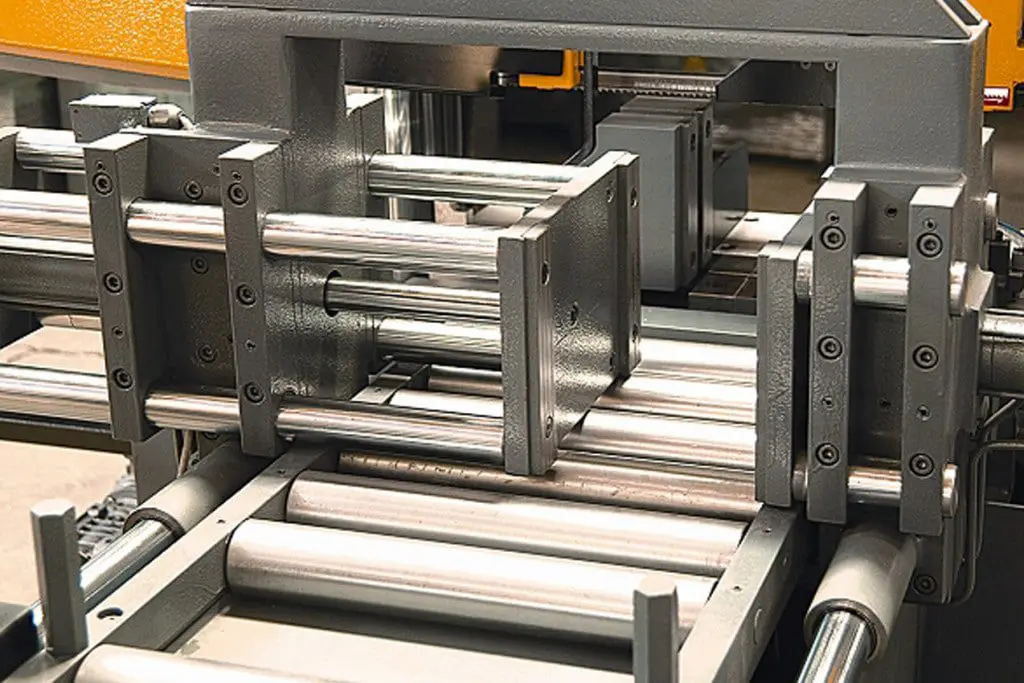

- Fully automatic cutting cycle with multi pass hydraulic vice

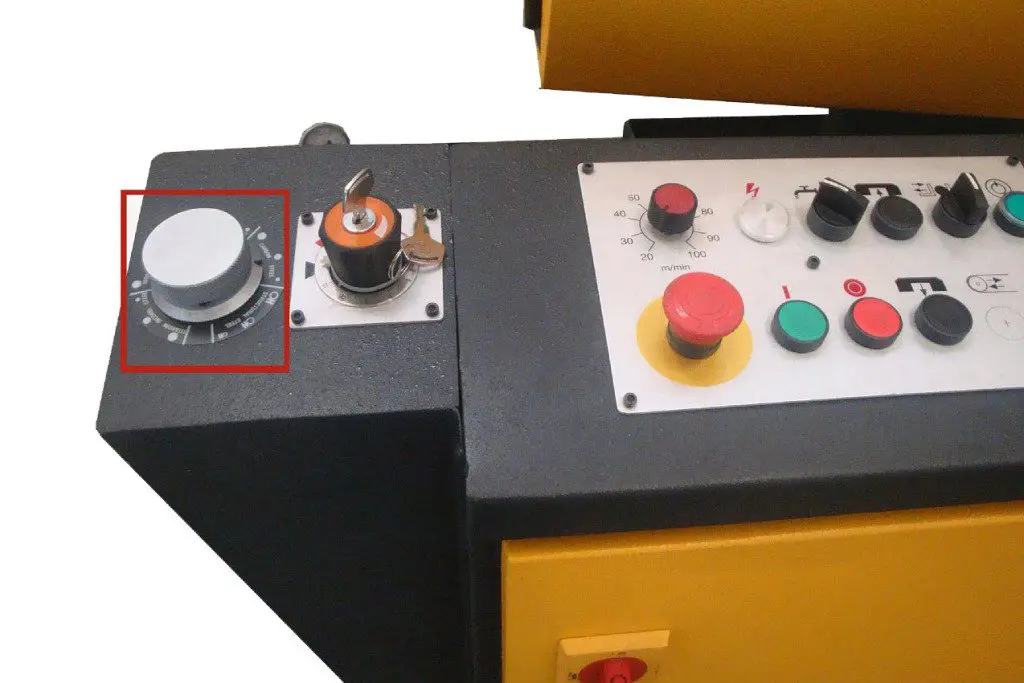

- Hydraulic cutting with variable pressure
- Variable speed 20-100m/min

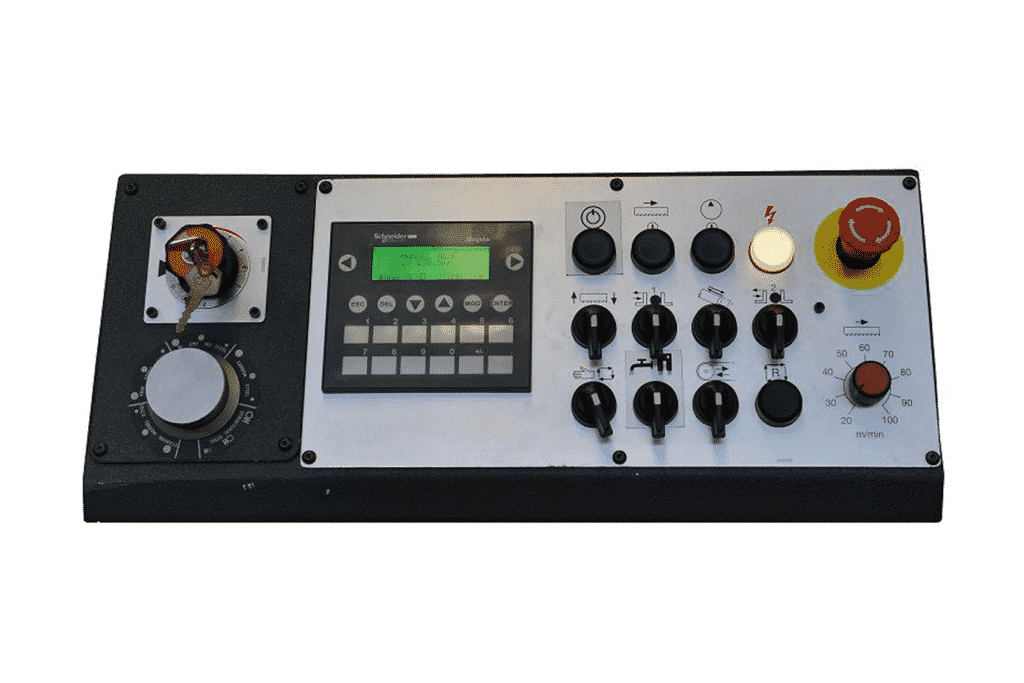

- User friendly control panel with NC Control
- Blade tension indicator
Options
- Laser cutting line

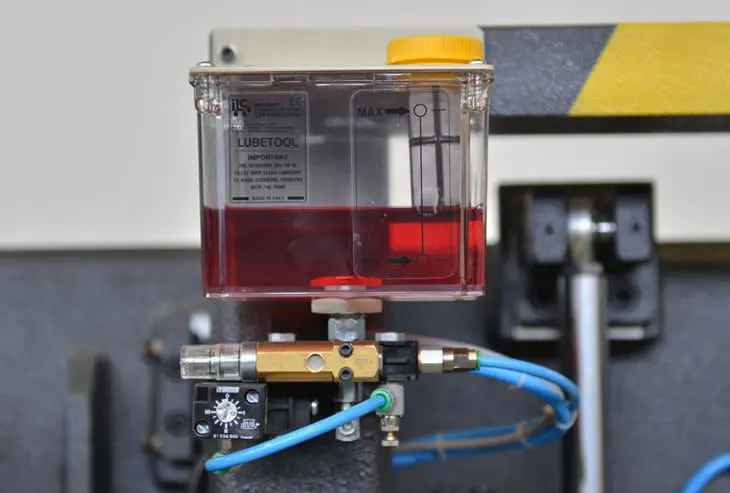

- Spraymist lubrication
- Hydraulic blade tension

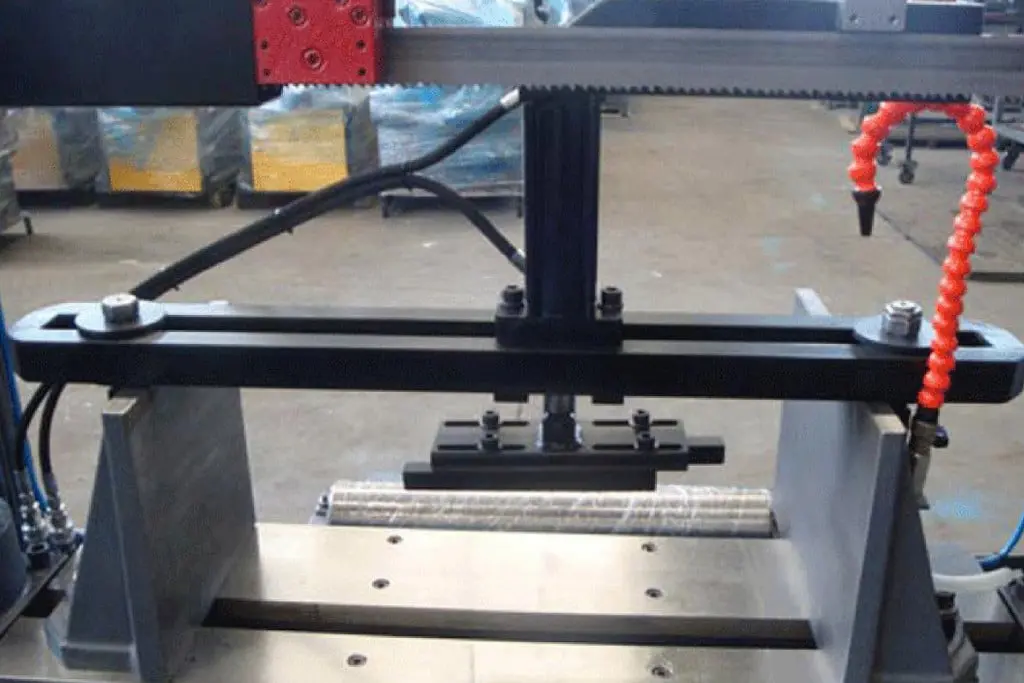

- Hydraulic top clamping for bundle cutting
- Variable Vice Pressure

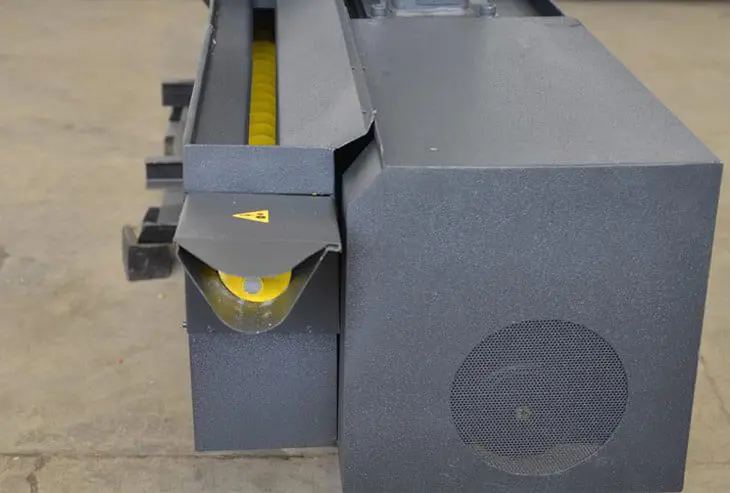

- Chip Conveyor
- Roller track & measuring systems
