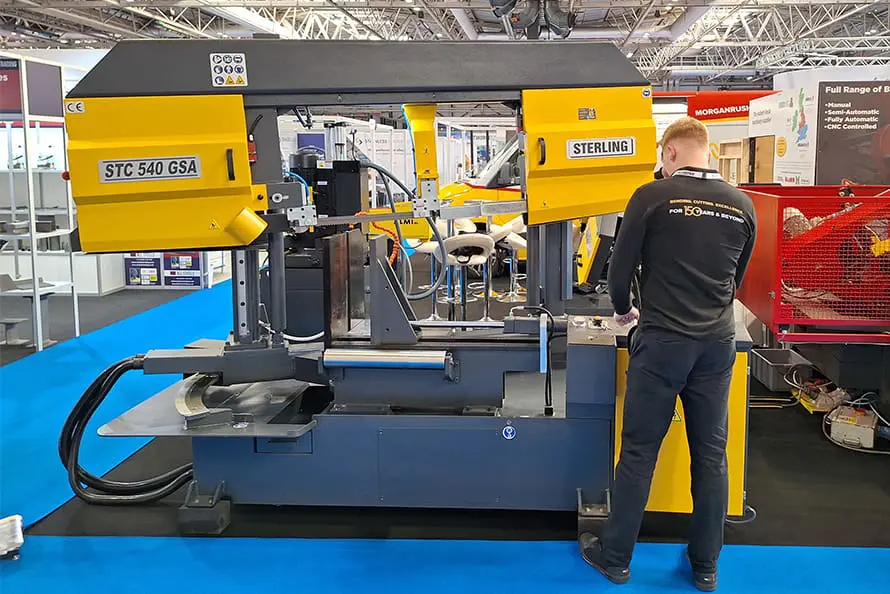

Sterling STC GSA Twin Column Semi-Automatic Bandsaw 415V
The Sterling STC GSA twin column, semi automatic, single mitre bandsaw range comes in a variety of capacities. These twin column saws, mitre head saws offer strong rigidity, for accurate cutting of large material.
| Model | STC325 GSA | STC360 GSA | STC440 GSA | STC540 GSA | STC810 GSA | |||||||||||||||
| Capacity | mm | 90° | 45°R | 60°R | 90° | 45°R | 60°R | 90° | 45°R | 60°R | 90° | 45°R | 60°R | 90° | 45°R | 60°R | ||||
| ◯ Round | mm | 330 | 305 | 190 | 360 | 360 | 325 | 450 | 430 | 320 | 540 | 510 | 270 | 810 | 600 | 360 | ||||
| □ Square | mm | 330 | 270 | 180 | 360 | 360 | 290 | 425 | 425 | 290 | 540 | 450 | 250 | 770 | 600 | 360 | ||||
| ▭ Rectangle | mm | 400 x 320 | 270 x 320 | 180 x 240 | 700 x 360 | 450 x 360 | 280 x 360 | 695 x 425 | 430 x 425 | 260 x 425 | 750 x 540 | 450 x 450 | 250 x 540 | 910 x 750 | 750 x 600 | 750 x 360 | ||||
| Blade Size | mm | 4380 x 34 x 1.1 | 5200 x 34 x 1.1 | 5400 x 41 x 1.3 | 6000 x 41 x 1.3 | 8400 x 41 x 1.3 | ||||||||||||||
| Cutting Speed | m/min | 20-100 | 20-100 | 20-100 | 20-100 | 20-100 | ||||||||||||||

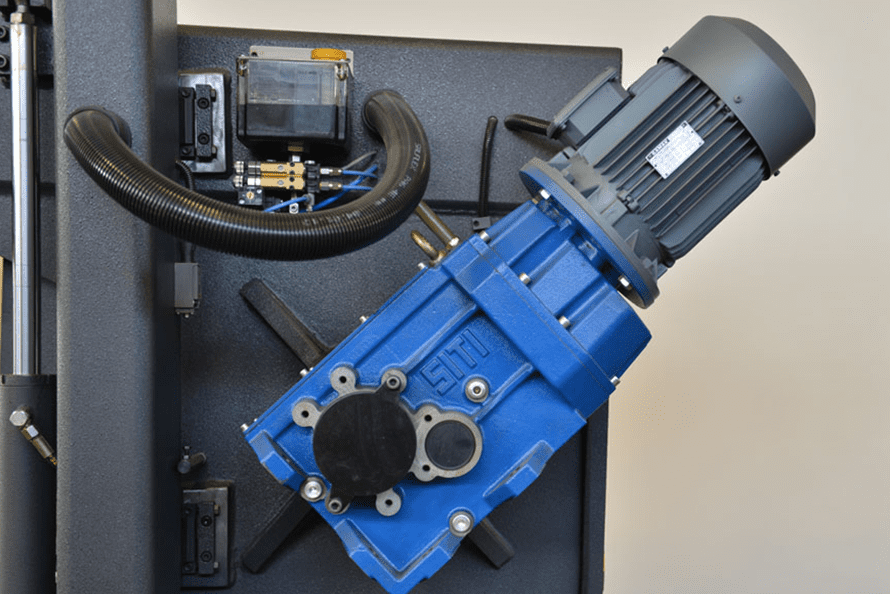

| Motor | kw | 2.2 | 3 | 4 | 4 | 4 | ||||||||||||||
| Length | mm | 2100 | 2850 | 3090 | 3000 | 4020 | ||||||||||||||
| Width | mm | 800 | 1300 | 1200 | 1300 | 1600 | ||||||||||||||
| Height | mm | 1600 | 1800 | 1940 | 2130 | 2450 | ||||||||||||||
| Weight | kg | 1185 | 1460 | 1630 | 2445 | 4050 | ||||||||||||||
| Operation | Semi- Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | Semi-Automatic | |||||||||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features

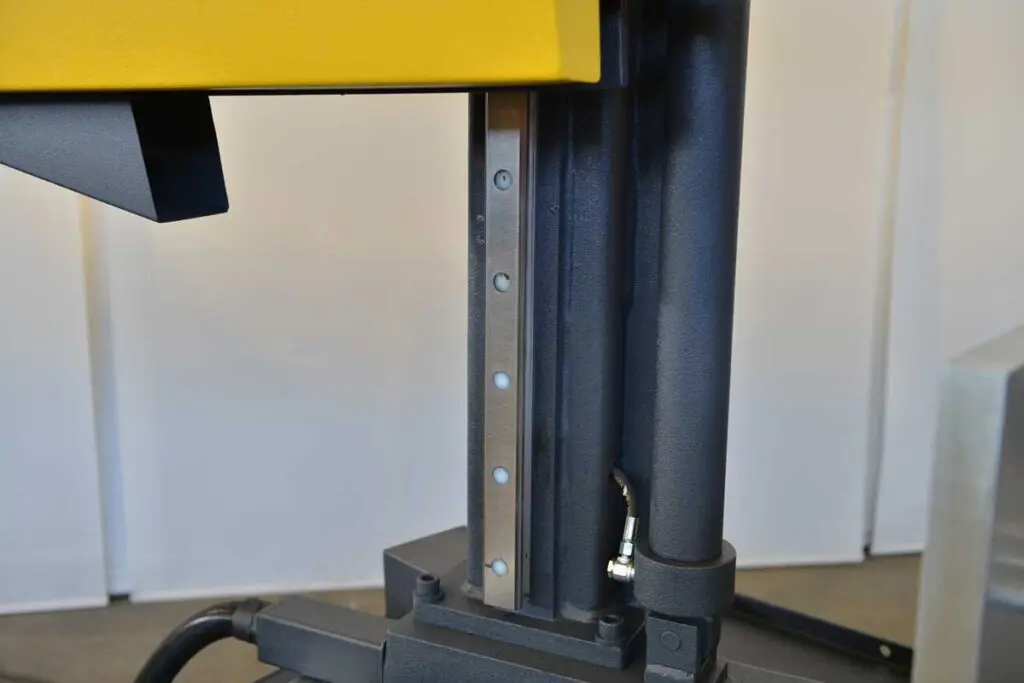

- Strong twin pillar frame with linear guidance bearing
- Mitring swivel head to 60°

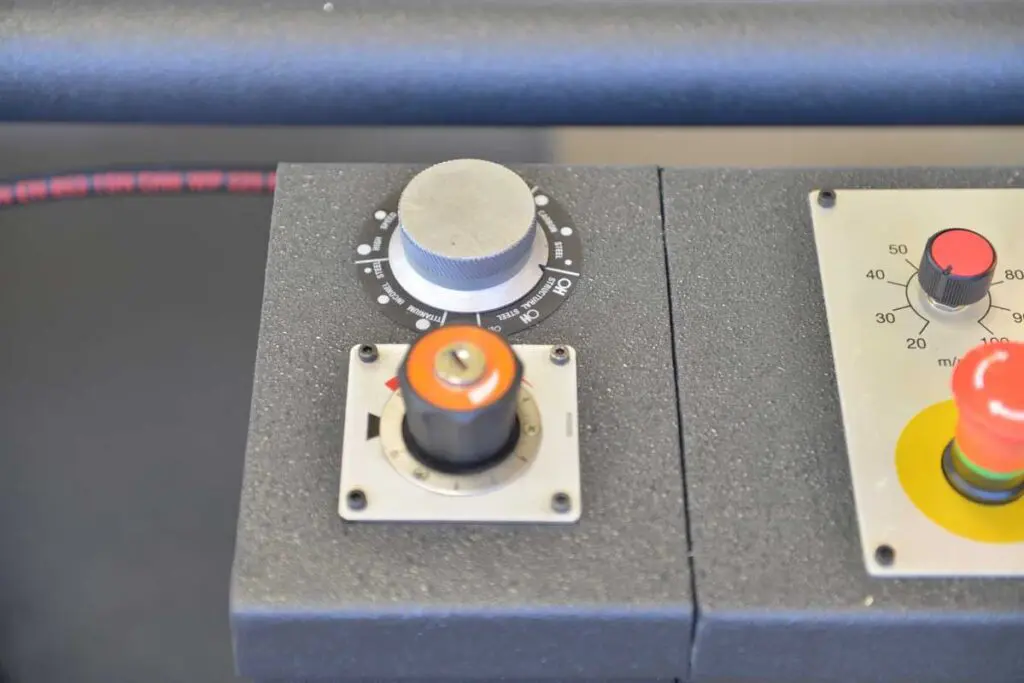

- Hydraulic cutting with variable pressure and variable speed

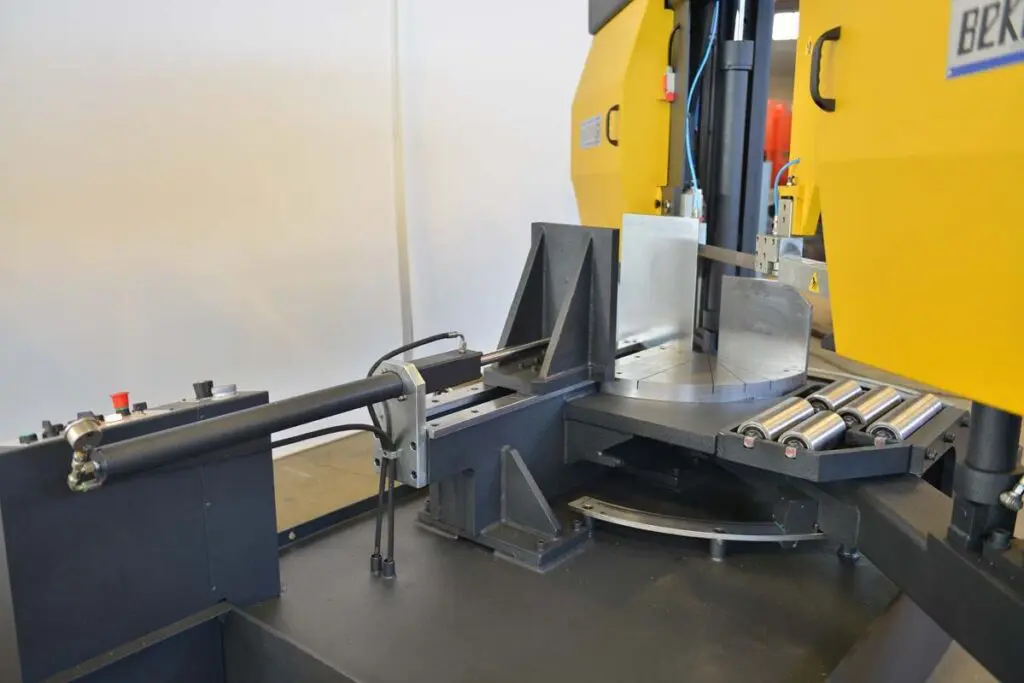

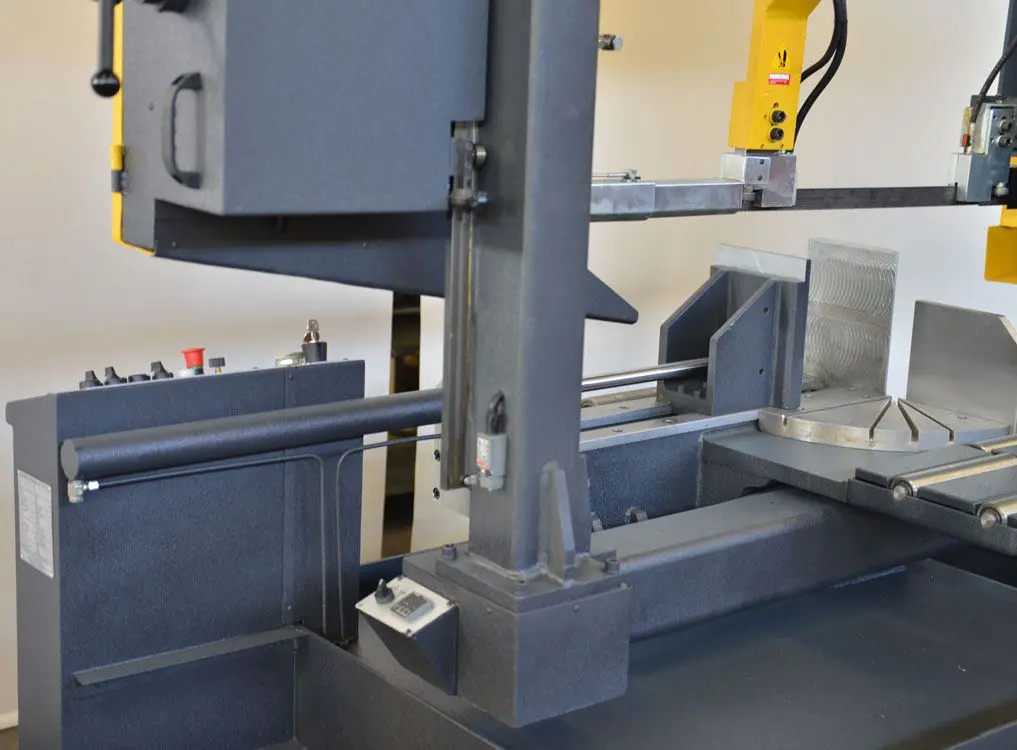

- Hydraulic vice
- Hydraulic bow lock at any angle

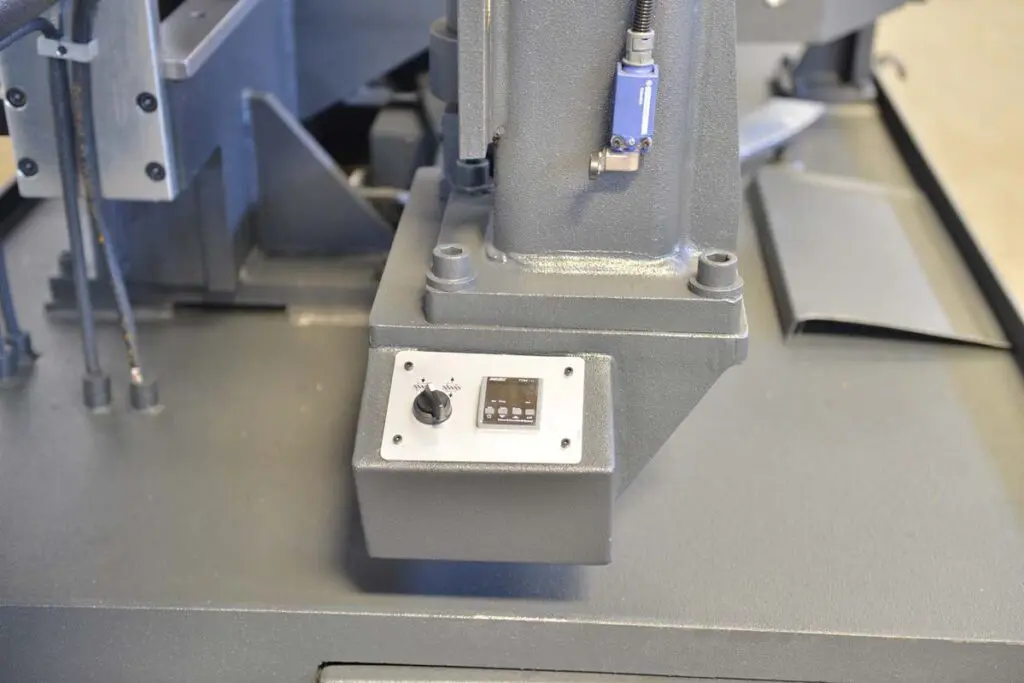

- Digital readout for mitre angle
- Variable blade speed 20-100 m/min
- Carbide blade guides
- Blade tension indicator
Options

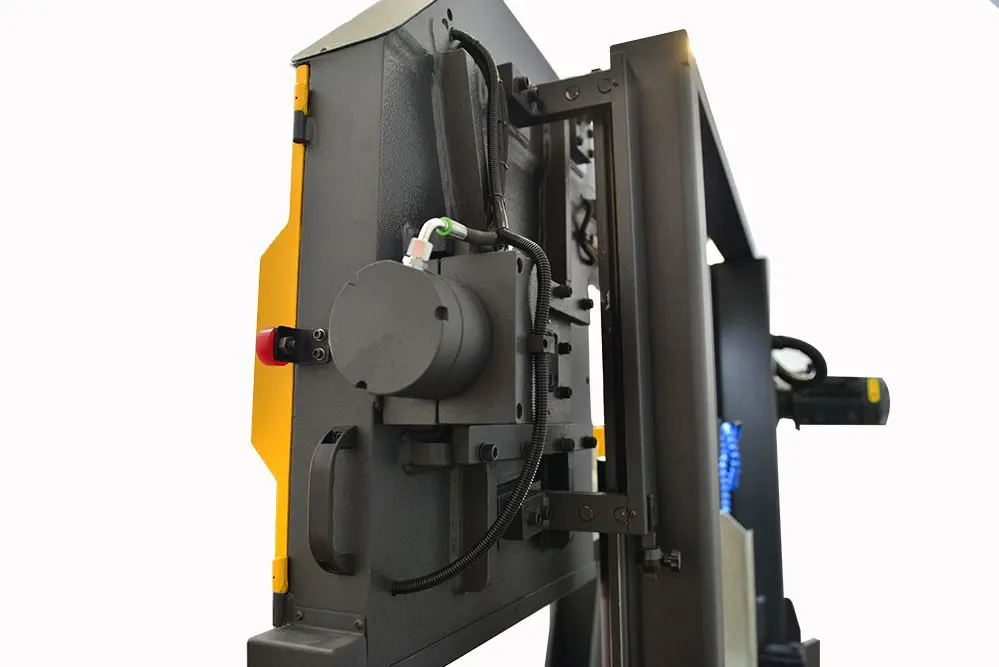

- Hydraulic blade tension
- Hydraulic top clamps
- Chip conveyor
- Spray mist lubrication

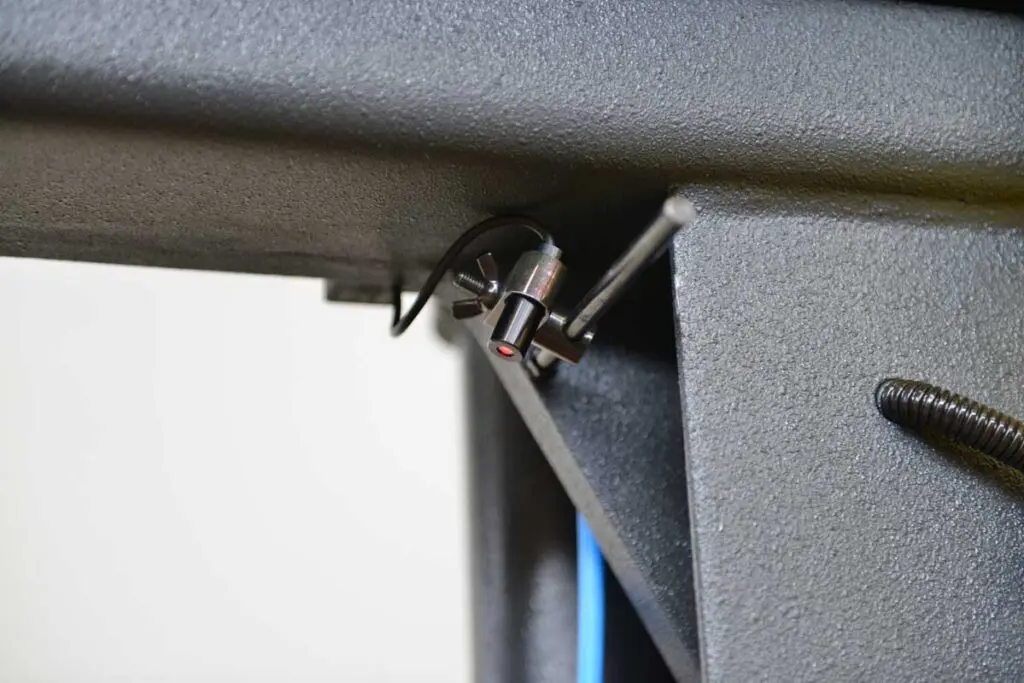

- Laser cutting line
- Digital bow return height
- Roller track and measuring systems
The Sterling STC GSA twin column, semi automatic, single mitre bandsaw range comes in a variety of capacities. These twin column saws, mitre head saws offer strong rigidity, for accurate cutting of large material.
Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC GSA are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
