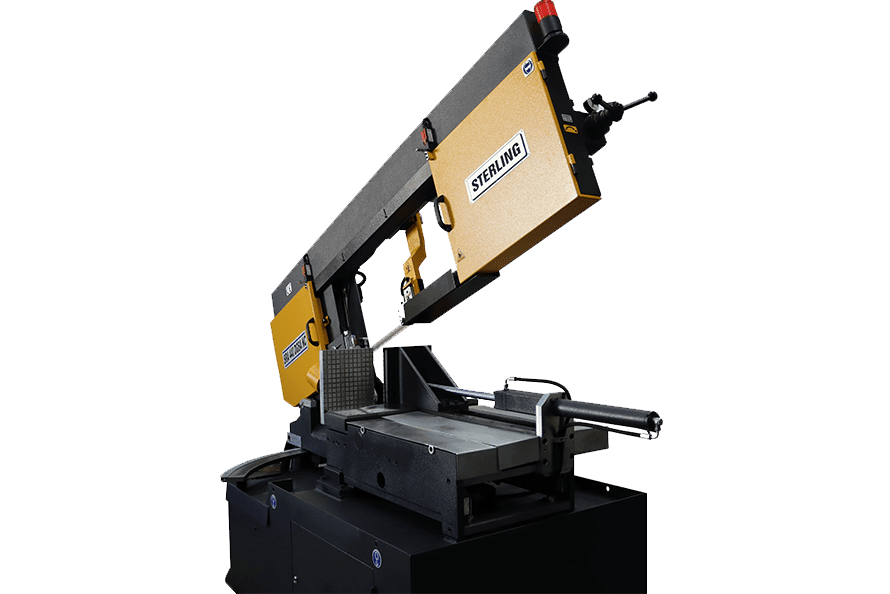

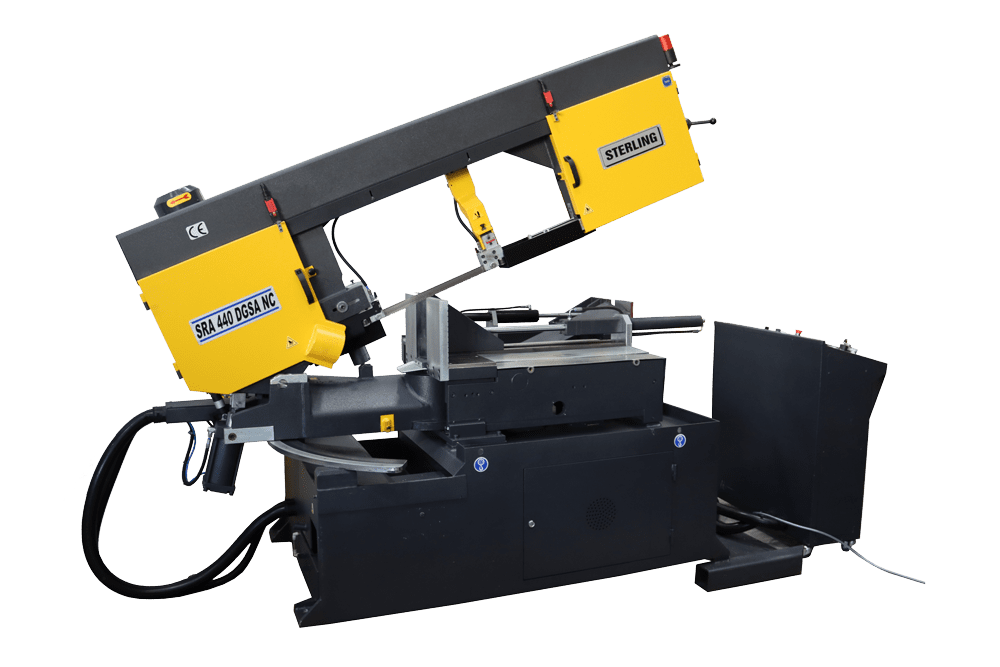

Sterling SRA 440 DGSA NC Semi-Automatic Double Mitring Bandsaw
The Sterling SRA 440 DGSA NC is a semi-automatic, double mitre, heavy duty bandsaw suited in the structural fabrication markets for cutting profiles. The Sterling SRA bandsaws are renowned for their strength and durability built to process high tonnage. This model benefits from automatic mitre angle adjustment and a programmable NC control unit for setting the height, mitre angle and blade speed.
| MODEL | SRA 440 DGSA NC | |||
| STOCKCODE | 15167 | |||
| Capacity | 30° L & R | 45° L & R | 60° L & R | |
| ◯ Round | mm | 440 | 410 | 320 |
| □ Flat | mm | 440 x 500 | 440 x 410 | 440 x 250 |
| ▭ Square | mm | 440 | 410 | 250 |
| Bed Height | 860 | |||
| Main Drive Motor | kW | 3 | ||
| Hydraulic Motor | kW | 0,55 | ||
| Coolant Pump | kW | 0,12 | ||
| Cutting Speeds | m/min. | 20 – 100 | ||
| Band Dimensions | mm | 5200x34x1,1 | ||
| Working Height | mm | 860 | ||
| Weight | kg | 1640 | ||
| Length | mm | 2800 | ||
| Width | mm | 1210 | ||
| Height | mm | 1870 | ||
| Operation | Semi-automatic | |||
| Vice | Hydraulic |
Features
- Programmable NC control with memory
- Automatic double mitring swivel head 60° left and right
- Automatic sliding vice from left to right
- Automatic material height sensor

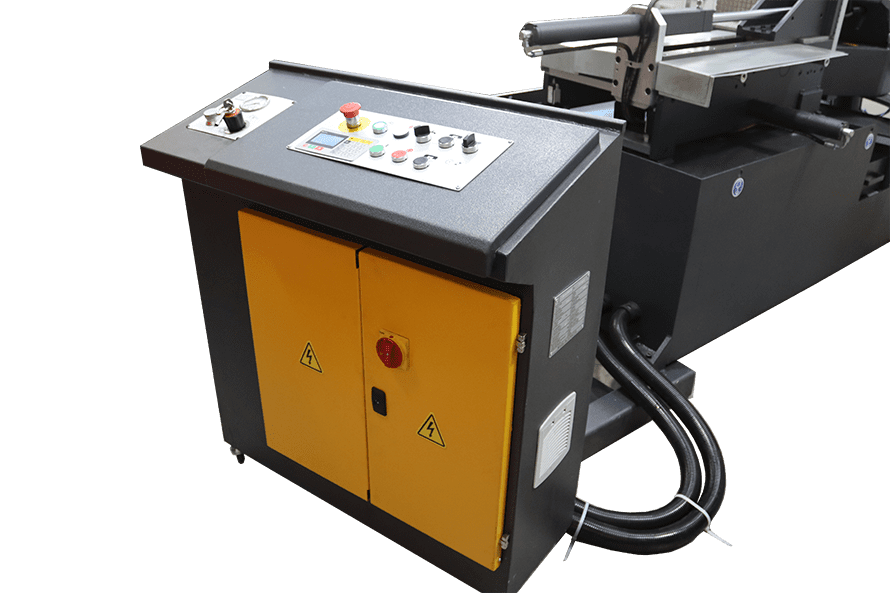

- Ergonomic mobile control panel to control all machine functions
- Hydraulic cutting with variable pressure and variable down feed speed
- Variable blade speed
- Full stroke hydraulic vice
- Hydraulically controlled counter balance to prevent bow descent speed increasing during the cutting cycle
- Carbide blade guides for high accuracy
- Blade tension indicator
- Coolant pump system
Options
- Hydraulic Blade Tension
- Chip conveyor
- Spray mist cooling system
