Sterling SAR SA Semi-Automatic Aluminium Circular Saw

The Sterling SAR semi-automatic range of circular saws are designed for working with aluminium sections and extrusions. All models feature high blade speeds and are semi-automatic operated with a full enclosures for ultimate safety. These machines use TCT toothed cutting blades which are available in a range of tooth pitches depending on the material section and required finish.

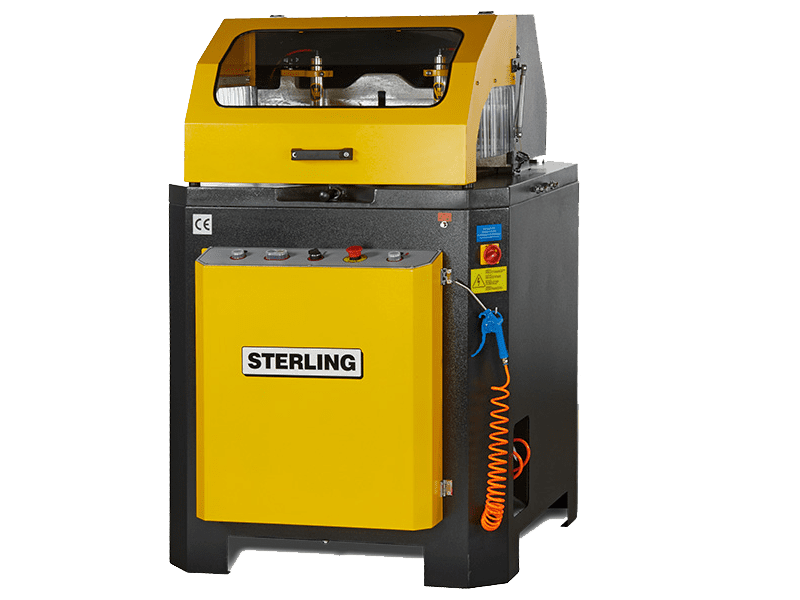

Sterling SAR SA Semi-Automatic Aluminium Circular Saw imageSterling SAR SA Semi-Automatic Aluminium Circular Saw image
Video thumbnail showing the Sterling SAR SA Semi-Automatic Aluminium Circular Saw

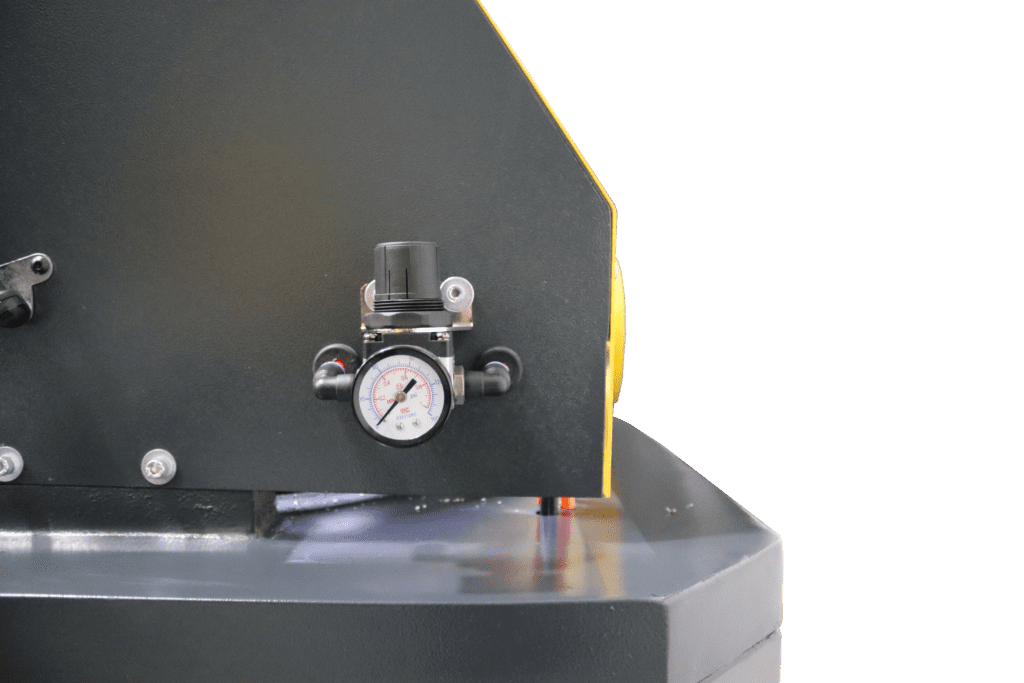

SAR 450 SA clapping pressure adjustment
Clapping Pressure Adjustment
SAR 450 SA clapping pressure adjustment

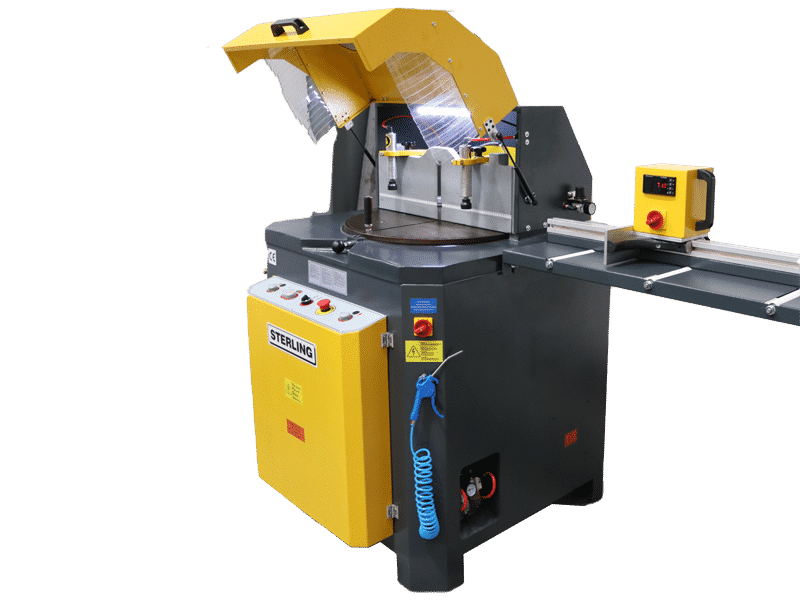

Sterling-SAR-450_550-SA-Aluminium-Circular-Saw_hood_upSterling-SAR-450_550-SA-Aluminium-Circular-Saw_hood_up

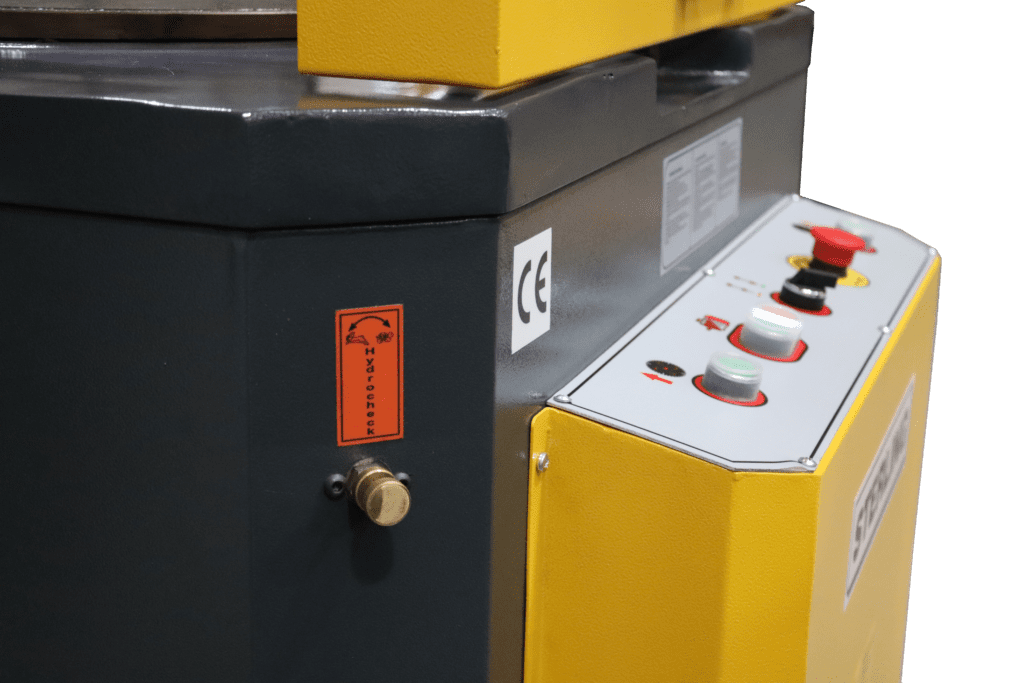

SAR 450 SA Blade Feed Rate Adjustment
Blade Feed Rate Adjustment
SAR 450 SA Blade Feed Rate Adjustment

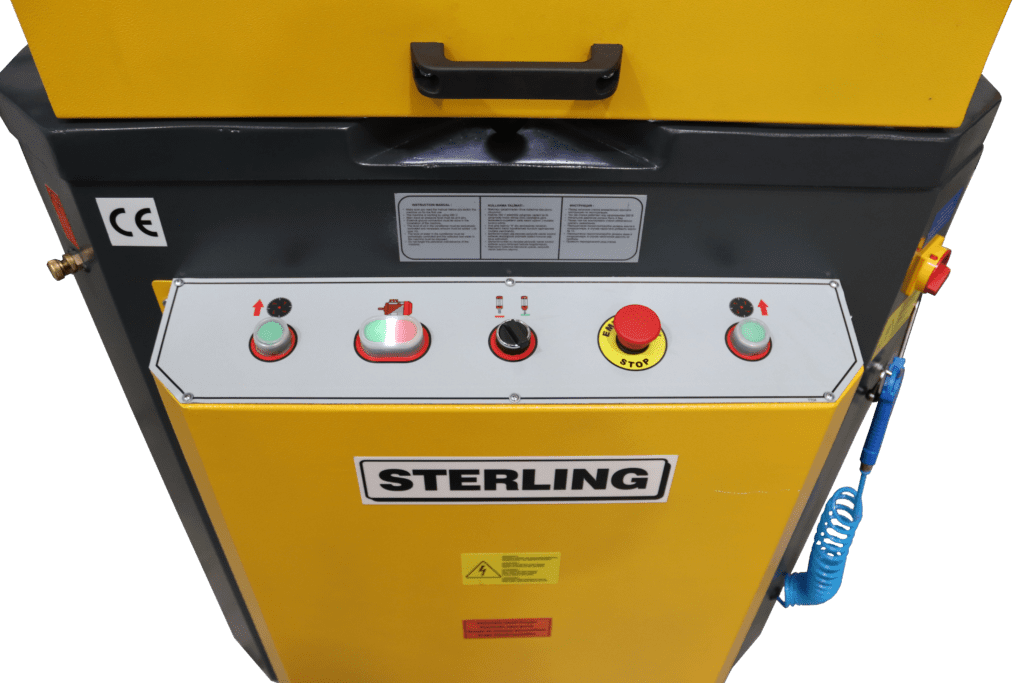

SAR 450 SA control panelSAR 450 SA control panel

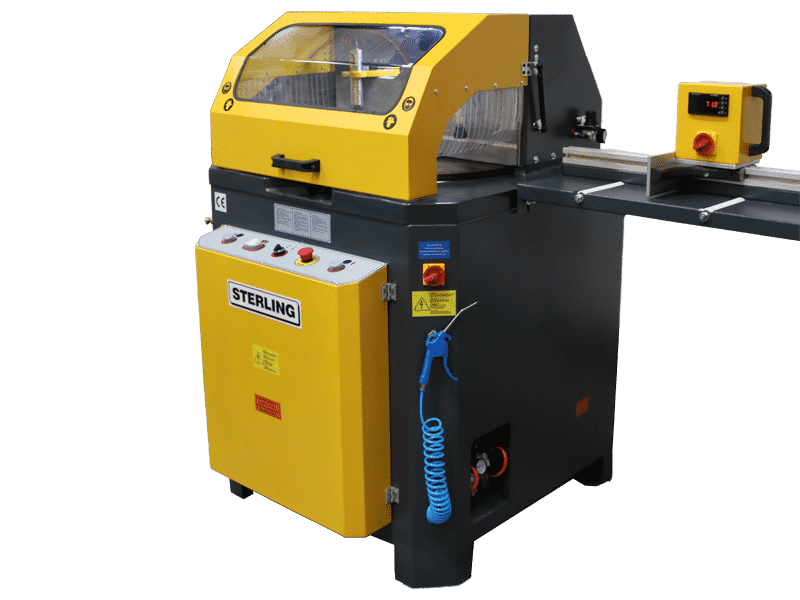

Sterling-SAR-450_550-SA-Aluminium-Circular-Saw 2
Air Gun for Swarf Removal
Sterling-SAR-450_550-SA-Aluminium-Circular-Saw 2

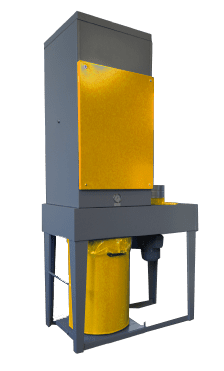

SAR Extraction Unit
Extraction Unit
SAR Extraction Unit
MODEL SAR 450SA SAR 550SA
Capacity 90° 45° L + R 90° 45° L + R
◯ Tube mm 180 160
□ Box Section mm 130 x 130 100 x 100 155 130
▭ Widest Cut mm 210 x 170 145 x 170 260 x 200 180 x 200
Bed Height mm 1050 1050
Blade Size mm 450ø x 32 bore 550ø x 32 bore
Blade Speed rpm 3000 3000
Motor Kw 2.2 3
Length mm 850 980
Width mm 970 1130
Height mm 1370 1430
Weight Kg 180 220
Operation Semi Automatic Semi Automatic
Vice Pneumatic Pneumatic

Features

  • Fast aluminium cutting
  • Adjustable blade feed rate
  • Twin pneumatic vertical clamps
  • Mitring head to 45° left and right
  • Quick mitre location points at ​0°, 15°, 22.5°, 30° and 45°
  • Mitre clamp for locking off at Intermediate angles
  • Easy access blade change
  • Flat solid bed
  • Movable back fence for larger cutting capacity
  • Full enclosure with interlock safety switch
  • Air gun for swarf removal

Options

  • Base – stock code 15012
  • Measuring conveyor right side 3, 4, 5 or 6m
  • Roller conveyor left side 3, 4, 5 or 6m
  • Cooling system for cutting aluminium
  • Hydro-check for cutting aluminium profiles (hydraulic speed setting)
  • Auto slicing feature (90° only)
  • Automatic measurement converyor

The Sterling SAR semi-automatic range of circular saws are designed for working with aluminium sections and extrusions. All models feature high blade speeds and are semi-automatic operated with a full enclosures for ultimate safety. These machines use TCT toothed cutting blades which are available in a range of tooth pitches depending on the material section and required finish. The up-stroking 550 blade has a speed of 3000RPM and comes complete with pneumatic horizontal clamps and 2m of roller track as standard.

Increased Efficiency

Looking to further increase the efficiency in your workshop? Additional roller track for the entry and exit of your saw can help improve efficiency further still. With the roller track in place, workers can quickly and effectively load and unload material. Coupled with measuring systems workers can work faster and more accurately.

Why does Aluminium cutting require Extraction?

The dust from cutting Aluminium is highly flammable. It can ignite spontaneously in air. It will also react with water to generate flammable gaseous hydrogen and heat.

How Dust Explosions Occur

In addition to the familiar fire triangle of oxygen, heat, and fuel (the dust), dispersion of dust particles in sufficient quantity and concentration can cause rapid combustion known as a deflagration. If the event is confined by an enclosure such as a building, room, vessel, or process equipment, the resulting pressure rise may cause an explosion. These five factors (oxygen, heat, fuel, dispersion, and confinement) are known as the “Dust Explosion Pentagon”. If one element of the pentagon is missing, an explosion cannot occur.

Catastrophic Secondary Explosions

An initial (primary) explosion in processing equipment or in an area where fugitive dust has accumulated may dislodge more accumulated dust into the air or damage a containment system (such as a duct, vessel, or collector). As a result, if ignited, the additional dust dispersed into the air may cause one or more secondary explosions. These can be far more destructive than a primary explosion due to the increased quantity and concentration of dispersed combustible dust. Many deaths in past accidents, as well as other damage, have been caused by secondary explosions.

The solution

We therefore strongly recommend that any and all Aluminium cutting equipment is supplied with an extraction system of some kind. We have a system set-up for the SRA Upcutting Saw range, speak to a member of the sales team for more information.
