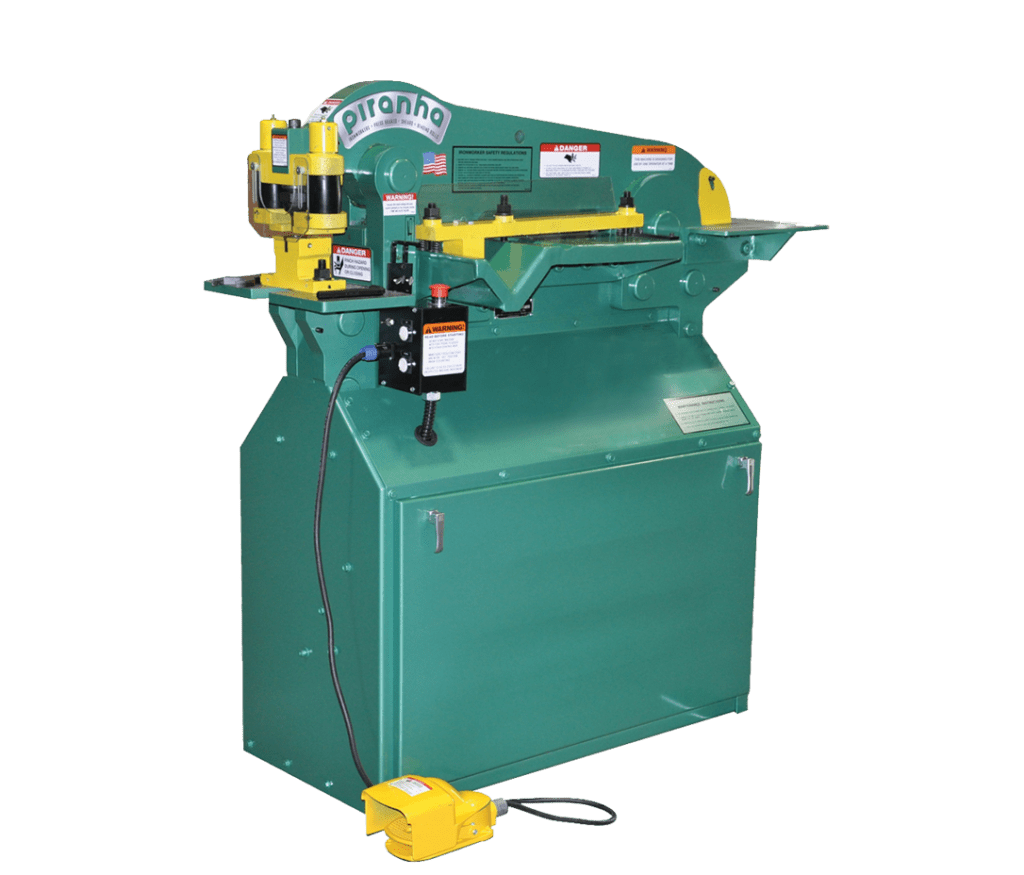

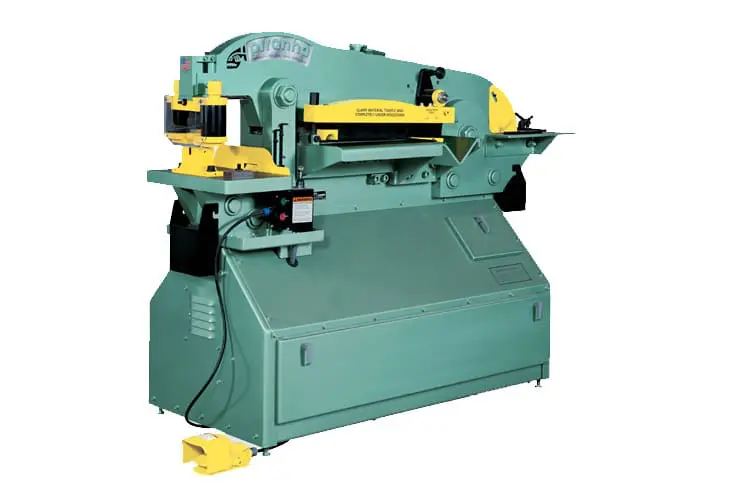

Piranha P Single Operator Steelworker
Piranha P Single Operator Steelworker gives metal fabricators outstanding quality and innovative features. Every Piranha provides quality work, saving time in set up, adaptability and versatility through a wide range of tooling, and factory engineering support.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES

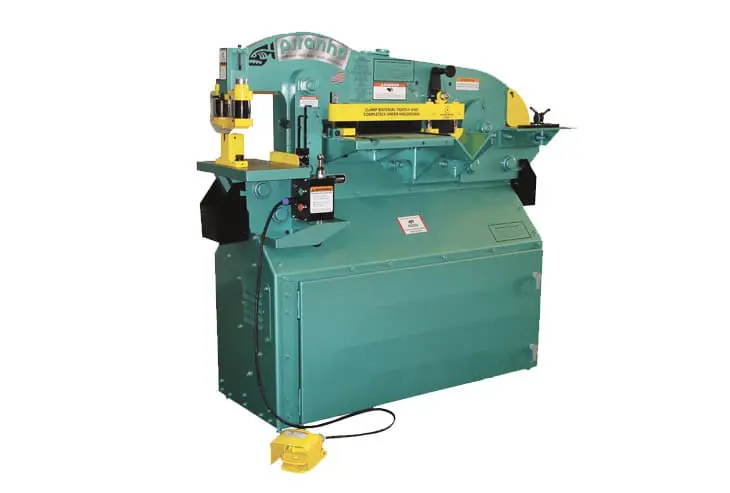

| MODEL | P-50 | P-65 | P-90 | P-110 | P-140 |
| Throat Depth | 130mm | 200mm | 250mm | 300mm | 300mm |
| Open Height | 300mm | 350mm | 380mm | 400mm | 400mm |
| Closed Height | 190mm | 235mm | 260mm | 260mm | 260mm |
| w/o Die Block | |||||
| Stroke Length | 101mm | 108mm | 123mm | 133mm | 133mm |
| Platen Table Size (D-W) | 200 x 250mm | 250 x 430mm | 300 x 530mm | 370 x 530mm | 370 x 530mm |
| Punch | 355kN | 445kN | 625kN | 800kN | 1070kN |
| Hole Size (Max. Material) | 25mm (12mm) | 21mm (19mm) | 30mm (19mm) | 28mm (25mm) | 38mm (25mm) |
| Max. Hole Size (Material) | 38mm (5mm) | 127mm (3mm) | 114mm (5mm) | 127mm (5mm) | 127mm (6mm) |
| Plate Shear | 330mm Long | 380mm Long | 460mm Long | 520mm Long | 520mm Long |
| 15 x 150mm | 20 x 250mm | 25 x 150mm | 25 x 300mm | 25 x 300mm | |
| 12 x 200mm | 16 x 380mm | 20 x 300mm | 20 x 450mm | 20 x 450mm | |
| 6 x 330mm | 12 x 460mm | 12 x 500mm | 12 x 500mm | ||
| Angle Shear | 90 x 90 | 125 x 125 x 10mm | 127 x 127 | 150×150 | 150 x 150 |
| **w/ special blade | x 8mm | 100 x 100 x 12mm | x 13mm | x16mm | x 16mm |
| Bar Shear | Optional | ||||
| Round (min. to max.) | 6 to 36mm | 6 to 38mm | 12 to 50mm | 12 to 50mm | 12 to 50mm |
| Square (min. to max.) | 12 to 25mm | 12 to 25mm | 12 to 35mm | 12 to 35mm | 12 to 35mm |
| Coper-Notcher (Tons) | 350kN | 500kN | 670kN | 845kN | 845kN |
| (Max.) | 60 x 75 x 6mm | 70 x 100 x 6mm | 90 x 125 x 10mm | 100 x 150 x 10mm | 100 x 150 x10mm |
| Bending Attach. (std.) | 150mm | 200mm | 300mm | 300mm | 300mm |
| (Optional Length) | 300mm | 300, 350, 600mm | 600mm | 600mm | 600mm |
| Punch End | |||||
| Strokes Per Minute | 50 @ 12mm | 60 @ 12mm | 30 @ 19mm | 40 @ 19mm | 40 @ 19mm |
| Optional Speed-Up Kit | N/A | N/A | N/A | ||
| Work Station Height | 1067mm | 1067mm | 1067mm | 1118mm | 1118mm |
| (Approx.) | |||||
| Hydraulics | |||||
| Pump LPM | 28 | 39 | 56 | 56 | 56 |
| System R/V bar | 138 | 179 | 179 | 183 | 241 |
| Fluid Capacity (Liters) | 45 | 75 | 94 | 94 | 94 |
| Motor Std. 230/460 3 Ph. | |||||
| 1800 RPM | 3kW 3 Ph. | 7kW 3 Ph. | 11kW 3 Ph. | 11kW 3 Ph. | 14kW 3 Ph. |
| Opt. Phase & Voltage | |||||
| Available | |||||
| Dimensions (Net) | 610 x 1397 | 610 x 1676 | 787 x 2007 | 889 x 2286 | 889 x 2286 |
| W-L-H Approx. | x 1473mm | x 1524mm | x 1626mm | x 1689mm | x 1689mm |
| Weight (Net) | 771 | 1179 | 1928 | 2630 | 2812 |
| kg Approx. |
Features
- Punch Station
The urethane strippers keep the material flat to ensure a better quality punch. The shorter stroke ensures faster productivity and with no adjustments required results in an efficient and easy to use production.
- Shearing Station

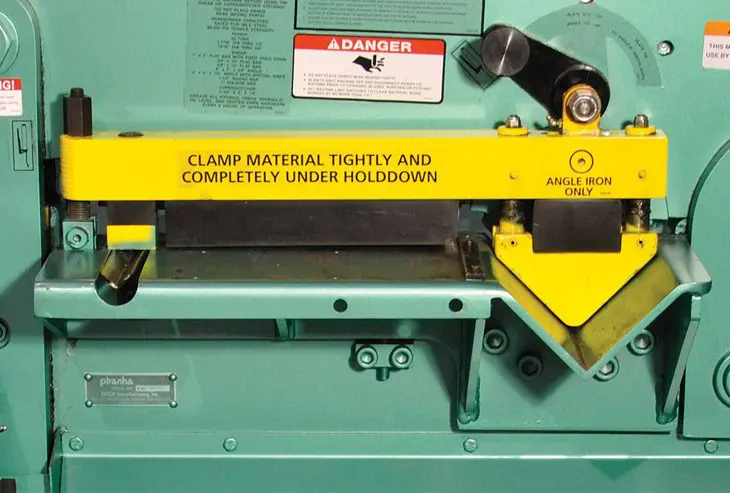

The urethane hold-downs clamp and unclamp the material automatically with each stroke ensuring faster productivity. Unlike other conventional steelworkers the parts remain clamped during the entire shearing cycle to ensure a more accurate result. The complete clamping cycle promotes longer blade life making it much more cost effective.
- Shearing Visibility
Much easier to line up a cut line to the shear blade as the operator has a direct line of sight.
- Shear Blade
The low rake angle shear blade results in flatter parts being produced at a better quality. Piranha provide four shear edges on each blade to enhance cost efficiency and blade longevity.

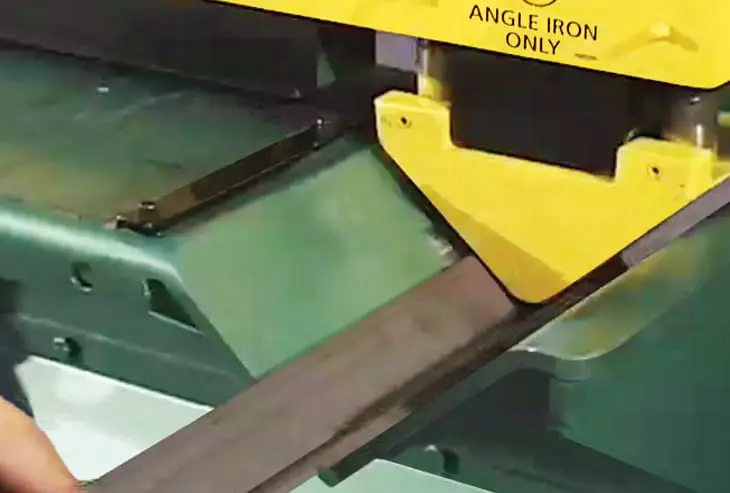

- Angle Shear
The floating upper blade seats in the centre of the angle eliminating distortion ensuring the cut piece does not deform.
- Coper Notch
The low rake angle blade keeps the part flat and under control during notching process.

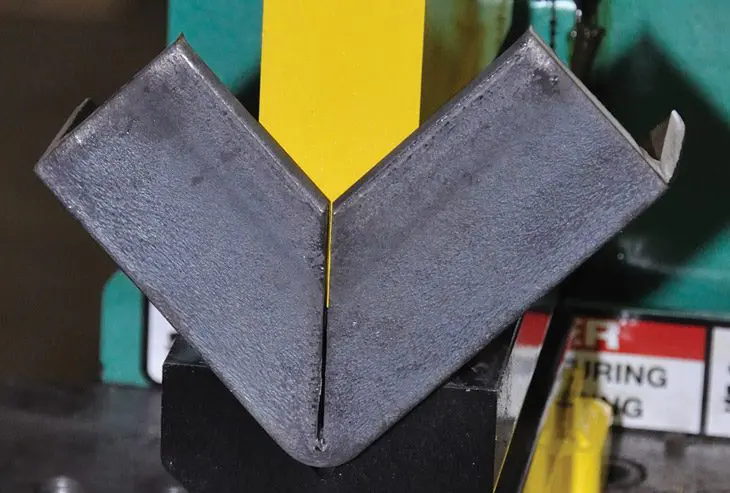

- Bending Attachment
The open ended attachment allows the angle to bent easily.

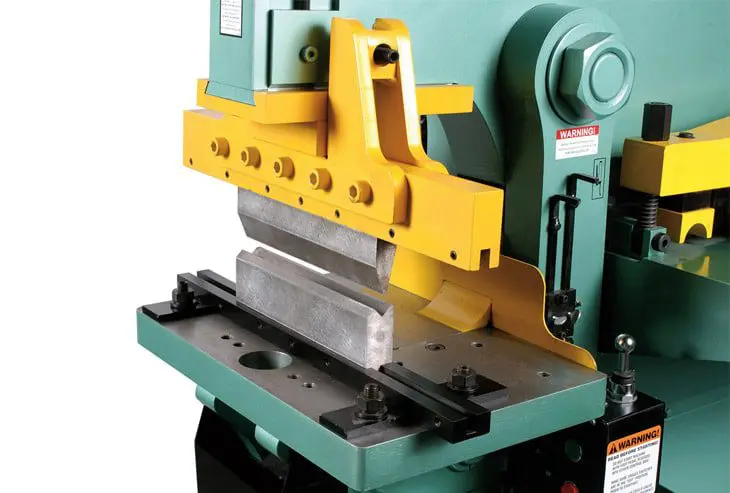

- Installing the Attachment
The dovetail slide makes the bending attachment easy to install.
- Ease of Use
All attachments and stations are at the same height making it easier to use. No need to adjsut the feed table height between stations.
Options

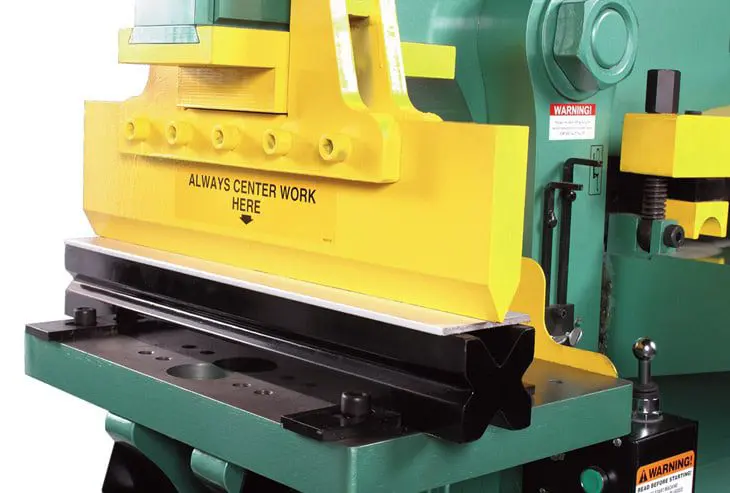

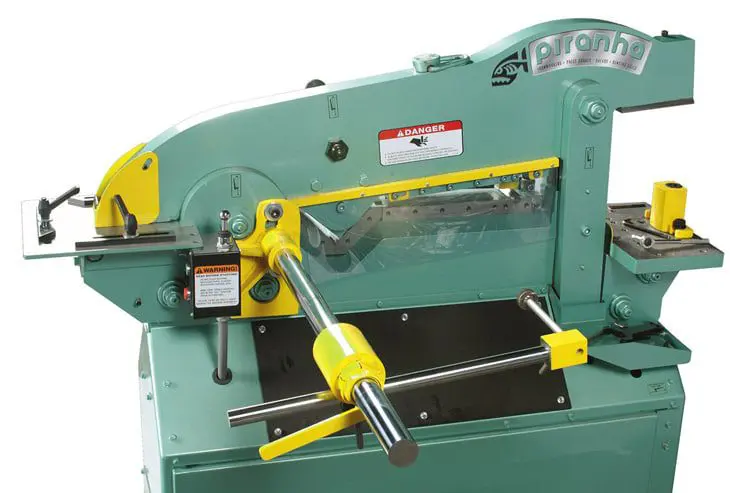

- Pipe/Tube Bending Attachment
- Channel Die Block
- Bending Attachments – Optional sizes range from 300 – 1120mm

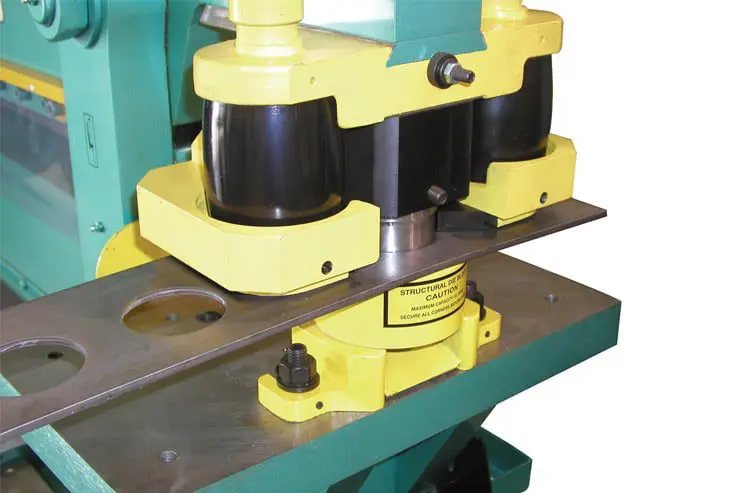

- 28XX Punch Attachment
- Press Brake Tooling Holders
- Quick set Gauging Tables – Fast set-up for punching multiple holes. Includes plate & angle-gauging guide bars. With left and right hand extensions available in 1.5m and 3m lengths.
- Channel Shear
- Bar Bender – Up to 65mm depending on available tonnage with adjustable die for different radii.
- Mechanical Backgauges
- Electrical Backgauges
- 38mm Oversize Punch Attachment

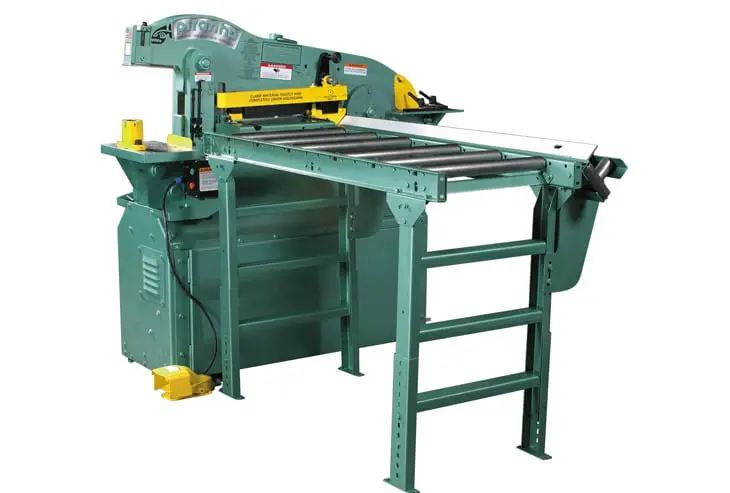

- Roller Feed Tables
