Morgan Rushworth SBR Powered Bending Roll

Morgan Rushworth SBR1050-110

The Morgan Rushworth SBR powered top roll to slip models range from 1.0mm -5mm with a maximum bending length up to 2050mm. The rugged heavy duty cast iron frame ensures long working life. The asymmetric roll configuration enables pre bending capability.

Morgan Rushworth SBR1050-110
Morgan Rushworth SBR1050-110Morgan Rushworth SBR1050-110
Video thumbnail showing the Morgan Rushworth SBR Powered Bending Roll
Morgan Rushworth SBR Powered Bending Roll image 3Morgan Rushworth SBR Powered Bending Roll image 3

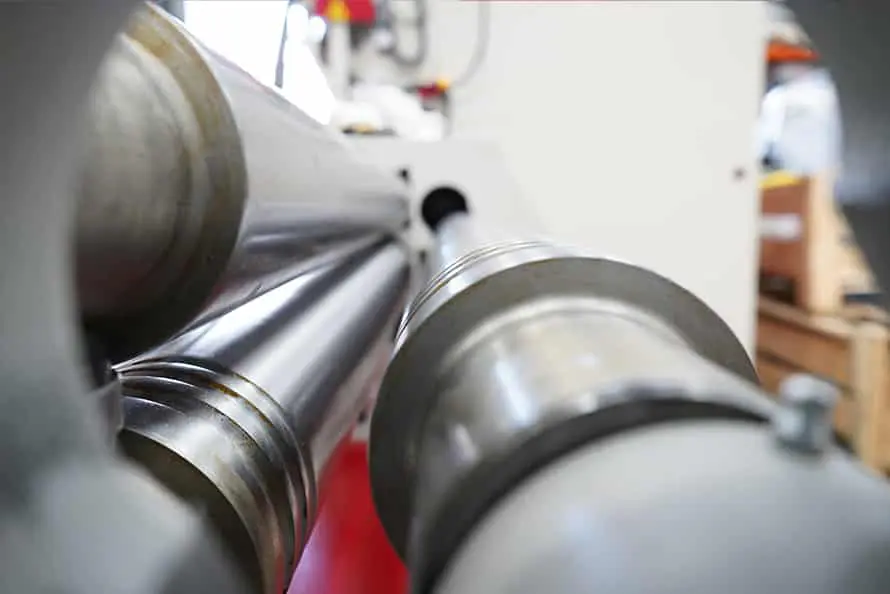

Morgan Rushworth SBR1050-110 Close-Up
Close-Up
Morgan Rushworth SBR1050-110 Close-Up
Morgan Rushworth SBR1050-110 Side Roll Controller
Optional Powered Side Roll Controller with digital readout
Morgan Rushworth SBR1050-110 Side Roll Controller
Morgan Rushworth SBR1050-110 Foot Pedal Controls
Foot Pedal Controls
Morgan Rushworth SBR1050-110 Foot Pedal Controls
Morgan Rushworth SBR1050-110 Crank Handle
Crank Handle
Morgan Rushworth SBR1050-110 Crank Handle
Morgan Rushworth SBR1050-110 Tripwire Safety System
Tripwire Safety System
Morgan Rushworth SBR1050-110 Tripwire Safety System

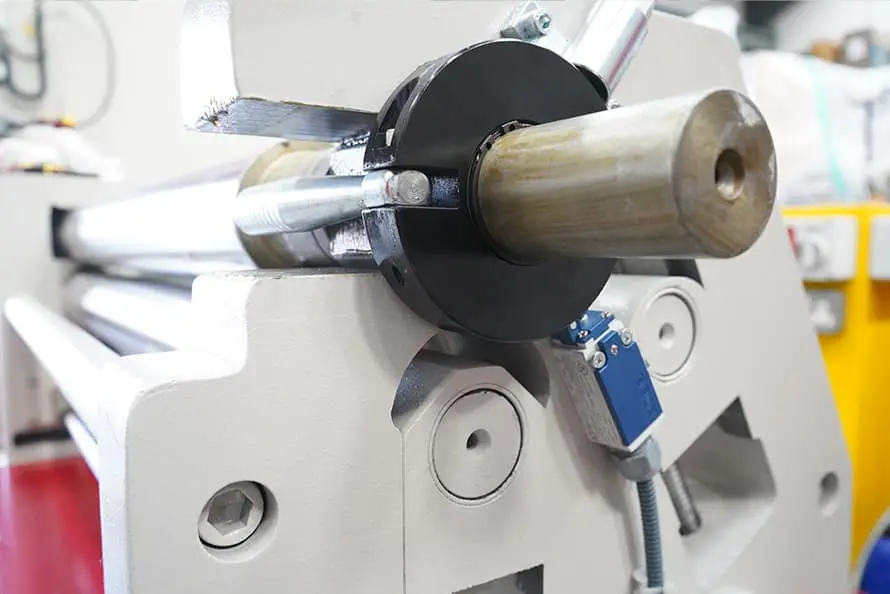

Morgan Rushworth SBR1050-110 Slip Roll Release
Slip Roll Release
Morgan Rushworth SBR1050-110 Slip Roll Release
Morgan Rushworth SBR Powered Bending Roll image 10
Cone Rolling Wheel
Morgan Rushworth SBR Powered Bending Roll image 10
Morgan Rushworth SBR Powered Bending Roll image 11
Round Bar Grooves
Morgan Rushworth SBR Powered Bending Roll image 11



MODEL STOCK CODE BENDINGLENGTH PRE BENDING MAX THICKNESS TOP ROLL DIA. MOTOR LENGTH HEIGHT WIDTH WEIGHT
mm mm mm mm kW mm mm mm kg
SBR 1050/110 M3017 1050 4 5 110 2.2 1820 1150 850 1080
SBR 1050/130 M3018 1050 5 6 130 2.2 1820 1200 900 1220
SBR 1250/110 M3019 1250 3.5 4 110 2.2 2020 1150 850 1150
SBR 1250/120 M3020 1250 4 4.5 120 2.2 2020 1150 850 1250
SBR 1250/140 M3021 1250 5 6 140 2.2 2020 1200 900 1365
SBR 1550/110 M3022 1550 3 3.5 110 2.2 2320 1150 850 1250
SBR 1550/130 M3023 1550 4 4.5 130 2.2 2370 1200 900 1360
SBR 2050/110 M3024 2050 2 3 110 2.2 2820 1150 850 1350
SBR 2050/130 M3025 2050 3 4 130 2.2 2820 1200 900 1480
SBR 2050/140 M3026 2050 4 4.5 140 2.2 2820 1200 900 1530

Capacities are given for 250 N/mm² plate yielding strength

Features

  • Top roll to slip
  • Powered bending
  • Cone bending
  • Crowned Rolls
  • Powered top and bottom roll with foot operated forward and reverse control
  • Brake motor
  • Manually adjusted side roll for up and down translation
  • Manual pinching of bottom roll

Options

  • With / Without body cover (PBR)
  • Induction hardened rolls
  • Parallel Rolls
  • Powered side roll up and down translation
  • DRO for side roll position
