Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V

The heavily constructed PBH press brake model is of an H frame design and is fitted with heavy duty top and bottom press brake tools, ideal for a whole variety of heavier bending operations. These models feature adjustable limit switches for ram stroke and return, as well as twin guidance pistons in addition to the main ram. The machine operates at a safe working speed and is also fitted with a two handed control to ensure the operator is well away from the working area. These are a great alternative to a full form press brake.

Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V imageMorgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image
Video thumbnail showing the Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V
Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image 4Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image 4
Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image 5Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image 5
Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image 6Morgan Rushworth PBH Hydraulic H Frame Pressbrake 415V image 6
BENDING POWER BENDING LENGTH STROKE ADVANCE SPEED WORKING SPEED RETURN SPEED MOTOR LENGTH WIDTH HEIGHT WEIGHT
MODEL STOCK CODE A mm C mm mm/sec mm sec mm sec kw L mm H mm W mm kg
PBH 1020/100 M5260 100 1020 300 8 5 10 7.5 2050 1000 2220 1900
PBH 1520/100 M5261 100 1520 300 8 5 10 7.5 2500 1000 2220 2500
PBH 1020/150 M5262 150 1020 300 9 5 10 11 2050 1000 2380 2400
PBH 1520/150 M5263 150 1520 300 9 5 10 11 2500 1000 2380 3100

Features

  • Very heavy H frame design
  • Top & bottom press brake tooling
  • Safe working speed
  • Quiet hydraulic system

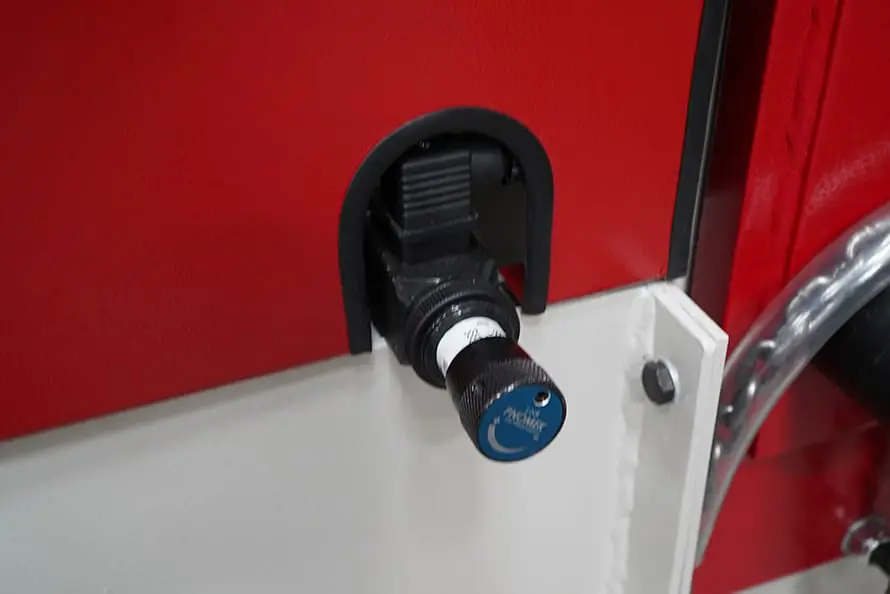

  • Stepless pressure adjustment

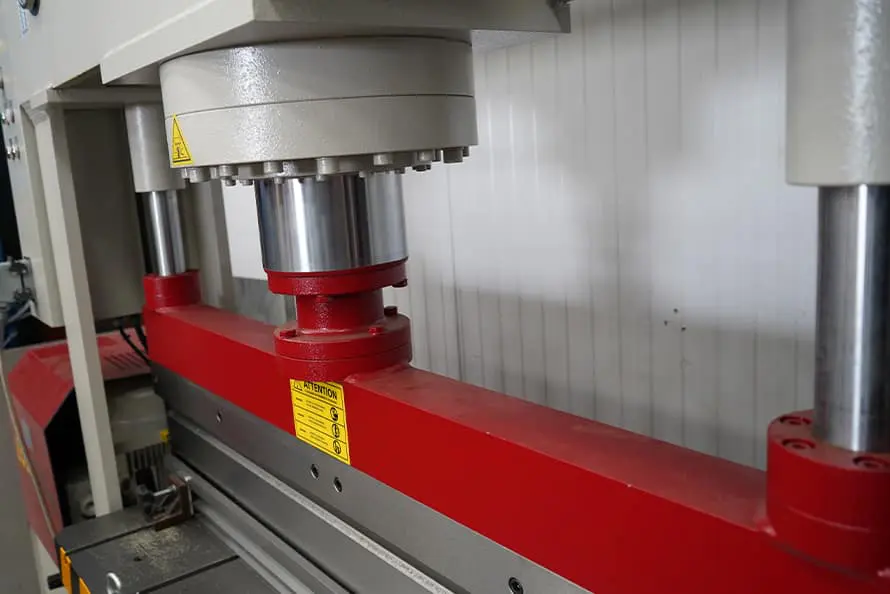

  • Hydraulic cylinder mounted above tooling providing vertical pressure
  • Twin guidance pistons in addition to the main ram

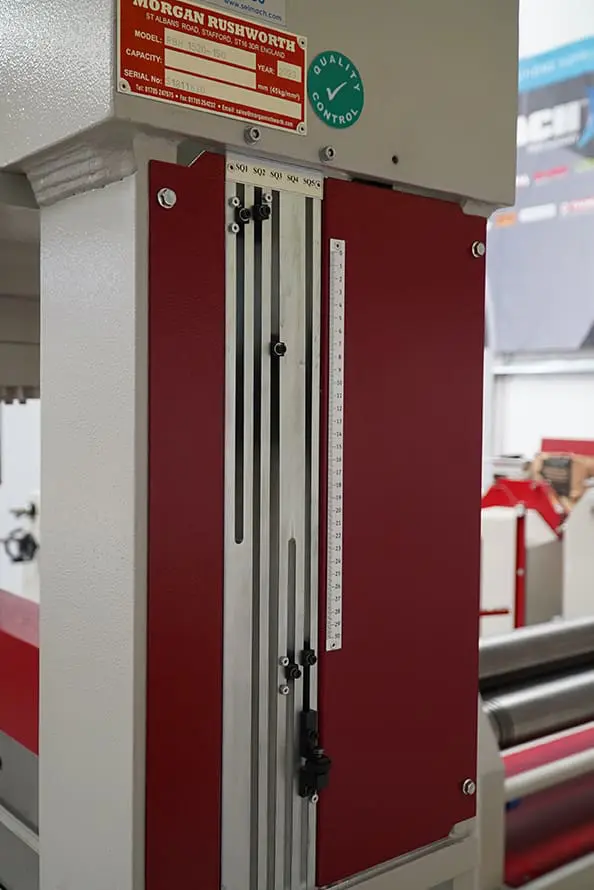

  • Stepless stroke adjustment with limit switches controlling the ram stroke and return
  • Adjustable bed height with two hardened pins

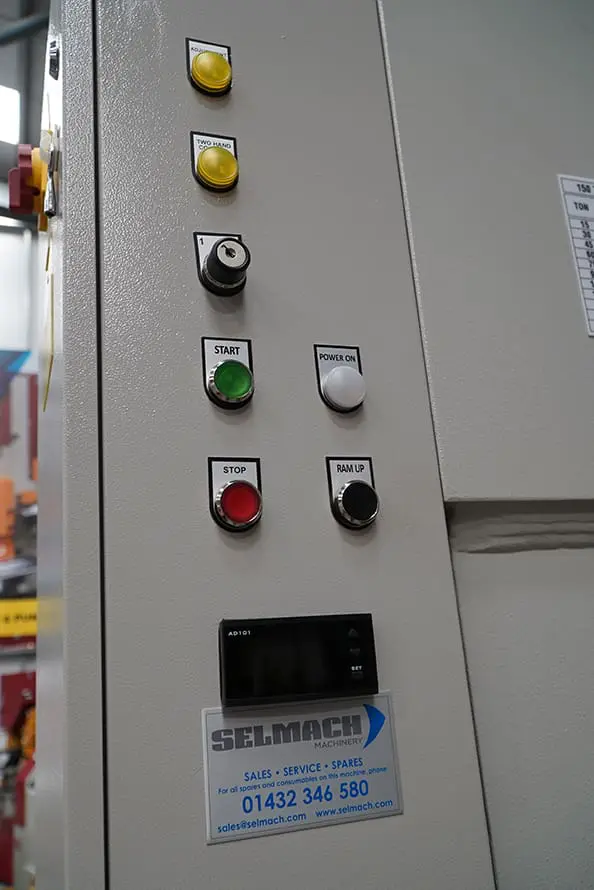

  • Control console with two handed operation
  • Ideal for low or high volume operation
