Morgan Rushworth DFR 1350 Flat Bed Deburring Machine 415V
The Morgan Rushworth DFR 1350 Flat Bed Deburring Machine is a robust and cost-effective solution for de-slagging and de-burring profile cut parts. The machine can process parts in the thickness range of 0 – 40mm and up to 1350mm wide. A conveyor with adjustable speed moves the parts through the machine while two pairs of oscillating wheels perform the deburring action. Different grit abrasives can be used in each set of wheels to achieve the desired finish. Heavy duty deburring wheels are also available for the removal of heavy slag.
| MODEL | DFR 1350 | |
| Max. Processing Width | mm | 1350 |
| Thickness Range | mm | 0 – 40 |
| Wheel Diameter | mm | 300 |
| Deburring Wheel Motor | kW | 4 x 22 |
| Conveyor Motor | kW | 1.1 |
| Height Adjustment Motor | kW | 1.1 |
| Length | mm | 1770 |
| Width | mm | 1850 |
| Height | mm | 1780 |
| Weight | kg | 1700 |
Features
- De-burring and de-slagging of profile cut plates
- Touch screen PLC control

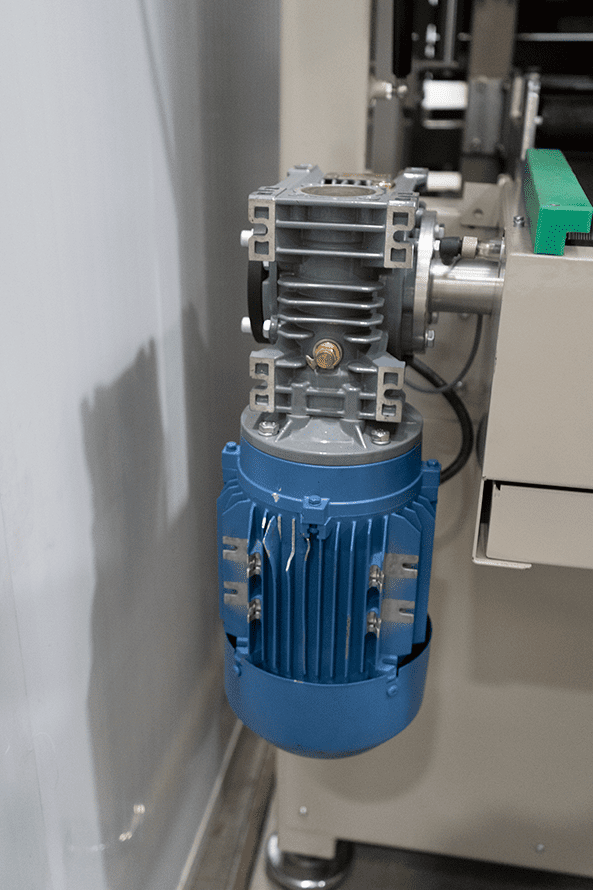

- Motorised thickness adjustment
- Variable speed conveyor

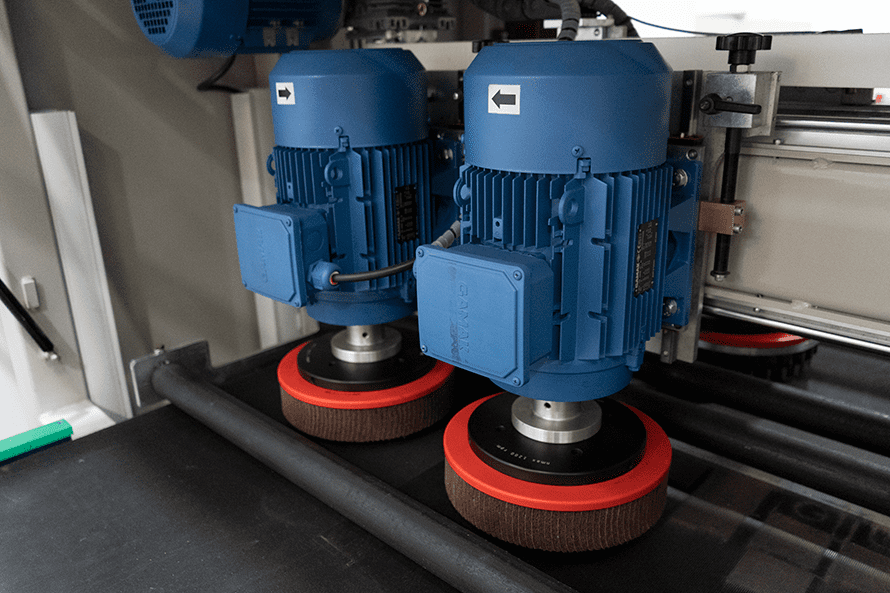

- Two pairs of oscillating wheels
- Variable speed of rotation

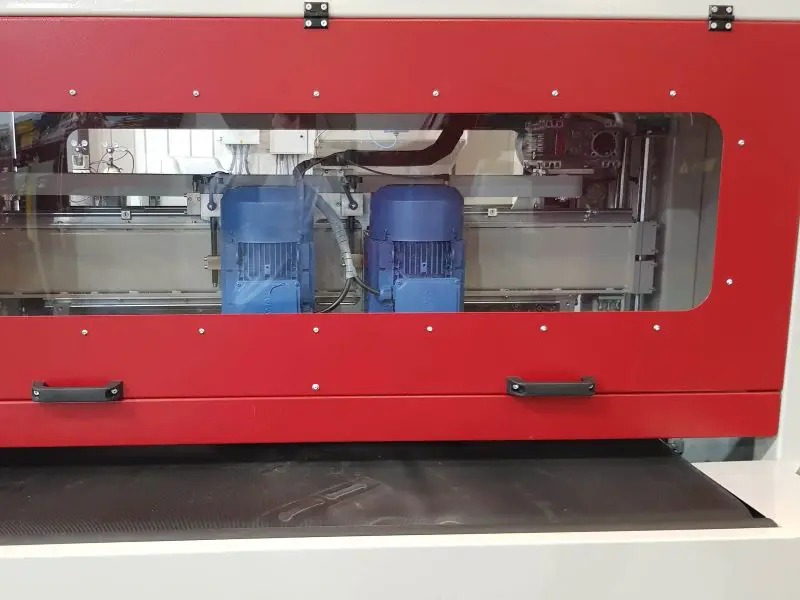

- Full enclosure with electrically interlocked doors
Options

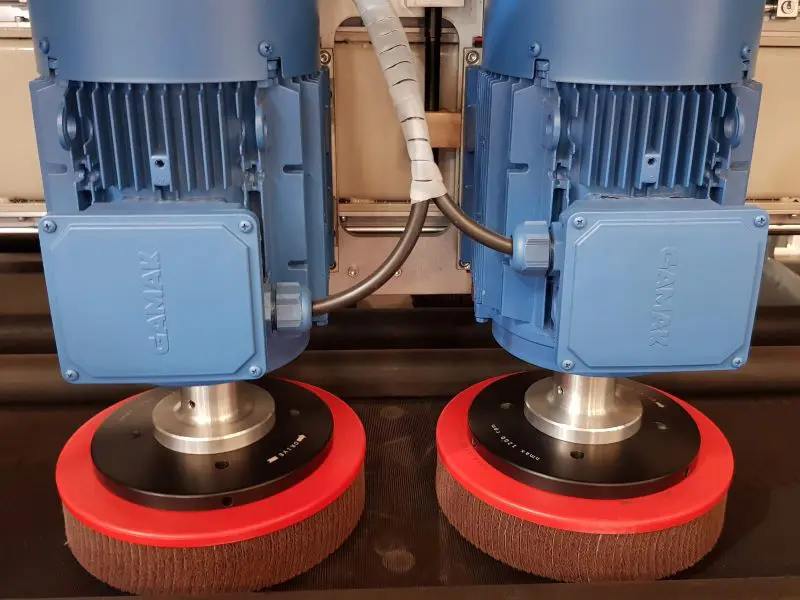

- Abrasive de-burring wheels

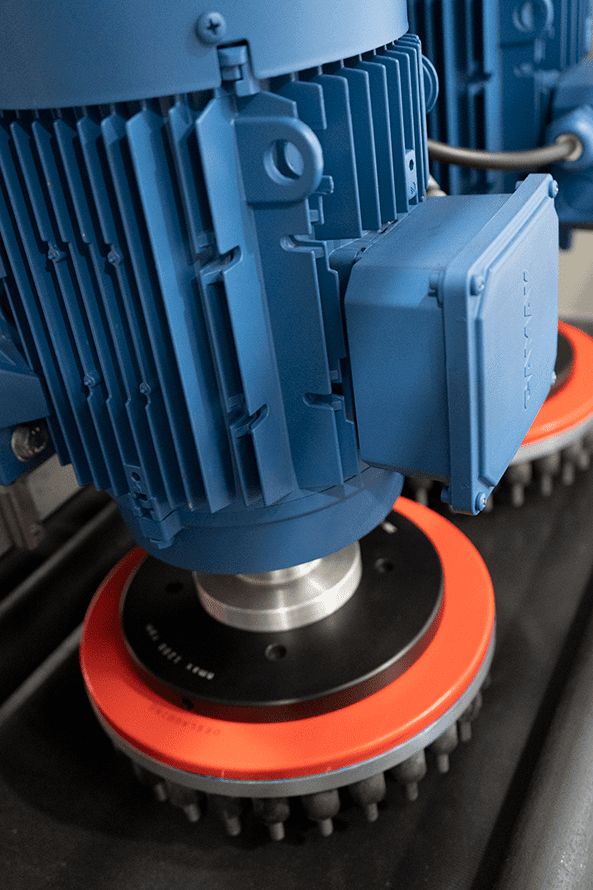

- Heavy duty de-slagging wheels
