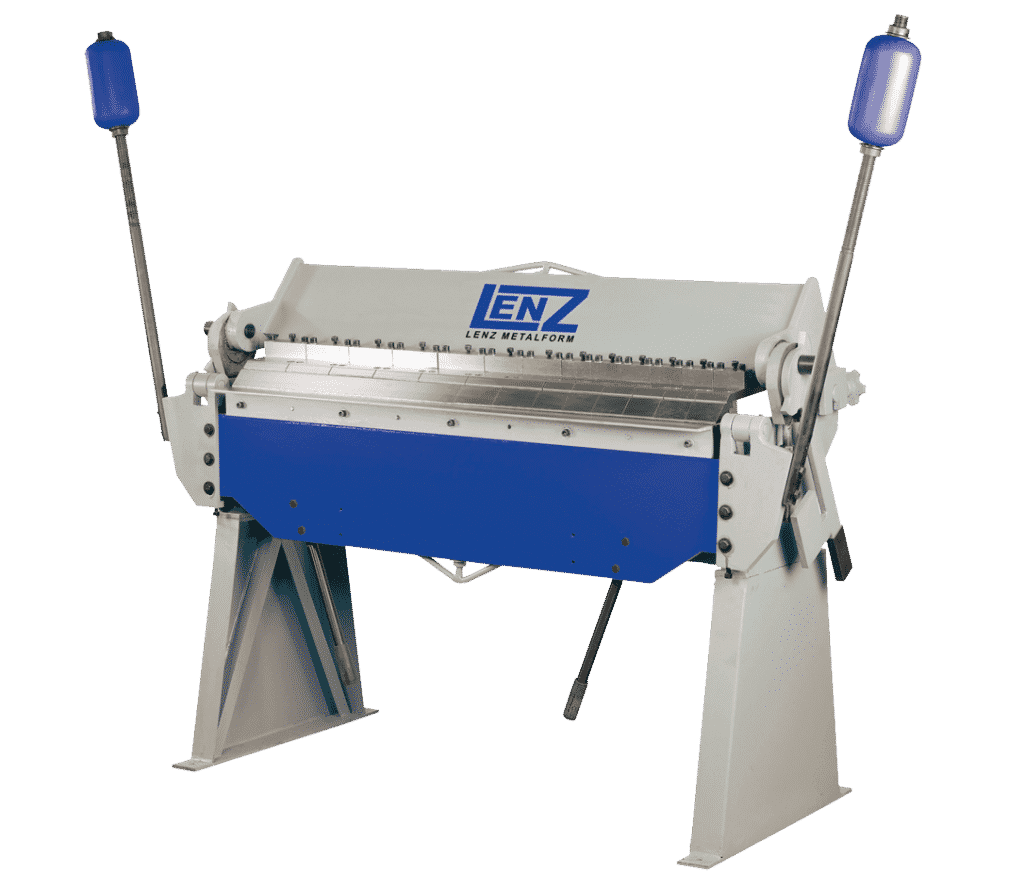

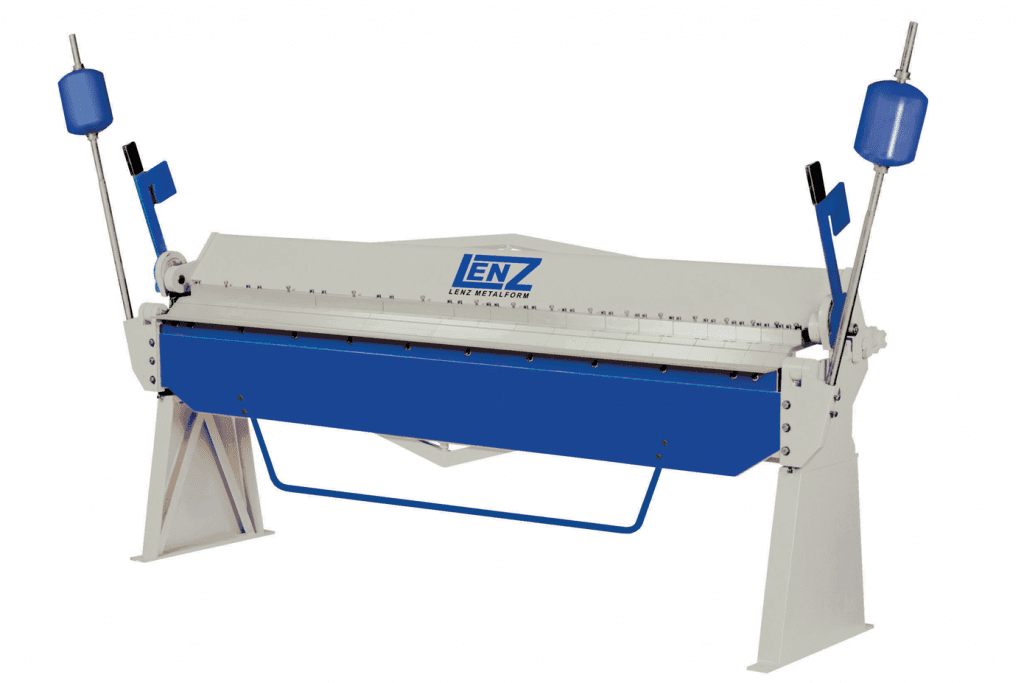

Lenz Metalform LCBP Manual Box and Pan Folder
The five model range of heavy duty Lenz Metalform LCBP Box and Pan folders are available in up to 2.5m bending capacities and a maximum bending length of 3000mm. The counter balance weights greatly assist the operator, especially during repetition cycles. The Lenz Metalform LCBP range have 45° angled fingers which are hardened and ground and supplied in varying widths for ultimate versatility.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | LCBP 1220/2.5 | LCBP 2040/2.5 | LCBP 2540/2.5 | LCBP 3050/2.0 | |
| STOCK CODE | 21545 | 21546 | 21547 | 21548 | |
| Capacity | mm | 2.5 | 2.5 | 2.5 | 2 |
| Bending Length | mm | 1220 | 2040 | 2540 | 3050 |
| Maximum Folding Angle | 135° | 135° | 135° | 135° | |
| Quantity & Size of Fingers | mm | 6 x 76 | 2 x 76, 2 x 104, | 1 x 63, 1 x 76, | 3 x 76, 3 x 127, |
| 2 x 103 | 3 x 127, 3 x 158, | 1 x 89, 1 x 102, | 3 x 153, 3 x 254, | ||
| 5 x 127 | 3 x 287 | 3 x 127, 4 x 152,4 x 305 | 4 x 305 | ||
| Length | mm | 1800 | 2500 | 3000 | 3500 |
| Width | mm | 650 | 640 | 700 | 720 |
| Height | mm | 1200 | 1050 | 1100 | 1120 |
| Weight | Kg | 520 | 890 | 1190 | 1490 |
Features
* Heavy duty manual range with counter balance weights.
Options
