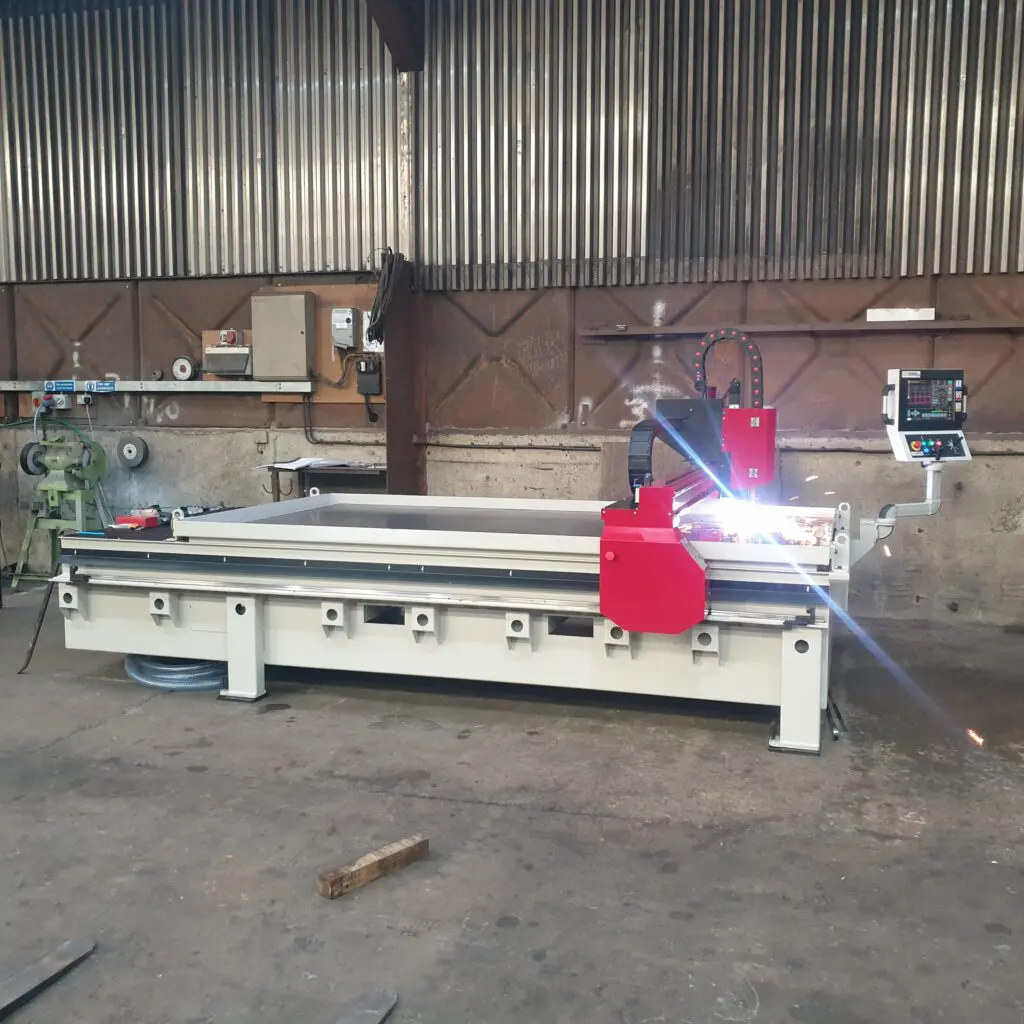

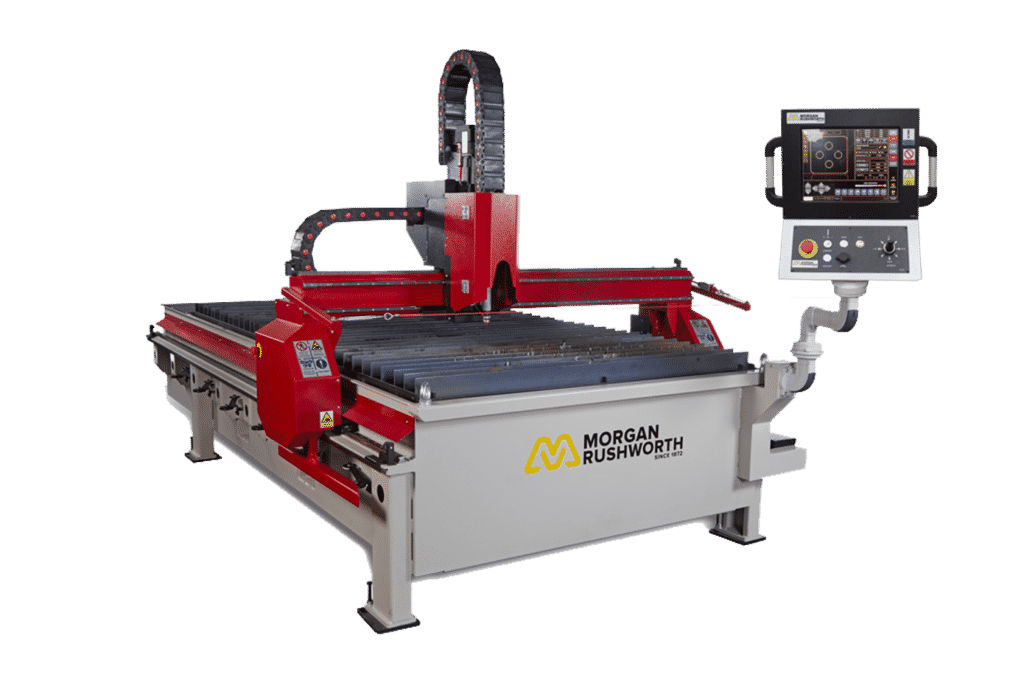

Morgan Rushworth ECP Compact CNC Plasma Cutting Machine
The Morgan Rushworth ECP Compact CNC Plasma cutting machines have been especially designed for simple but accurate cutting of sheet and plate material and are fitted with an operator friendly LYNCA-CNC controller supplied together with Libellula auto nesting software. These heavy duty models are equipped with the class leading Hypertherm Powermax power source utilising single gas plasma technology. The result is a high quality machine delivering low initial and operating costs, high productivity, superior cut quality and unsurpassed reliability.
| MODEL | ECP 1530/45 | ECP 1530/65 | ECP 1530/85 | ECP 1530/105 | |
| STOCKCODE | 1530/45 | 1530/65 | 1530/85 | 1530/105 | |
| Capacity from Pierce | |||||
| Mild Steel | mm | 12 | 16 | 20 | 20 |
| Stainless | mm | 12 | 12 | 16 | 20 |
| Aluminium | mm | 10 | 12 | 16 | 20 |
| Capacity from Edge Start | |||||
| Mild Steel | mm | 20 | 25 | 30 | 40 |
| Stainless | mm | 20 | 20 | 25 | 32 |
| Aluminium | mm | 16 | 20 | 25 | 32 |
| Table Width | mm | 1500 | 1500 | 1500 | 1500 |
| Table Length | mm | 3000 | 3000 | 3000 | 3000 |
| X Axis Stroke | mm | 1550 | 1550 | 1550 | 1550 |
| Y Axis Stroke | mm | 3050 | 3050 | 3050 | 3050 |
| Z Axis Stroke | mm | 150 | 150 | 150 | 150 |
| Table Height | mm | 800 | 800 | 800 | 800 |
| Table Loading | kg/m² | 750 | 750 | 750 | 750 |
| Length | mm | 4420 | 4420 | 4420 | 4420 |
| Width | mm | 2350 | 2350 | 2350 | 2350 |
| Height | mm | 1710 | 1710 | 1710 | 1710 |
| Weight | kg | 2250 | 2250 | 2250 | 2250 |
Features

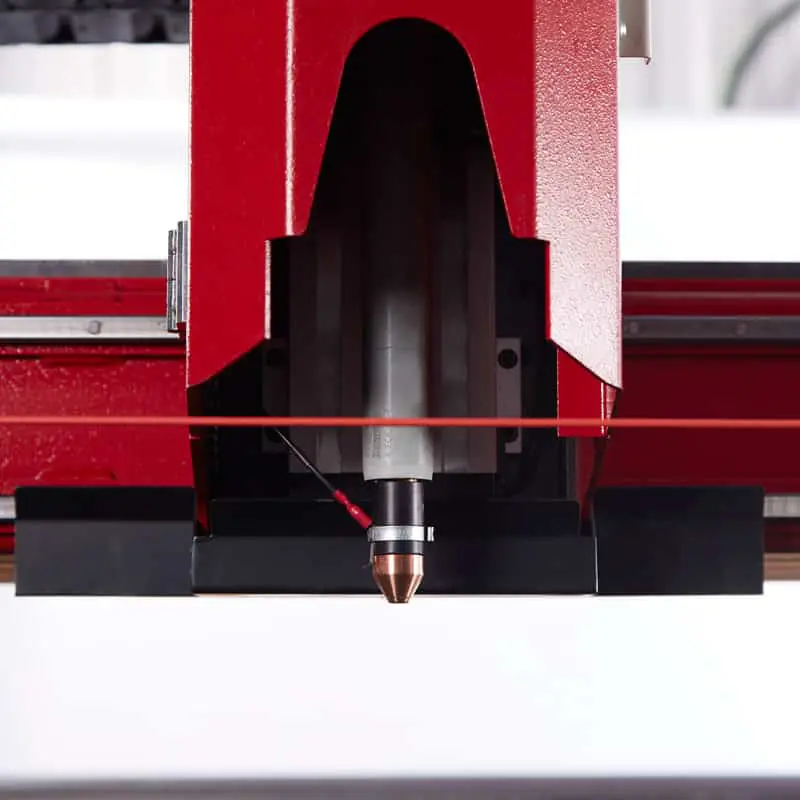

- Hypertherm Powermax 45/65/85/105 plasma unit for single gas cutting
- Air or Nitrogen cutting

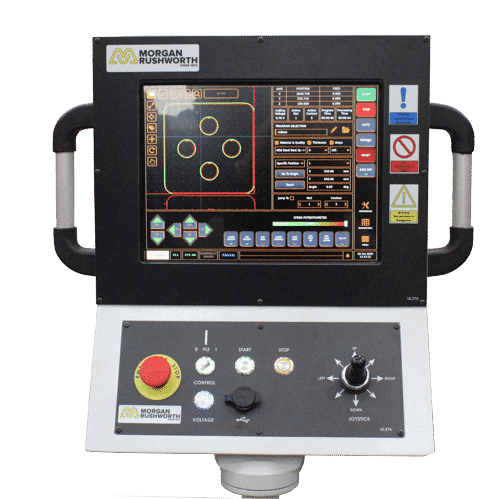

- Easy to use touch screen LYNCA-CNC controller
- Automatic torch height control
- Torch collision protection system

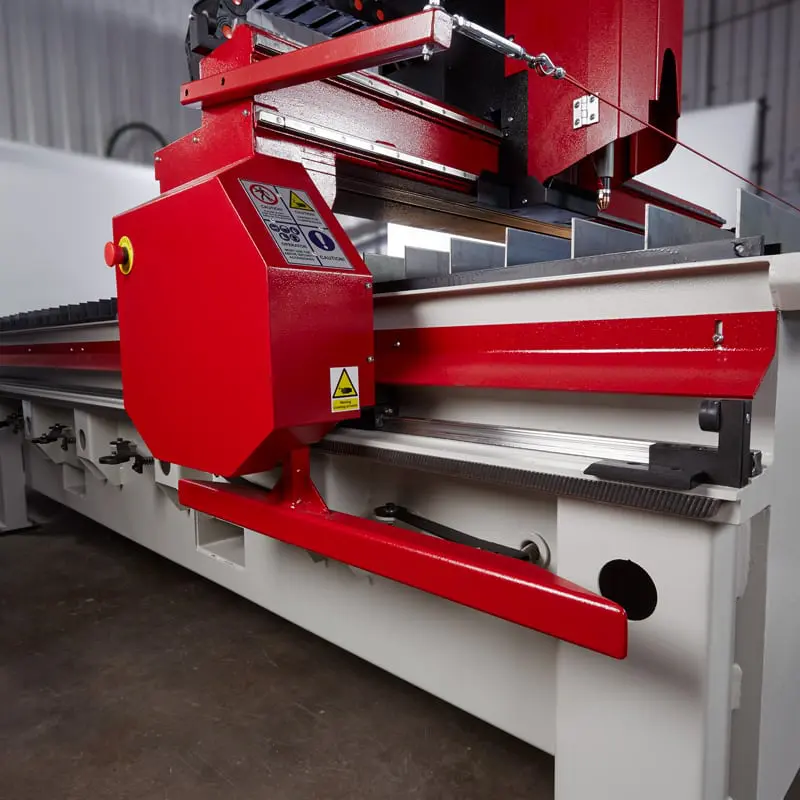

- Automatic ventilation and smoke extraction system ready to be connected to a filtration system
- Positioning speed 15 m/min
- Positioning accuracy +/- 0.01mm
- LMT 25mm high accuracy linear rail
- High quality Eisele gearbox
- ESA AC digital servo motors and drivers
- Gudel helical rack and pinion system

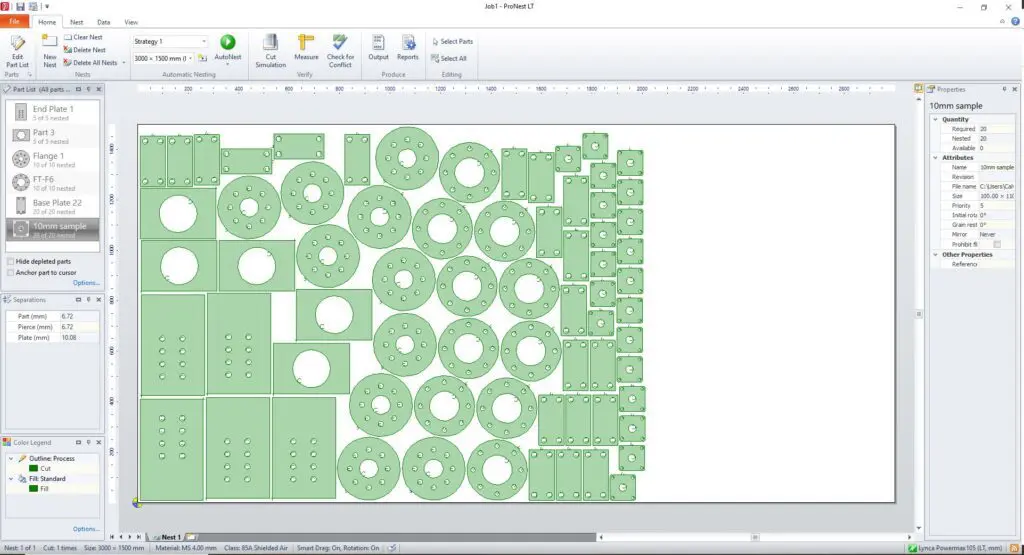

- Libellula auto nesting software
Options
- Water table in lieu of extraction table

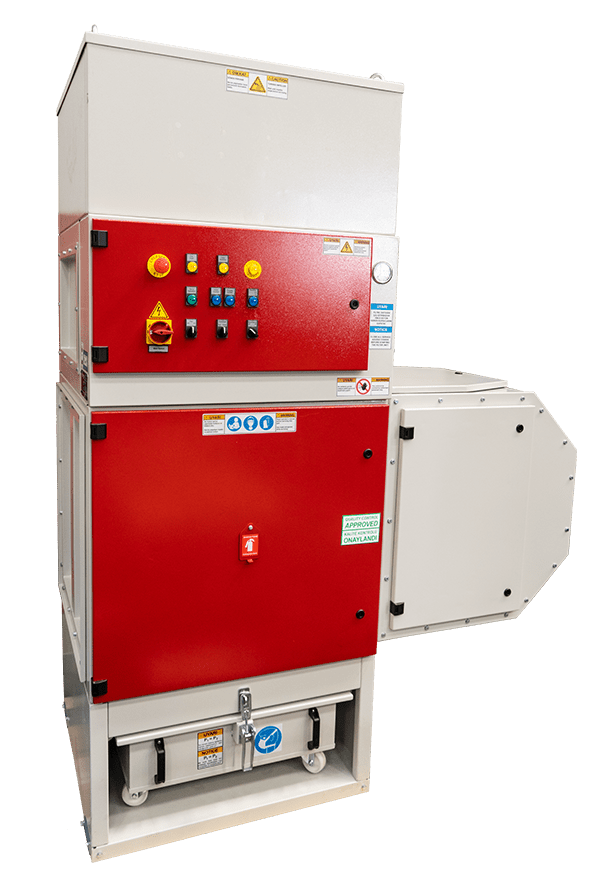

- Extraction/filtration system
