Curvassi MTX 65NC Mandrel Tube Benders

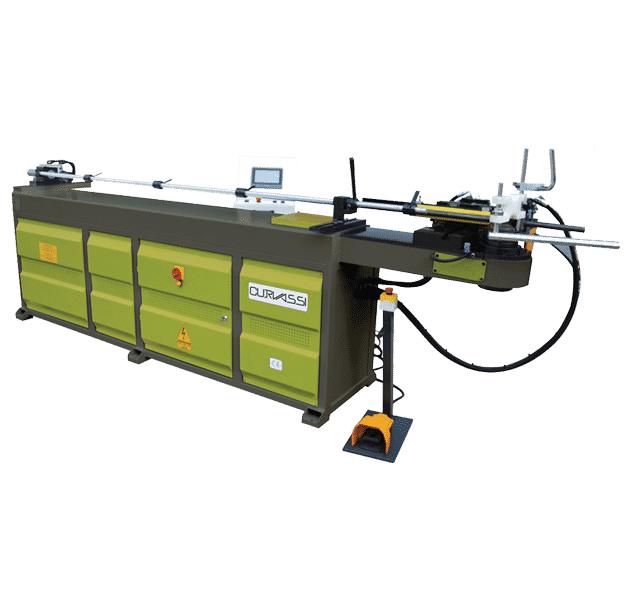

Main view Curvassi-MTX-65NC-Mandrel-Tube-Bender

The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.

Main view Curvassi-MTX-65NC-Mandrel-Tube-Bender
Main view Curvassi-MTX-65NC-Mandrel-Tube-BenderMain view Curvassi-MTX-65NC-Mandrel-Tube-Bender
Video thumbnail showing the Curvassi MTX 65NC Mandrel Tube Benders
Curvassi-MTX-65-NC-Mandrel-Tube-BenderCurvassi-MTX-65-NC-Mandrel-Tube-Bender

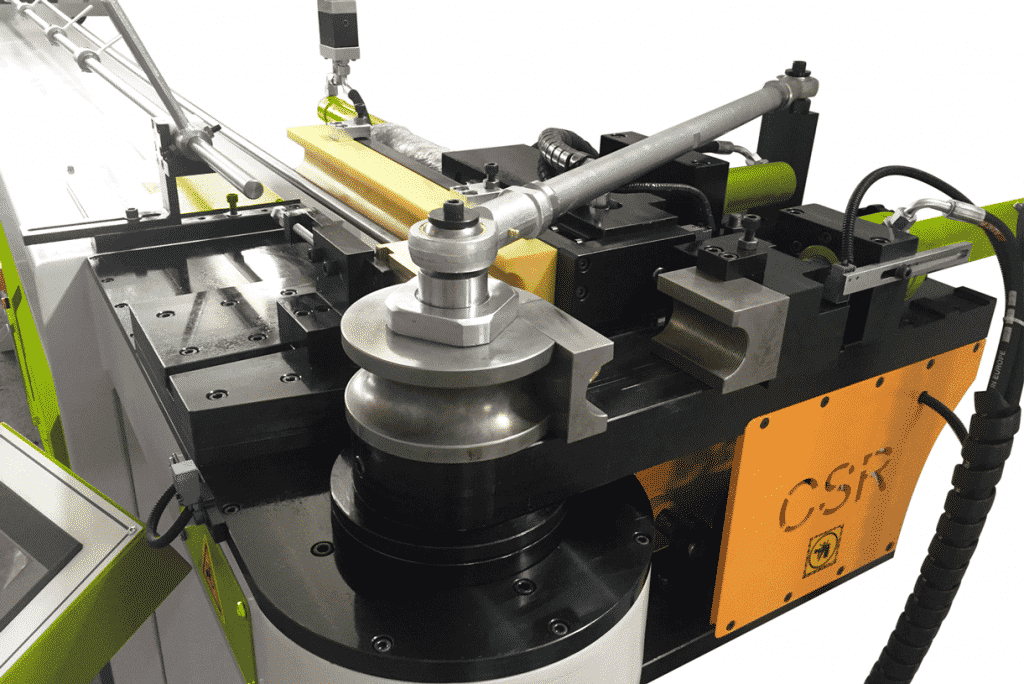

Curvassi-MTX65-Mandrel-Tube-Bender-DetailCurvassi-MTX65-Mandrel-Tube-Bender-Detail
MODEL MTX 65 NC
Max Pipe Diameter mm 63
Max Wall Thickness mm 3.5
Max Bending Radius mm 250
Max Bending Angle (°) 190
Bending Speed (0/sn) Adjustable
Max Pipe Length mm 3250
Max Hydraulic Press (bar) mm 200
Bending Speed rev/min 7-10
Hydraulic Bending Power kw 4
Bending Engine Power kw 7.5
Weight kg 1600
Length mm 4215
Width mm 1200
Height mm 1435

Features

  • Built according to EC Safety Directives (CE-Mark Approved)
  • Heavy Duty Construction
  • Excellent bend quality
  • Very Easy To Use
  • Geared Motor Drive
  • 4.7” Touch Screen Angle Programmer With Multiple Steps
  • Foot Pedal Control
  • Hydraulic Clamping Movement
  • Manual Flip Length Stop System
  • Electrical Parts – Simens/Telemecanique
  • Complete tooling service

Options
