CMS Proline Waterjet Cutting System

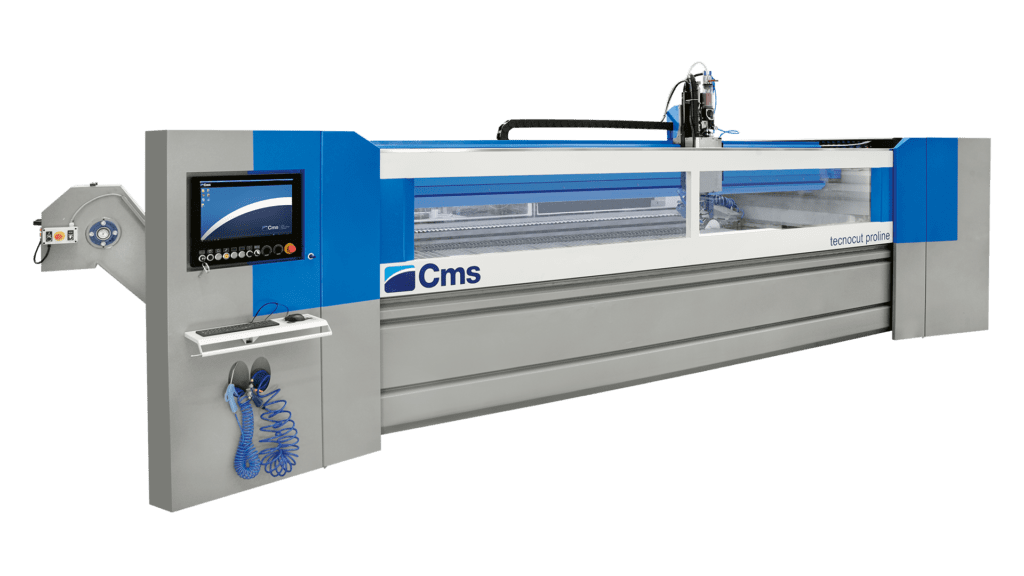

The ultimate machine tool specifically conceived and designed with advanced technical solutions for the waterjet cutting technology, in order to achieve unmatched performance.
The CMS Proline is built around a stainless-steel frame ready for integration with the “Dredge”, a fully automated and maintenance free abrasive removal system, an automatic water level control for submerged cutting and rotary option for pipes processing.
The overall machine structure, especially the rugged gantry system, offers unmatched rigidity and thus consistent cutting accuracy over time, thanks also to the ground helical rack and pinions, combined with high precision gearboxes.
| Model | CMS Smartline | CMS Proline | ||
| Size | 2040 | 1730 | 2040 | |
| X Axis | mm | 4,000 | 4,250 | |
| Y Axis | mm | 2,000 | 2,000 | |
| Z Axis | mm | 250 (3-Axis) / 150 (5-Axis) | 300 (3-Axis) / 200 (5-Axis) | |
| B Axis (5 Axis Only) | ° |
±60 |
±62 | |
| C Axis (5 Axis Only) | N/A | Infinite | ||
| XY Axis Rapid Speed | mm/min | N/A | 40,000 | |
| Rest Surface | mm | 4150 x 2080 | 3700 x 2025 | 4650 x 2050 |
| Workable Load Capacity | kg/m2 | 500 | 1,000 | 1,000 |
| Position Accuracy | mm | +/- 0.1 | +/- 0.035 | |
| Position Repeatability (BS) | mm | +/- 0.05 | +/- 0.025 | |
| Installed Power | HP | 60 | 60 | |
| Overall Dimensions | mm | 5,595 x 7,400 x 4,000 | 7,152 x 3,183 x 4,1049 | 8,158 x 3,483 x 3,900 |
| Weight (Empty) | kg | 3,900 | 4,000 | 8,000 |
Features
- 21.5″ Touch Screen Controller
- New Z axis strokes up to 300mm 3 axis, up to 200mm 5 axis
- Easyjet DDX CAD/CAM Software
- Electronic hopper for abrasive automatic monitoring with sensors for cutting parameters automatic control
- Probe system for consistent cutting heights
- Integrated electric cabinet in the tank frame for a reduced footprint
- Racks and Helicoidal Pinions
- Powder free labyrinth panels for the Axes to protect the linear guides and racks from water, dust and abrasives
- Automatic Safety Doors
- Automatic hose reel
- Intensifier chamber
- Automatic lubrication of all axes

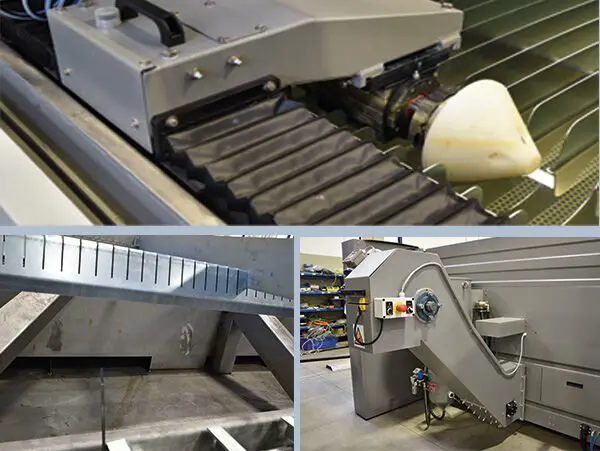

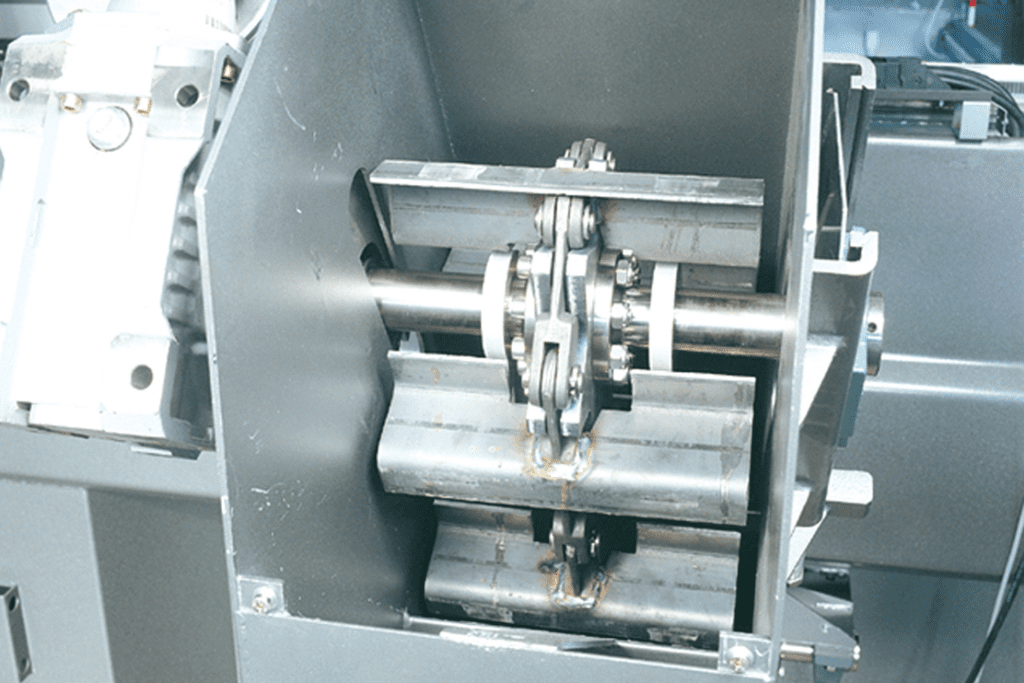

- Dredging system for “no maintenance” abrasive removal
- 330kg pressurised abrasive feeding system
Options

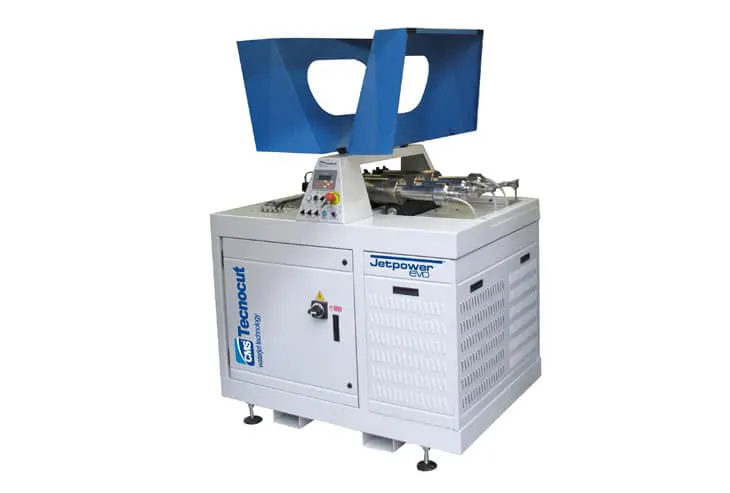

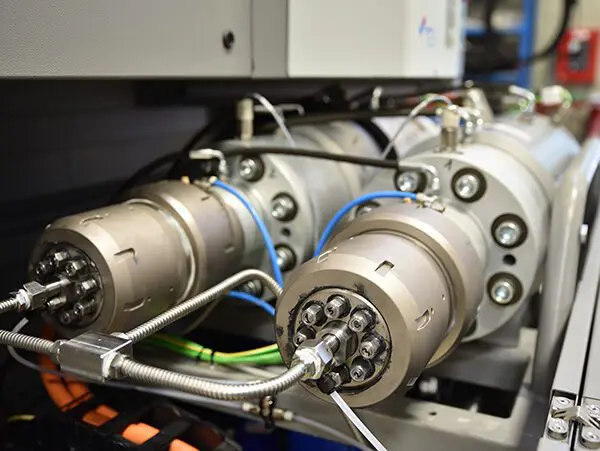

- 60Hp Jetpower Evo Pressure Intensifier
- 4139 / 6200 Technocut Greenjet Evo Pressure Intensifier

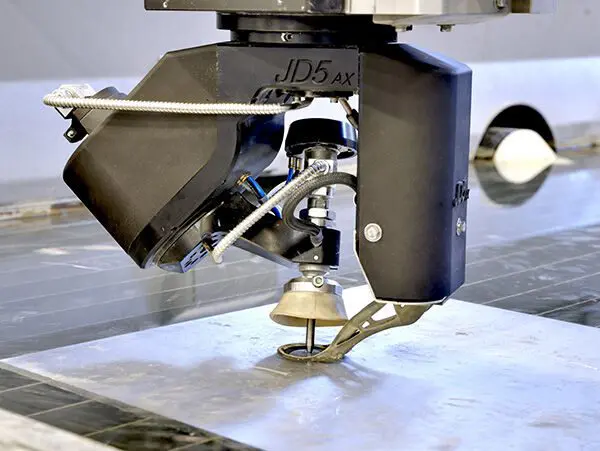

- JD5AX Cutting Head
- 5AX Head Position

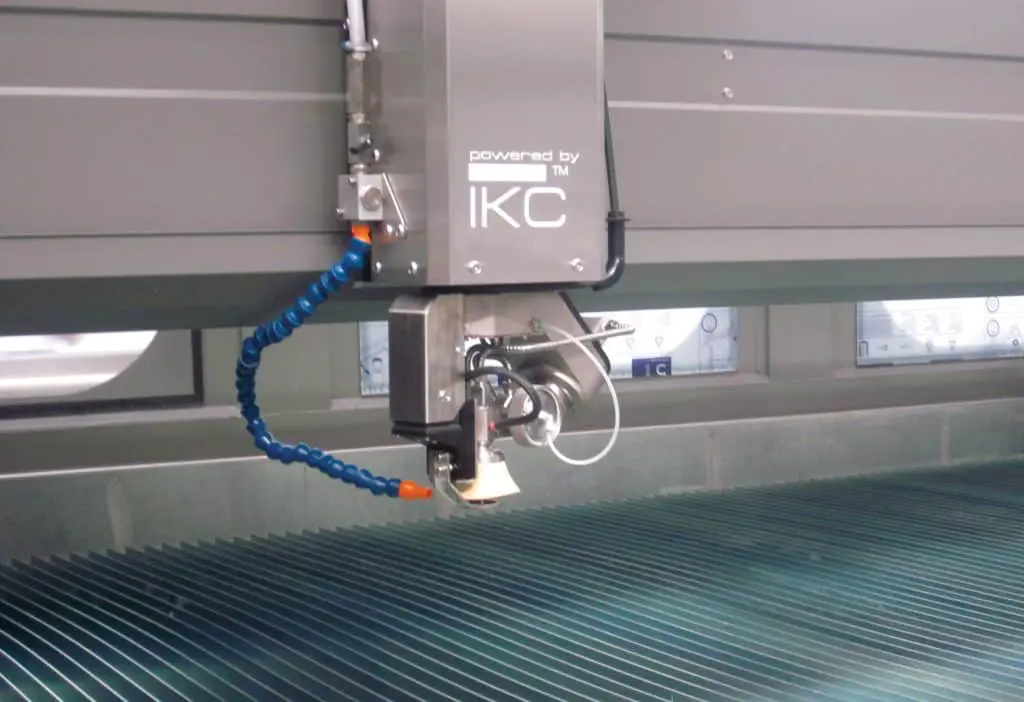

- Cutting head camera
- Drilling Head
- Laser pointer
- Anti-reflective or steel honeycomb work table grids

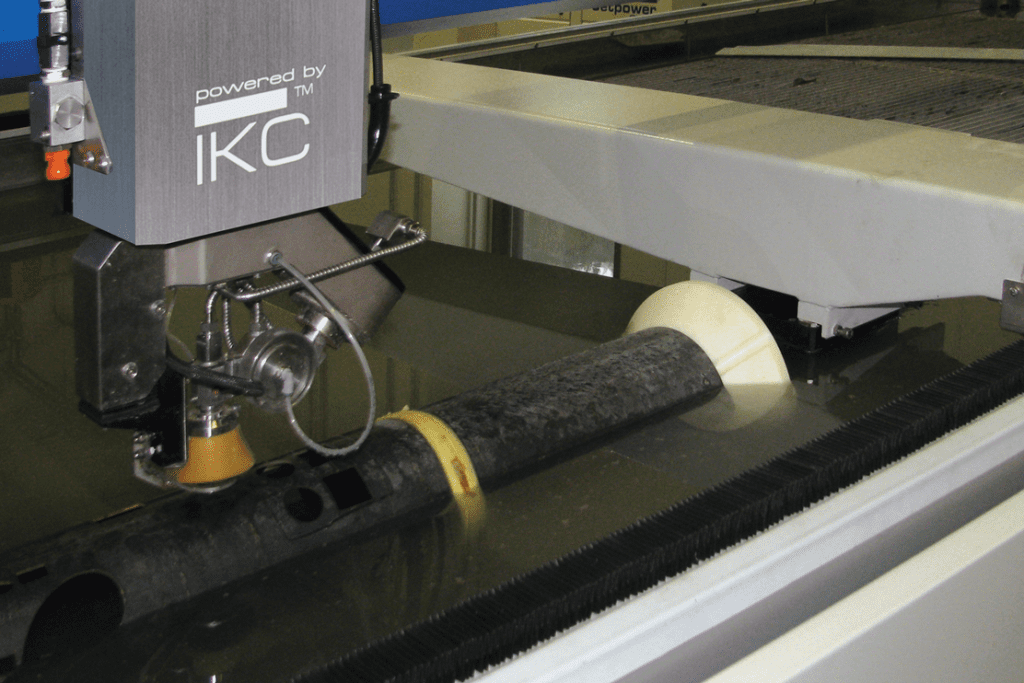

- Rotating axis for pipe processing
