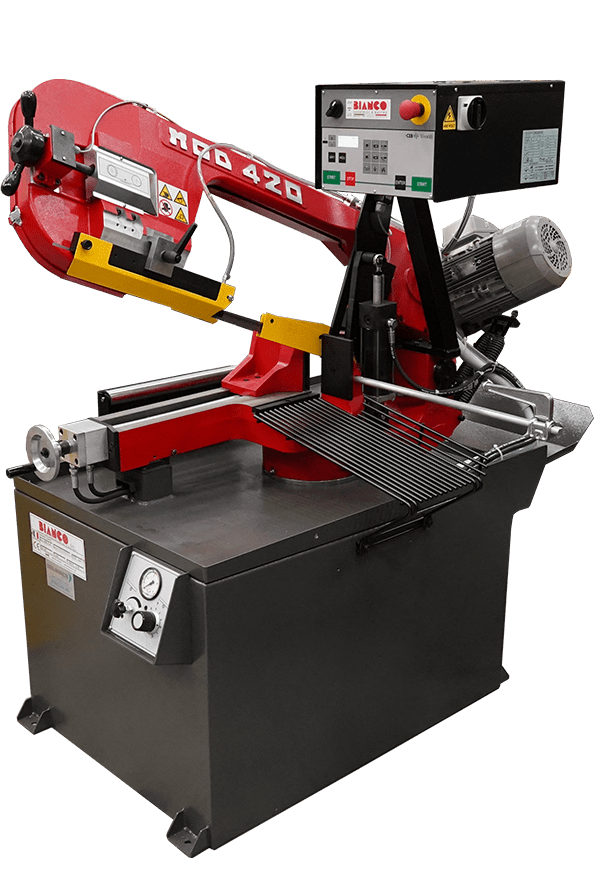

Bianco SAE Semi Automatic Single Mitre Bandsaw 415v
The Bianco SAE Semi Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
| MODEL | 280 SAE | 330SAE | 370 SAE | 420SAE | |||||||||||||
| STOCKCODE | 15062 | 15084 | |||||||||||||||
| Capacity | 90° | 45° | 60° | 90° | 45° | 60° | 90° | 45° | 60° | 90° | 45° | 60° | |||||
| ◯ Tube | mm | 220 | 160 | 90 | 260 | 200 | 120 | 280 | 225 | 140 | 300 | 240 | 170 | ||||
| □ Box Section | mm | 200 | 140 | 90 | 240 | 190 | 115 | 240 | 215 | 140 | 240 | 230 | 170 | ||||
| ▭ Widest Cut | mm | 250 x 150 | 140 x 140 | 90 x 90 | 330 x 120 | 200 x 130 | 120 x 100 | 370 x 140 | 230 x 140 | 140 x 130 | 420 x 200 | 270 x 140 | 170 x 170 | ||||
| Bed Height | mm | 830 | 830 | 830 | 830 | ||||||||||||
| Blade Size | mm | 2450 x 27 x 0.9 | 3010 x 27 x 0.9 | 3120 x 27 x 0.9 | 3270 x 27 x 0.9 | ||||||||||||
| Cutting Speed | m/min | 35 / 70 | 35 / 70 | 35 / 70 | 35 / 70 | ||||||||||||
| Motor | Kw | 0.5 – 0.7 | 0.9 – 1.5 | 0.9 – 1.5 | 0.9 – 1.5 | ||||||||||||
| Length | mm | 800 | 1200 | 1200 | 1200 | ||||||||||||
| Width | mm | 1030 | 1600 | 1650 | 1650 | ||||||||||||
| Height | mm | 1860 | 1800 | 1850 | 1900 | ||||||||||||
| Weight | Kg | 290 | 394 | 400 | 410 | ||||||||||||
| Operation | Semi-Automatic | Semi-automatic | Semi-automatic | Semi-automatic | |||||||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features
- Quick mitring swivel head up to 60°

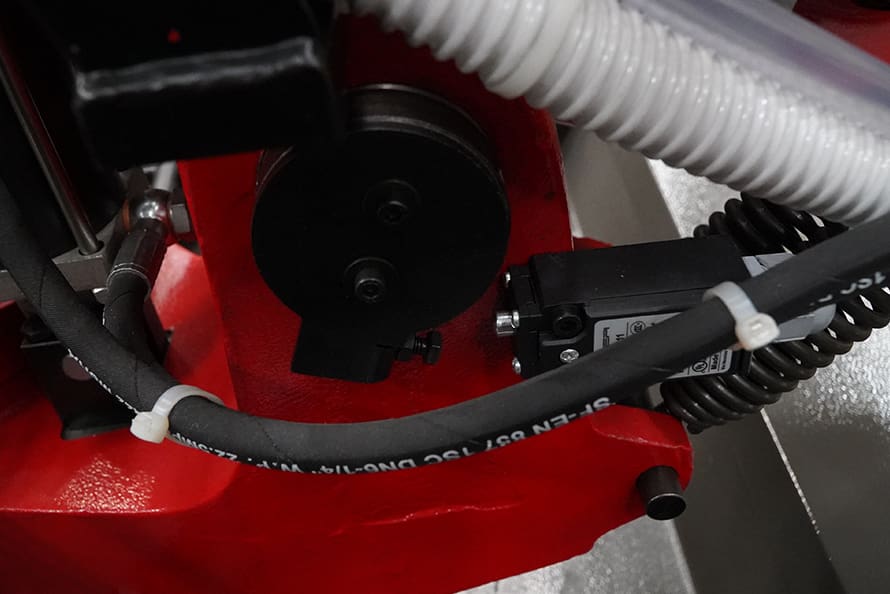

- Fast approach with auto bow height return setting (Semi-Automatic)

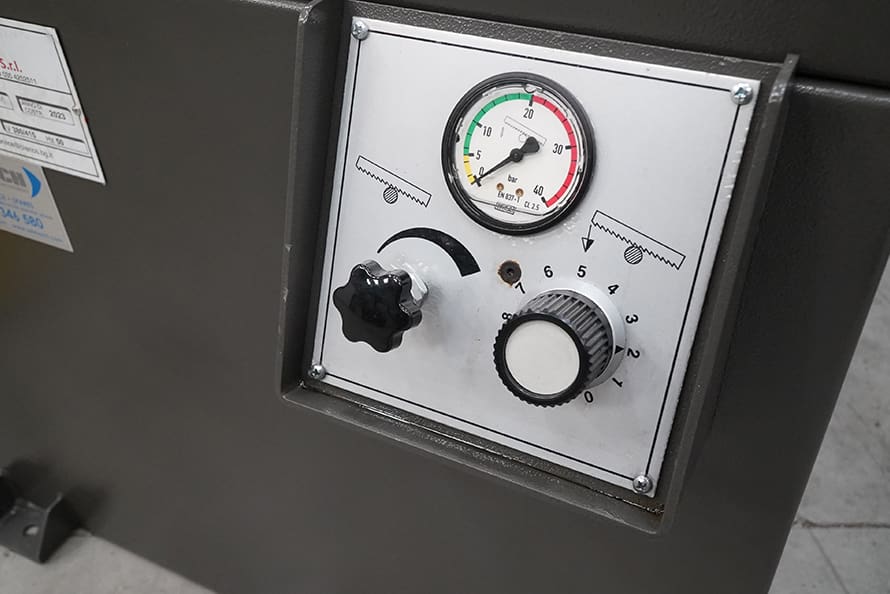

- Hydraulic cutting with variable pressure and variable speed

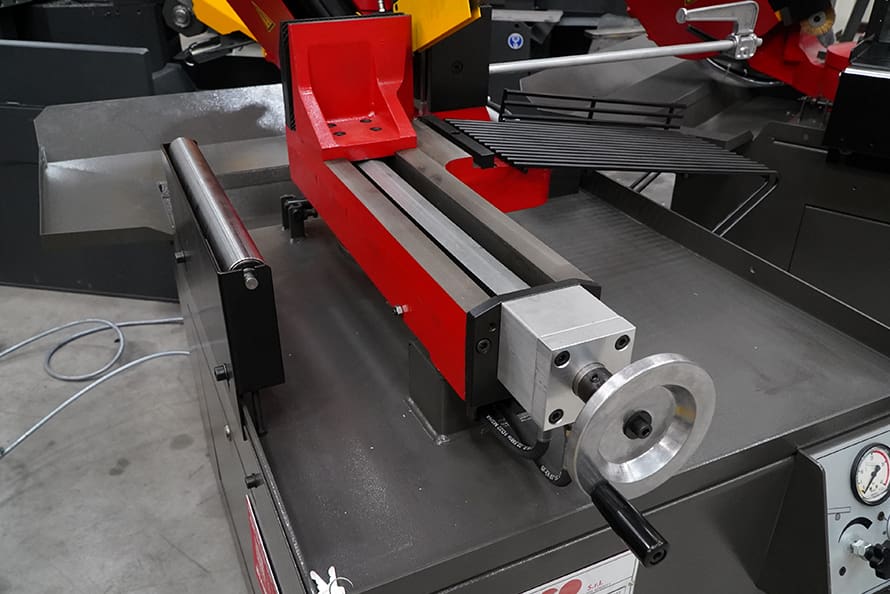

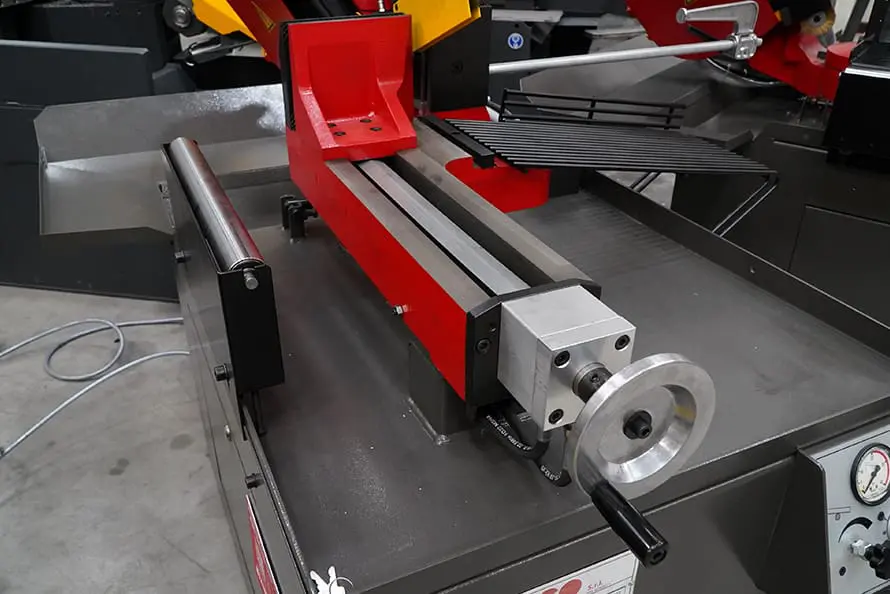

- Hydraulic vice

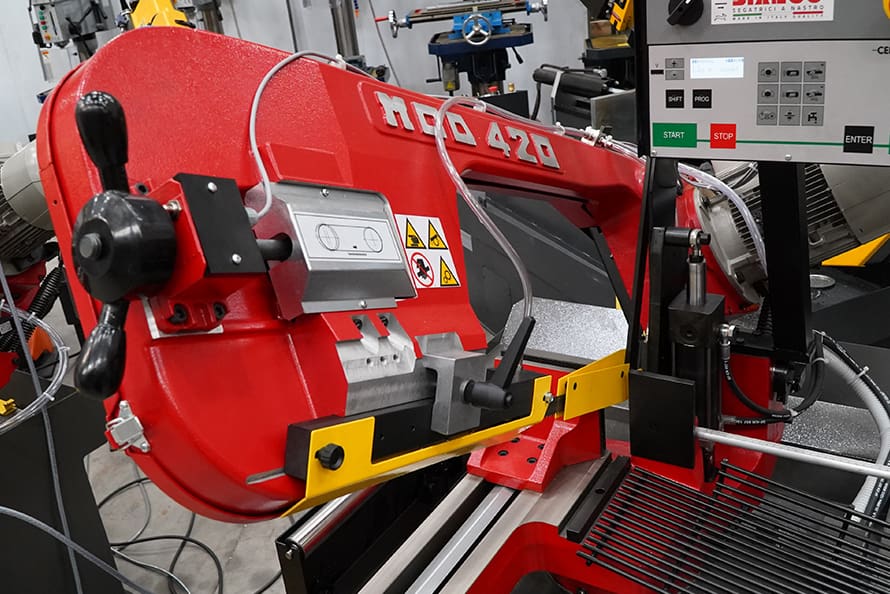

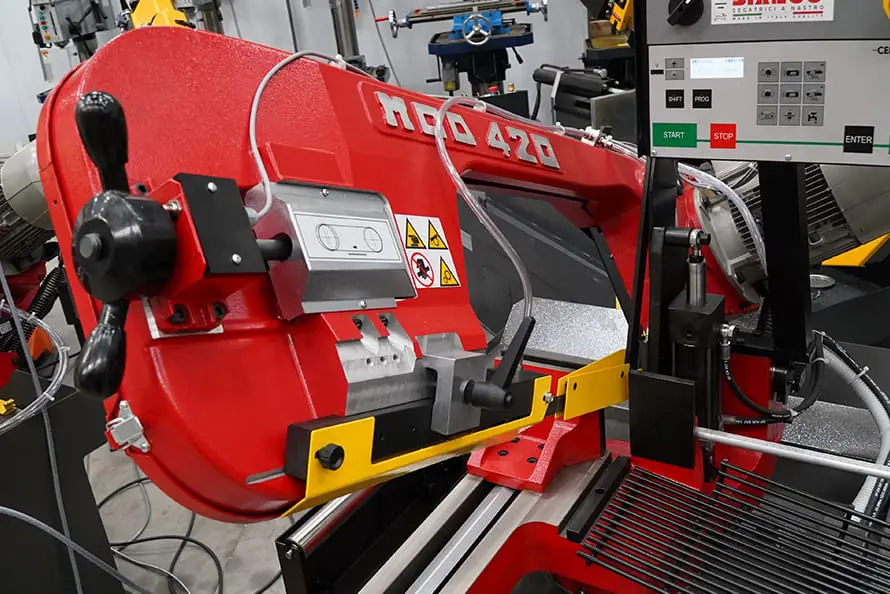

- Cast bow construction

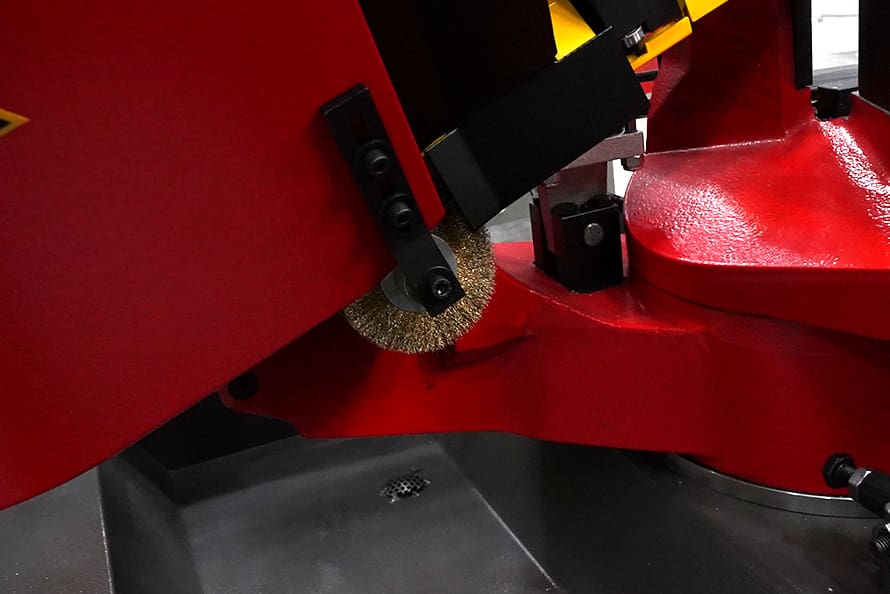

- Swarf brush
- Carbide blade guides for high accuracy

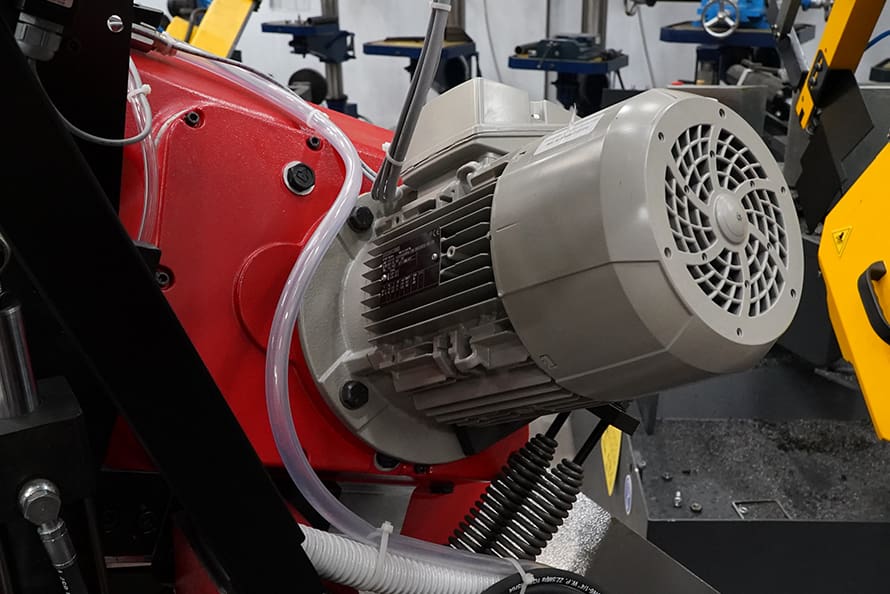

- 2 speed motor
- Heavy duty
- Coolant system
- Blade tension indicator
- Safety interlock switch fitted to bandwheel cover

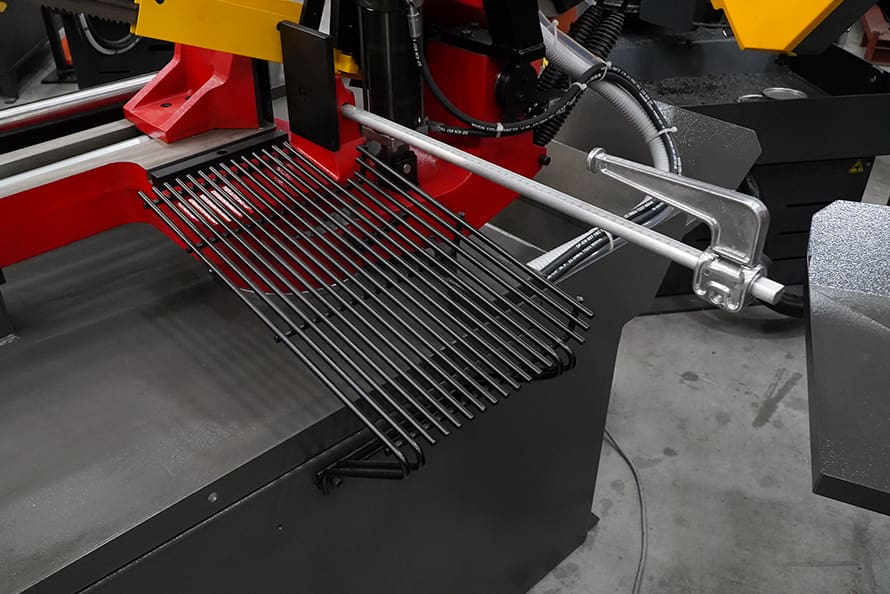

- Material length stop

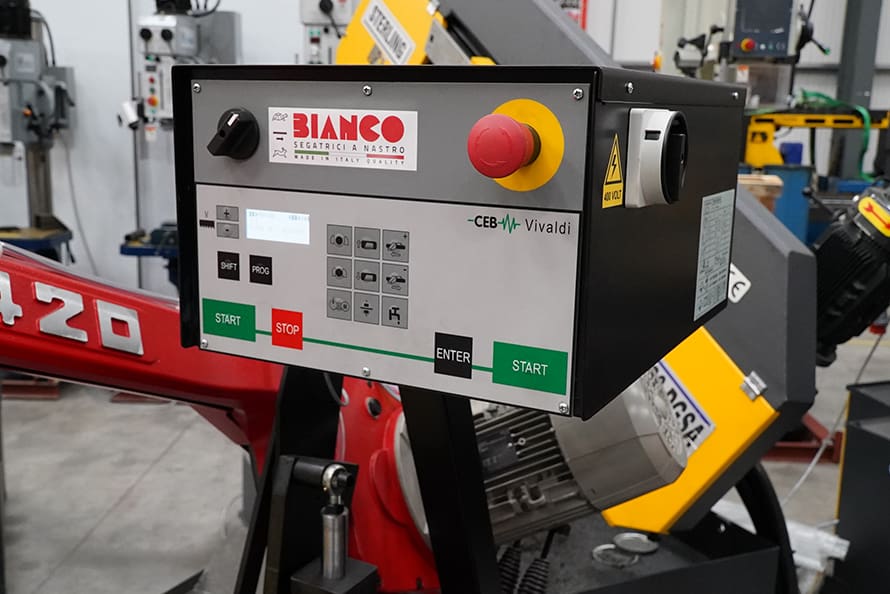

- Low controller position
Options
- High controller position
- Blade speed variation
- Spray mist cooling system
- Powered swarf brush
- Roller track and measuring systems
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
All SAE models feature automatic bow return and hydraulic vices. Two speed motors allow for both the cutting of mild steel and stainless steel.
A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.
Ideal for cutting round, plate and profiles, bandsaws like this are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
