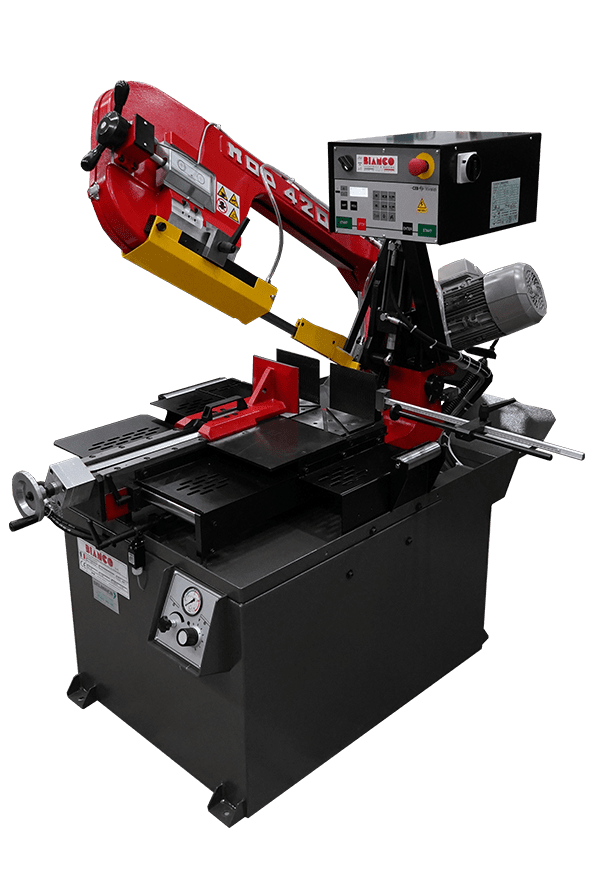

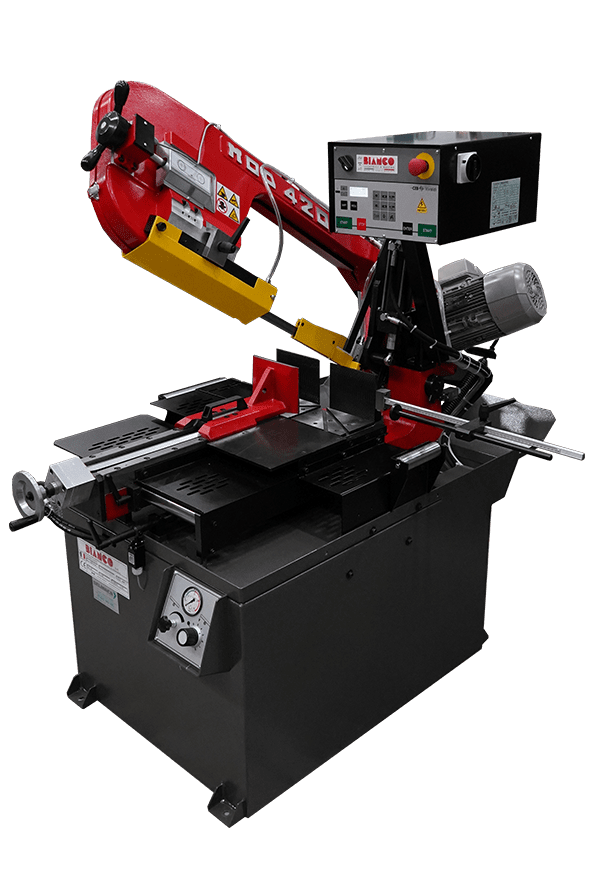

Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v

Main View - Bianco-SA-DS-Double-Mitre-Bandsaw

View Product Downloads / Full Specification Sheet

Request A Quote

The Bianco SA DS MS Semi Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

View Product Downloads / Full Specification Sheet

Main View - Bianco-SA-DS-Double-Mitre-Bandsaw
Request A Quote

Gallery & Video

Main View - Bianco-SA-DS-Double-Mitre-BandsawMain View - Bianco-SA-DS-Double-Mitre-Bandsaw
Video thumbnail showing the Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v
Close up detail of the Siemens Direct Drive MotorClose up detail of the Siemens Direct Drive Motor
Close up detail of the Fast Approach Bow with Auto Height Return SettingClose up detail of the Fast Approach Bow with Auto Height Return Setting
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 5
Variable Speed Motor
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 5
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 6
Mechanical Bundling (Optional)
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 6
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 7
Hydraulic Bundling (Optional)
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 7
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 8
Dry Cooling (Optional)
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 8
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 9
Frequency Inverter (Optional)
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 9
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 10
Adjustable Vice Pressure (Optional)
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 10
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 11

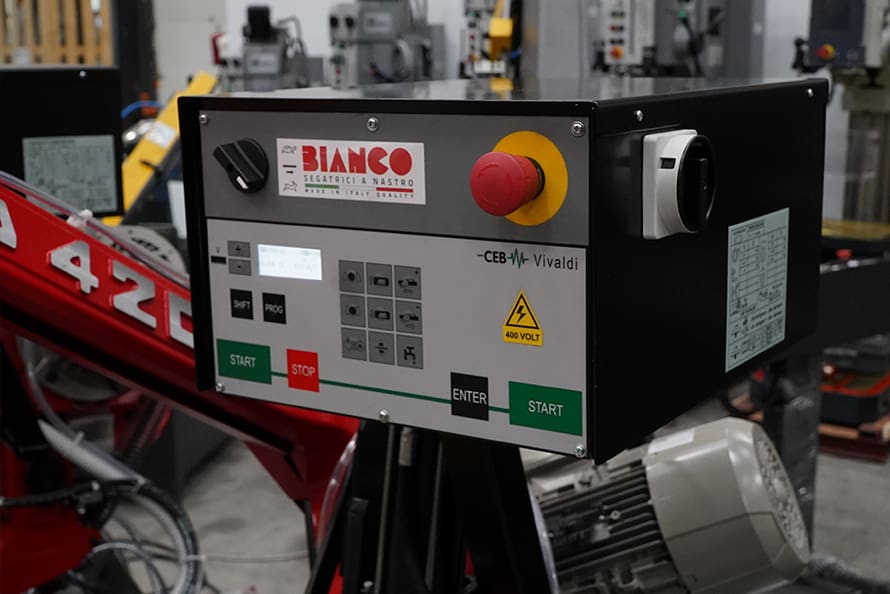

High Controller
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 11
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 12

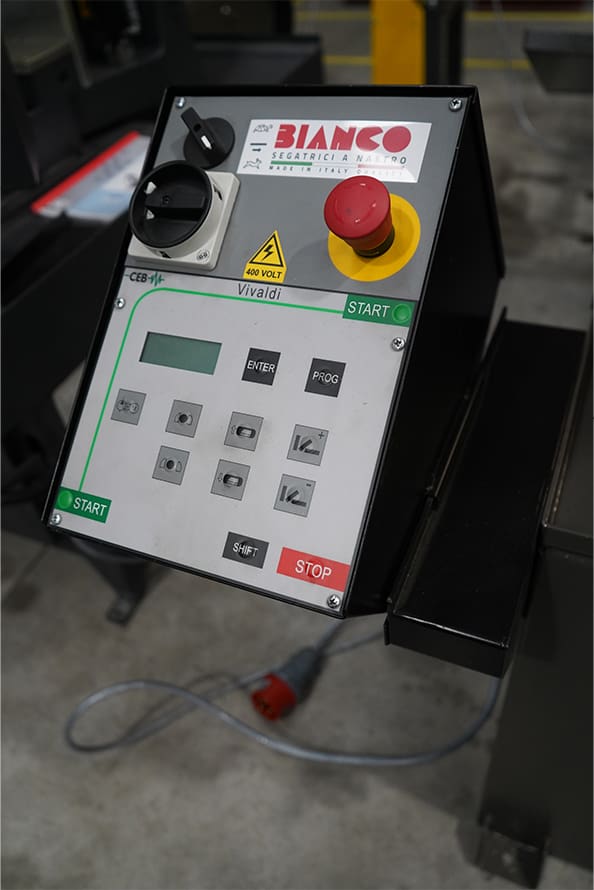

Low Controller
Bianco SA DS MS Semi Automatic Double Mitre Bandsaw 415v image 12

Technical Specs

MODEL         330SA DS MS        370SA DS MS           420SA DS MS
Capacity 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R
◯ Tube mm 260 130 150 120 280 200 230 140 280 200 260 170
▢ Box Section mm 220 110 150 110 240 170 200 140 240 180 240 160
▭ Widest Cut mm 330 x 120 190 x 100 190 x 150 120 x 120 350 x 140 220 x 100 230 x 230 140 x 140 420 x 200 250 x 100 260 x 200 160 x 160
Bed Height mm 830 830 830
Blade Size mm 3010 x 27 x 0.9 3120 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 35 / 70 35 / 70 35 / 70
Motor Kw 0.9 / 1.5 0.9 / 1.5 0.9 / 1.5
Length mm 1500 1550 1600
Width mm 1600 1600 1600
Height mm 1700 1750 1800
Weight Kg 465 470 488
Operation Semi-Automatic Semi-Automatic Semi-Automatic
Vice Hydraulic Hydraulic Hydraulic

Features & Options

Features

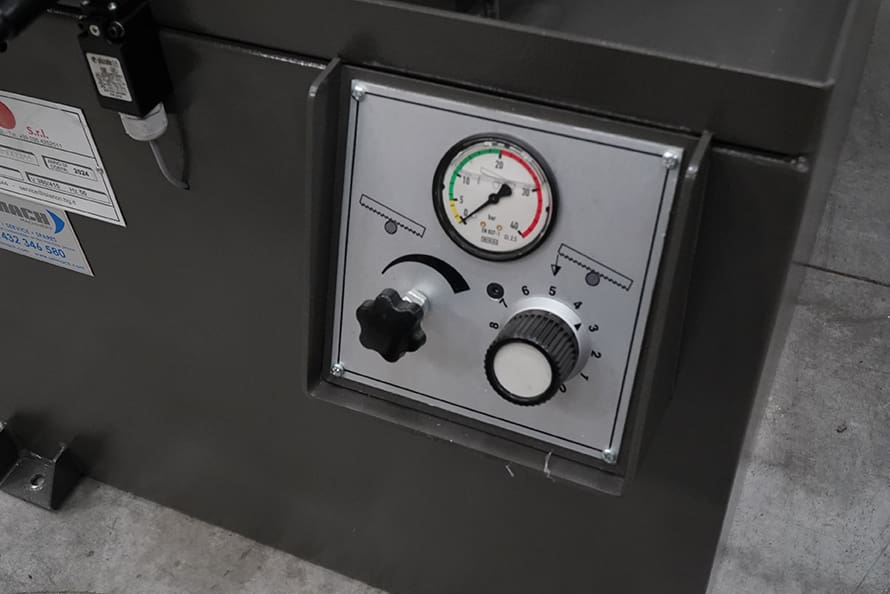

  • Hydraulic cutting with variable pressure and variable speed (Semi-Automatic)

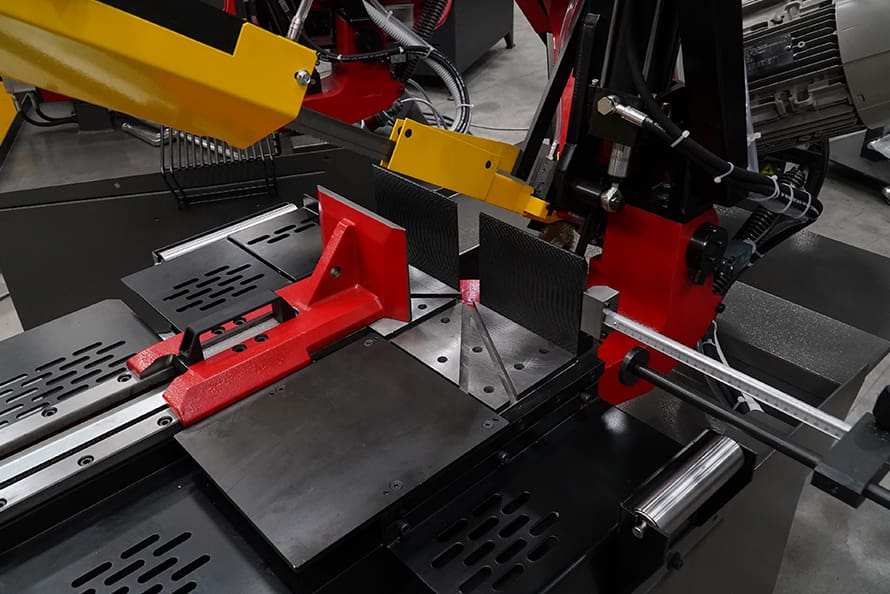

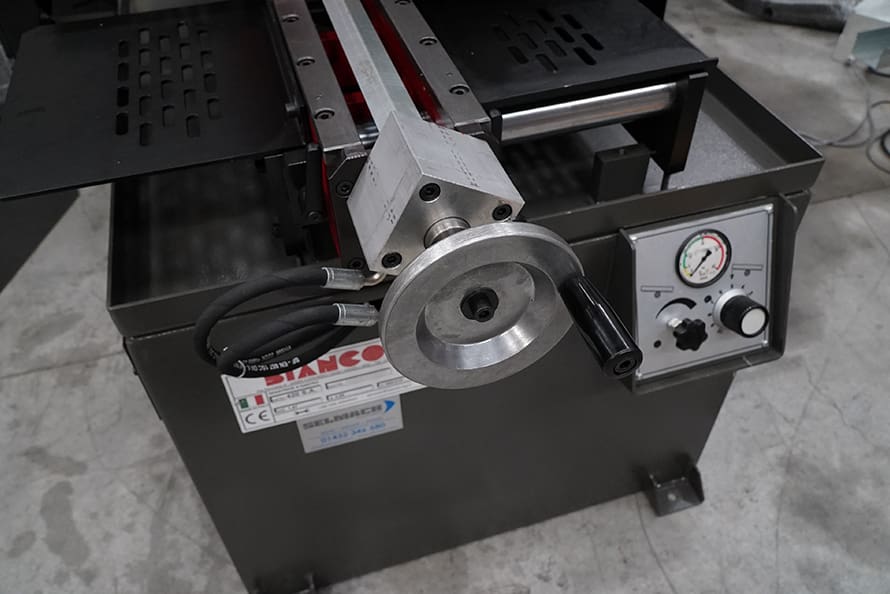

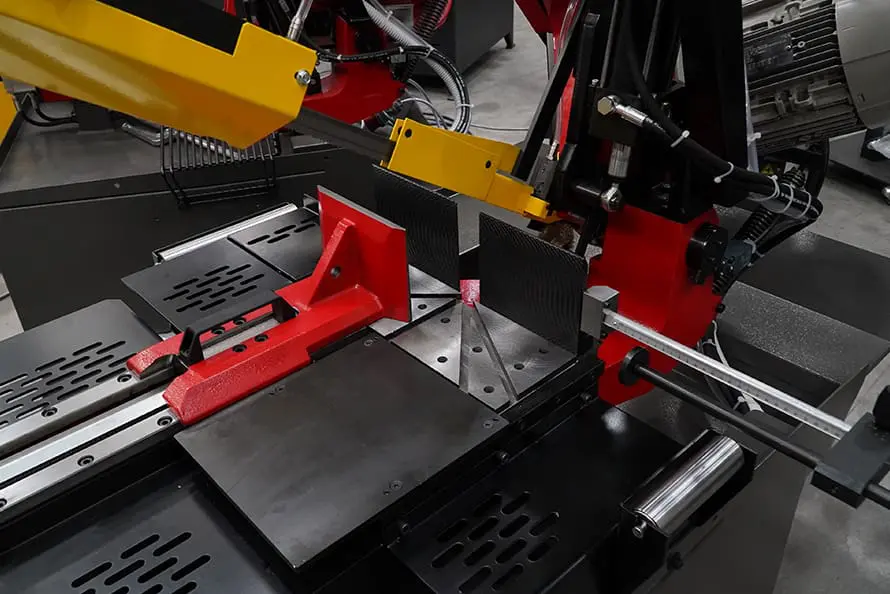

  • Sliding Hydraulic vice
  • Fast approach with auto bow height return setting
  • Quick mitring swivel head up to 60°
  • Cutting Angle Display (Digital Read Out)
  • Cast bow construction
  • Swarf brush
  • Carbide blade guides for high accuracy

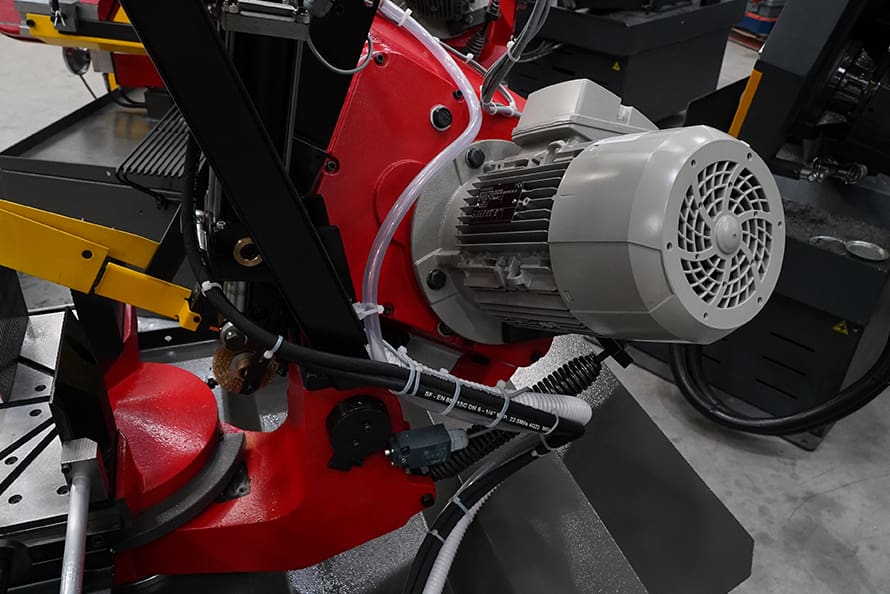

  • 2 speed motor
  • Heavy duty & fast cutting
  • Coolant System
  • Blade tension indicator
  • Safety interlock switch fitted to band wheel cover

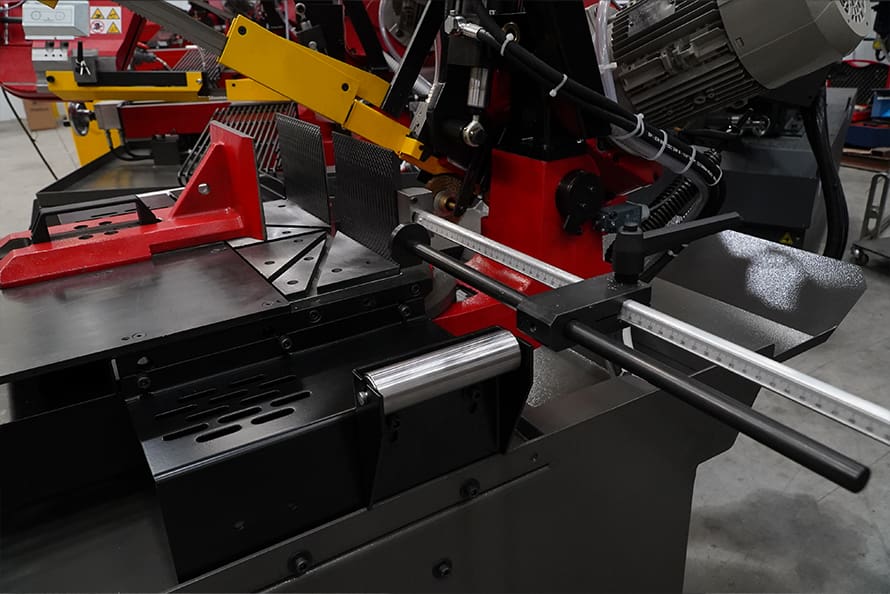

  • Material length stop
  • Low controller position

Options

  • High controller position
  • Blade speed variation
  • Spray mist cooling system
  • Powered swarf brush
  • Roller track and measuring systems

Full Description

The Bianco SA DS MS Semi Automatic Single Mitre Bandsaws 415v are esteemed for their reliability, dependability and high accuracy which are hallmarks of Bianco Bandsaws.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.

Ideal for cutting round, square or rectangular section, bandsaws like this Bianco SA DS MS Semi Automatic Double Mitre Bandsaw are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
