Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
All MR models are fitted with a sliding vice, and have double quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees right and 45 degrees left. Two speed motors allow for both the cutting of mild steel and stainless steel.
| MODEL | 330 MR | 370 MR | 420 MR | |||||||||||||||
| Capacity | 90° | 45°L | 45°R | 60°R | 90° | 45°L | 45°R | 60°R | 90° | 45°L | 45°R | 60°R | ||||||
| ◯ Round | mm | 250 | 160 | 170 | 100 | 280 | 180 | 200 | 130 | 290 | 220 | 250 | 150 | |||||
| □ Square | mm | 240 | 140 | 160 | 100 | 260 | 150 | 190 | 130 | 290 | 180 | 230 | 150 | |||||
| ▭ Rectangle | mm | 260 x 230 | 140 x 130 | 160 x 200 | 100 x 160 | 310 x 240 | 150 x 160 | 190 x 200 | 130 x 180 | 310 x 290 | 190 x 190 | 200 x 2070 | 200 x 150 | |||||
| Blade Size | mm | 3010 x 27 x 0.9 | 3120 x 27 x 0.9 | 3270 x 27 x 0.9 | ||||||||||||||
| Cutting Speed | m/min | 35 / 70 | 35 / 70 | 35 / 70 | ||||||||||||||
| Motor | Kw | 0.9 – 1.5 | 0.9 – 1.5 | 0.9 – 1.5 | ||||||||||||||
| Length | mm | 1400 | 1400 | 1400 | ||||||||||||||
| Width | mm | 1500 | 1600 | 1650 | ||||||||||||||
| Height | mm | 1800 | 1850 | 1900 | ||||||||||||||
| Weight | Kg | 480 | 492 | 498 | ||||||||||||||
| Operation | Pull Down / Auto Down Feed | Pull Down / Auto Down Feed | Pull Down / Auto Down Feed | |||||||||||||||
| Vice | Manual | Manual | Manual |
Features
- Special feature where you can choose between Instant pull down or switch to Automatic gravity down feed with variable control

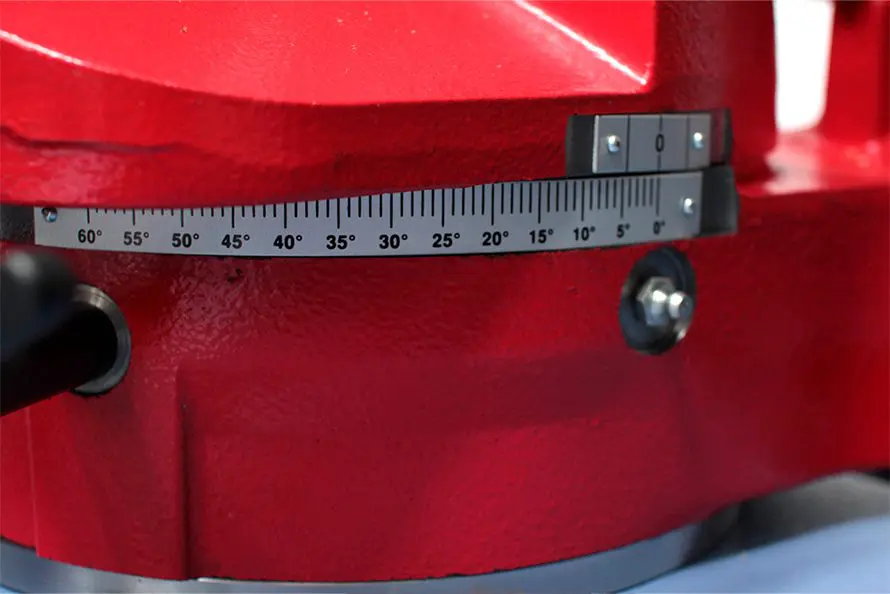

- Quick mitring swivel head up to 60° R and 45° L
- Fast cutting

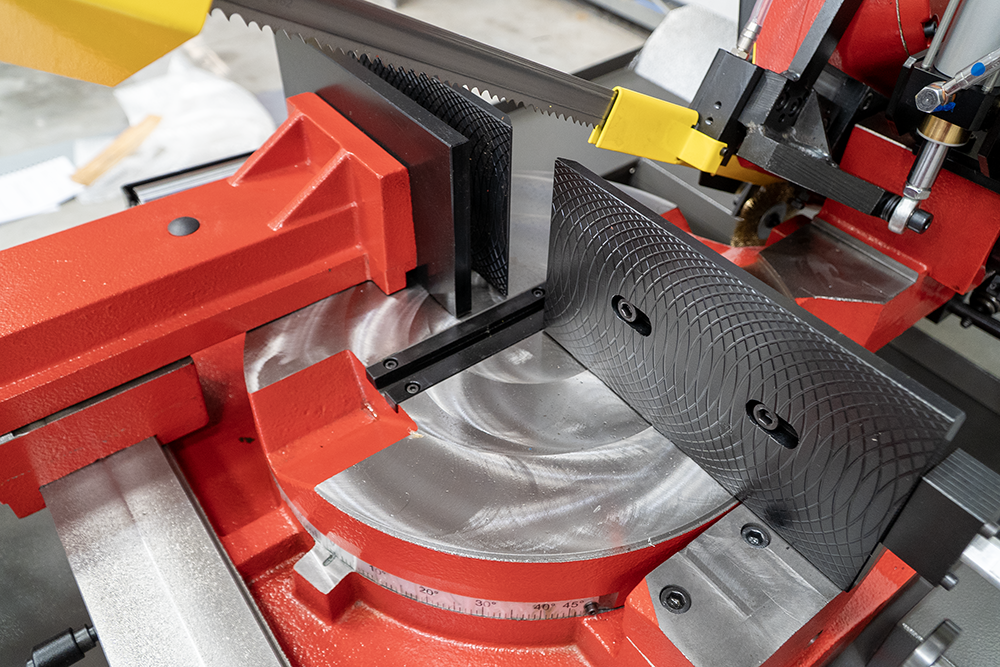

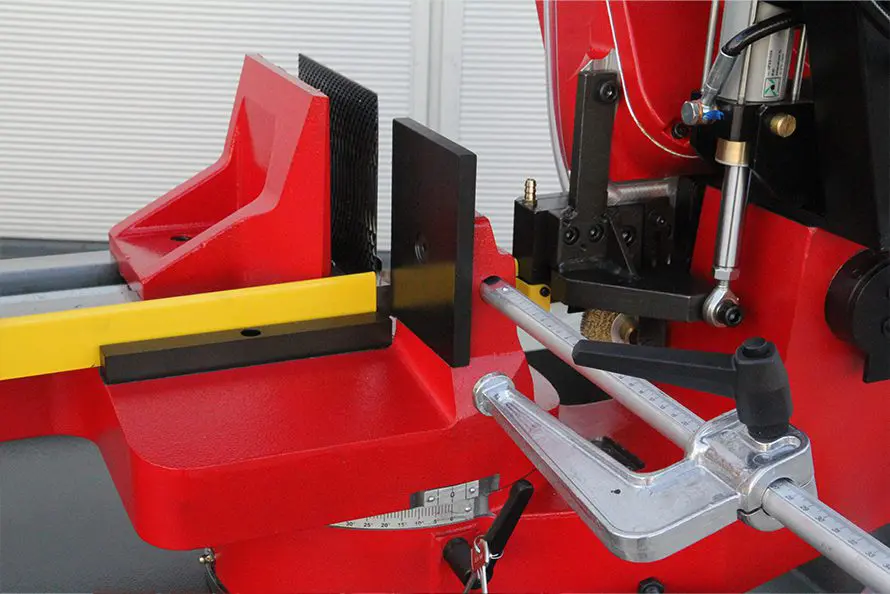

- Sliding vice
- Cast bow construction
- Carbide blade guides for high accuracy

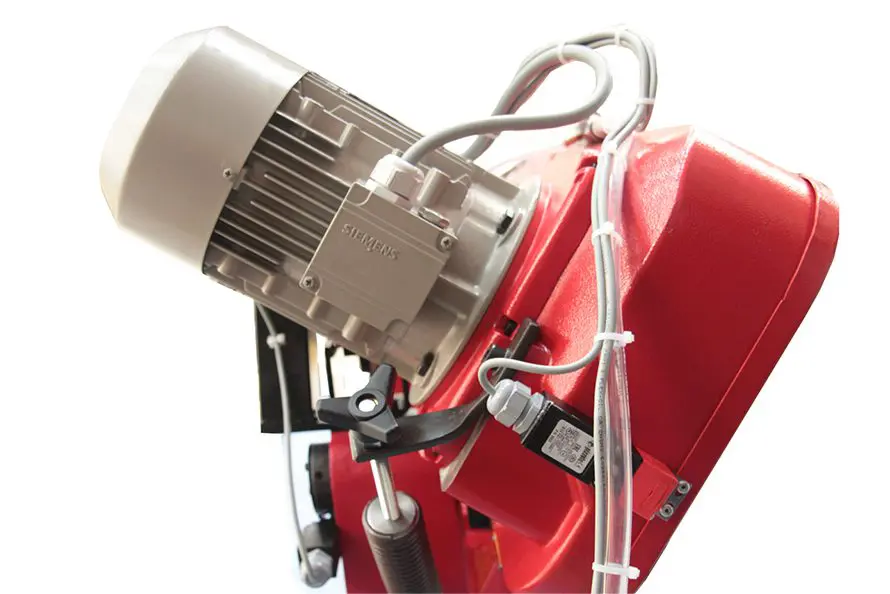

- 2 speed motor
- Heavy duty
- Digital cutting angle display
- Coolant system

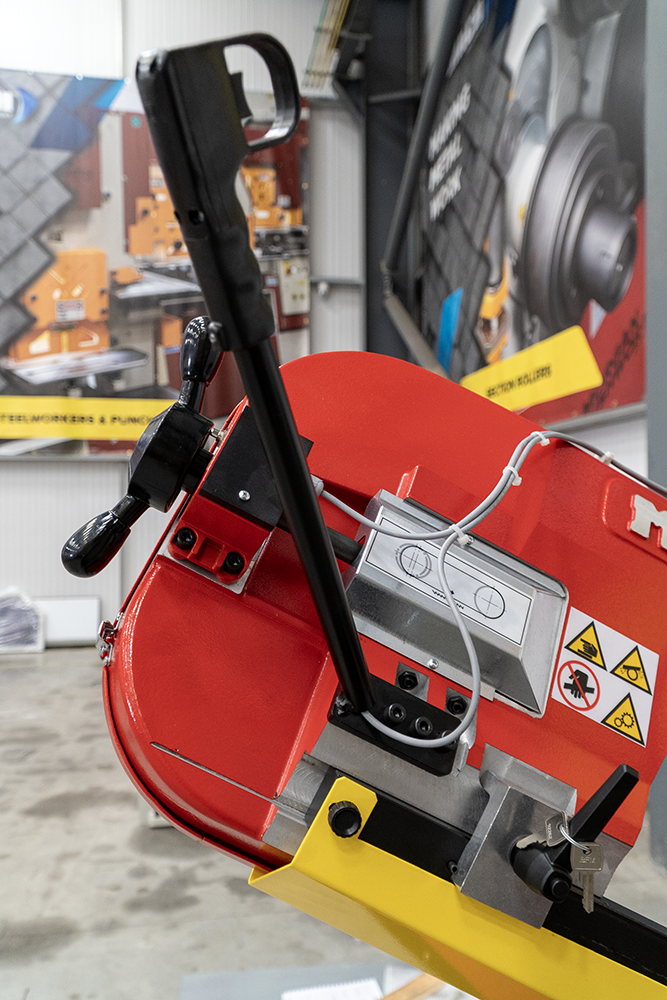

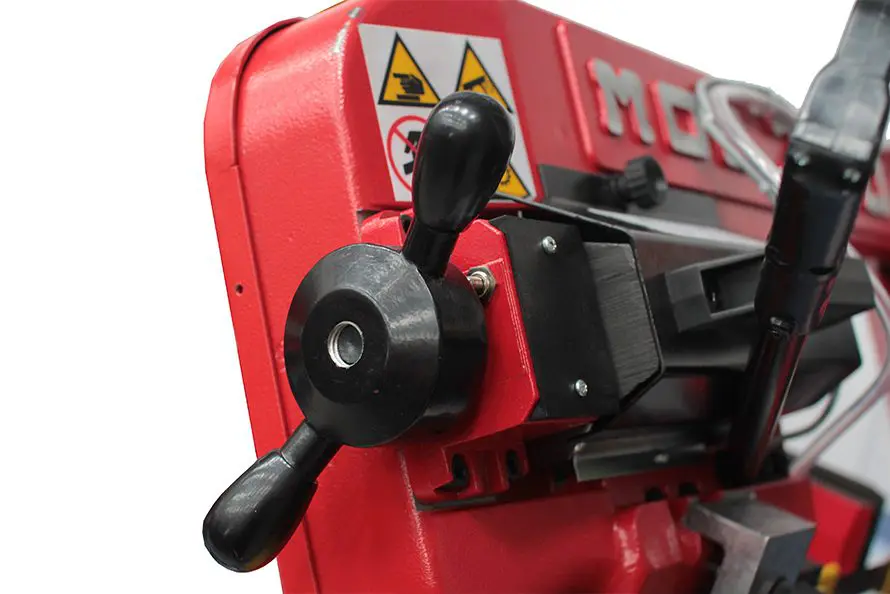

- Blade tension indicator
- Safety interlock switch fitted to bandwheel cover
- Material length stop
Options
- Blade speed variation
- Spray mist cooling system

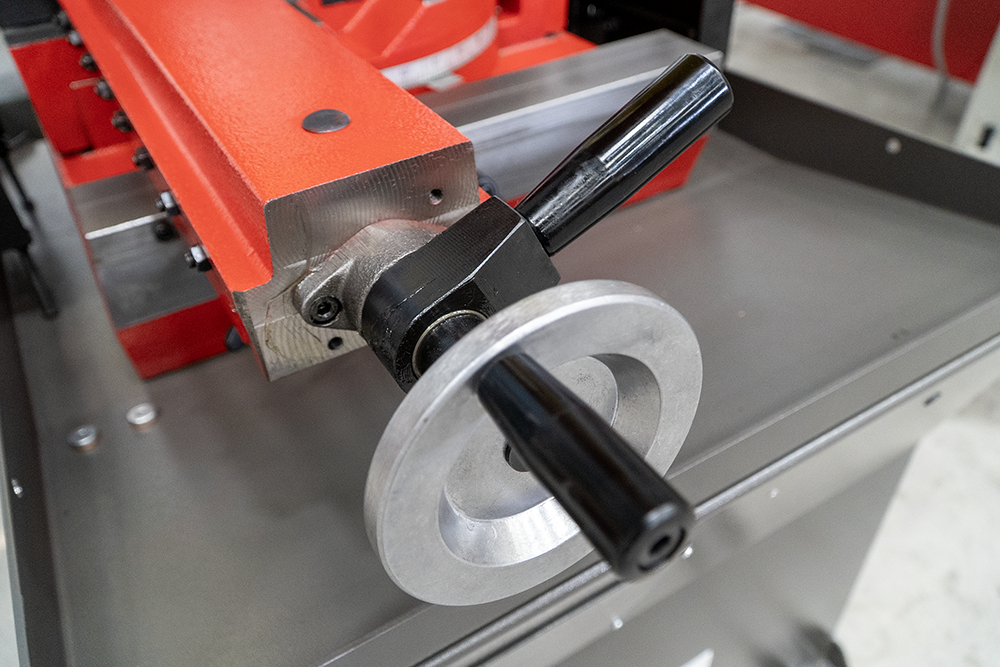

- Pneumatic Vice
- Roller track and measuring systems
Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.
All MR models are fitted with a sliding vice, and have double quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees right and 45 degrees left. Two speed motors allow for both the cutting of mild steel and stainless steel. With a sliding vice, the RS range allows for easy and quick placement of material for cutting. Up to 60 degree cutting right, and 45 degree cutting left. Complete with a millimetre rule 0-500 mm with mechanical length stop, an infeed and outfeed roller and encoder + cutting angle digital display.

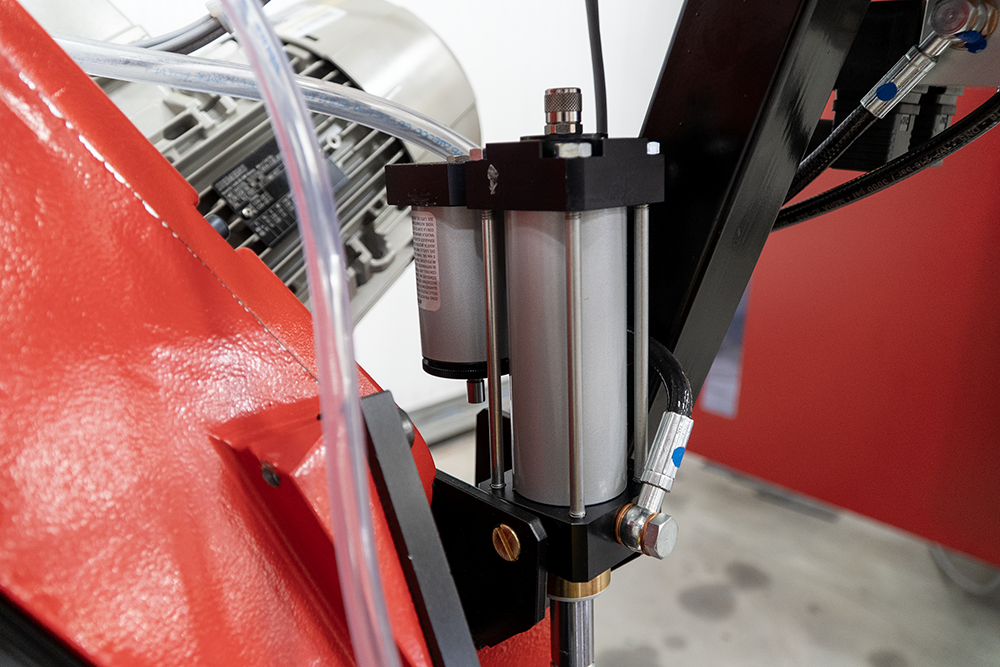

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.
We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
