Bianco DS CNC 1R Bandsaw

Name: Bianco DS CNC 1R Bandsaw
Brand: Bianco
SKU: 15081

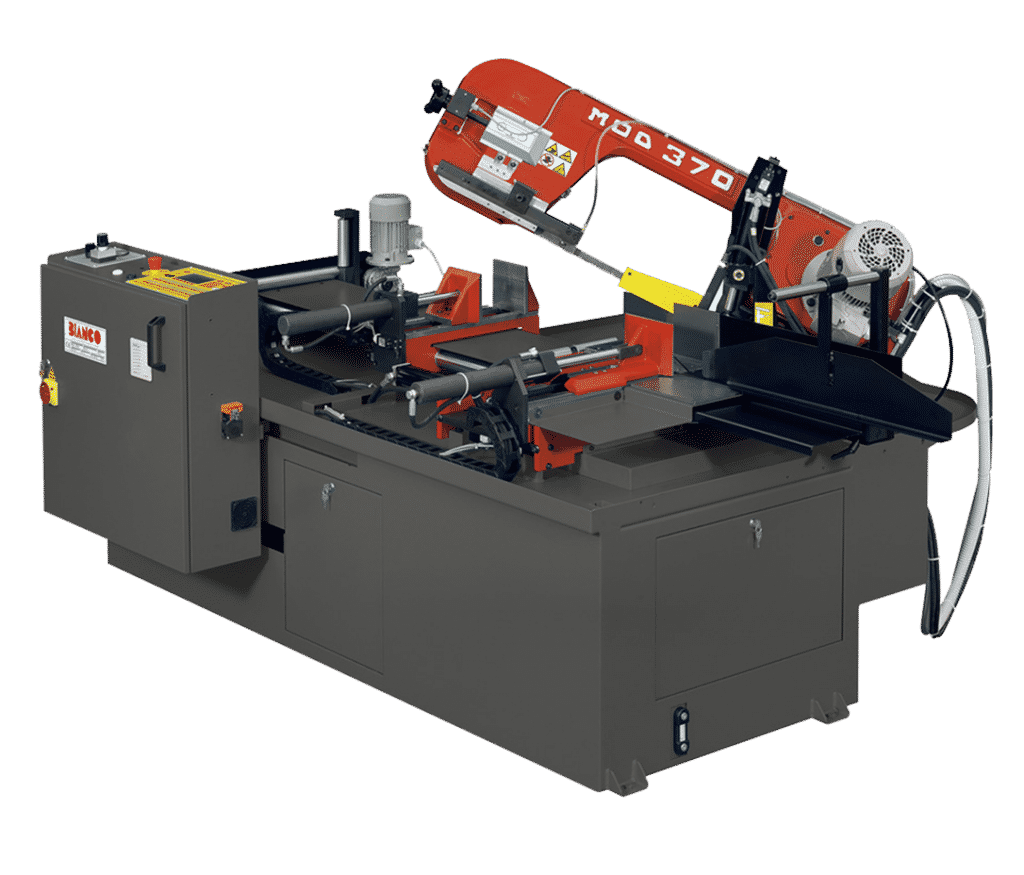

Main view - Bianco-A-DS-CNC-Fully-Automatic-Bandsaw

View Product Downloads / Full Specification Sheet

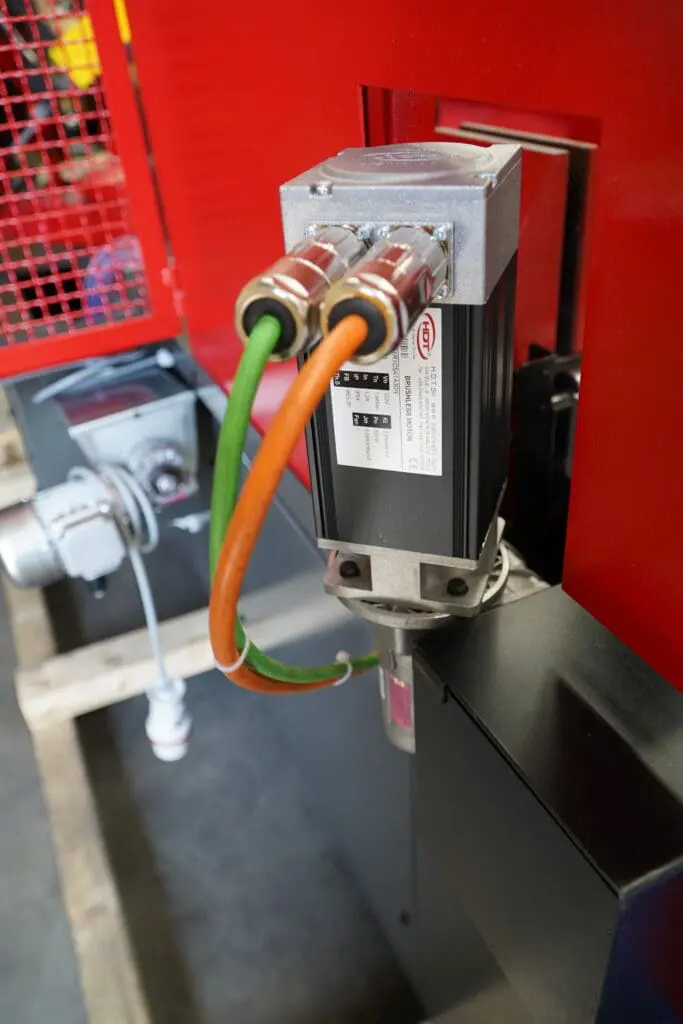

The Bianco DS CNC range offers automatic bow swing in addition to the automatic material feeding system. The 1R features a 1 metre carriage stroke. Both of these functions are controlled through the NC control panel or by optional offline programming. The bow rotation and feeding carriage are controlled by brush-less motors. The controller can be upgraded to a 7″ or 10″ touch screen controller, for easier use.

All Bianco machines are manufactured in Italy to high quality standards with accuracy and longevity as prime considerations. Now available as the 370A and 420A for increased cutting capacities.

View Product Downloads / Full Specification Sheet

Request A Quote

Gallery & Video

Mechanical Bundling (Optional)

Hydraulic Bundling (Optional)

Frequency Inverter (Optional)

Dry Cooling (Optional)

Adjustable Vice Pressure (Optional)

Technical Specs

MODEL		370A DS CNC 1R				420A DS CNC 1R
STOCKCODE		15081				TBC
Capacity		90°	45°	60°	-45°	90°	45°	60°	-45°
◯ Tube	mm	280	230	140	200	290	260	170	200
▢ Box Section	mm	240	230	140	170	240	240	170	180
▭ Widest Cut	mm	310 x 240	230 x 230	140 x 140	220 x 100	400 x 200	260 x 260	170 x 170	220 x 100
Bed Height	mm	835				835
Blade Size	mm	3120 x 27 x 0.9				3270 x 27 x 0.9
Cutting Speed	m/min	20 – 100				20 – 100
Motor	Kw	1.5				1.5
Length	mm	2800				2800
Width	mm	2000				2100
Height	mm	1820				1820
Weight	Kg	1200				1200
Operation		CNC Automatic				CNC Automatic
Vice		Hydraulic				Hydraulic
Remnant Piece (Scrap Length)	mm	240				240
Carriage Stroke	mm	1000				1000

*When cutting solid bar, a maximum of 150mm is recommended in Auto mode, beyond should be cut in manual mode.

Downloads

Features & Options

Features

Carriage stroke – 1000mm
NC controller
Hydraulic cutting with variable pressure and variable speed
Hydraulic vice

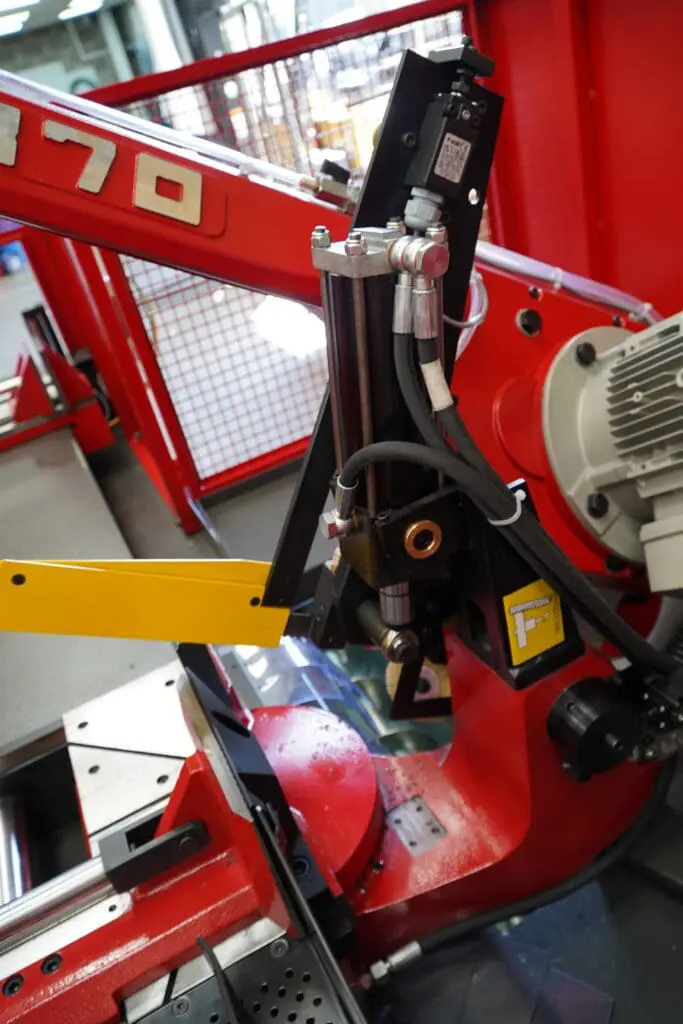

Fast approach with auto bow height return setting
Cast bow construction
Carbide blade guides for high accuracy
Quick mitring swivel head up to 60°
Fully automatic cutting cycle with hydraulic vice feed system
Shuttle vice facility for long cutting lengths
Brush less motor left and right bow swing
Chip conveyor

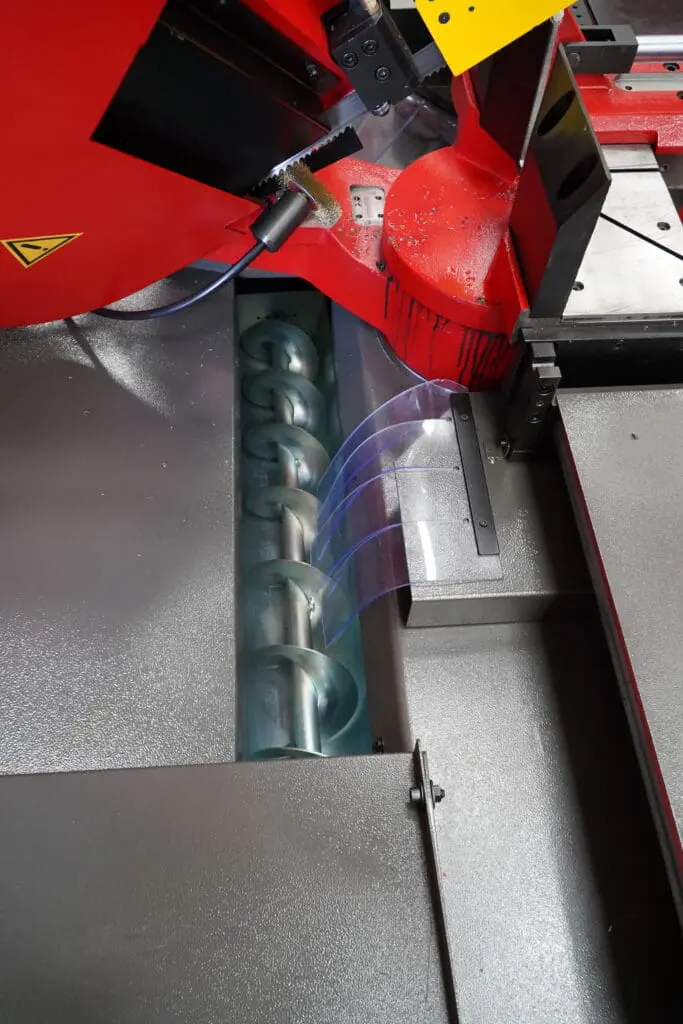

Swarf brush
Scrap length 240mm

Options

Touch screen controller
Spray mist cooling system
Mechanical bundle cutting
Hydraulic bundle cutting
Variable clamping pressure
Cutting Software to set-up cutting schedules via USB Drive
Cutting Software to set-up or modify cutting schedules via Remote Connection (LAN Ethernet)
Teleservice – Remote service direct from Bianco throughout the warranty period of the machine
Roller track and measuring systems

Full Description

The Bianco DS CNC range offers automatic bow swing in addition to the automatic material feeding system. Both of these functions are controlled through the NC control panel or by optional offline programming. The bow rotation and feeding carriage are controlled by brush-less motors. The controller can be upgraded to a 7″ or 10″ touch screen controller, for easier use.

This fully automatic saw is capable of 60° mitring to the right, and 45° to the left, with NC control of all machine functions. The carriage stroke is 1,000mm, and can be fitted with an automatic loading solution.

Bianco advises that this machine should be taken out of automatic mode for material larger than 150 mm Ø. For solutions for larger material, take a look at our Sterling CNC ranges.

All Bianco machines are manufactured in Italy to high quality standards with accuracy and longevity as prime considerations.
