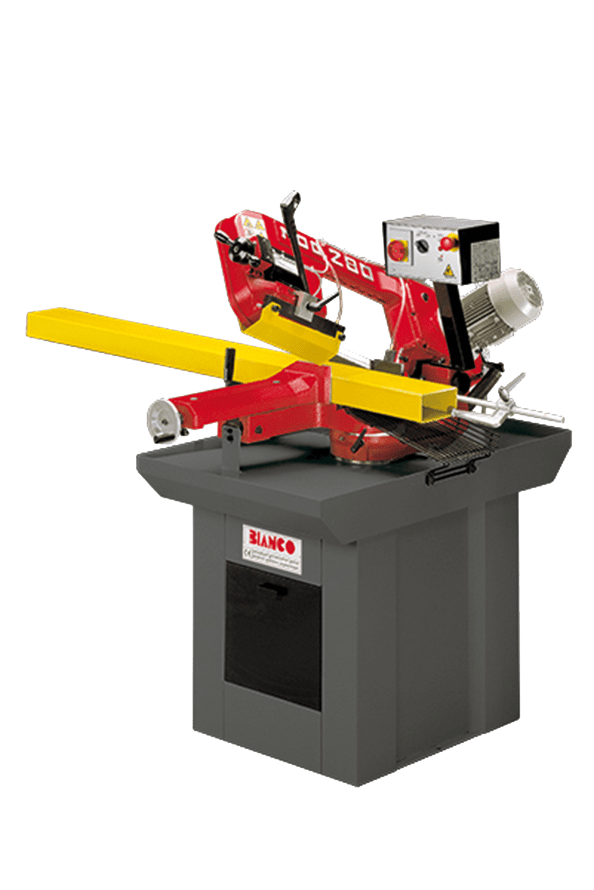

Bianco 280 M Pull Down Single Mitre Bandsaw 415v

Name: Bianco 280 M Pull Down Single Mitre Bandsaw 415v
Brand: Bianco

View Product Downloads / Full Specification Sheet

Our entry level Bianco saw. The 280 M has quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees. Two speed motors allow for both the cutting of mild steel and stainless steel.

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

View Product Downloads / Full Specification Sheet

Request A Quote

Gallery & Video

Bianco 280 M Pull Down Single Mitre Bandsaw 415v image

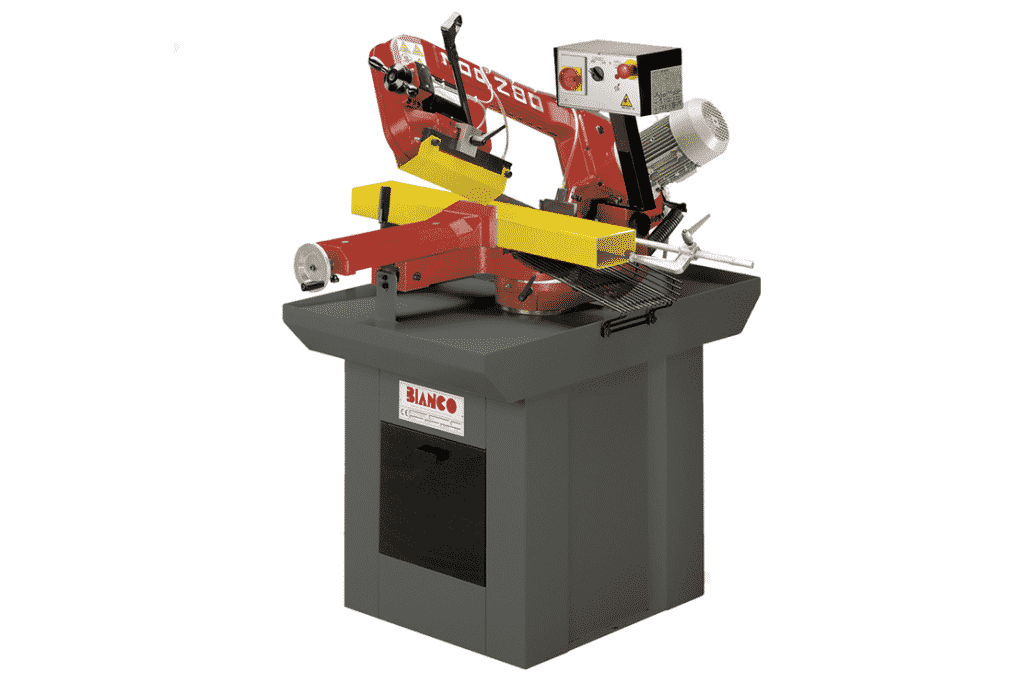

Front view - Bianco-MS-Single-Mitre-Manual-Bandsaw

Close up detail of the Siemens Direct Drive Motor

Close up detail of the blade tension with limit switch

Bianco 280 M Pull Down Single Mitre Bandsaw 415v image 6

Variable Speed Motor

Bianco 280 M Pull Down Single Mitre Bandsaw 415v image 7

Pneumatic Vice (Optional)

Bianco 280 M Pull Down Single Mitre Bandsaw 415v image 8

Dry Cooling (Optional)

Bianco 280 M Pull Down Single Mitre Bandsaw 415v image 9

Frequency Inverter (Optional)

Technical Specs

MODEL			280M
STOCKCODE			15066

Capacity		90°	45°	60°
◯ Tube	mm	220	160	95
▢ Box Section	mm	220	155	95
▭ Widest Cut	mm	260 x 140	160 x 140	95 x 95
Bed Height	mm		970
Blade Size	mm		2450 x 27 x 0.9
Cutting Speed	m/min		35/70
Motor	Kw		0.5 – 1.1
Length	mm		1200
Width	mm		800
Height	mm		1700
Weight	Kg		300
Operation			Pull Down
Vice			Manual

Downloads

Features & Options

Features

Instant pull down
Quick mitring swivel head up to 60°
Fast cutting
Cast bow construction
Carbide blade guides for high accuracy
2 speed motor
Heavy Duty
Coolant System
Blade tension indicator
Safety interlock switch fitted to bandwheel cover
Material length stop

Options

Gravity Downfeed and Electrical Skip (See the Bianco 280 MS, and the rest of the MS Range for larger cutting capacities)
Roller track and measuring systems

Full Description

The 280 M model has a quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees. Two speed motors allow for both the cutting of mild steel and stainless steel.

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades.

Ideal for cutting round, plate and profiles, bandsaws like this are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
