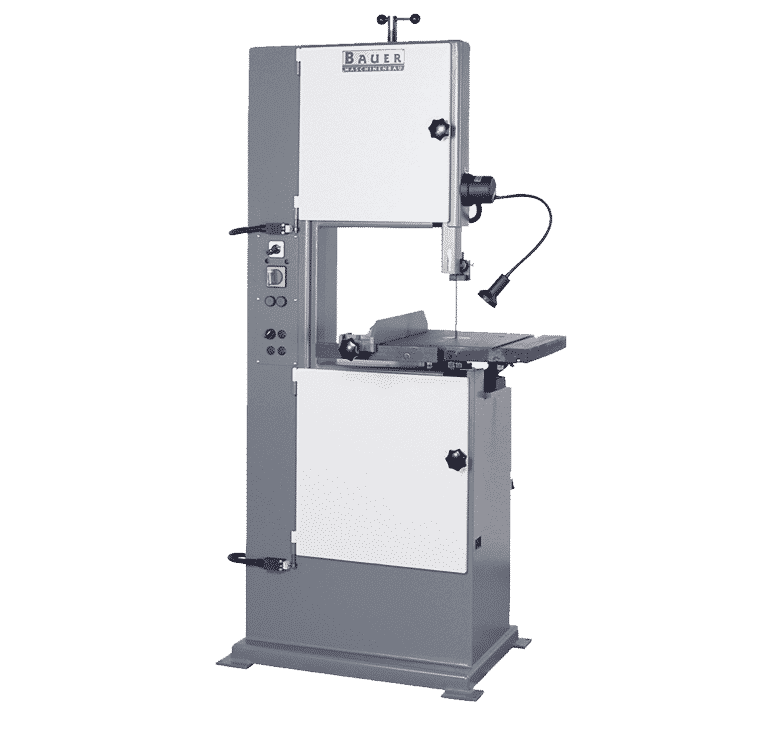

Bauer V Vertical Bandsaw 415v
Bauer have been designing and manufacturing bandsaws in Germany since 1937, with thousands of machines installed worldwide. Bauer products have firmly established a reputation for long life and reliability with many machines still in use today in the UK after many years of service. The vertical machines are available in four different throat capacities and can be specified with an integral blade welder.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | 450V | 650V | 1000V | |||
| STOCKCODE | 15204 | 15202 | 15203 | |||
| Cutting Height | mm | 210 | 400 | 400 | ||
| Cutting Depth | mm | 390 | 620 | 1000 | ||
| Table Size | mm | 520 x 160 | 630 x 530 | 600 x 860 | ||
| Blade Size | mm | 3000 x 6 x 2.0 | 5000 x 6 x 2.5 | 5200 x 6 x 2.5 | ||
| Cutting Speed | m/min | 36 / 76 | 35 / 70 | 26 / 47 / 68 / 87 | ||
| Motor | Kw | 0.75 | 2.2 | 2.2 | ||
| Length | mm | 780 | 830 | 1400 | ||
| Width | mm | 600 | 600 | 600 | ||
| Height | mm | 1800 | 2200 | 2200 | ||
| Weight | Kg | 280 | 500 | 600 | ||
| Operation | Manual | Manual | Manual |
Features
- Superb German quality
- Accommodates a range of blade widths
- Carbide blade guides
- Two working speeds (Models 450V, 650V)

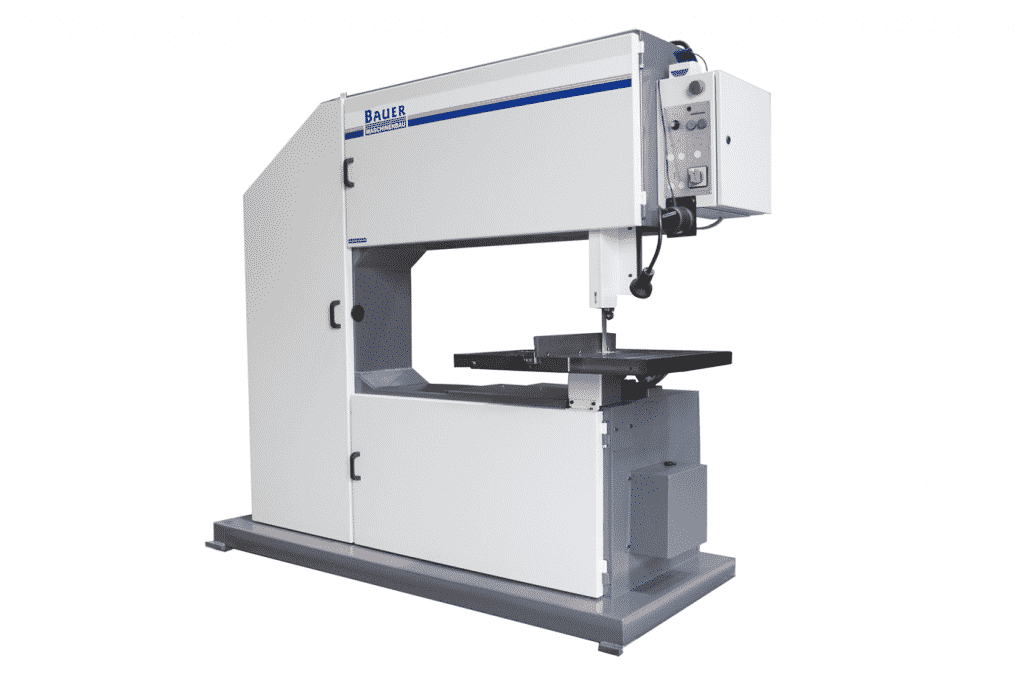

- Four working speeds (Model 1000V)
- Table can be tilted 10° left and 30° right
(Models 450V, 650V only)
Options
- Infinitely variable speed 20-130 or 40-300 m/min

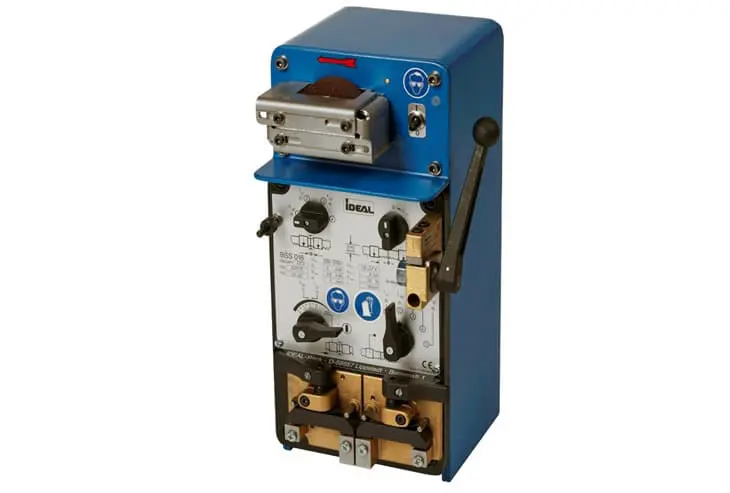

- Blade welder, shear and grinder
- Rip fence
- Mitre fence
- Halogen lamp
- Laser cutting line
- Spray mist lubrication
