Meyer Turret Milling Machine 415V

The Meyer Turret Milling Machine 415V are high precision, very accurate and extremely versatile turret milling machines. The turret head can be inclined upwards and downwards, rotated in both vertical and horizontal planes, clockwise and anticlockwise. Each angle can be finely set due to the degree scales for all three variations. X, Y and Z axis are easily and accurately controlled by both the hand wheels, with micrometer scales which can be zeroed, and the intuitive DRO system.

The 220RX model takes R8 tooling whilst the 375S and 560S models driven by powerful motors take ISO40 tooling. Belt driven variable power feed with fast override button is fitted as standard to the X axis on the 220RX models and to X, Y and Z axis on the 375S and 560S machines.

Meyer Turret Milling Machine 415V imageMeyer Turret Milling Machine 415V image
Meyer Turret Milling Machine 415V image 2Meyer Turret Milling Machine 415V image 2
Meyer Turret Milling Machine 415V image 3
Digital Read Out
Meyer Turret Milling Machine 415V image 3
Meyer Turret Milling Machine 415V image 4
Close up of the Milling Head
Meyer Turret Milling Machine 415V image 4
Meyer Turret Milling Machine 415V image 5
Lights and Coolant (Powered X, Y and Z Axis)
Meyer Turret Milling Machine 415V image 5
Meyer Turret Milling Machine 415V image 6
Lights and Coolant (Powered X Axis)
Meyer Turret Milling Machine 415V image 6
Meyer Turret Milling Machine 415V image 7
Milling Surface with integrated guarding units
Meyer Turret Milling Machine 415V image 7
Meyer Turret Milling Machine 415V image 8
Halogen Lamp
Meyer Turret Milling Machine 415V image 8
Meyer Turret Milling Machine 415V image 9

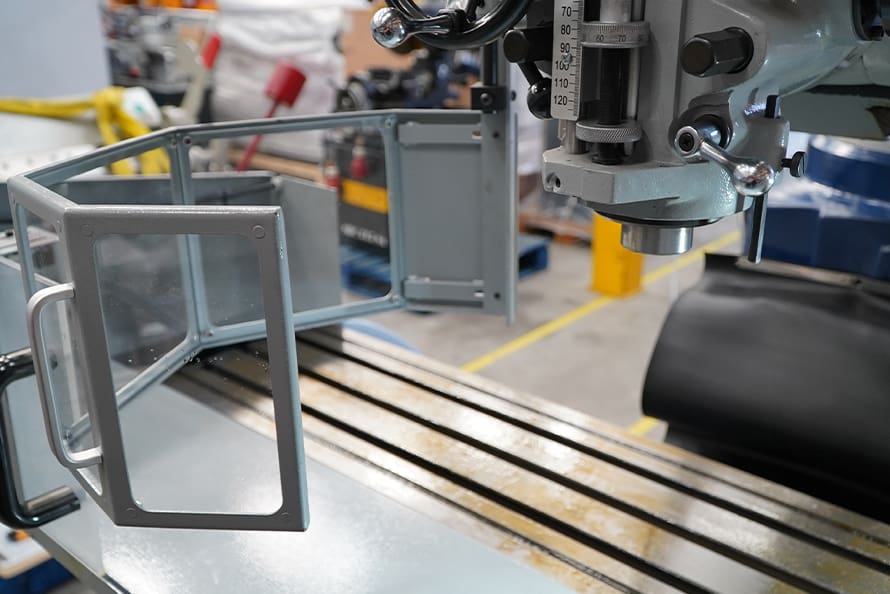

Guarding with interlocking safety switches
Meyer Turret Milling Machine 415V image 9
Meyer Turret Milling Machine 415V image 10
Head Angle Adjustment
Meyer Turret Milling Machine 415V image 10
Meyer Turret Milling Machine 415V image 11
Power Feed Unit
Meyer Turret Milling Machine 415V image 11
MODEL 220RX 375S 560S
STOCK CODE 24200 24201 24219
Spindle Taper R8 ISO40 ISO40
Spindle Travel 127 127 127
Number of Spindle Speeds mm Variable (Belt Driven) Variable (Belt Driven) Variable (Belt Driven)
Spindle Speed rpm 60 – 4200 60 – 3600 60 – 3600
Quill Power Feed mm/rev 0.04/0.08/0.15 0.04/0.08/0.15 0.04/0.08/0.15
Motor KW 2.2 3.75 5.63
Longitudinal Travel – Long mm 950 950 1000
Saddle Travel – Cross mm 380 400 360
Knee Travel – Vertical mm 400 400 400
Max Distance Spindle To Table mm 400 400 450
Table Size mm 254 x 1370 254 x 1370 330 x 1500
Head Movement Left/Right 90°/90° 90°/90° 90°/90°
Head Movement Up/Down 45°/45° 45°/45° 45°/45°
Length mm 1670 1670 2180
Width mm 1700 1700 2050
Height mm 2235 2235 2300
Weight Kg 1280 1320 2300

Features

  • High accuracy.
  • Heavy duty.
  • Hardened slideways.
  • Centralised lubrication.
  • DRO for X, Y and Z axis.
  • Large table with T slots.
  • Tapping facility.
  • Motor brake lever.
  • Coolant system.
  • 220R/220RX – R8 tooling with power X axis.
  • 375S/560S – ISO40 tooling with power X, Y and Z axis.
  • Halogen lamp.
  • Safety guard with interlock.
  • Swarf Tray.

Options

  • Powered X, Y and Z Axis (220RX)
  • Inverter driven variable speed
