Vanterm Welding Fume Extraction Units

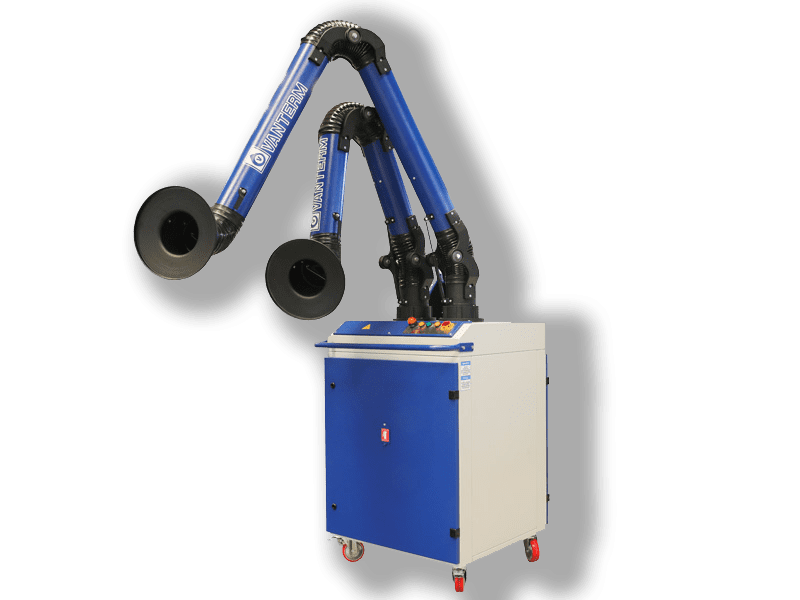

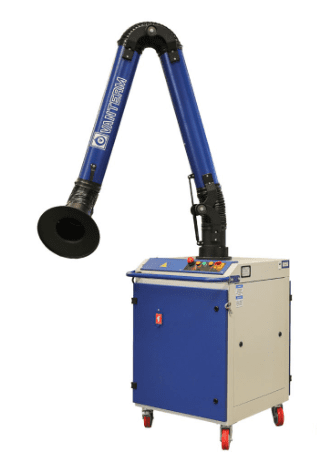

The Vanterm range of portable extraction machines are designed to efficiently filter welding fume and dust in fabrication workshops. The Eco range have a light to medium duty cycle for approximately  four hours a day, whilst the PM range are full production machines with high duty cycle. Both ranges are available with flame retardant single or twin extraction arms in lengths of two, three or four metres. The units are entirely self contained returning filtered air back into the workshop avoiding the need to install ducting through the outer wall to atmosphere.

Vanterm Welding Fume Extraction Units imageVanterm Welding Fume Extraction Units image
Vanterm Welding Fume Extraction Units image 2Vanterm Welding Fume Extraction Units image 2
Vanterm Welding Fume Extraction Units image 3Vanterm Welding Fume Extraction Units image 3
Vanterm Welding Fume Extraction Units image 4Vanterm Welding Fume Extraction Units image 4
Vanterm Welding Fume Extraction Units image 5Vanterm Welding Fume Extraction Units image 5
Vanterm Welding Fume Extraction Units image 6Vanterm Welding Fume Extraction Units image 6



MODEL PM-801 PM-802 ECO-1 H13 ECO-2 H13
Capacity m3/h 1200 2400 1300 2600
Filters Surface m2 10 20 23 46
Filters 1 2 2 3
Sound Level dB(A) 69 69 69 76
Motor kW 1.5 3.0 1.1 2.2

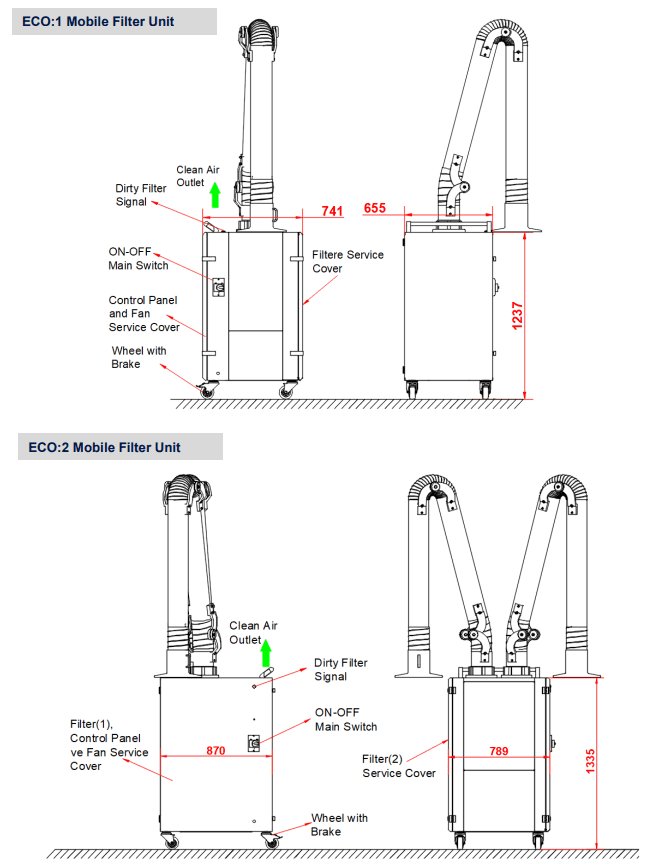

Length mm 800 960 741 741
Width mm 750 880 655 655
Height (excluding arms) mm 1140 1330 1237 1237
Weight kg 104 132 110 180

Features

  • Supplied with castors enabling positioning anywhere in the workshop
  • Quiet operation
  • Metal pre filters to prevent spark risk
  • Warning light on controls panel to indicate filter condition
  • Disposable filter system – Eco series
  • Filters can be cleaned by compressed air to extend filter life to 10000 hours – PM series

Options
