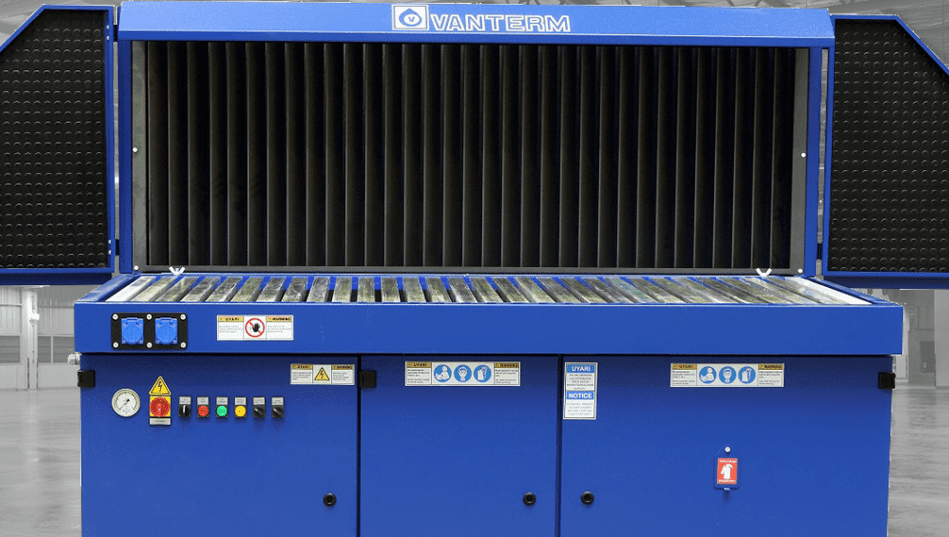

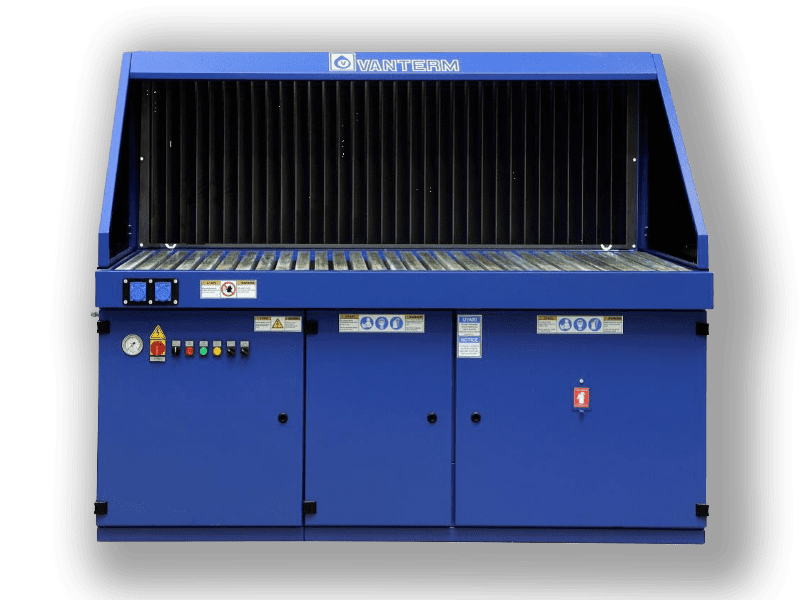

Vanterm Dust & Fume Extraction Tables
The Vanterm KTM Dust and Fume Extraction Tables are suitable for grinding and welding applications, with both down draught and rear extraction. These models feature a fully integrated extraction system, filter units and easy access dust drawers and just need connecting to a power and air supply to be ready for use. A selection of lengths are available and all models feature swing away side doors to allow processing of longer material. A long filter life of up to 10,000 hours make these benches a cost effective and efficient solution.
| MODEL | KTM-1500 | KTM-2000 | KTM-2500 | |
| Table Width | mm | 1500 | 2000 | 2500 |
| Table Depth | mm | 886 | 886 | 886 |
| Air Flow Capacity | m3/h | 3600 | 4800 | 6000 |
| Filter Surface | m2 | 2 x 10 | 3 x 10 | 4 x 10 |
| Mesh Pre-Filters | 2 | 3 | 4 | |
| Dust Drawer Capacity | litre | 20 | 30 | 40 |
| Sound Level | dB(A) | <70 | <70 | <70 |
| Motor | kW | 3.0 | 4.0 | 5.5 |
| Length | mm | 1500 | 2000 | 2500 |
| Width | mm | 1220 | 1220 | 1220 |
| Height (excluding arms) | mm | 1650 | 1650 | 1650 |
| Weight | kg | 510 | 645 | 785 |
Features
- Down draught extraction
- Rear extraction
- Adjustable balance between down and rear extraction
- Integrated spark arrester
- Washable aluminium pre-filter
- Long life filter units for up to 10,000 hours use
- Easy access dust drawers
- Ergonomic table height
- Metal slatted table surface
- Swing away side doors for longer components
- Overhead lighting
