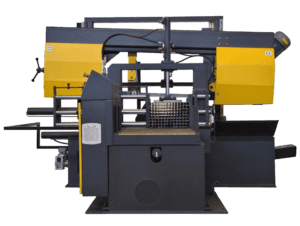

Sterling STC GA Servo CNC Twin-Column Automatic Mitre Bandsaw
Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The Sterling STC GA CNC twin column, automatic, mitre bandsaw being no exception. This a fully automatic machine in a twin-column design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting, with mitring capacities.
The Omron CNC touch screen controller on this saw enables the user to set-up to 30 different programmes, each with 50 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you. This allows you to save and store regular jobs for quick reference and use, speeding up production time-scales.
| MODEL | STC325 GA CNC SERVO | STC440 GA CNC SERVO | STC540 GA CNC SERVO | ||||||||||
| Capacity | 0° | 30° | 45° | 60° | 0° | 30° | 45° | 60° | 0° | 30° | 45° | 60° | |
| ◯ Round | mm | 325 | 325 | 300 | 200 | 450 | 450 | 430 | 320 | 540 | 540 | 510 | 270 |
| □ Flat | mm | 315 | 315 | 300 | 200 | 425 | 425 | 425 | 290 | 540 | 540 | 450 | 250 |
| ▭ Square | mm | 400 x 315 | 380 x 315 | 300 x 315 | 200 x 315 | 610 x 425 | 560 x 425 | 430 x 425 | 260 x 425 | 670 x 540 | 600 x 540 | 450 x 540 | 250 x 540 |
| Bed Height | 655 | 807.5 | 805 | ||||||||||
| Main Drive Motor | kW | 2.2 | 4 | 4 | |||||||||
| Hydraulic Motor | kW | 1.1 | 1.1 | 2.2 | |||||||||
| Cutting Speeds | m/min. | 20 – 100 | |||||||||||
| Band Dimensions | mm | 5000 x 34 x 1.1 | 5400 x 41 x 1.3 | 5200 x 41 x1.3 | |||||||||
| Tolerances | mm | 0.1 | |||||||||||
| PLC Controller | Omron | ||||||||||||
| Program | 30 Program – 50 Steps | ||||||||||||
| Stroke Length | mm | 700 | |||||||||||
| Remnant Piece (Scrap Length) | mm | 255 (Automatic Mode) 50 (Manual Mode) | 290 (Automatic Mode) 55 (Manual Mode) | 310 (Automatic Mode) 60 (Manual Mode) | |||||||||
| Max. Feeding | mm | 6000 | |||||||||||
| Length | mm | 2,130 | 2,850 | 3,000 | |||||||||
| Width | mm | 2,150 | 2,350 | 2,450 | |||||||||
| Height | mm | 1,650 | 2,000 | 2,250 | |||||||||
| Weight | kg | 1,860 | 3,600 | 4,190 | |||||||||
| Operation | Automatic | ||||||||||||
| Vice | Hydraulic | ||||||||||||
| Vice Feed | Hydraulic | ||||||||||||
Features
- Twin column rigidity
- Fully automatic NC
- Up to 60° Mitre
- Hydraulic clamping of mitre angle
- Hydromechanical Blade Tension
- Inverter drive providing infinitely variable blade speed
- Automatic bow return
- Hydraulic vice
- Hydraulic feeding vice
- Hydraulic rear vice
- Optical height adjustment
- Heavy duty gear box
- PLC control panel
- Sensitive cutting pressure regulation
- Swarf brush
- Carbide blade guides
- Flood Coolant system
Options
- Hydraulic blade tension
- Hydraulic top clamps
- Chip conveyor
- Spray mist lubrication
- Laser cutting line
- Hexagonal Vice for bundle cutting
- Roller track and measuring systems
Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The Sterling STC GA CNC twin column, automatic, mitre bandsaw being no exception. This a fully automatic machine in a twin-column design ideally suited for cutting solid material, as well as pipes, profiles and beams in steel cutting, with mitring capacities.
The Omron CNC touch screen controller on this saw enables the user to set-up to 30 different programmes, each with 50 steps for automatic cutting, simply punch in your lengths and quantities, and let the saw do the work for you. This allows you to save and store regular jobs for quick reference and use, speeding up production time-scales.
A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.
Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC GA CNC twin column are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
