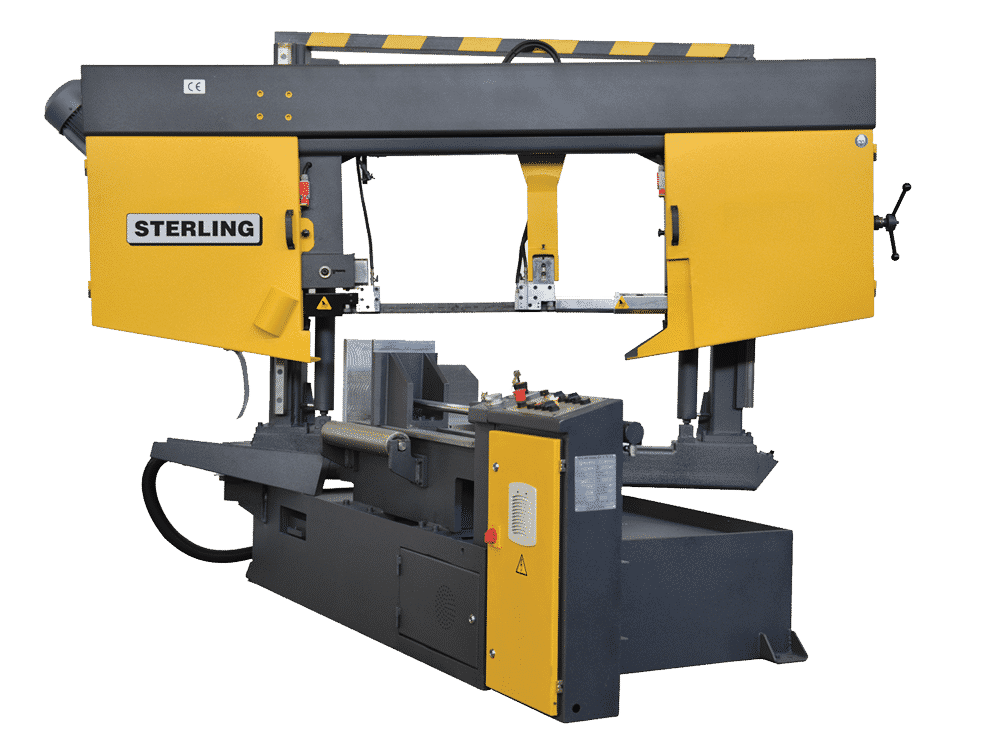

Sterling STC GA NC Twin Column Automatic Bandsaw 415V
The heavy duty Sterling STC GA NC Twin Column Automatic Bandsaw is well suited for the precision engineering and fabrication markets. They are designed to cut large solid and hollow materials. The twin column rigidity, sensitive cutting pressure and heavy duty blade guides ensures a balance between quality of cut, speed of cut and long blade life. With the single mitring feature in semi automatic mode, results in a very versatile bandsaw.
| MODEL | STC325 GA CNC | STC360 GA CNC | STC440 GA CNC | STC540 GA CNC | ||||||||||||
| STOCKCODE | 15197 | 15159 | 15160 | 15198 | ||||||||||||
| Capacity | 90° | 45° | 60° | 90° | 45° | 60° | 90° | 45° | 60° | 90° | 45° | 60° | ||||
| Round | mm | 325 | 300 | 200 | 360 | 360 | 325 | 450 | 430 | 320 | 540 | 510 | 270 | |||
| Square | mm | 315 | 300 | 200 | 360 | 360 | 290 | 425 | 425 | 290 | 540 | 450 | 250 | |||
| Rectangle | mm | 400 x 315 | 300 x 315 | 200 x 315 | 610 x 360 | 450 x 360 | 280 x 360 | 610 x 4425 | 430 x 425 | 260 x 425 | 670 x 540 | 450 x 450 | 250 x 540 | |||
| Bed Height | mm | 655 | 705 | 705 | 710 | |||||||||||
| Blade Size | mm | 4380 x 34 x 1.1 | 5200 x 34 x 1.1 | 5400 x 41 x 1.3 | 6000 x 41 x 1.3 | |||||||||||
| Cutting Speed | m/min | 20 – 100 | 20 – 100 | 20 – 100 | 20 – 100 | |||||||||||
| Motor | Kw | 4 | 3 | 4 | 4 | |||||||||||
| Length | mm | 2130 | 2850 | 2850 | 3100 | |||||||||||
| Width | mm | 2150 | 2100 | 2100 | 2350 | |||||||||||
| Height | mm | 1650 | 1820 | 1950 | 2150 | |||||||||||
| Weight | Kg | 1860 | 2400 | 2480 | 3800 | |||||||||||
| Operation | CNC Automatic | CNC Automatic | CNC Automatic | CNC Automatic | ||||||||||||

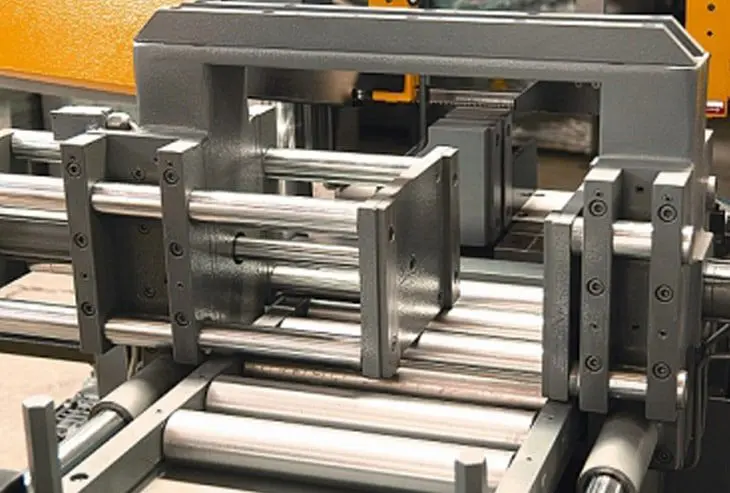

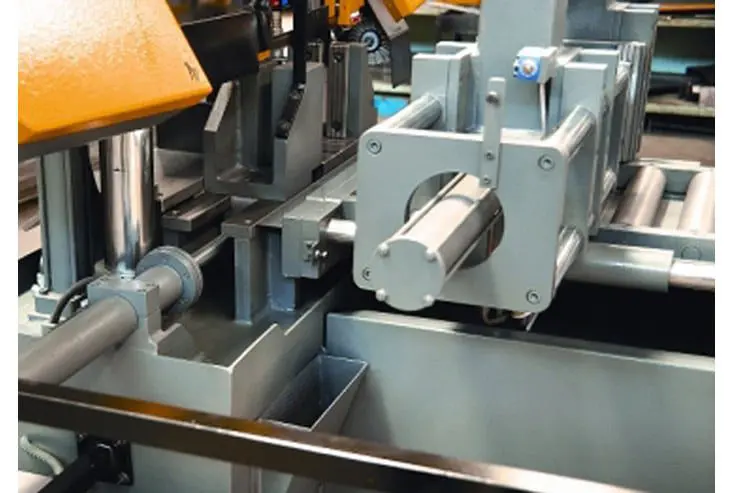

| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features
- Exceptional heavy construction.
- Twin column rigidity.
- High performance.
- Fully automatic cutting cycle.
- PLC Controller: Piece length and quantity.
- Single Mitring to 60 degrees with digital readout.
- Variable bow height return with light beam.
- Carbide blade guides for high accuracy.
- Large capacity.
- 1m infeed roller track.
- Coolant system.
- Vice clamp swivels for angle cuts.
- Safety control panel situated away from the blade.
- Blade speed inverter.
- Blade tension indicator.
Options
- Hydraulic blade tension.

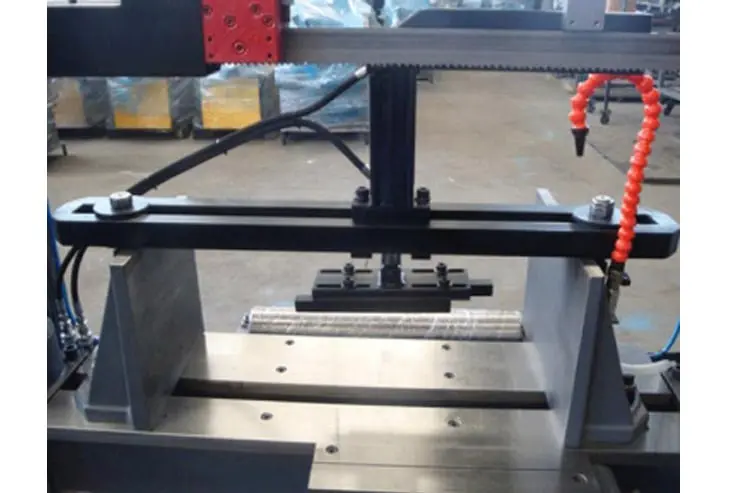

- Hydraulic Top Clamp
- Hexagonal Vice Assembly

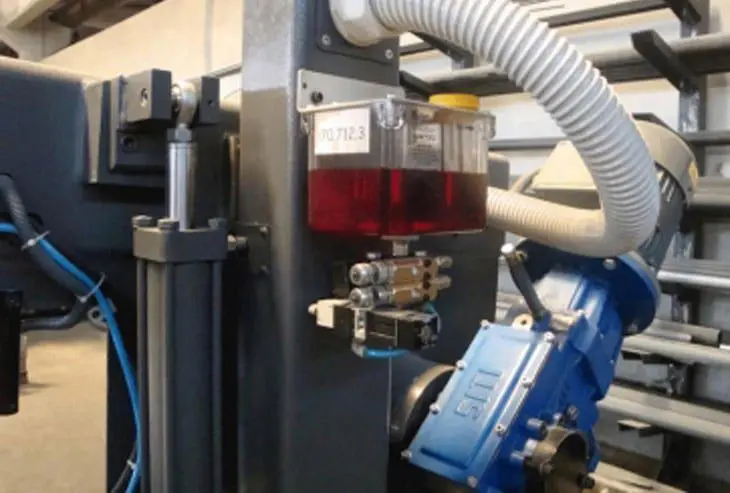

- Micro Spray Coolant System
- Chip Conveyor
- Laser Line
