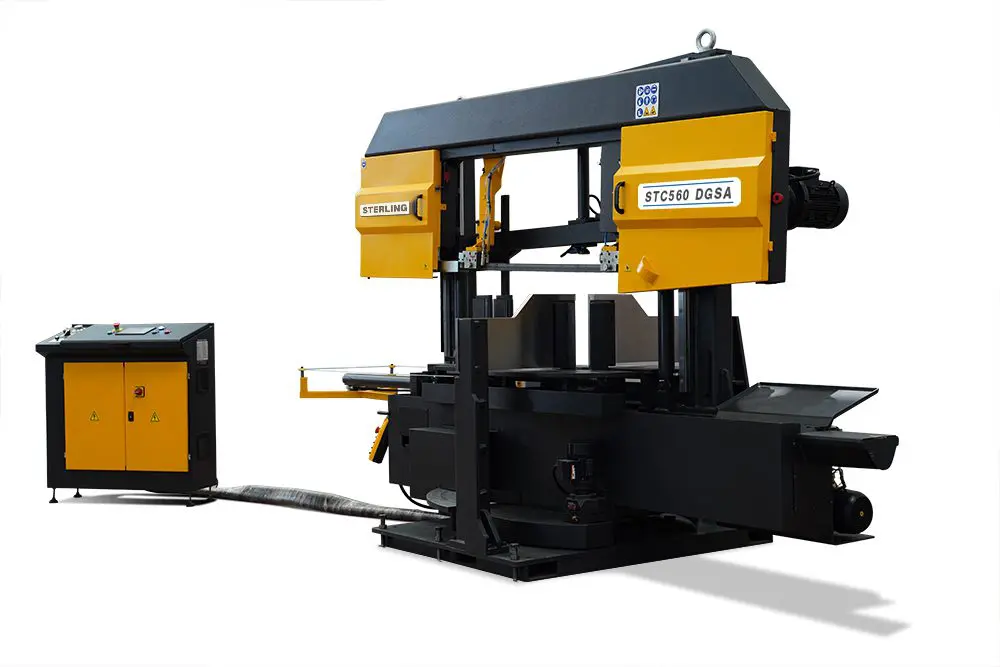

Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V

The Sterling STC DGSA range combines the power and rigidity of a twin column semi-automatic bandsaw, with double mitring capabilities. Suitable for mitre cuts on large structural steel, this heavy-duty range of saws offers a lot of flexibility and capacity.

Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V imageSterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 2

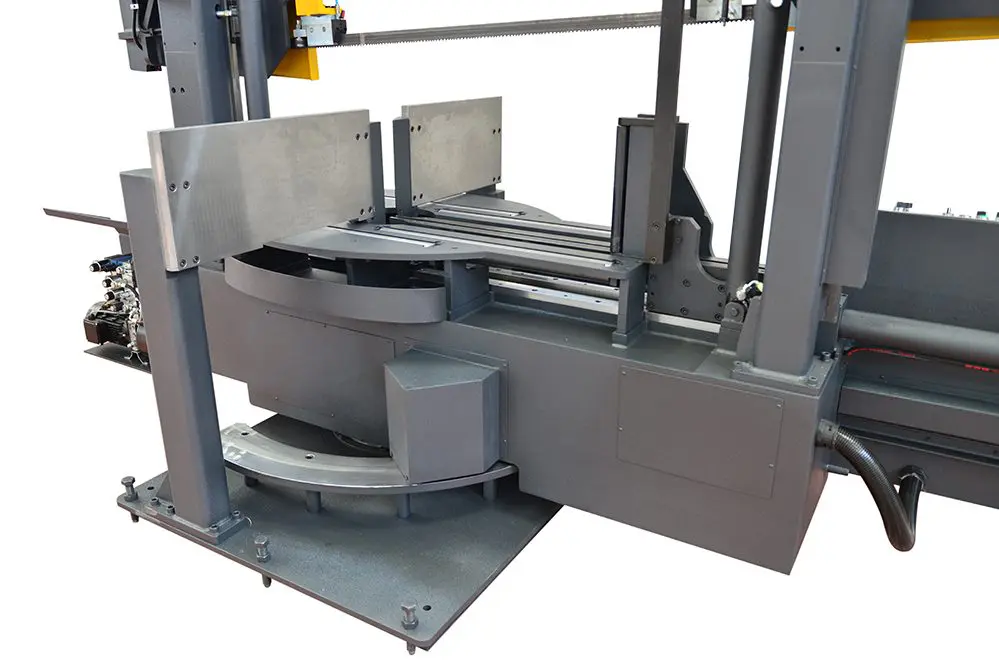

Turn Table Mitring
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 2
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 3
Optical Height Adjustment
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 3
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 4
Inverter
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 4
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 5
Hydraulic Vice
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 5
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 6
Hydraulic Top Clamping (Optional)
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 6
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 7
Heavy Duty Gear Box
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 7
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 8

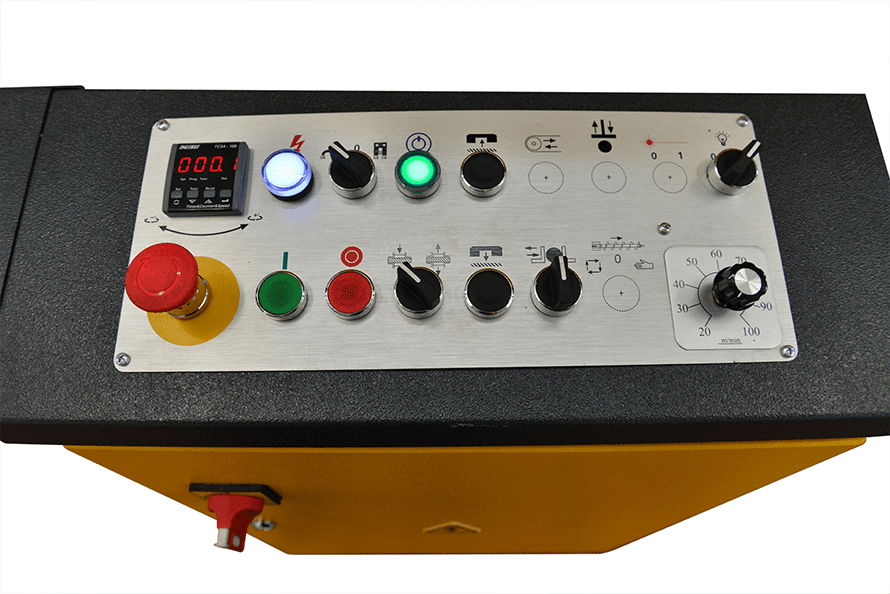

STC DGSA Control Panel
Sterling STC DGSA Twin Pillar Double Mitre Bandsaw 415V image 8
MODEL     STC360 DGSA       STC440 DGSA       STC560 DGSA
STOCKCODE 15147 15148 15179
Capacity 90° 45° L & R 60° L & R 90° 45° L & R 60° L & R 90° 45° L & R 60° L & R
Round mm 360 360 310 440 440 250 560 550 340
Square mm 360 360 270 440 400 250 560 520 340
Rectangle mm 640 x 360 390 x 360 250 x 360 640 x 440 400 x 440 250 x 440 820 x 540 520 x 540 340 x 520
Bed Height mm 800 850 880
Blade Size mm 5000 x 34 x 1.1 6000 x 41 x 1.3 6800 x 41 x 1.3
Cutting Speed m/min 20 – 100 20 – 100 20 – 100
Motor Kw 3 4 4
Length mm 3000 3100 3800
Width mm 1200 1200 1750
Height mm 1910 1910 2350
Weight Kg 1995 1780 3200
Operation Semi-automatic Semi-automatic Semi-automatic
Vice Hydraulic Hydraulic Hydraulic

Features

  • Double mitring swivel head 60¡ left and right
  • Strong Pillar Frame With Linear Guidance Bearing
  • PLC to control all machine functions
  • Hydraulic cutting with variable pressure and variable speed
  • Hydraulic Vice
  • Hydraulic bow lock at any angle
  • Hydraulically controlled counter balance to prevent bow descent speed increasing during the cutting cycle
  • Fast approach with auto bow height setting
  • Carbide blade guides for high accuracy
  • Blade tension indicator

Options

  • Hydraulic Blade Tension
  • Hydraulic Top Clamps
  • Spray Mist Lubrication
  • Laser Cutting Line

The Sterling STC DGSA range combines the power and rigidity of a twin column semi-automatic bandsaw, with double mitring capabilities. Suitable for mitre cuts on large structural steel, this heavy-duty range of saws offers a lot of flexibility and capacity.

Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC DGSA are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
