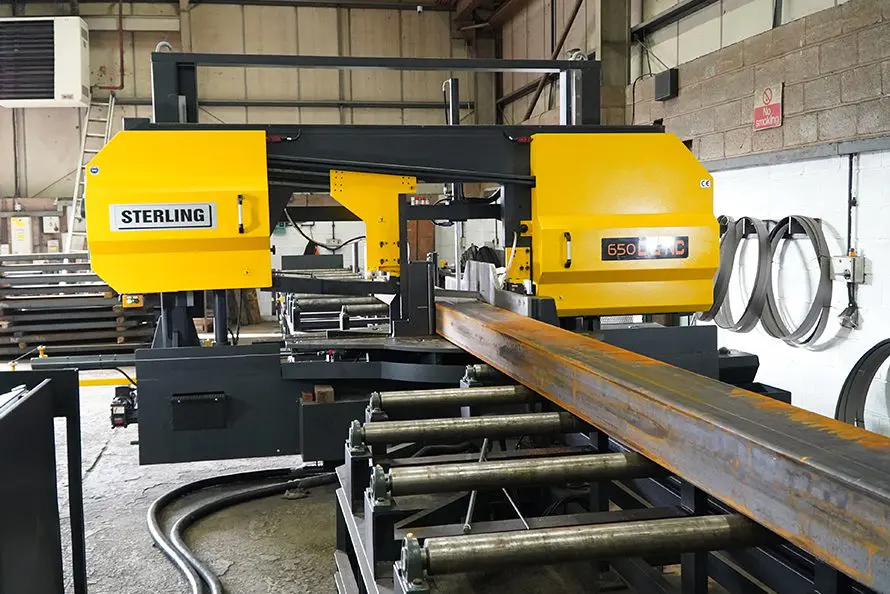

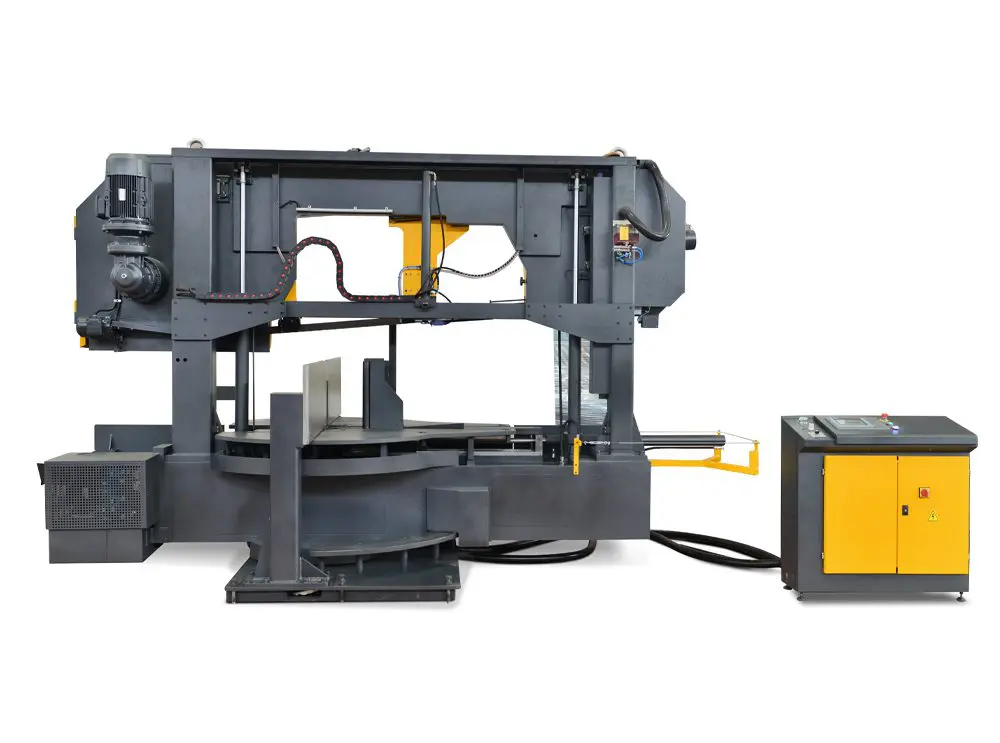

Sterling STC DGSA NC Twin Column Semi Automatic Bandsaw 415v

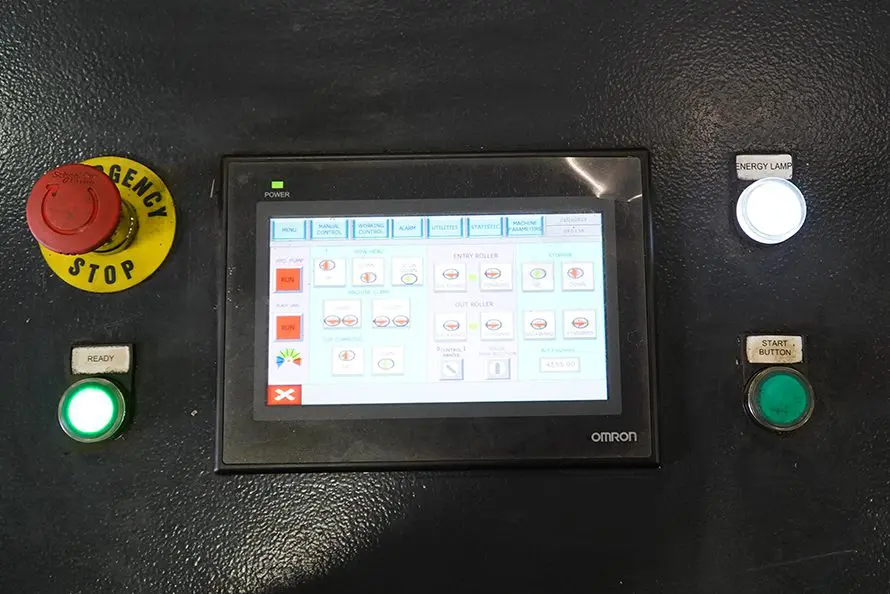

Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The STC DGSA NC range features semi-automatic applications, including a NC PLC Controller, double-mitring and automatic bow descent and rise. The NC Controller allows you to select the mitre angle, for increased accuracy and efficiency.

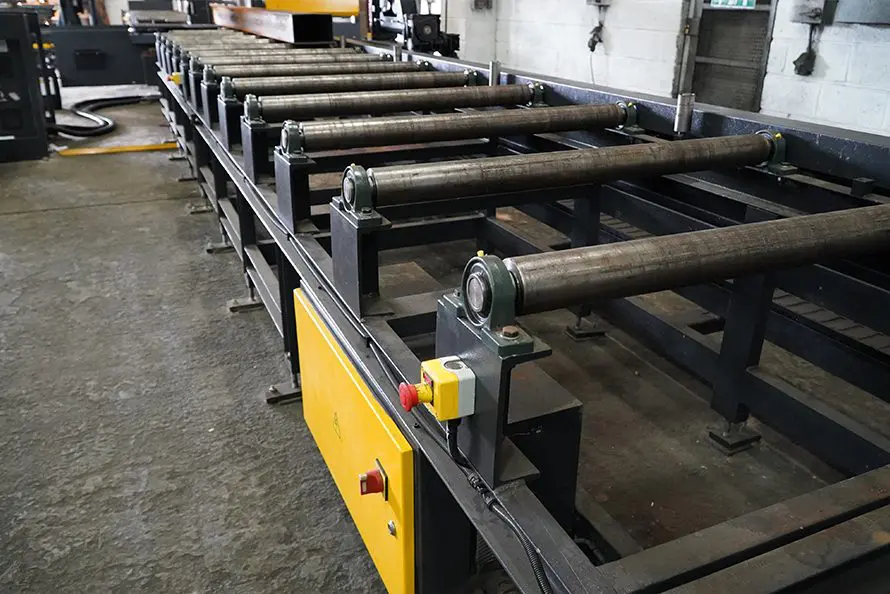

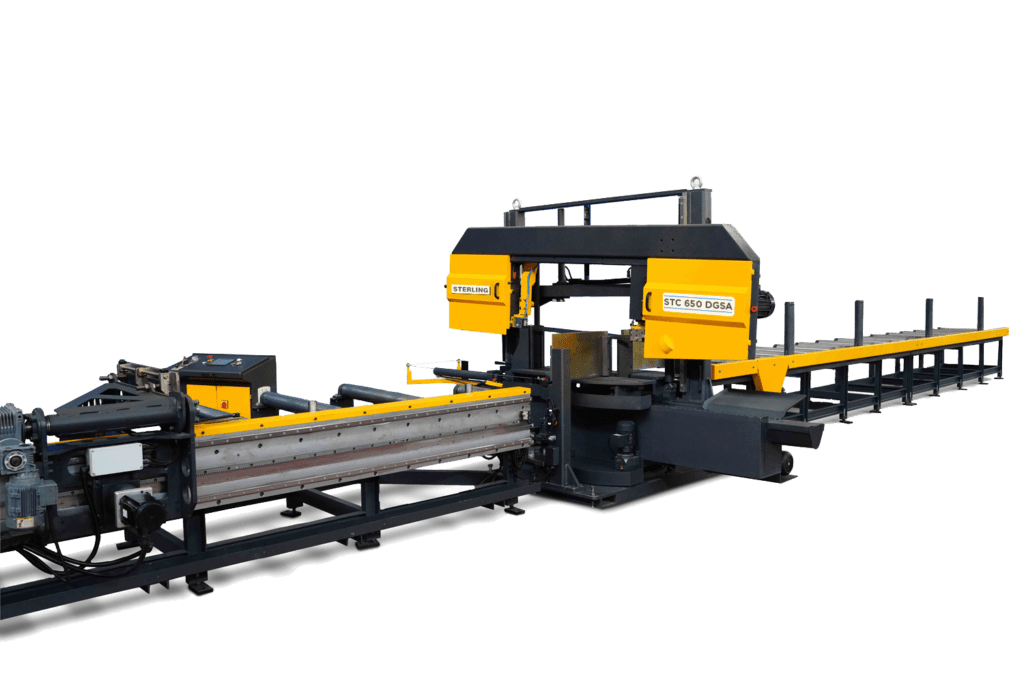

Variable vice pressure and a moveable blade guide arm means the saw can be adjusted to suit a wide variety of material sizes and material wall thickness. Ideally suited for working with structural steel, this saw is recommended to be paired with heavy-duty, motorised roller track for easier material handling and feeding.
| MODEL | STC440 DGSA NC | STC560 DGSA NC | STC650 DGSA NC | STC750 DGSA NC | |||||||||
| ◯ | ▢ | ▭ | ◯ | ▢ | ▭ | ◯ | ▢ | ▭ | ◯ | ▢ | ▭ | ||
| Capacity | Round | Square | Widest Cut | Round | Square | Widest Cut | Round | Square | Widest Cut | Round | Square | Widest Cut | |
| 0° | mm | 440 | 440 | 640 x 440 | 560 | 540 | 820 x 540 | 650 | 600 | 1000 x 600 | 800 | 750 | 1300 x 750 |
| 30° L | mm | 440 | 440 | 510 x 440 | 560 | 540 | 670 x 540 | 650 | 600 | 840 x 600 | 800 | 750 | 1070 x 750 |
| 45° L | mm | 440 | 400 | 400 x 440 | 550 | 520 | 520 x 540 | 650 | 600 | 660 x 600 | 800 | 750 | 850 x 750 |
| 60° L | mm | 250 | 250 | 240 x 440 | 340 | 340 | 340 x 520 | 440 | 440 | 440 x 600 | 570 | 570 | 570 x 750 |
| 30° R | mm | 440 | 440 | 510 x 440 | 560 | 540 | 670 x 540 | 650 | 600 | 840 x 600 | 800 | 750 | 1070 x 750 |
| 45° R | mm | 390 | 390 | 390 x 440 | 520 | 520 | 520 x 540 | 650 | 600 | 660 x 600 | 800 | 750 | 850 x 750 |
| Bed Height | mm | 850 | 880 | 880 | 880 | ||||||||

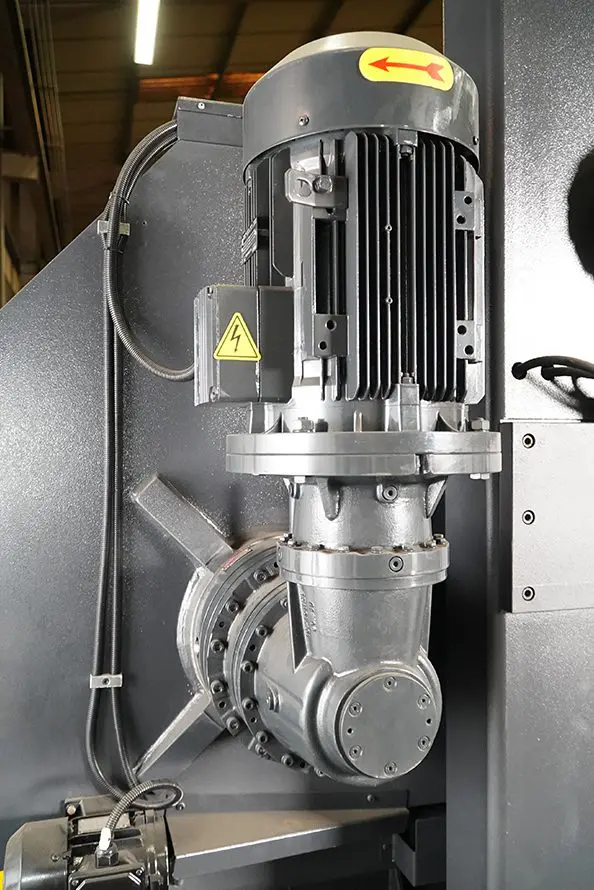

| Main Motor | kW | 4 | 4 | 7.5 | 7.5 | ||||||||
| Hydraulic Motor | kW | 1.1 | 1.1 | 4 | 4 | ||||||||
| Blade Size | mm | 6000 x 41 x 1.3 | 6800 x 41 x 1.3 | 8400 x 54 x 1.6 | 9600 x 54 x 1.6 | ||||||||
| Cutting Speed | m/min | 20 – 100 | 20 – 100 | 20 – 100 | 20 – 100 | ||||||||
| Length | mm | 3100 | 3800 | 4400 | 5050 | ||||||||
| Width | mm | 1200 | 1750 | 2270 | 2200 | ||||||||
| Height | mm | 1910 | 2350 | 2660 | 2900 | ||||||||
| Weight | Kg | 1780 | 3200 | 6250 | 6700 | ||||||||
| Operation | NC Semi-automatic | NC Semi-automatic | NC Semi-automatic | NC Semi-automatic | |||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Features

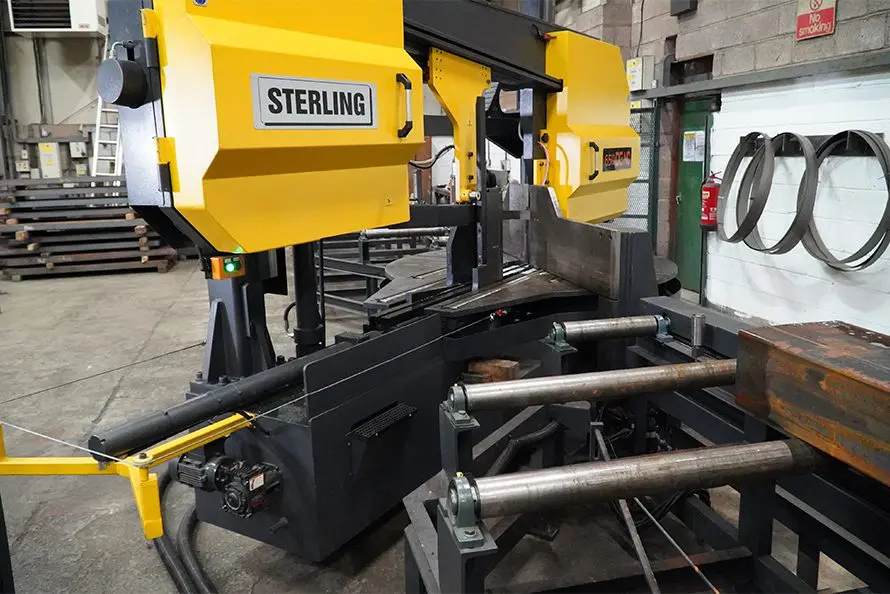

- Semi automatic double mitre 60° left and 45° right.

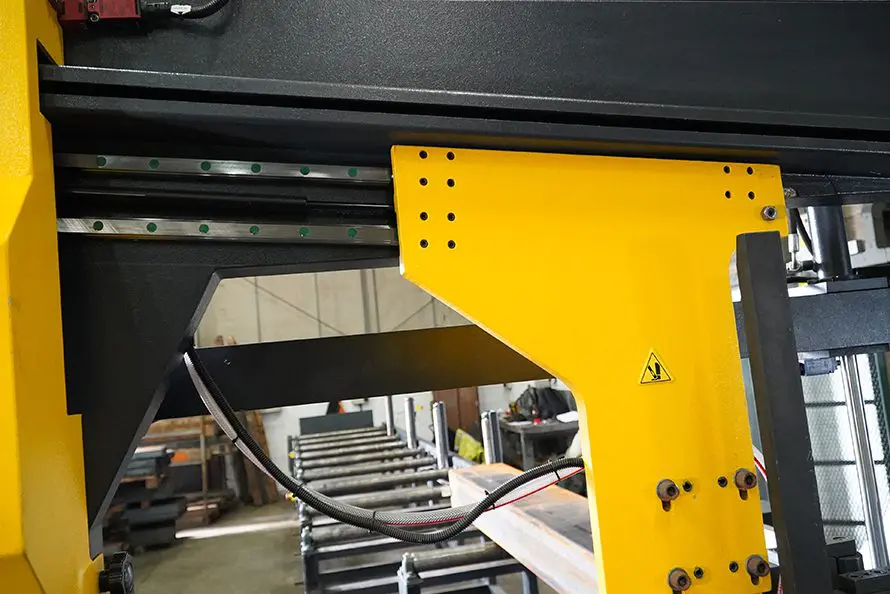

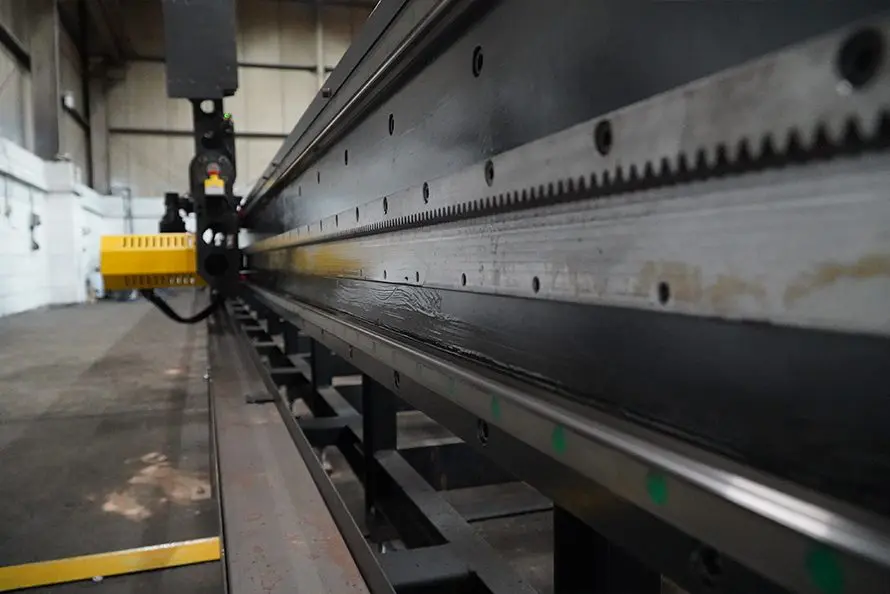

- Heavy duty twin column with linear guidance bearing.
- Powered bow rotation with NC control.
- DRO for cutting angle
- 5° inclined blade.

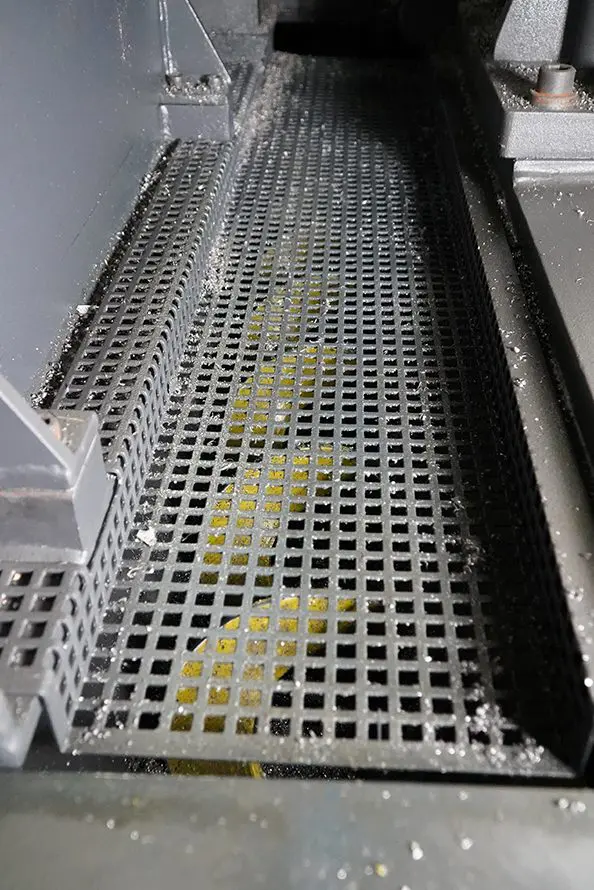

- Chip conveyor.

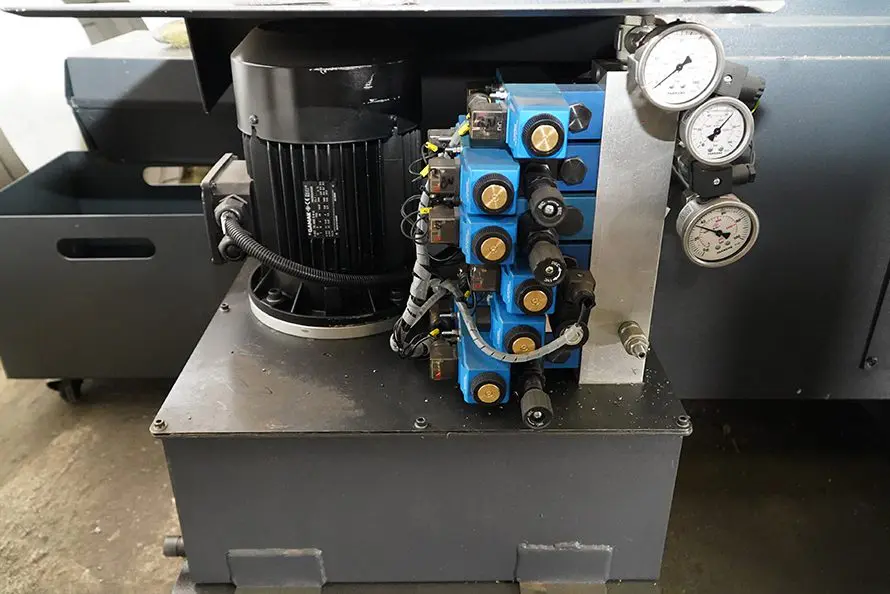

- Hydraulic cutting with variable pressure and speed.

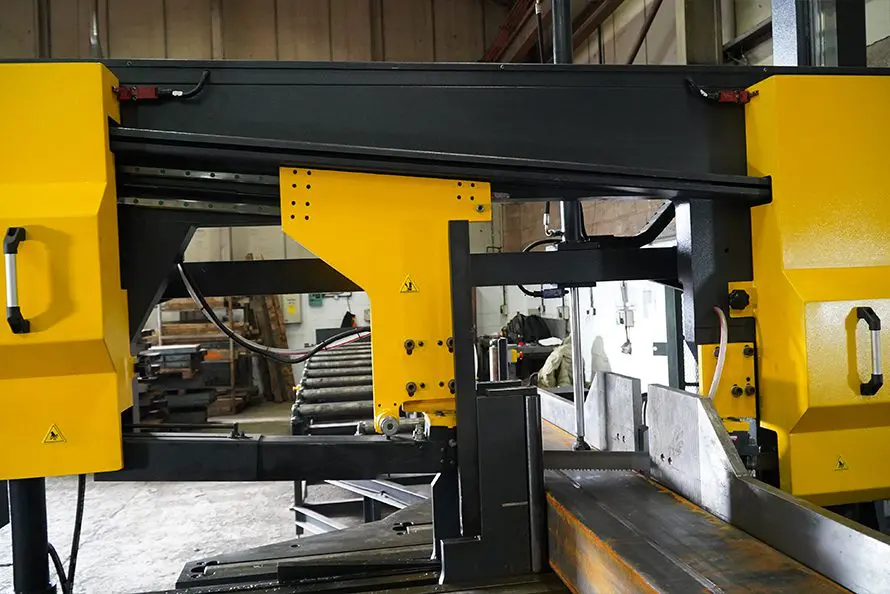

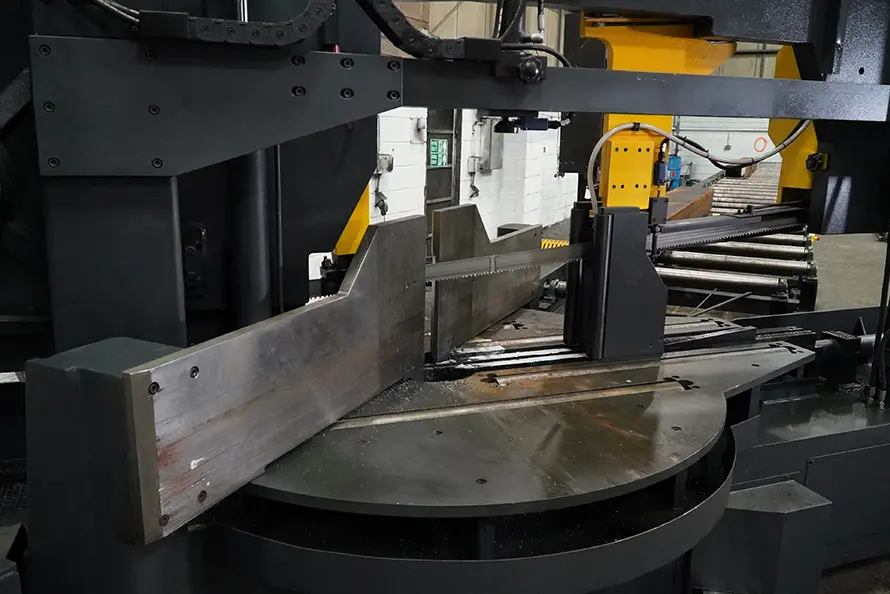

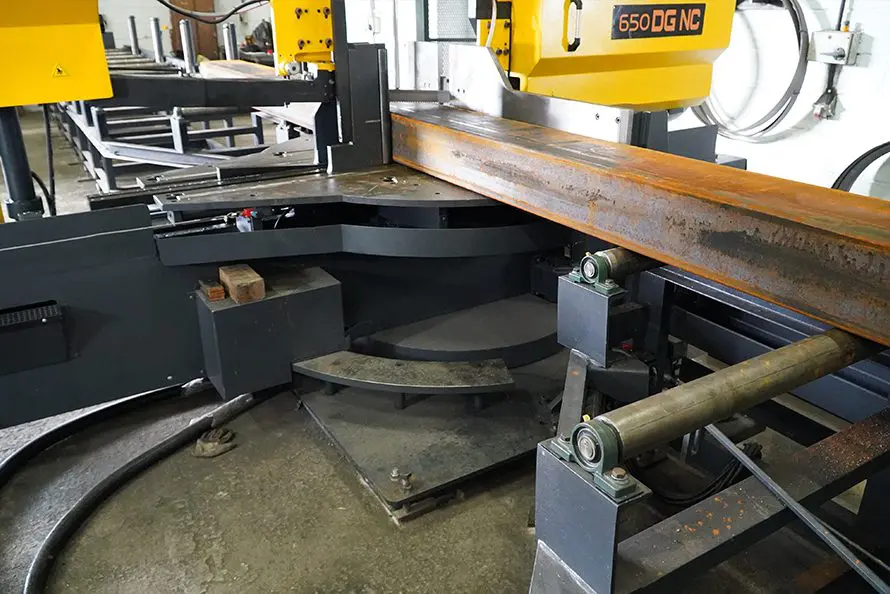

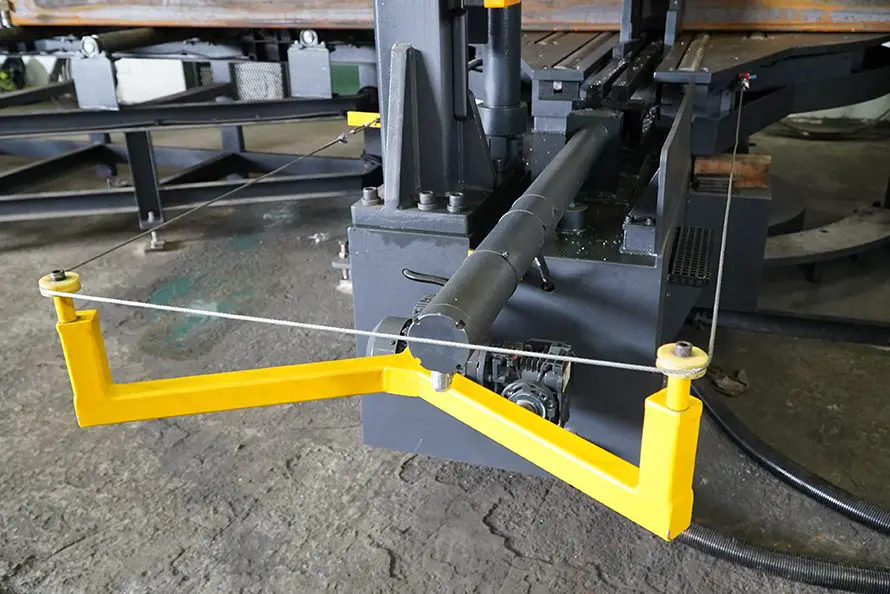

- Hydraulic vice.
- Hydraulic bow lock.

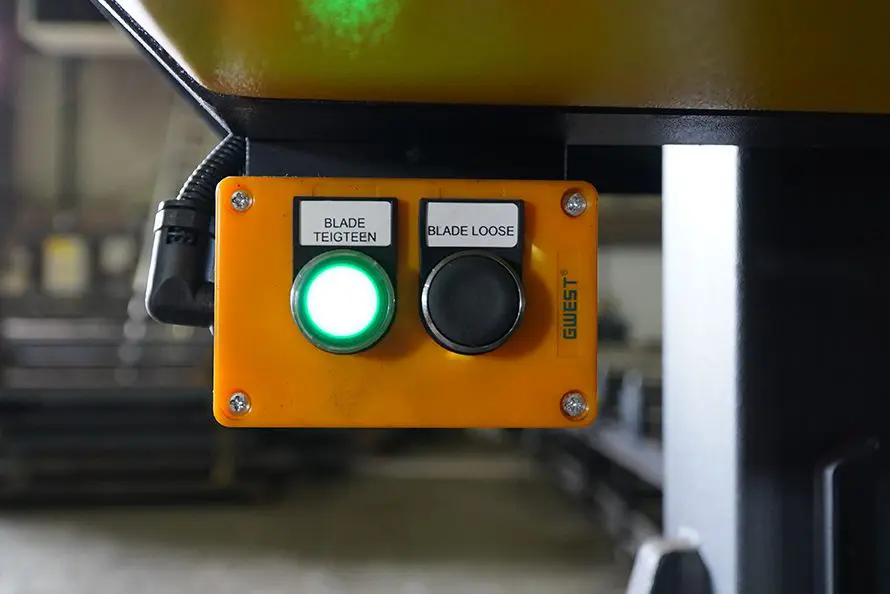

- Hydraulic blade tension.
- Motorised swarf brush.
Options

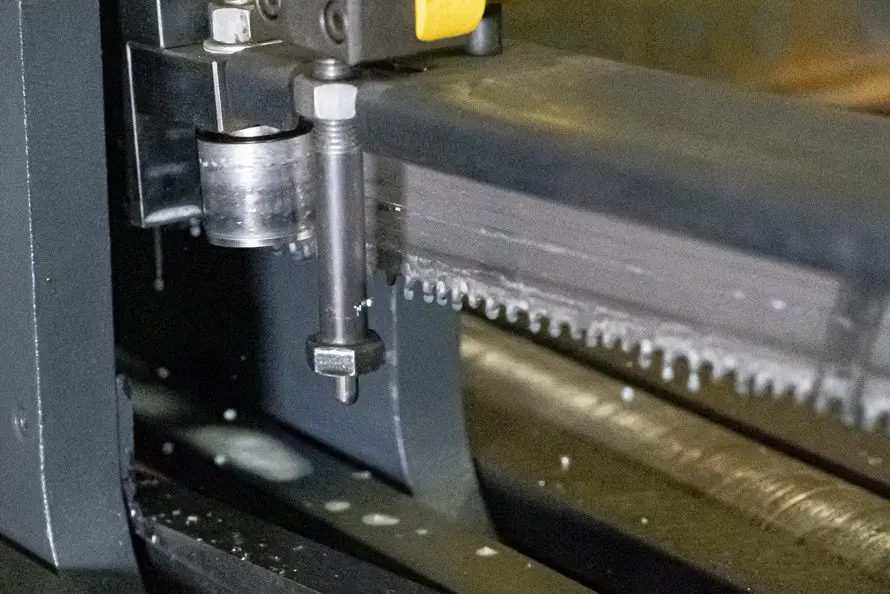

- Spray mist lubrication system.

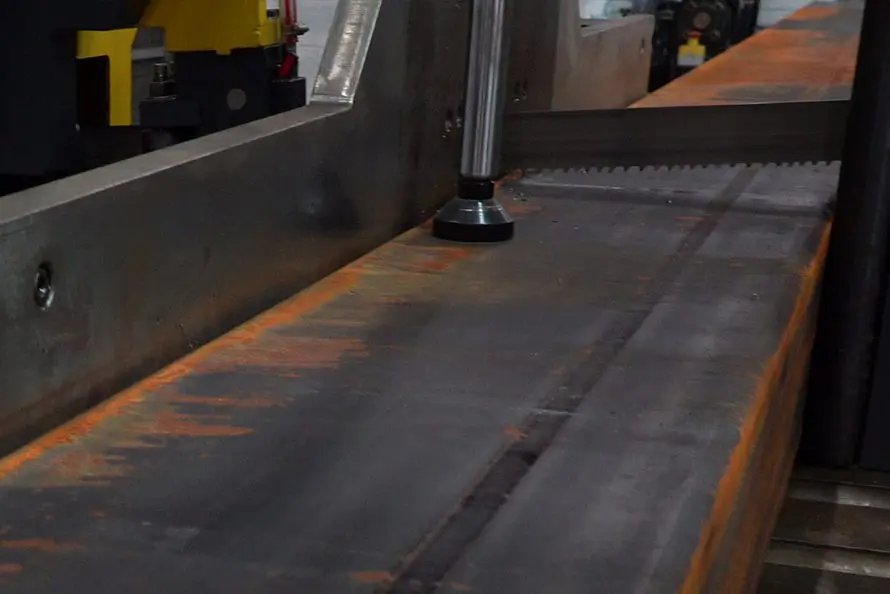

- Hydraulic top clamp.
- Laser cutting line.
Sterling’s range of bandsaws are one of the leading brands in the metal cutting world. The STC DGSA NC range features semi-automatic applications, including a NC PLC Controller, double-mitring and automatic bow descent and rise. The NC Controller allows you to select the mitre angle, for increased accuracy and efficiency.
Variable vice pressure and a moveable blade guide arm means the saw can be adjusted to suit a wide variety of material sizes and material wall thickness. Ideally suited for working with structural steel, this saw is recommended to be paired with heavy-duty, motorised roller track for easier material handling and feeding.
Ideal for cutting round, square or rectangular section, bandsaws like this Sterling STC DGSA NC are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
