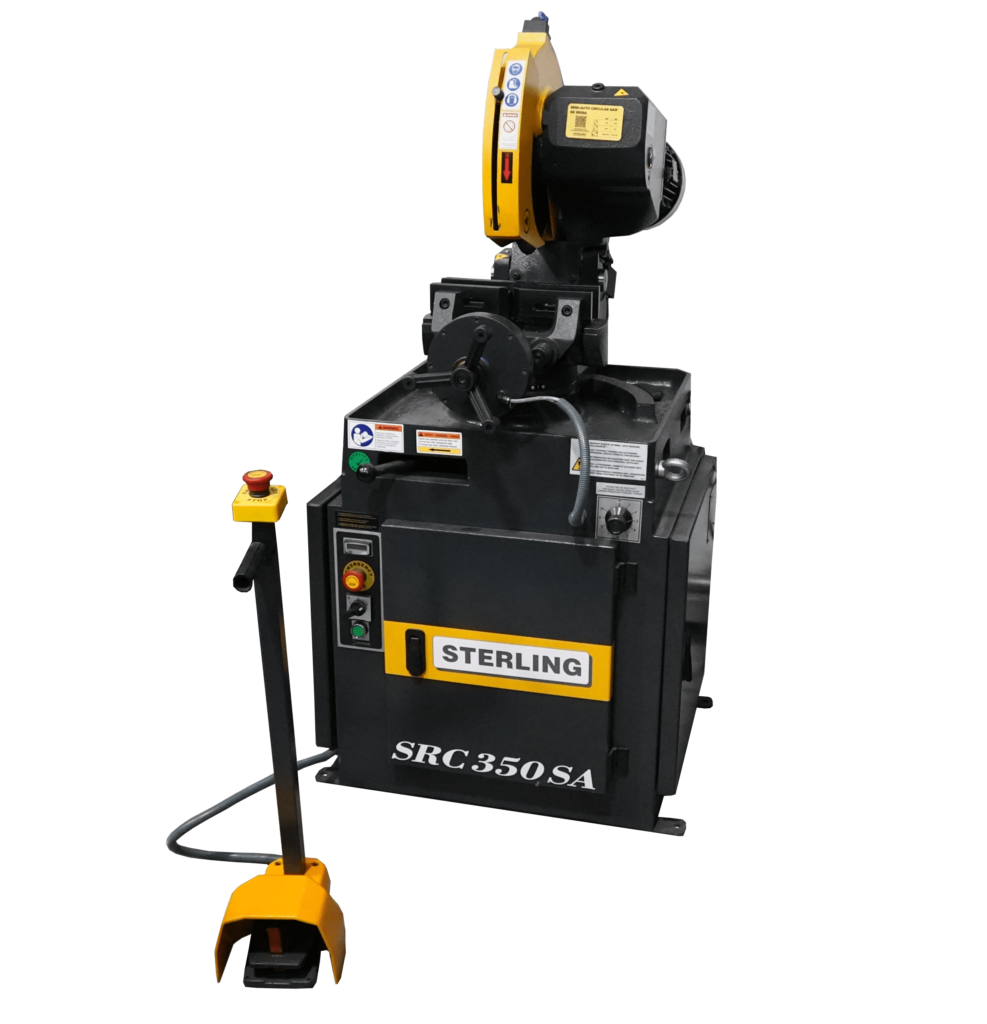

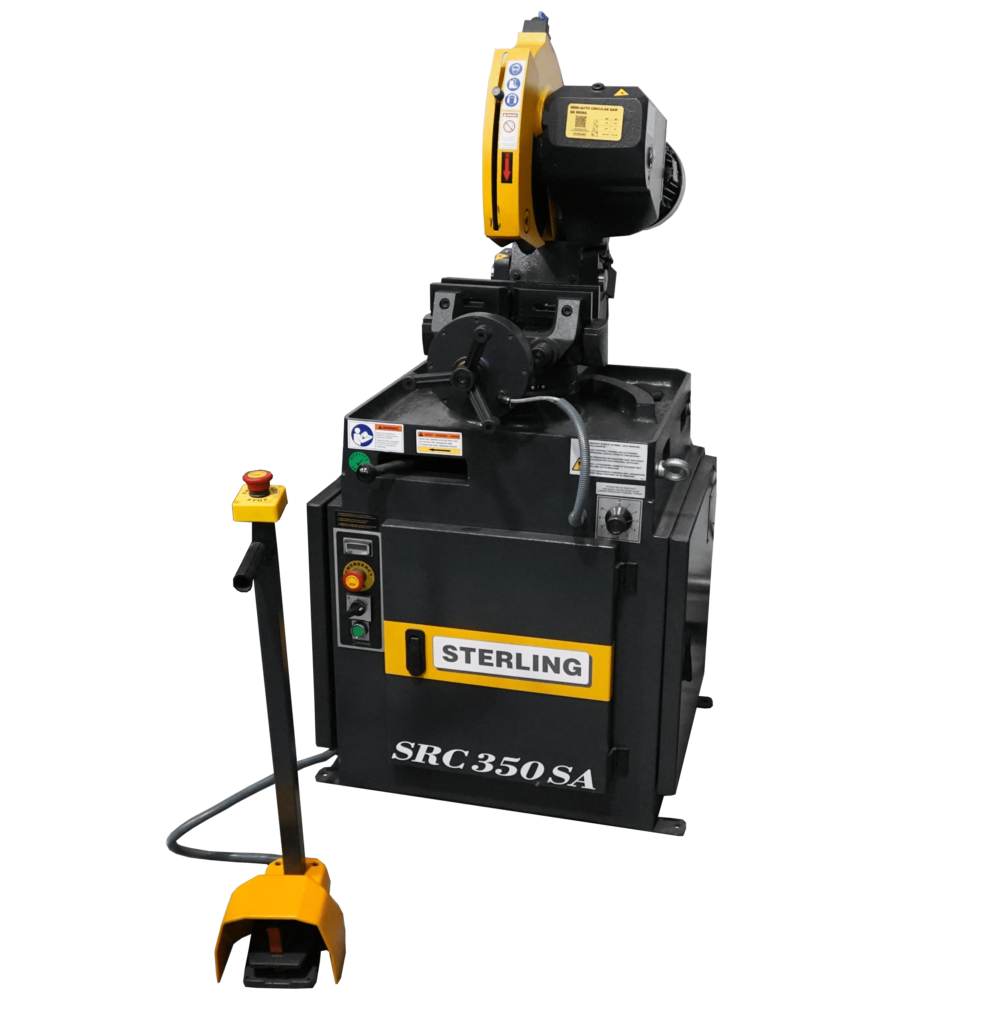

Sterling SR SA Semi-Automatic Circular Saw 415V
The robust construction and quality finish of the Sterling SR range of semi-automatic circular sawing machines is unrivalled. The SRC range has the ability to safely and quickly cut through a multitude of materials. The material slitting feature paired with the double clamping and self centring vices guarantees the material is always securely clamped in the optimum cutting position. Models with 275, 315 and 350mm diameter blades are offered as a fast cutting semi-automatic design, with pneumatic clamping for production cutting. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.
We can also supply blades and coolant too, these can be purchased directly off our tooling website.
| MODEL (BLADE WIDTH) | 275 SA | 315 SA | 350 SA | |||||||
| STOCKCODE | 15342 (SRC) / 15351 (SRE) | 15345 (SRC) / 15354 (SRE) | 15348 (SRC) / 15357 (SRE) | |||||||
| Capacities | 90° | 45° | 90° | 45° | 90° | 45° | ||||
| ◯ Tube | mm | 85 | 70 | 105 | 90 | 115 | 110 | |||
| □ Box Section | mm | 70 | 60 | 85 | 80 | 100 | 90 | |||
| ▭ Widest Cut | mm | 95 x 60 | 70 x 55 | 120 x 70 | 90 x 60 | 120 x 80 | 90 x 90 | |||
| Blade Diameter | mm | 275 | 315 | 350 | ||||||
| Blade Bore | mm | 32 | 32 | 32 | ||||||
| Blade Speeds | rpm | 45 / 90 | 45 / 90 | 40 / 80 | ||||||
| Motor | kW | 1.3 / 1.8 | 1.8 / 2.2 | 1.8 / 2.2 | ||||||
| Length | mm | 1100 | 1100 | 1100 | ||||||
| Width | mm | 600 | 600 | 600 | ||||||
| Height | mm | 1400 | 1400 | 1400 | ||||||
| Weight | Kg | 260 | 300 | 310 | ||||||
| Operation | Semi-Automatic | Semi-Automatic | Semi-Automatic | |||||||
| Vice | Manual / Pneumatic | Manual / Pneumatic | Manual / Pneumatic | |||||||
Features
- Heavy duty construction
- Semi-automatic cutting cycle
- Downfeed pressure regulator
- Adjustable height for cutting stroke
- High quality gearbox in oil bath
- Quick set mitring 45° left and right
- Pneumatic vice operation
- Double clamping anti-burr vice
- Self centring vice to ensure cutting is in optimum position
- 2 speed motor
- Electrical coolant pump
- Coolant resevoir in base with return filter
- Adjustable length stop bar
Options
- Eccentric vice (SRE range)
- Roller track and measuring systems
The robust construction and quality finish of the Sterling SR range of semi-automatic circular sawing machines is unrivalled. The SRC range has the ability to safely and quickly cut through a multitude of materials. The material slitting feature paired with the double clamping and self centring vices guarantees the material is always securely clamped in the optimum cutting position. Models with 275, 315 and 350mm diameter blades are offered as a fast cutting semi-automatic design, with pneumatic clamping for production cutting. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
