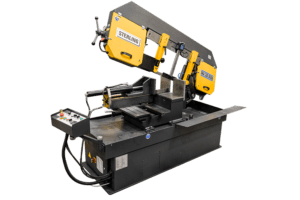

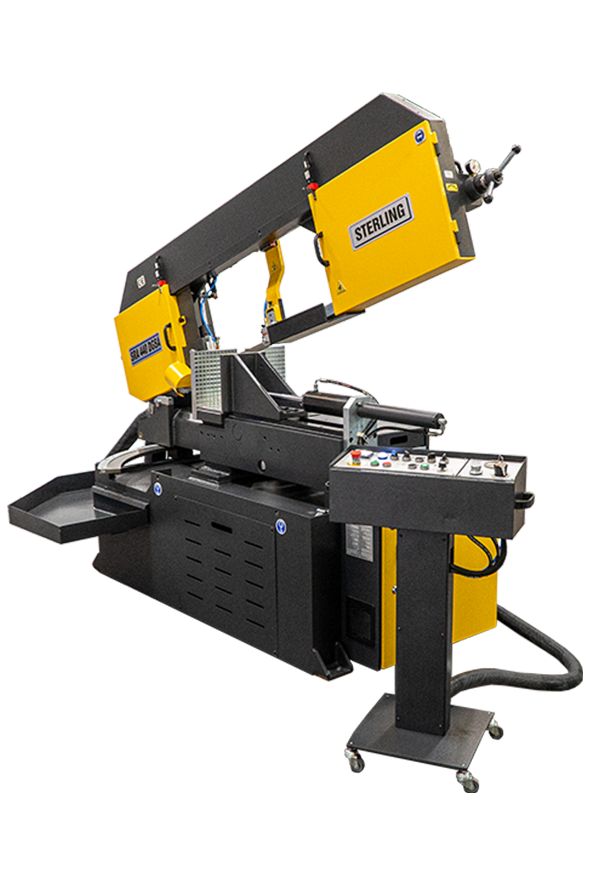

Sterling SRA DGSA Semi Automatic Bandsaw 415V
The STERLING SRA DGSA range of heavy duty bandsaws are well known and suited in the structural fabrication markets. They are renowned for their strength and durability built to process high tonnage. Some of the biggest structural fabrication companies in the country use these saws with great success. The Sterling brand is one of the most leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws.
| MODEL | SRA360 ECO DGSAE | SRA360 DGSA | SRA440 DGSA | |||||||||
| STOCKCODE | 15145 | 15146 | ||||||||||
| Capacity | 90° | 45° L & R | 60° L & R | 90° | 45° L & R | 60° L & R | 90° | 45° L & R | 60° L & R | |||
| ◯ Tube | mm | 360 | 360 | 200 | 360 | 360 | 260 | 440 | 410 | 330 | ||
| ▢ Box Section | mm | 360 | 360 | 200 | 360 | 360 | 260 | 440 | 410 | 310 | ||
| ▭ Widest Cut | mm | 510 x 360 | 390 x 360 | 200 x 360 | 610 x 360 | 490 x 360 | 260 x 160 | 610 x 440 | 460 x 270 | 330 x 170 | ||
| Bed Height | 860 | 860 | 860 | |||||||||
| Blade Size | mm | 4800 x 34 x 1.1 | 5000 x 34 x 1.1 | 5200 x 34 x 1.1 | ||||||||
| Cutting Speed | m/min | 20/100 | 20 – 100 | 20 – 100 | ||||||||

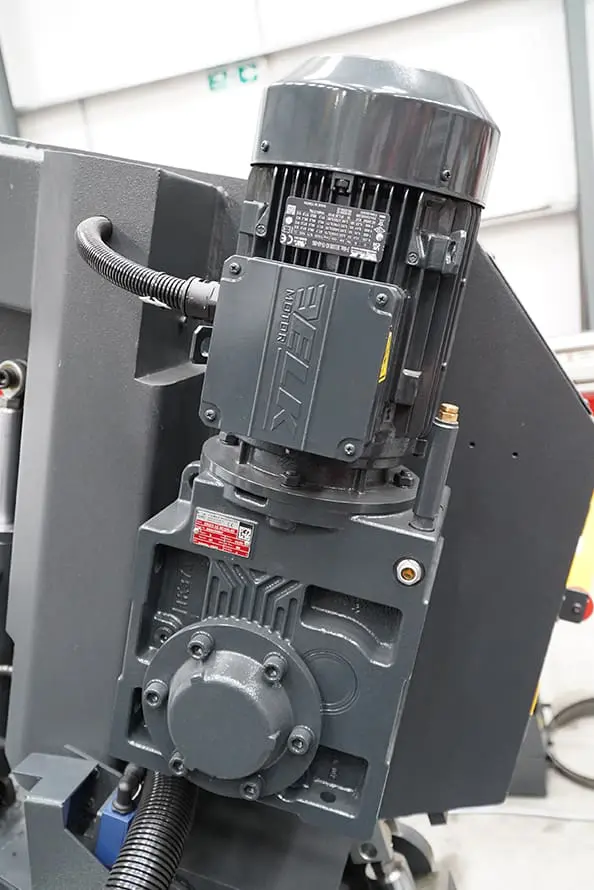

| Motor | Kw | 3 | 3 | 3 | ||||||||
| Length | mm | 2800 | 2750 | 2800 | ||||||||
| Width | mm | 1210 | 1210 | 1860 | ||||||||
| Height | mm | 1870 | 1870 | 1870 | ||||||||
| Weight | Kg | 1450 | 1470 | 1540 | ||||||||
| Operation | Semi-automatic | Semi-automatic | Semi-automatic | |||||||||
| Vice | Hydraulic | Hydraulic | Hydraulic | |||||||||
| Twin Ram | No | Yes | Yes |
Features

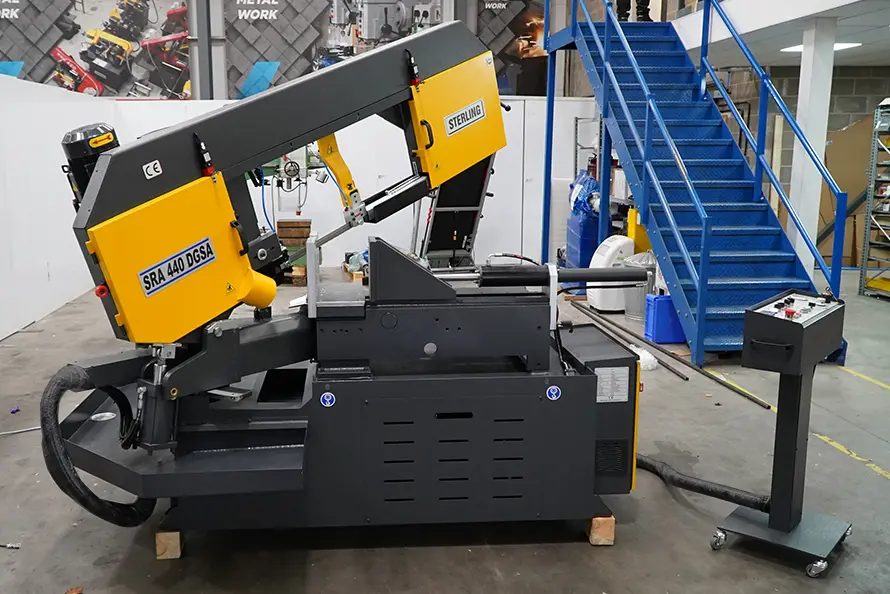

- Double mitring swivel head 60¡ left and right

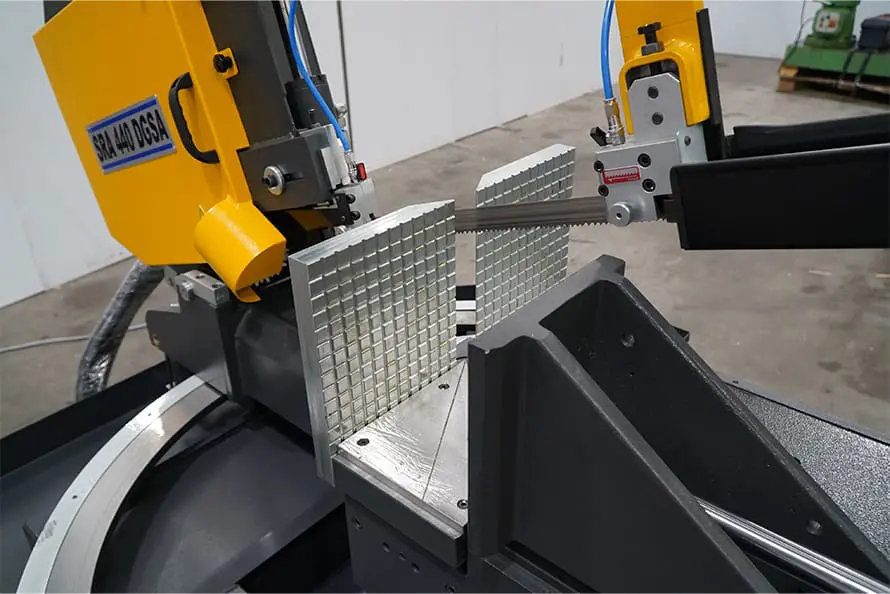

- Sliding vice from left to right

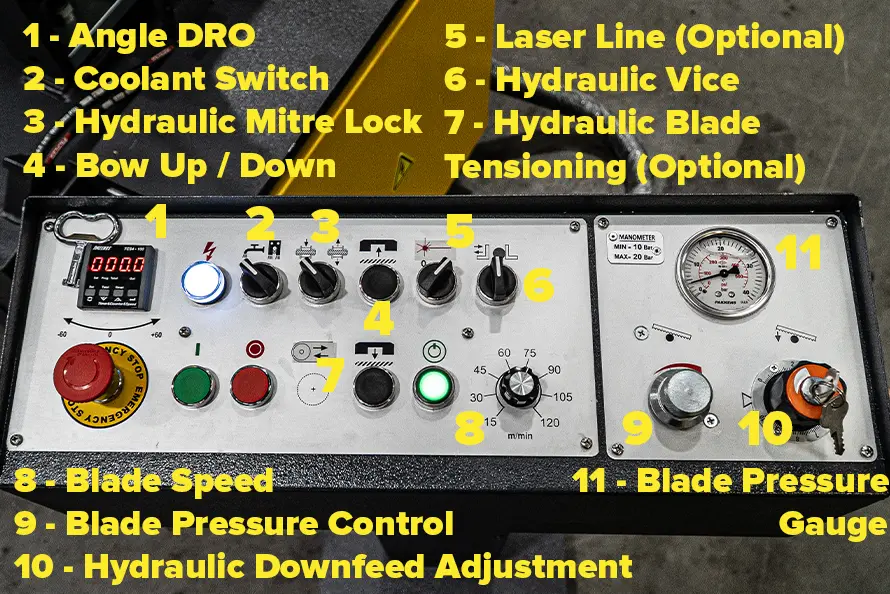

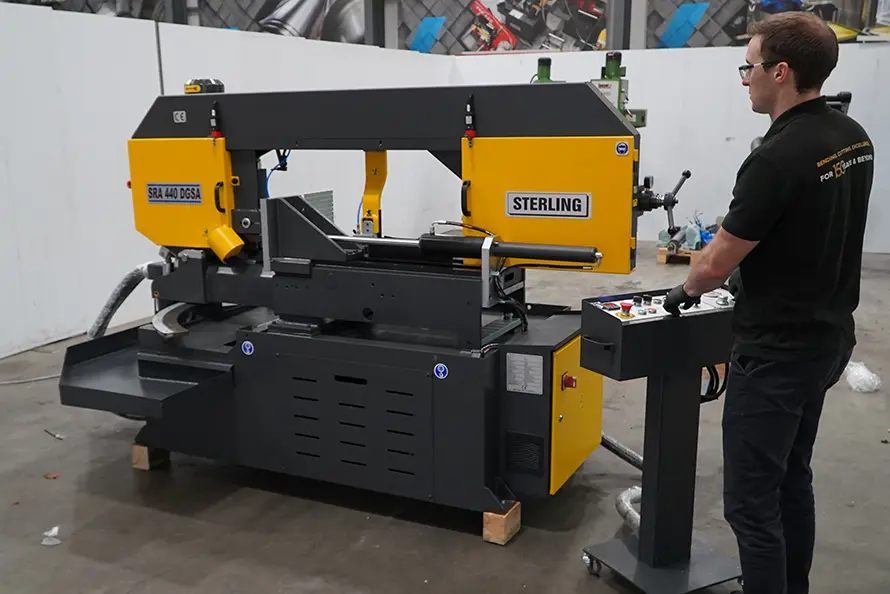

- Ergonomic mobile control panel to control all machine functions
- Hydraulic cutting with variable pressure and variable down feed speed
- Variable speed

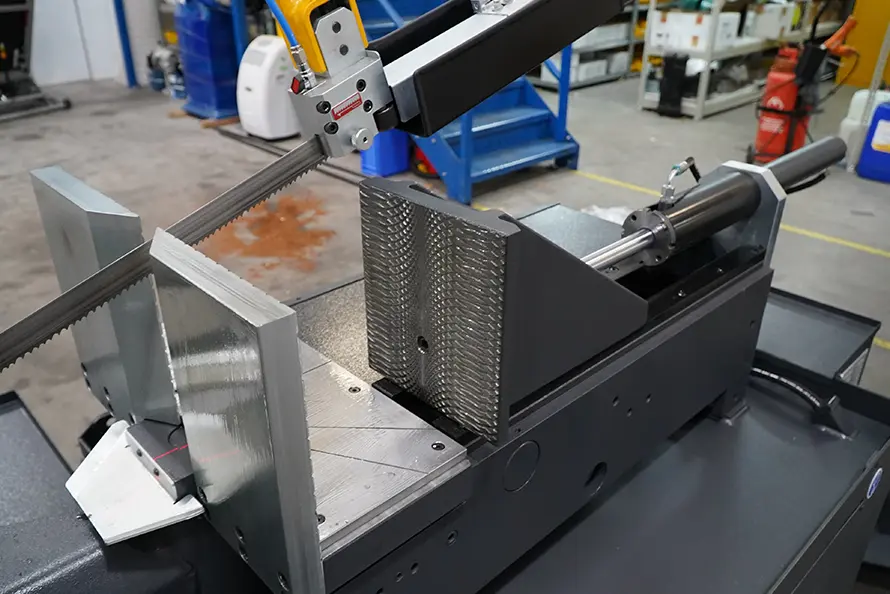

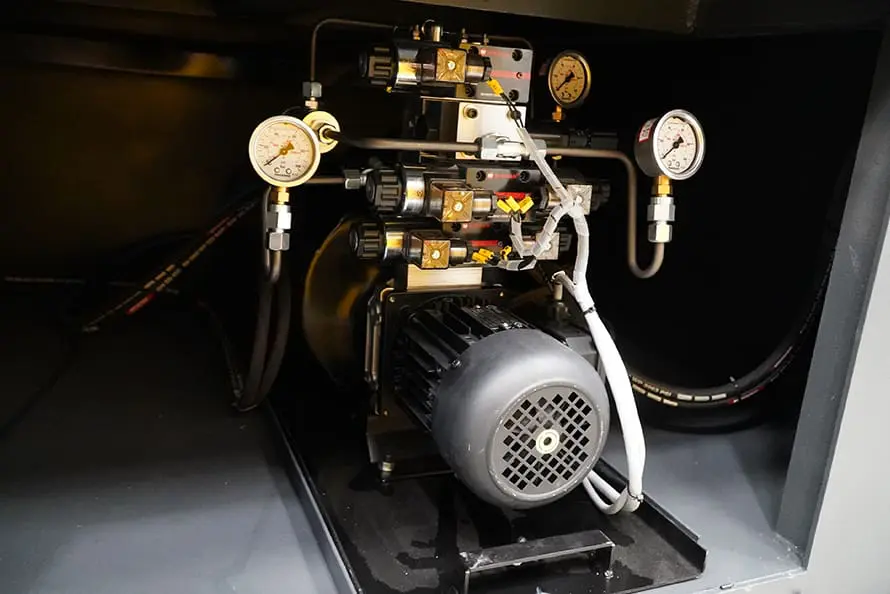

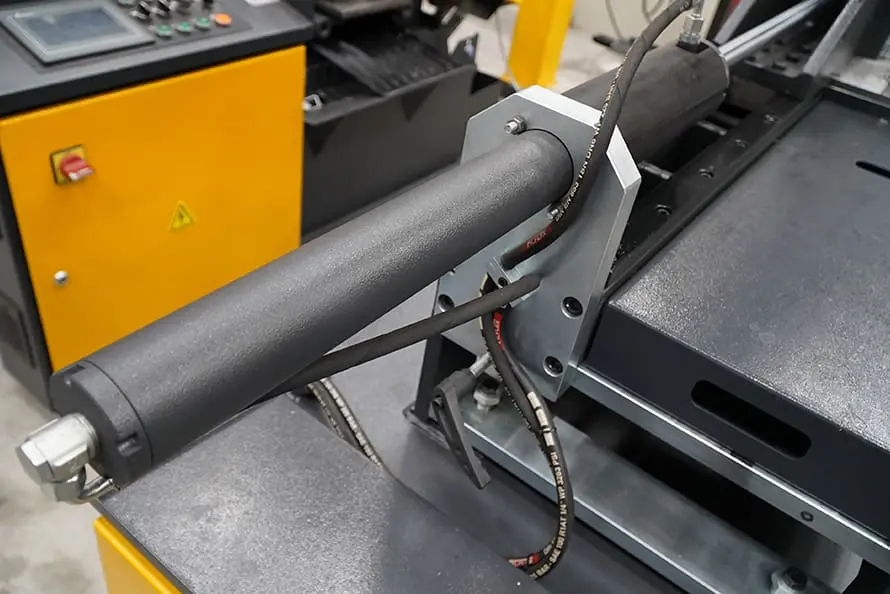

- Hydraulic Vice
- Hydraulic bow lock at any angle
- Hydraulically controlled counter balance to prevent bow descent speed increasing during the cutting cycle
- Auto bow height return adjustment

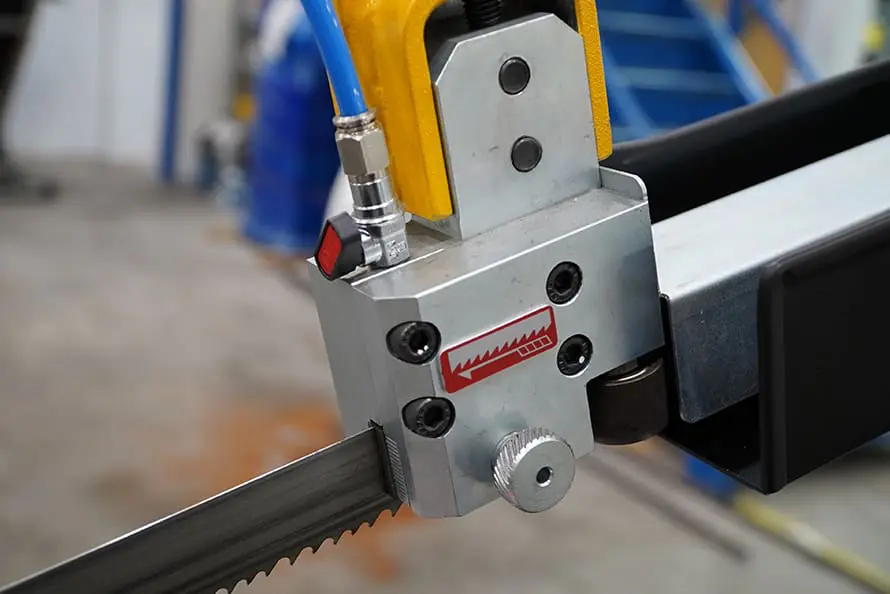

- Carbide blade guides for high accuracy
- Blade tension indicator
Options
- Automatic swivelling head operated by DC motor
- Hydraulic sliding vice
- Variable vice pressure
- Chip conveyor
- Spray mist cooling system
The STERLING SRA DGSA range of heavy duty bandsaws are well known and suited in the structural fabrication markets. They are renowned for their strength and durability built to process high tonnage. Some of the biggest structural fabrication companies in the country use these saws with great success. The Sterling brand is one of the most leading brands in the metal cutting world. Reliability, dependability and high accuracy are hallmarks of Sterling bandsaws.

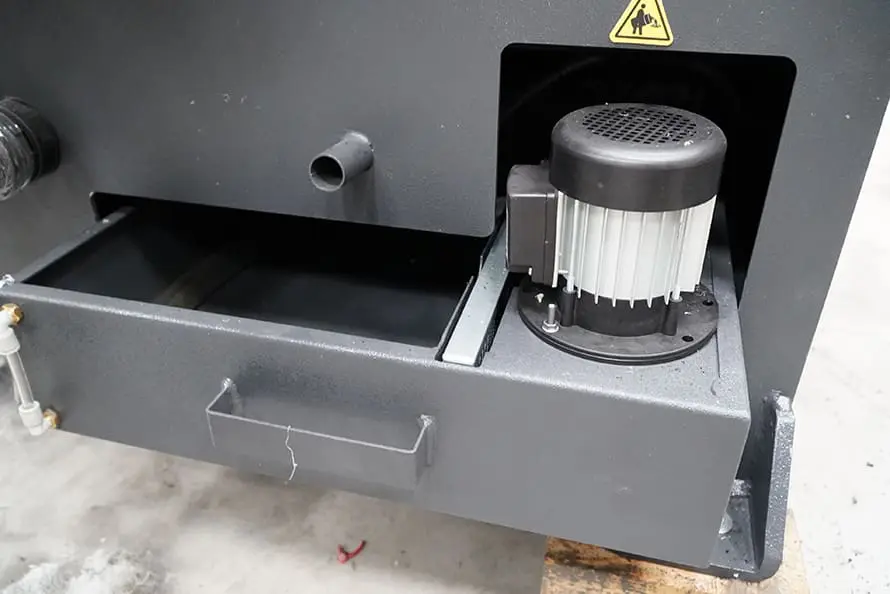

A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.
Ideal for cutting round, square or rectangular section, bandsaws like this STERLING SRA DGSA are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
