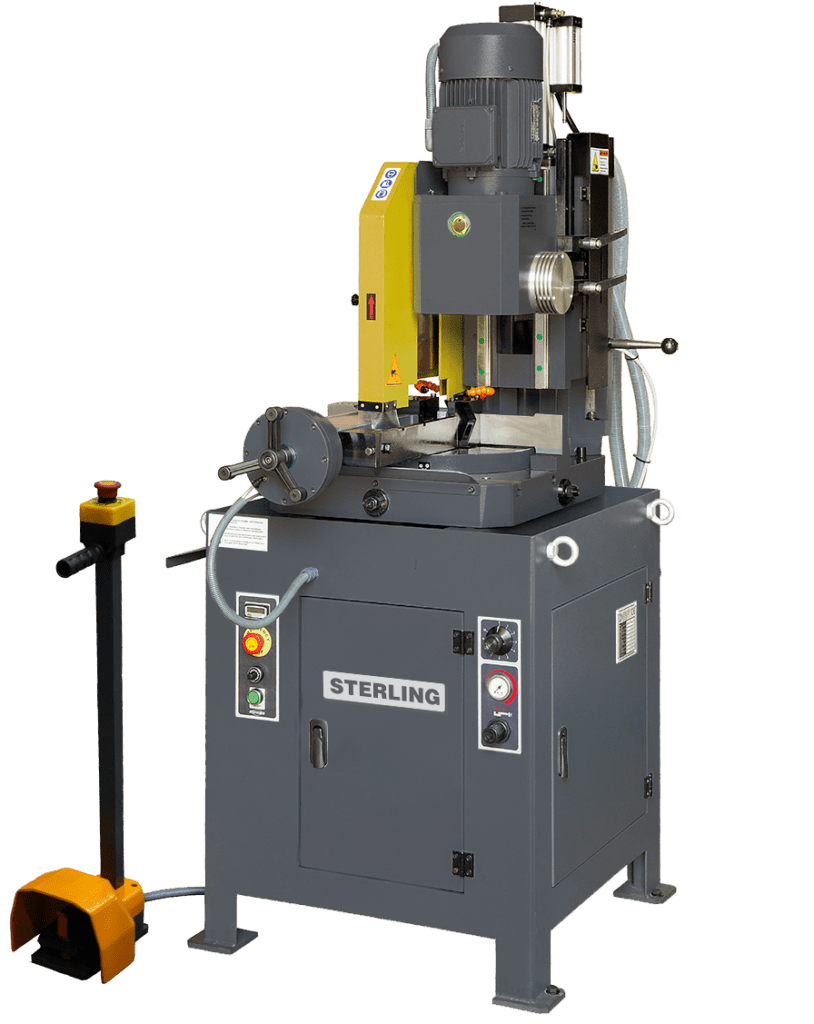

Sterling SR350 VSA Semi-Automatic Vertical Circular Saw 415V
The robust construction and quality finish of the Sterling SR range of semi-automatic circular sawing machines is unrivalled. The SR350 VSA features a down-stroking, vertical saw blade, and a backlash reduction system allowing for perfectly straight cuts and improved accuracy on mitres, without the arc of a conventional circular saw.
We can also supply blades and coolant too, these can be purchased directly off our tooling website.
| MODEL (BLADE WIDTH) | 350 VSA | ||||
| STOCKCODE | 15349 | ||||
| Capacities | 90° | +/- 45° | + 60° | ||
| ◯ Tube | mm | 110 | 110 | 110 | |
| □ Box Section | mm | 100 | 90 | 80 | |
| ▭ Widest Cut | mm | 160 x 90 | 120 x 80 | 80 x 80 | |

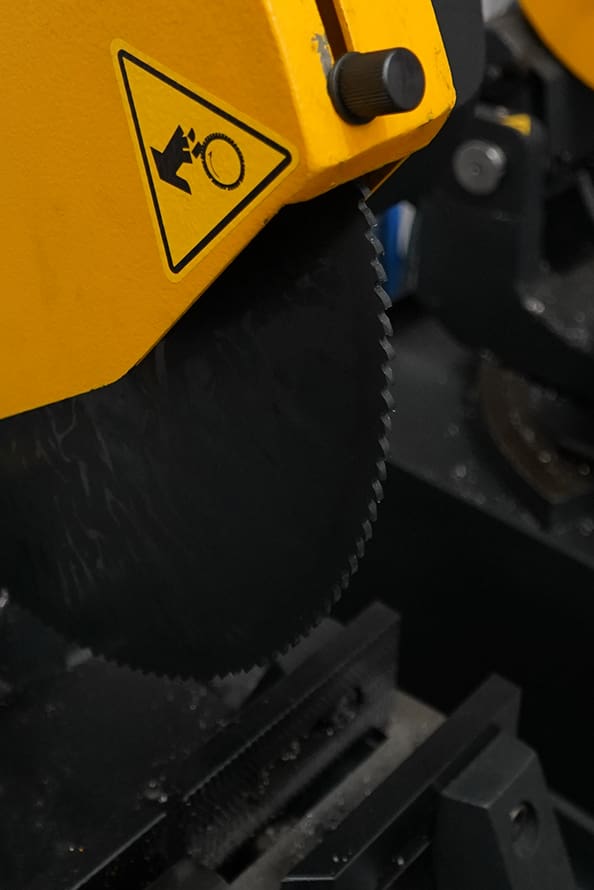

| Blade Diameter | mm | 350 | |||
| Blade Bore | mm | 32 | |||
| Blade Speeds | rpm | 36 / 72 | |||
| Motor | kW | 2.4 | |||
| Length | mm | 1000 | |||
| Width | mm | 800 | |||
| Height | mm | 1800 | |||
| Weight | Kg | 480 | |||
| Operation | Semi-Automatic | ||||
| Vice | Manual / Pneumatic | ||||
Features

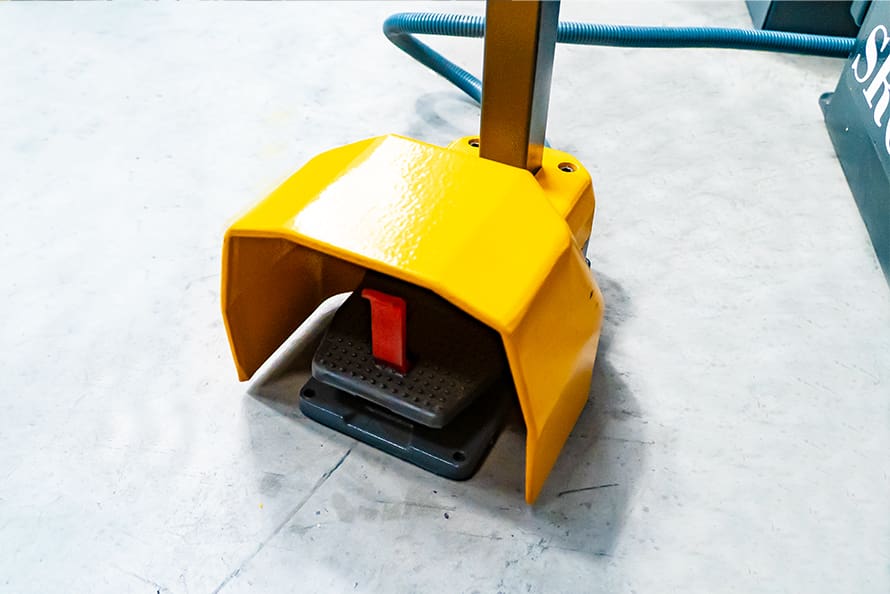

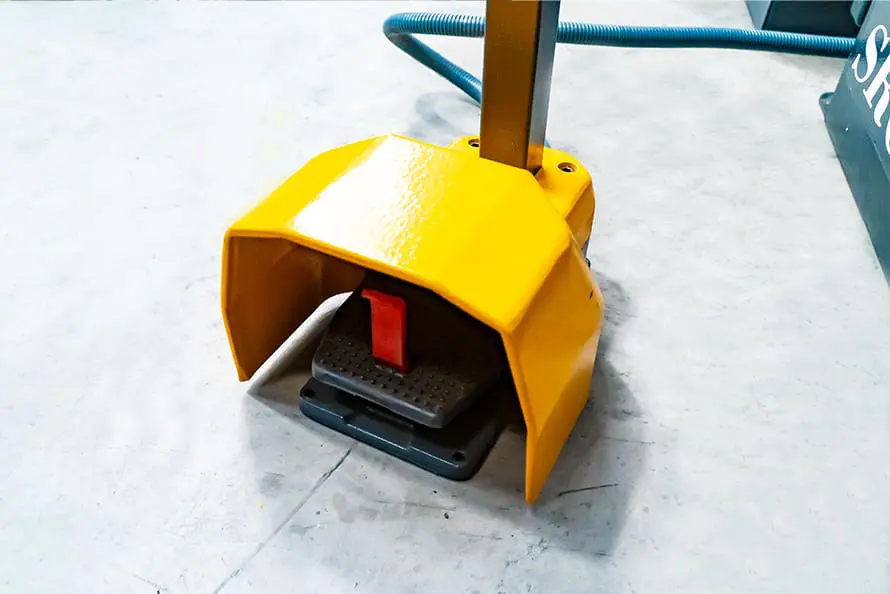

- Foot switch activation
- Heavy duty construction
- Backlash reduction system
- Semi-automatic cutting cycle
- Head descends on linear guides
- Adjustable height for cutting stroke
- High quality gearbox in oil bath
- Quick set mitring 60° left and 45° right

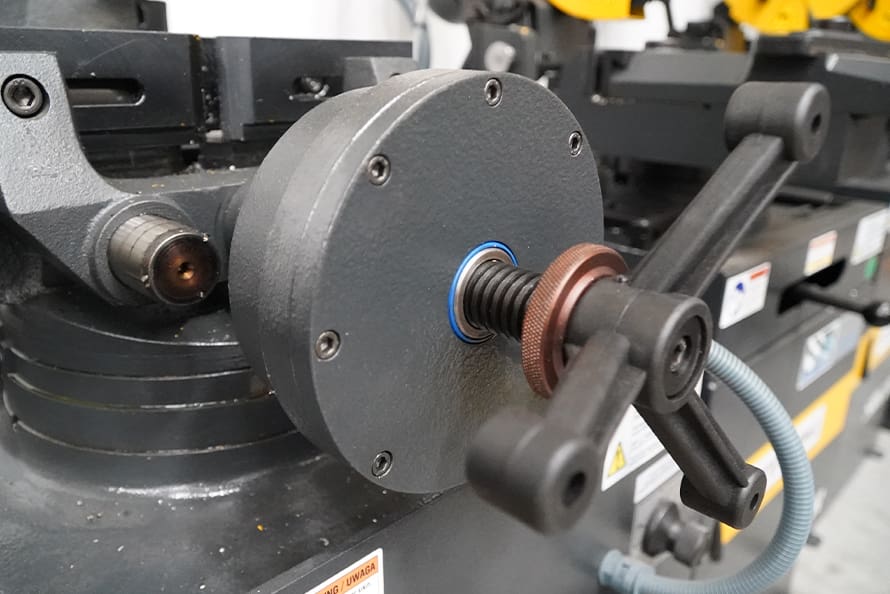

- Pneumatic vice operation
- Double clamping anti-burr vice

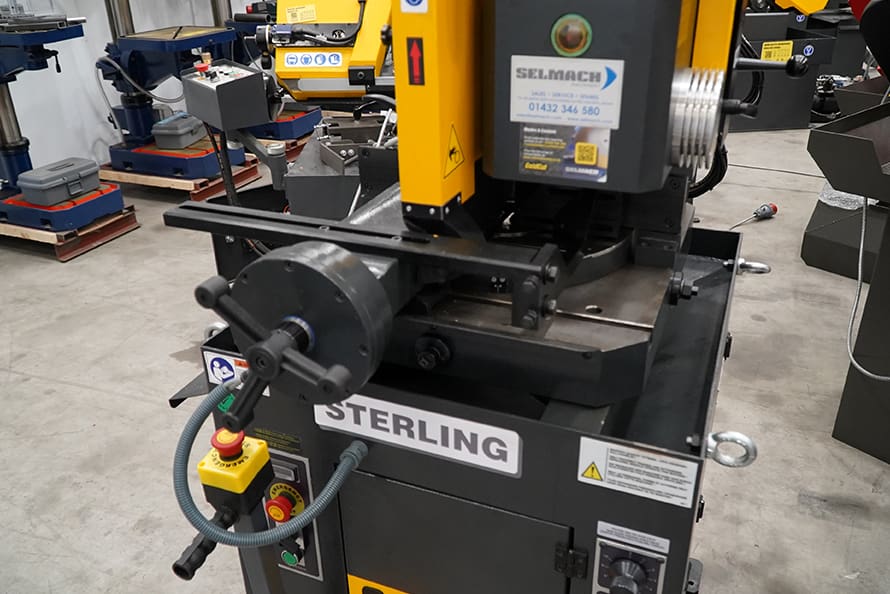

- Self centring vice to ensure cutting is in optimum position

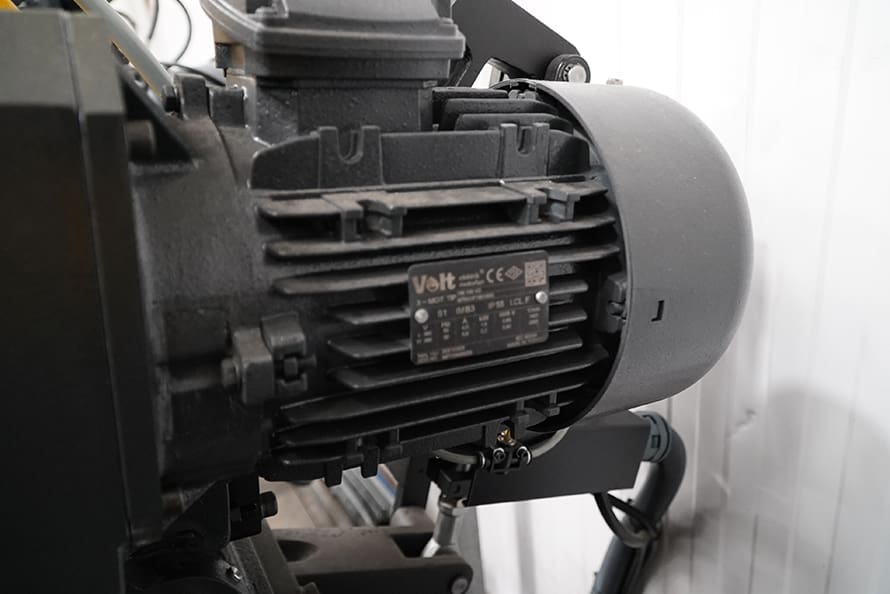

- 2 speed motor
- Electrical coolant pump with reservoir in base with return filter
Options
- Roller track and measuring systems
The robust construction and quality finish of the Sterling SR range of semi-automatic circular sawing machines is unrivalled. The SR350 VSA features a down-stroking, vertical saw blade, allowing for perfectly straight cuts and improved accuracy on mitres, without the arc of a conventional circular saw.
We can also supply circular saw blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
