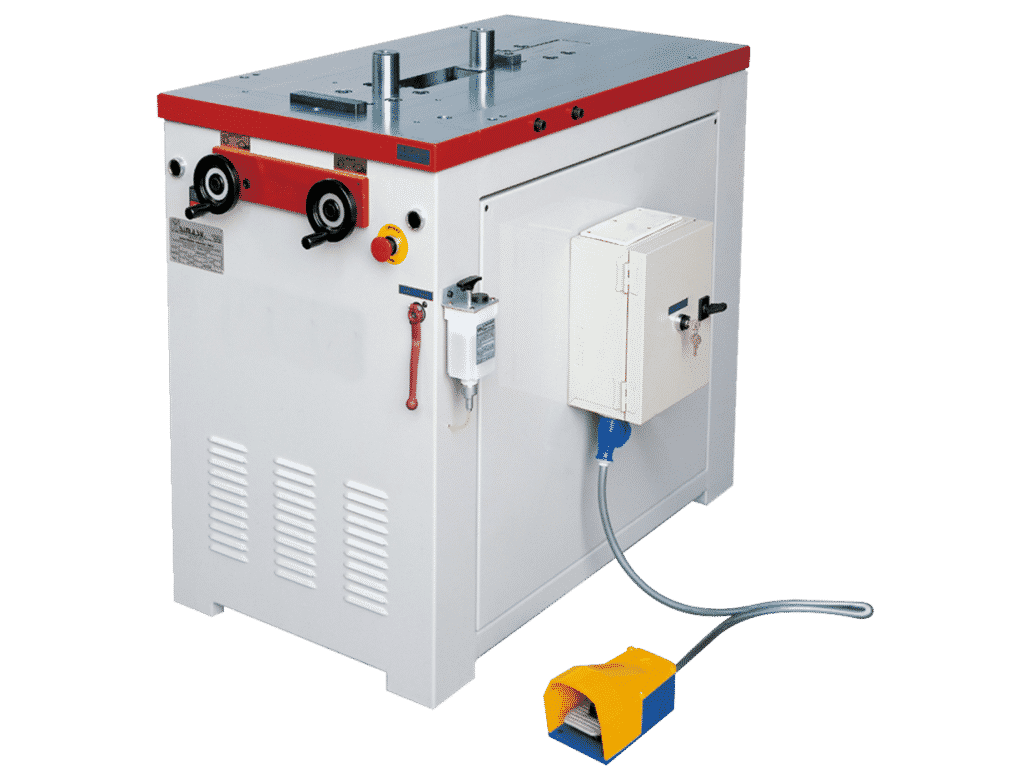

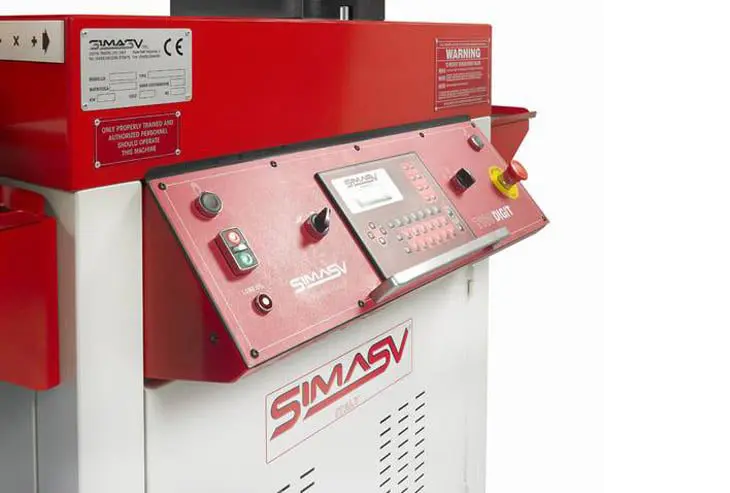

SIMASV T Hydraulic Horizontal Bending Press 415V

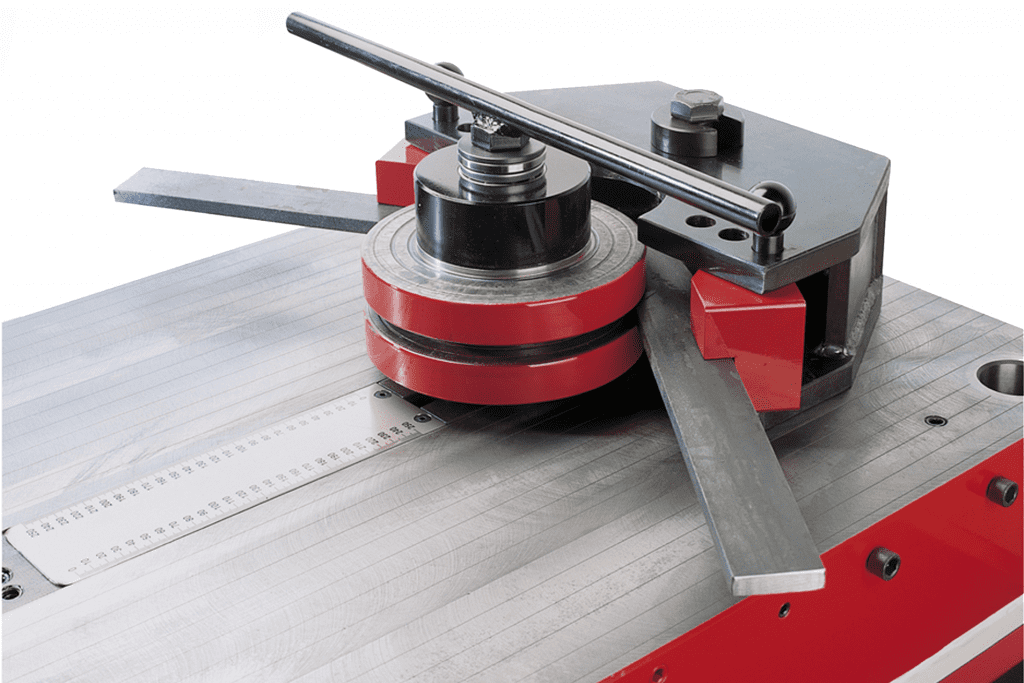

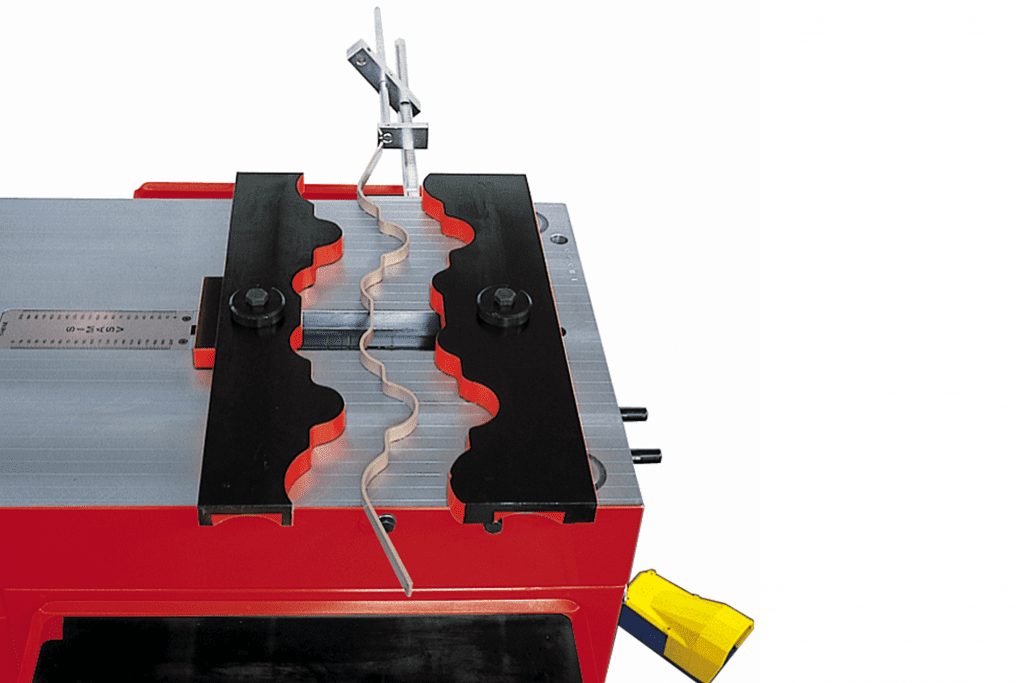

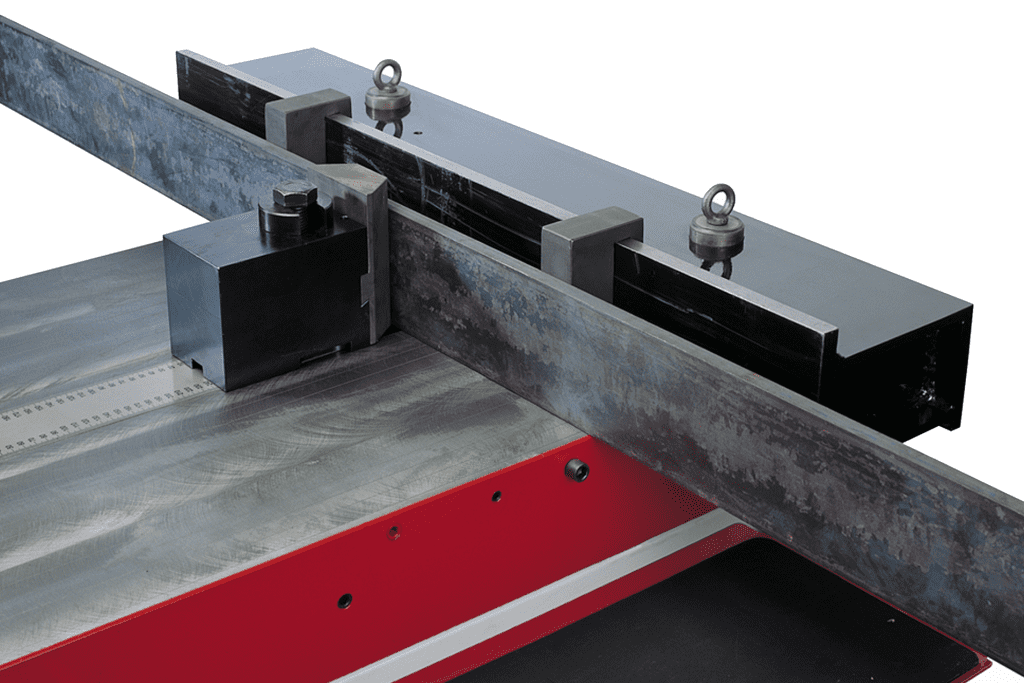

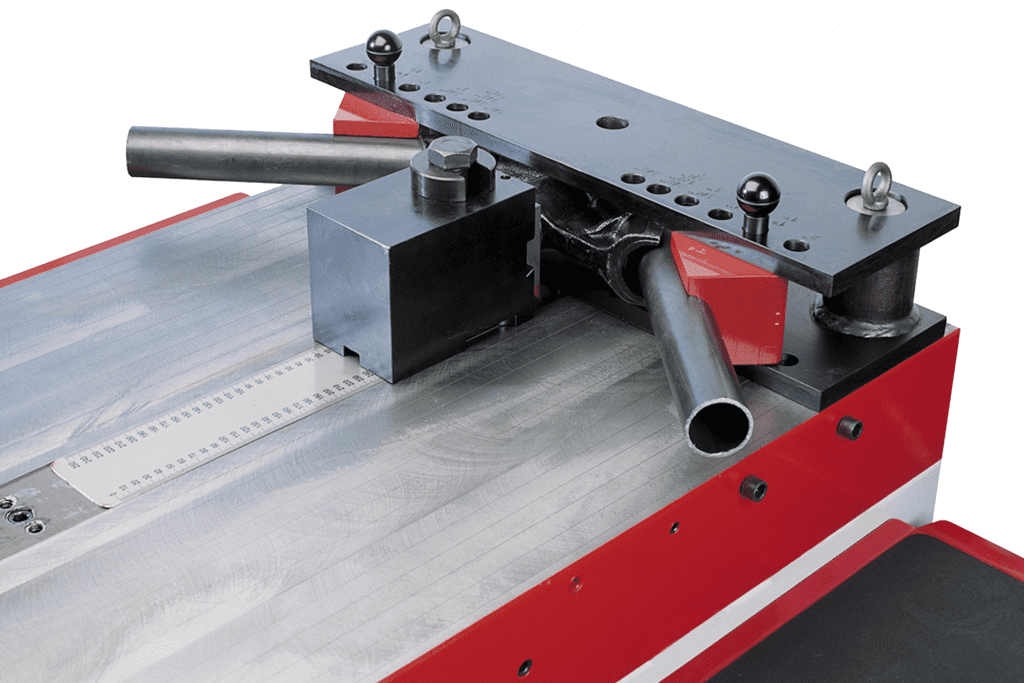

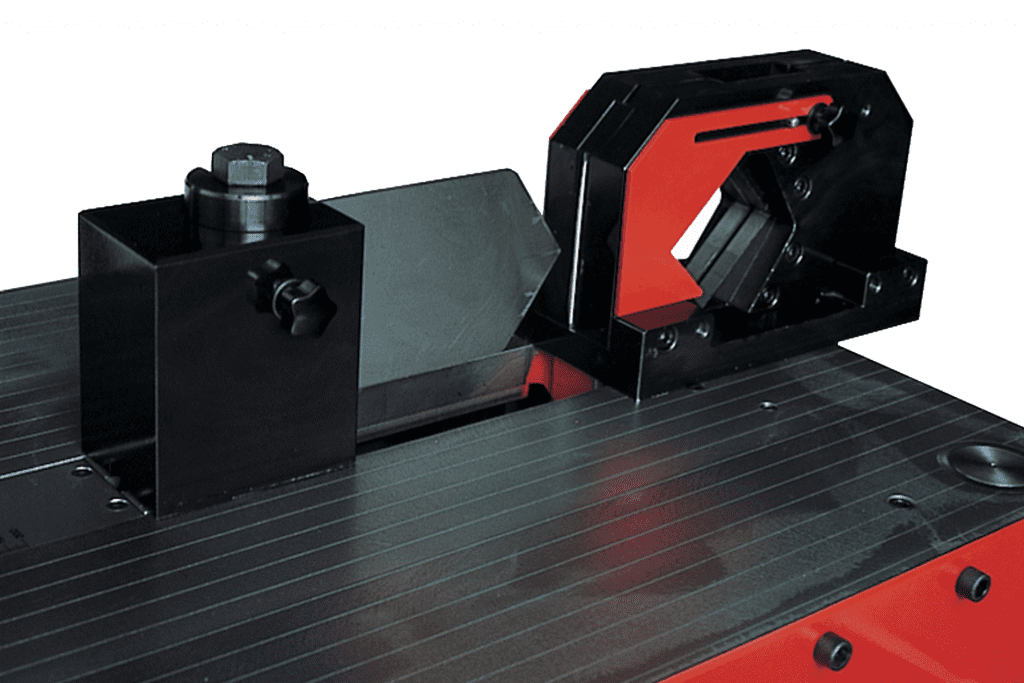

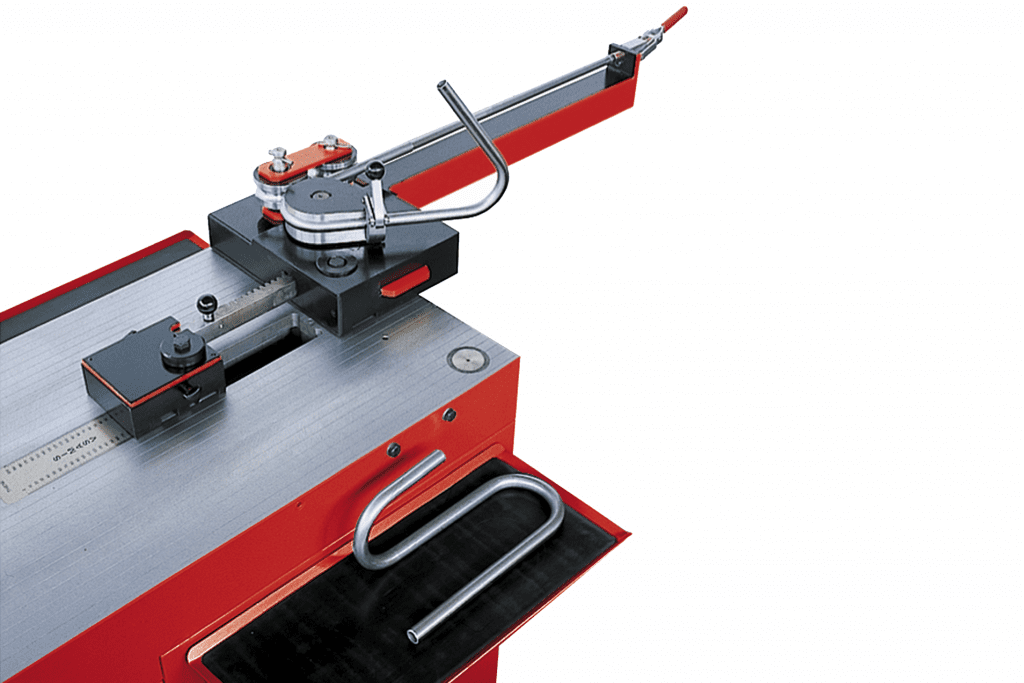

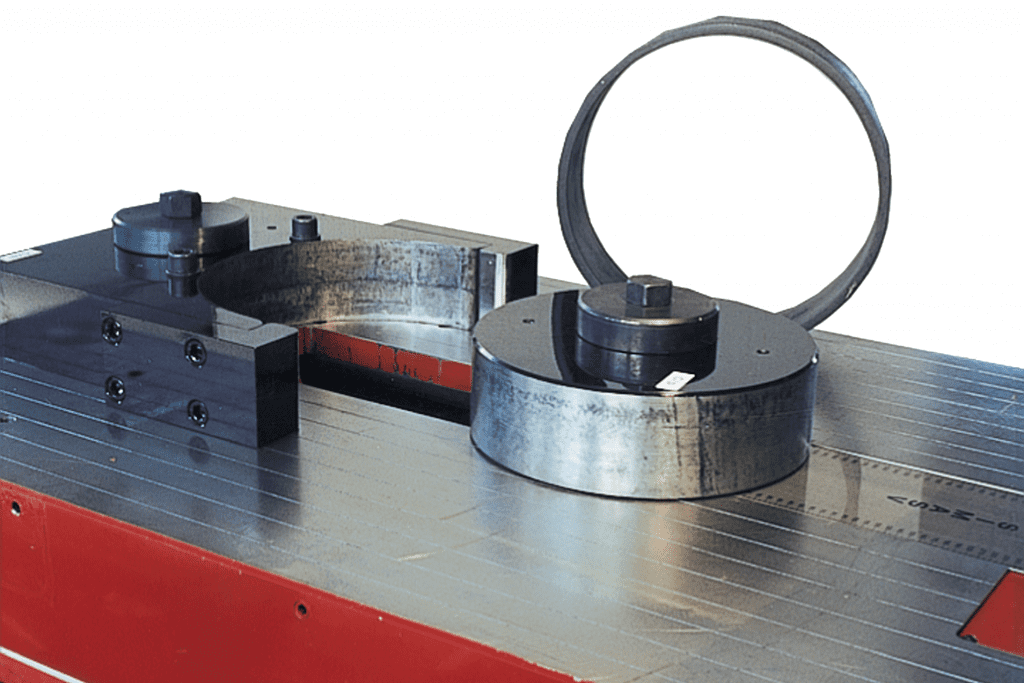

The Simasv hydraulic horizontal bending machines are ideal for precision bending, straightening, punching and shearing. All models are equipped with powerful hydraulic cylinders located below the table providing an unencumbered working area. This is of particular benefit compared with traditional bending machines and pressbrakes as enclosed bends can be completed without colliding with the machine frame. Available with capacities from 22 tonnes up to 100 tonnes and with a large range of tooling, these machines have proved capable of performing a whole variety of operations.

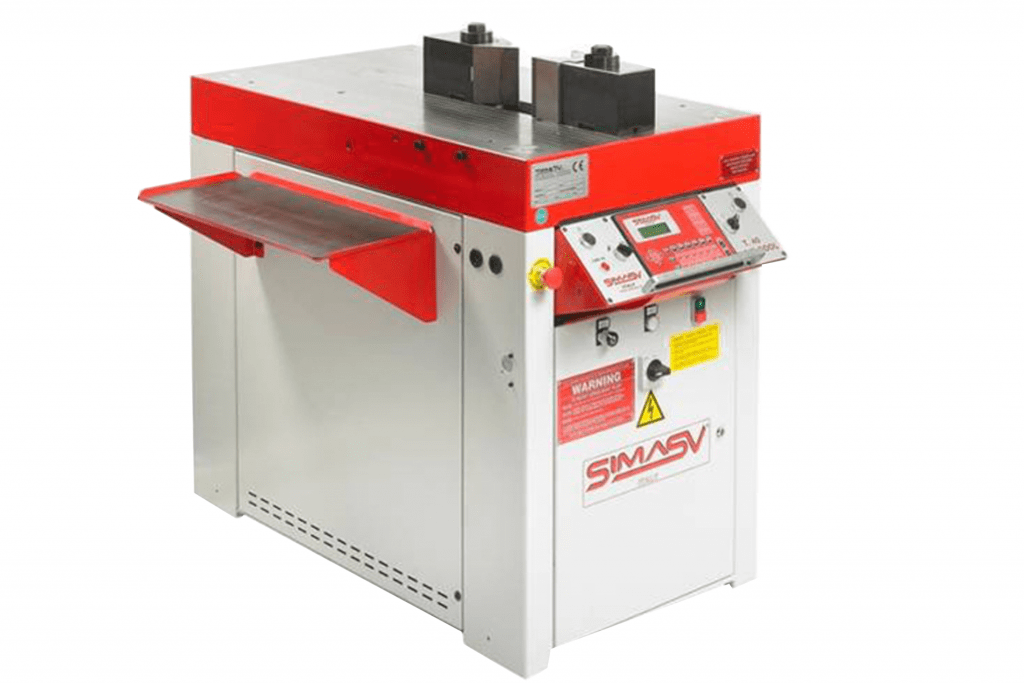

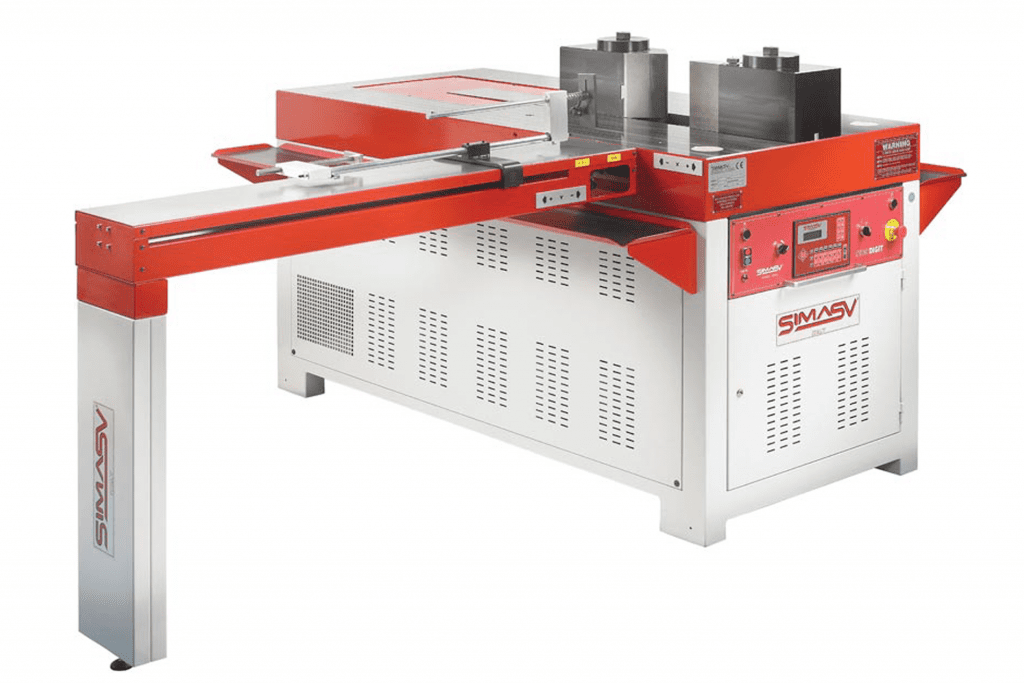

| MODEL | T22 | T40 | T70 | T100 | |
| stock code | 21116 | 21119 | 21131 | 21121 | |
| Table size | mm | 630 x 1100 | 625 x 1100 | 820 x 1720 | 880 x 1900 |
| Table height | mm | 955 | 955 | 980 | 1040 |
| Stroke | mm | 200 | 250 | 330 | 330 |
| Approach speed | mm/min | 1750 | 1750 | 1780 | 1780 |
| Return speed | mm/min | 1980 | 1980 | 2218 | 2051 |
| Min distance from ram to post | mm | 120 | 120 | 194 | 242 |
| Max distance from ram to post | mm | 320 | 370 | 524 | 572 |
| Motor | kW | 1.5 | 3 | 5.5 | 5.5 |
| Length | mm | 1150 | 1150 | 1860 | 2000 |
| Width | mm | 630 | 1200 | 1380 | 1440 |
| Height | mm | 1050 | 1110 | 1160 | 1275 |
| Weight | kg | 630 | 900 | 1910 | 2500 |
Features
- Very adaptable machine able to render many functions.
- Very quiet operation.
- Rapid change tool pins.
- Stroke regulation by means of extremely sensitive electric limit switches and graduated rule.
- Large range of special tooling.
- Ideal for jobbing or production applications.
Options
