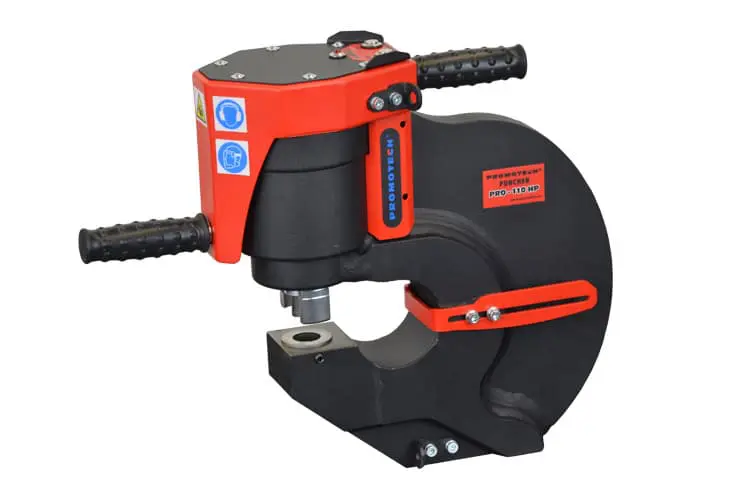

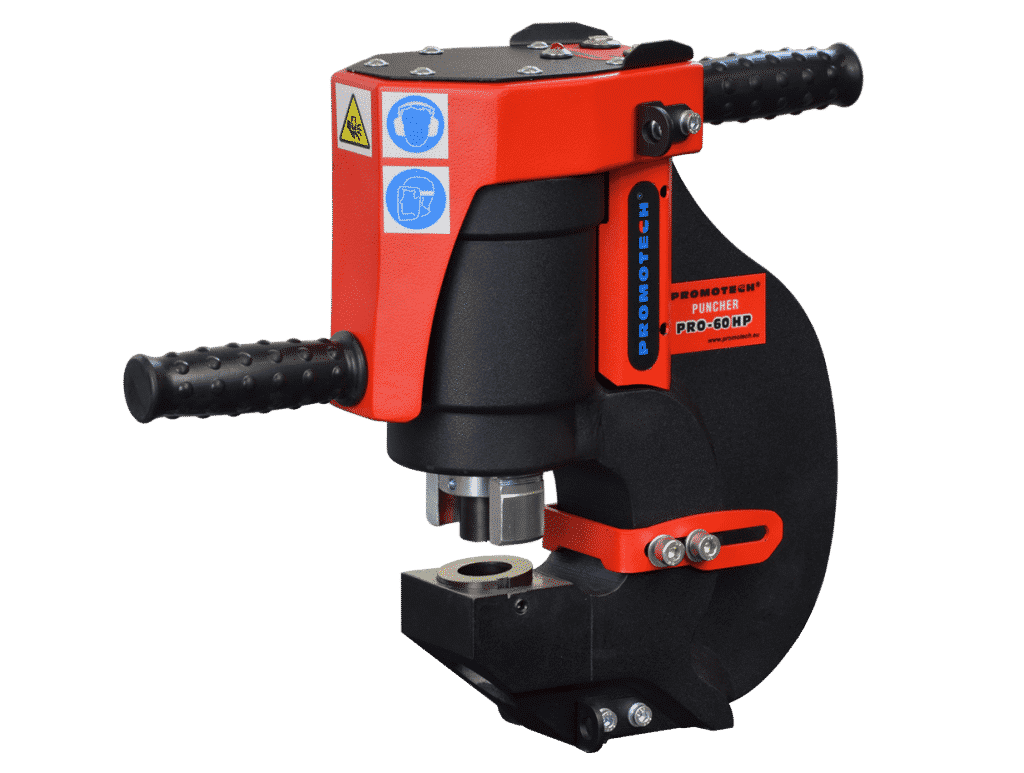

Promotech PRO HP Hydraulic Portable Punching Machine

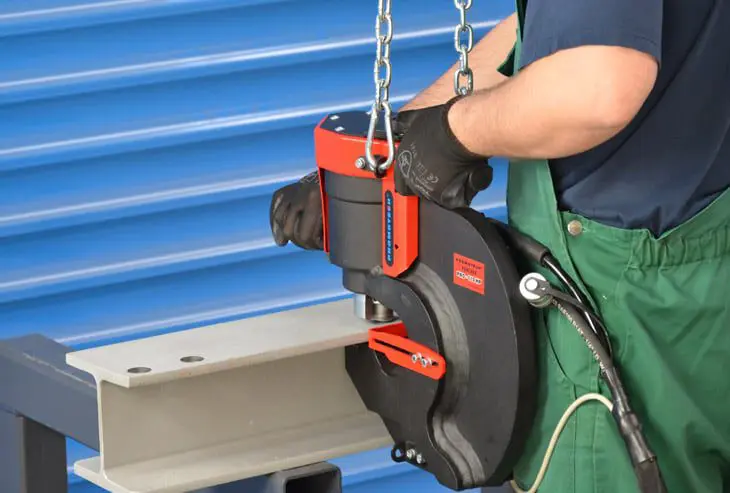

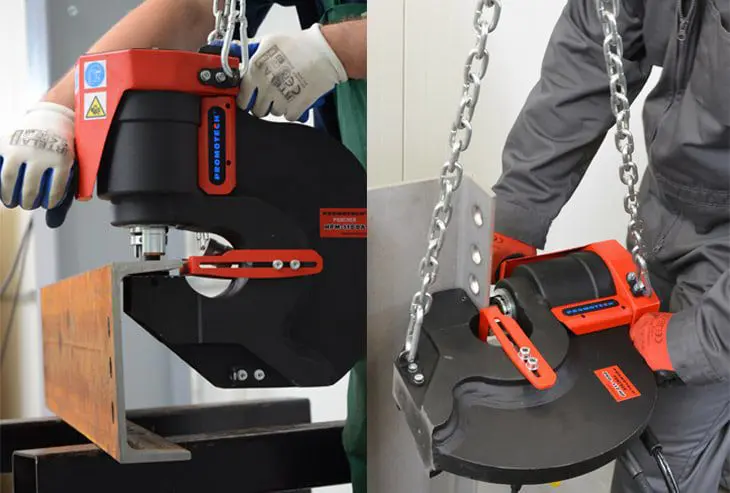

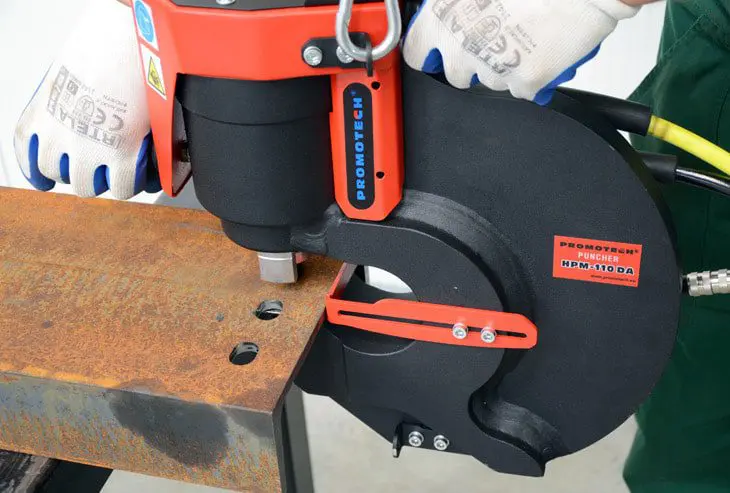

The Promotech PRO HP portable punching machines are ideal for the punching of I beams that are too large and heavy to be processed with fixed steelworkers and punching machines. There are also considerable time savings and consumable cost savings compared to traditional magnetic drilling machines as well as the advantage of being able to also punch square and slot holes too.
We also sell Punches and Dies for the Promotech range on our tooling website. Not sure which you need? Speak to our sales team.

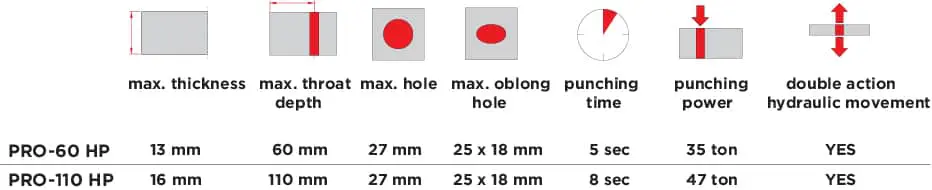

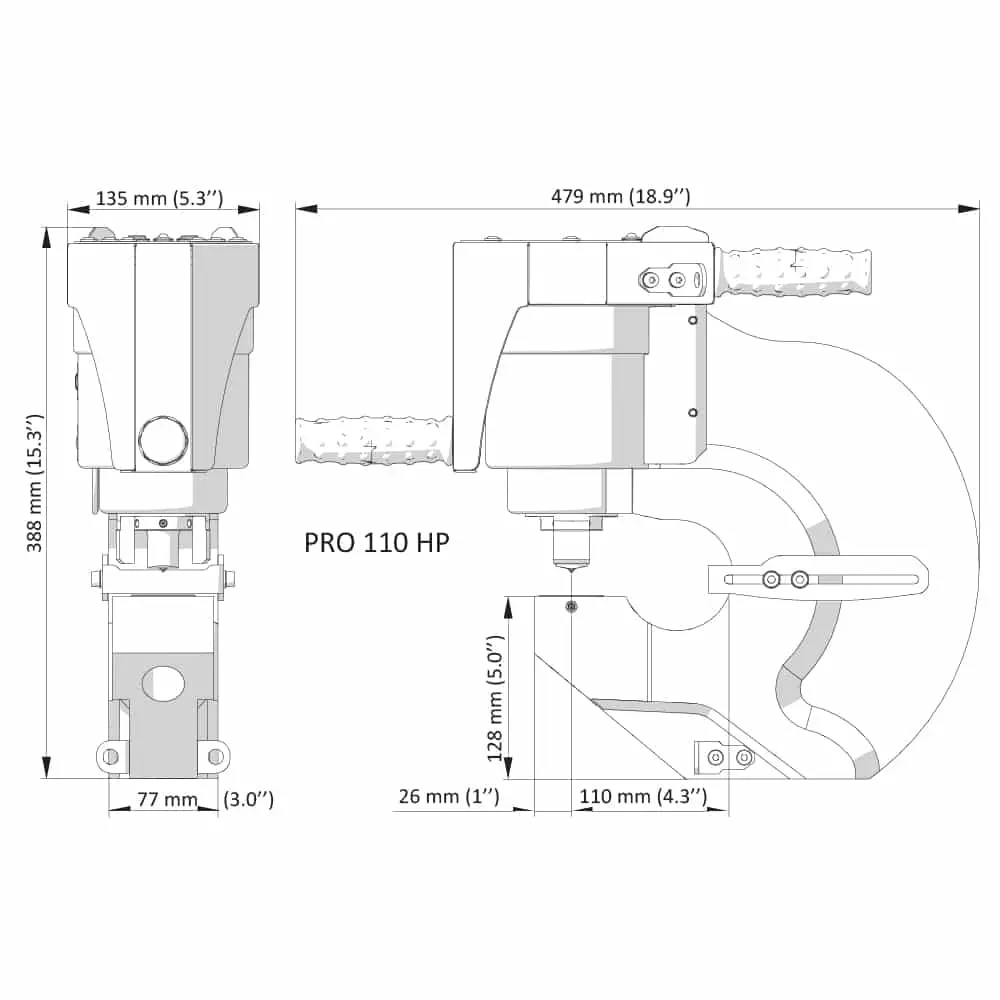

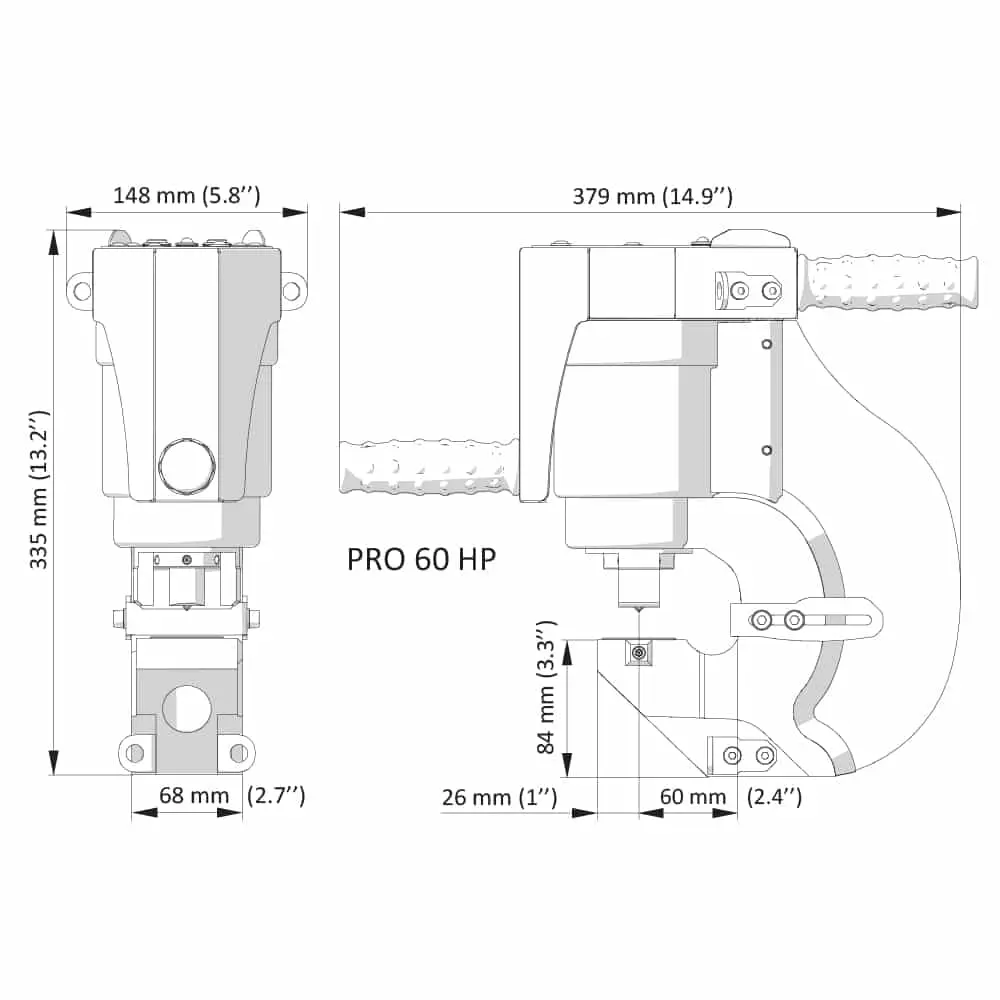

| MODEL | PRO-60 HP | PRO-110 HP | |
| STOCK CODE | 16550 | 16551 | |
| Rated Capacity | tonnes | 35 | 47 |
| Maximum Capacities | mm | 27 x 13 | 27 x 16 |
| Maximum Punching Thickness | mm | 13 | 16 |
| Punching Stroke | mm | 18 | 25 |
| Voltage | V | 230 | 230 |
| Throat Depth | mm | 60 | 110 |
| Weight | kg | 20 | 35 |
| Punching Time | sec | 5 | 8 |
| Return Time | sec | 2 | 2 |
| Power Supply | V / H | 230 /50 or 115 / 60 | 230 /50 or 115 / 60 |
| Power | W | 2000 | 2000 |
| Working Pressure | bar | 700 | 700 |
| Pump Output | L/min | 1.5 | 1.5 |
| Oil Capacity | L | 10 | 10 |
Features
- Fast clean punching of holes
- Almost noiseless operation
- Double action fully automated punching and return
- Intelligent control system with inching capability and automatic load detection
- Adjustable depth stop
- 5M hydraulic hose
- Wide range of punches and dies available in round, square and slot
Options

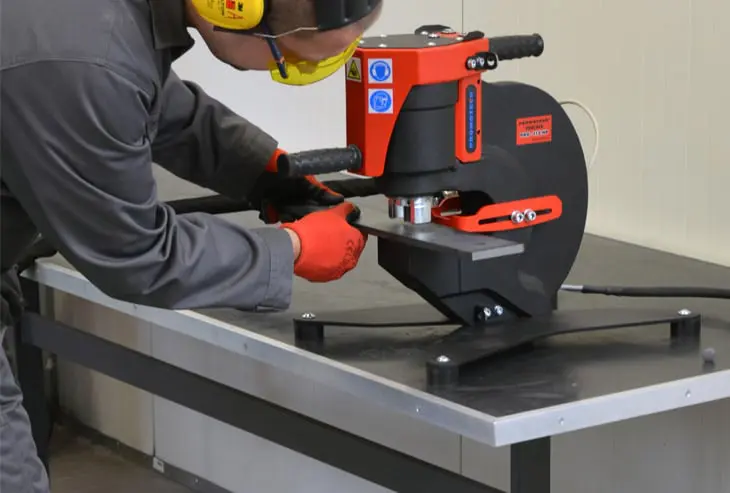

- Bench top stand
- Foot pedal control

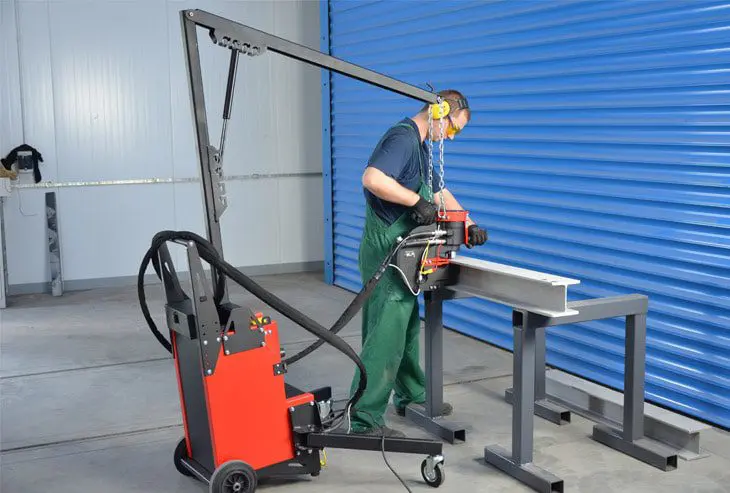

- Hoist set with adjustable height and balancer

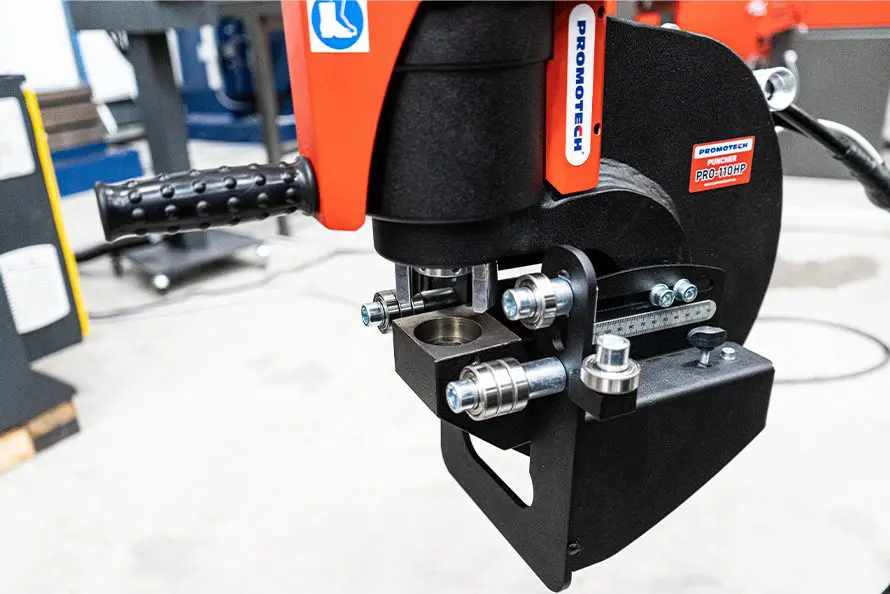

- Beam slide with adjustable depth
The Promotech portable punching machines are ideal for the punching of I beams that are too large and heavy to be processed with fixed steelworkers and punching machines. There are also considerable time savings and consumable cost savings compared to traditional magnetic drilling machines as well as the advantage of being able to punch square and slot holes.
