Pehu LMS15 Manual Measuring System
The PEHU LMS 10 or LMS 15 is the ideal manually operated length measuring system for your saw, drill, punch and shear. This can be placed either to the left or to the right of the machine tool. The counter can be changed in direction by means of a rotary knob. The length measuring system has a clear digital readable display and can easily be expanded later with a PEHU 112S – 3.3 Nm servo control , so that you can position automatically. The mechanical part of the PEHU LMS 10 length is supplied as standard with 2 metres of length, and can be extended with additional 2m lengths. The LMS 15 length measuring system consists of a four meter long angle line with a manual stop carriage as standard.
The PEHU LMS 10 or LMS 15 is easy to install on any new or existing roller conveyor.

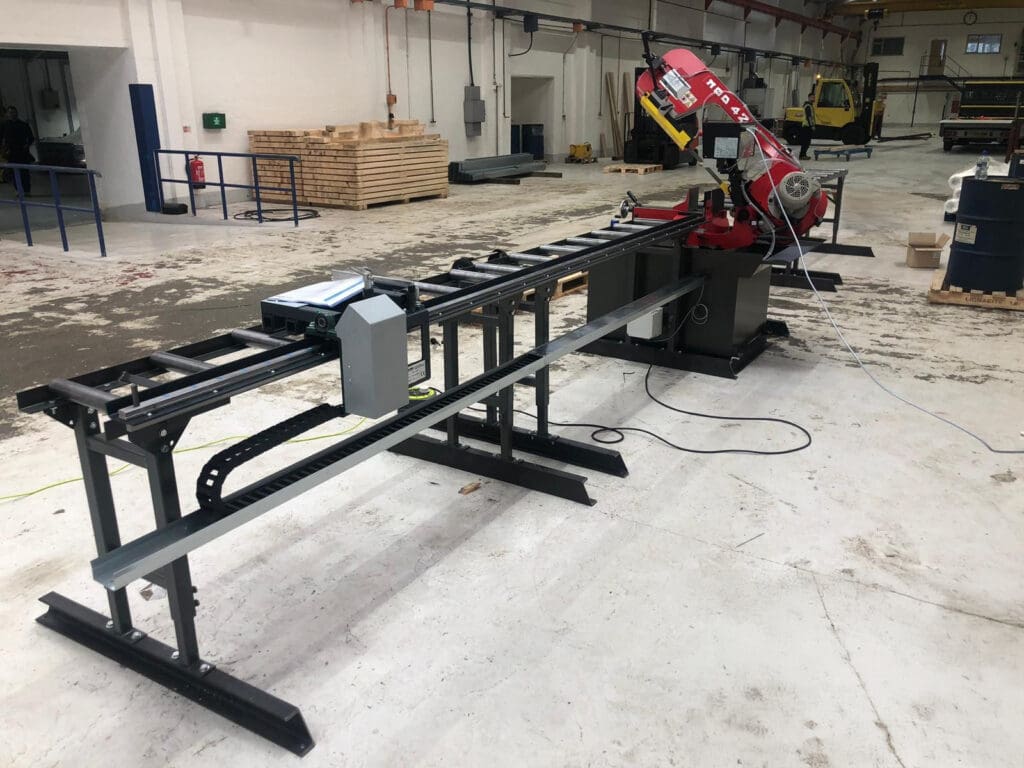

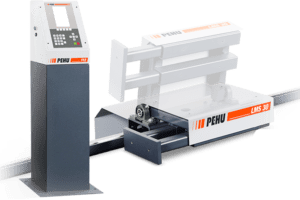

For larger capacities, and increased automation, view our range of PEHU Automatic Measuring Systems
| MODEL | Servo Control | Measuring Operation | Flip-Up Stop Operation | Set-Up | Width | Base Length | Additional Lengths | Positioning Accuracy | Positioning Speed |
| mm | mm | m | mm | m/min | |||||
| PEHU LMS10-02 | N/A – Manual | Manual + DRO | Manual | Attaches to existing roller track system | 250 | 2,000 (2m working length) | +2m per length | +/- 0.2 mm | Manual |
| PEHU LMS15-04 | N/A – Manual | Manual + DRO | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.2 mm | Manual |
| PEHU LMS15-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.2 mm | Manual |
For larger capacities, and increased automation, view our range of PEHU Automatic Measuring Systems
Features
- PEHU LMS15 – Manual positioning of stop unit
- Digital read out of stop position
- Increased cutting accuracy by eliminating measuring errors
- Increased productivity – one set up for multiple cuts at same length
- Rotary encoder ensures positioning accuracy
- +/- 0.2mm Repeatability
- Ideal for use with saws, drills and steelworkers
- Roller track available separately
Options
- Gravity or powered roller track to suit
The PEHU LMS 15 is the ideal manually operated length measuring system for your saw, drill, punch and shear. This can be placed either to the left or to the right of the machine tool. The counter can be changed in direction by means of a rotary knob. The length measuring system has a clear digital readable display and can easily be expanded later with a PEHU 112S – 3.3 Nm servo control , so that you can position automatically. The mechanical part of the PEHU LMS 15 length measuring system consists of a four meter long angle line with a manual stop carriage as standard.

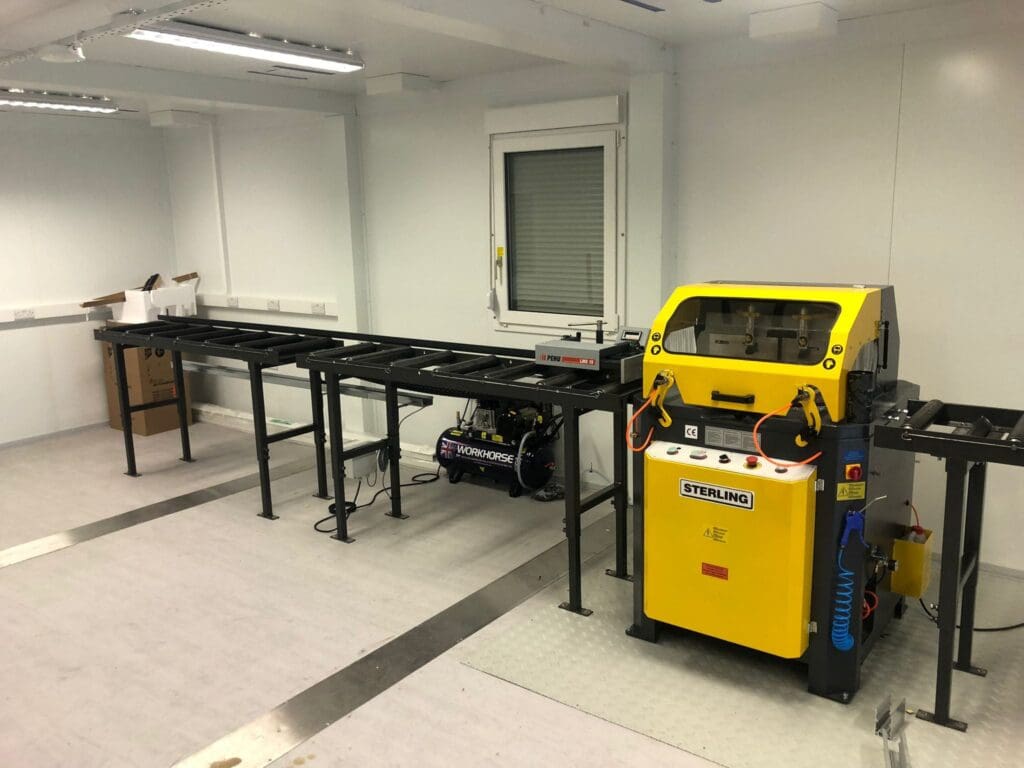

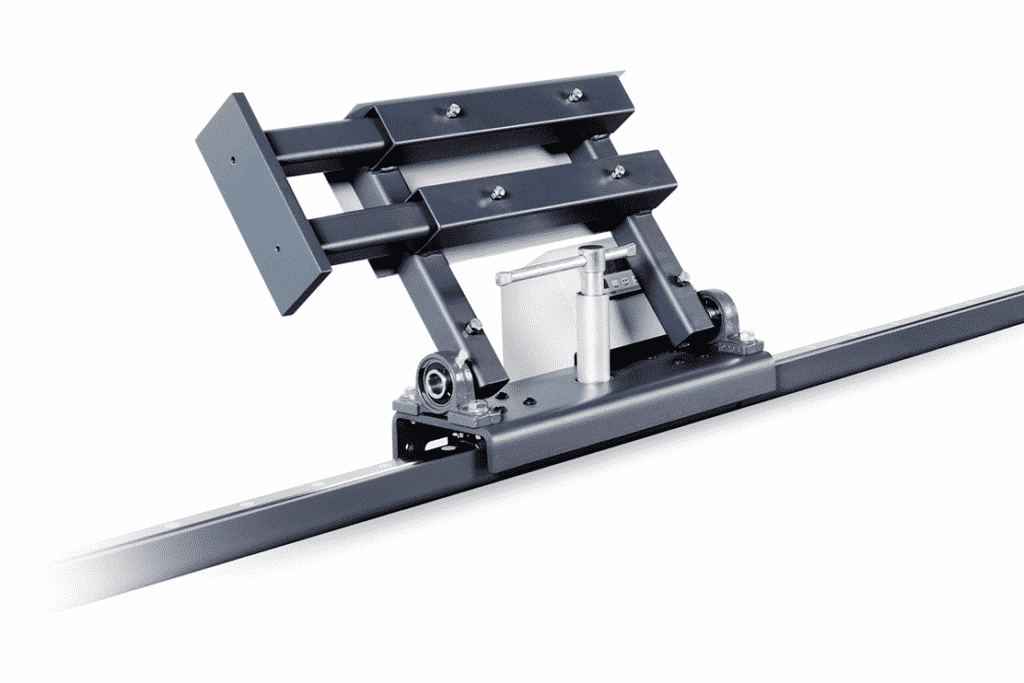

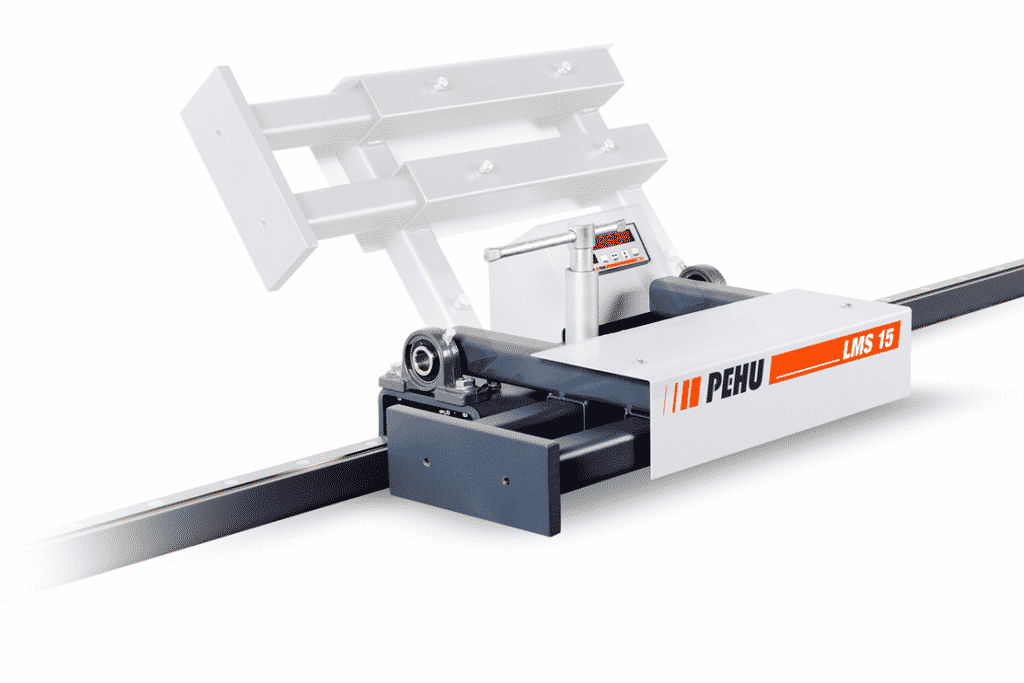

The LMS 15 length measuring system is supplied as standard on a uniquely developed angle line with a linear guide of 30 mm. Due to the sophisticated design, it can be extended to any desired processing length. The LMS 15 is a manual stop carriage equipped with two backlash-free linear carriages and a unique braking system. The stop trolley is fitted with a manually folding stop as standard.
The PEHU LMS 15 is easy to install on any new or existing roller conveyor.
For larger capacities, and increased automation, view our range of PEHU Automatic Measuring Systems
