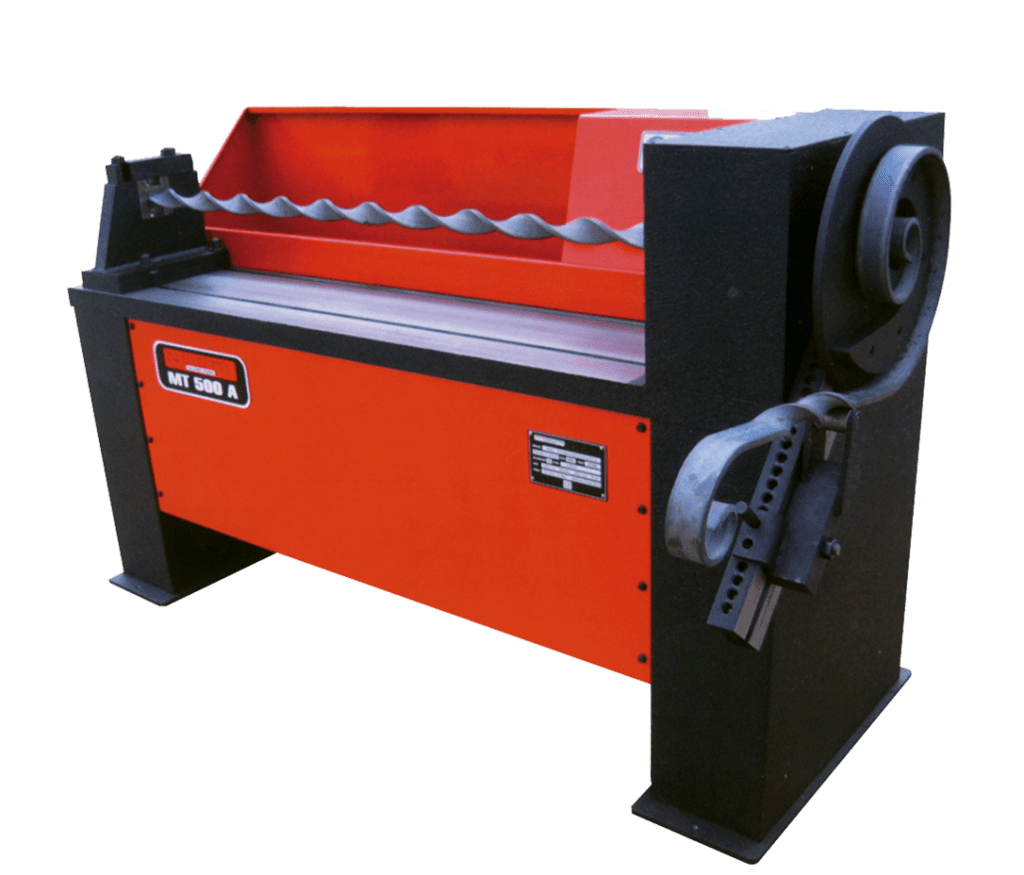

Nargesa MT A Scrollmaker with Programmer

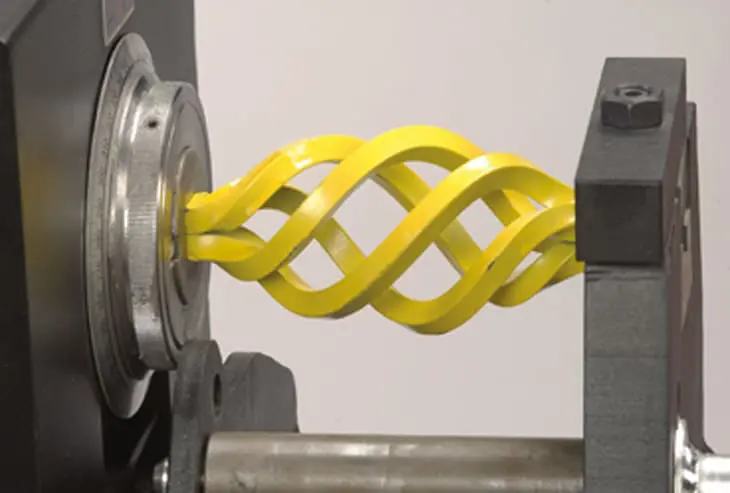

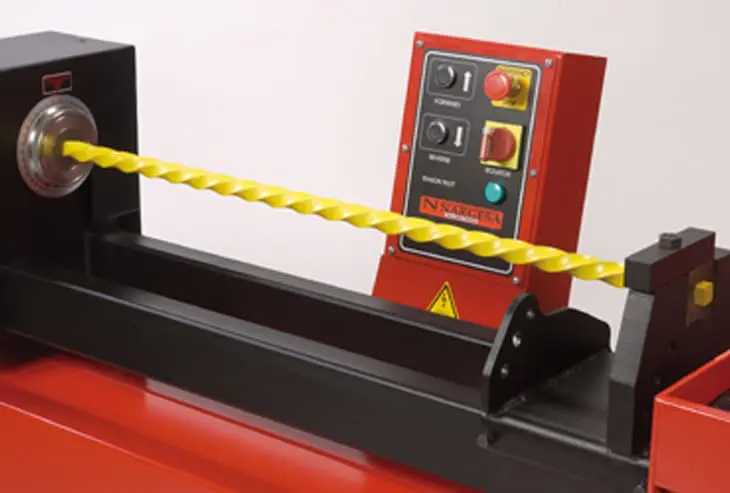

The Nargesa twisting and bending machines have been designed to coldbend and twist components for the decorative and ornamental ironwork industry. A comprehensive tooling package to enable bar twisting, bar bending and rope braiding is standard with each machine. Optional attachments for tube bending and bow top fencing are available. The quick tool change system ensures minimum down time providing maximum efficiency. The programmable models ensure job repeat-ability for consistent bending and twisting requirements.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | MT150A | MT150R | MT500A |
| Twisting Bar – Rectangle: | 35 x 8mm | 35 x 8mm | 50 x 10mm |
| Twisting Bar – Square: | 20mm | 20mm | 40mm |
| Scrolls – Rectangle | 40 x 10mm to 120 OD / 40 x 10mm to 220 OD | 40 x 10mm to 120 OD / 40 x 10mm to 220 OD | 40 x 10mm to 120 OD / 40 x 10mm to 220 OD / 50 x 10mm to 450 OD |
| Scrolls – Square: | 16mm 220 OD | 16mm to 220 OD | 16mm to 220 OD / 25mm to 450 OD |
| Circles – Square: | 16mm | 16mm | 20mm |
| Circles – Round: | 16mm | 16mm | 20mm |
| Bar Bending – Rectangle: | 40 x 10mm | 40 x 10mm | 50 x 10mm |
| Bar Bending – Square: | 16mm | 16mm | 20mm |
| Bar Bending – Round: | 16mm | 16mm | 20mm |
| Rope Braiding – Square: | 4x 10mm | 4x 10mm | 4x 20mm |
| Rope Braiding – Round: | 4x 10mm | 4x 10mm | 4x 20mm |
| Operation: | Automatic | Manual | Automatic |
| Motor: Kw | 0.37 Kw | 0.37 Kw | 4.0 Kw |
| Length: | 1740mm | 1740mm | 2220mm |
| Width: | 650mm | 650mm | 980mm |
| Height: | 1055mm | 1055mm | 1280mm |
| Weight: | 235 Kg | 235 Kg | 1300 Kg |
Features

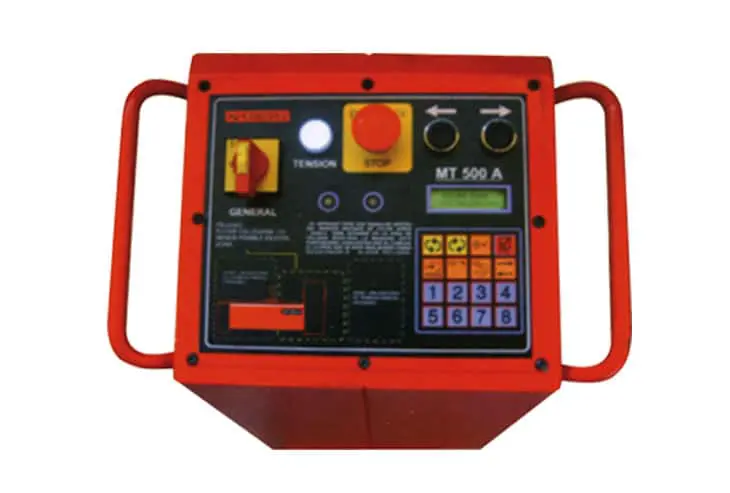

* Programmable control for job repeat-ability
* Heavy duty construction.
* Rapid cold-bending of round, square and flat bar.
* Quick change tooling.
