Mueller Opladen 3D Robotic Section Profiling Machines

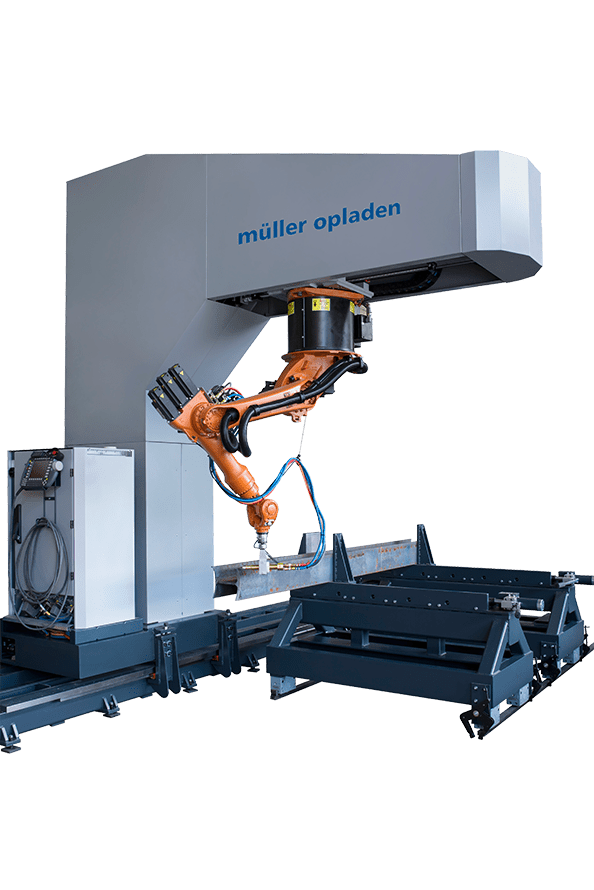

Müller Opladen Gmbh have been manufacturing tube and pipe profiling machines since the 1950s. The MO ROBO is their 3D Robotic plasma cutting machine for coping and profiling structural steel and is capable of processing a huge range of sizes.
The machine integrates a 6 or 8 axis Kuka robot for high accuracy cutting of H-Beam, I-Beam, T-Section, U-Channel and L-Angles. The standard machine is equipped with a 12 meter infeed and length measuring conveyor, the robotic cell and a 12 meter outfeed conveyor.
This machine cuts using plasma with the option of both Kjellberg and Hypertherm plasma systems.

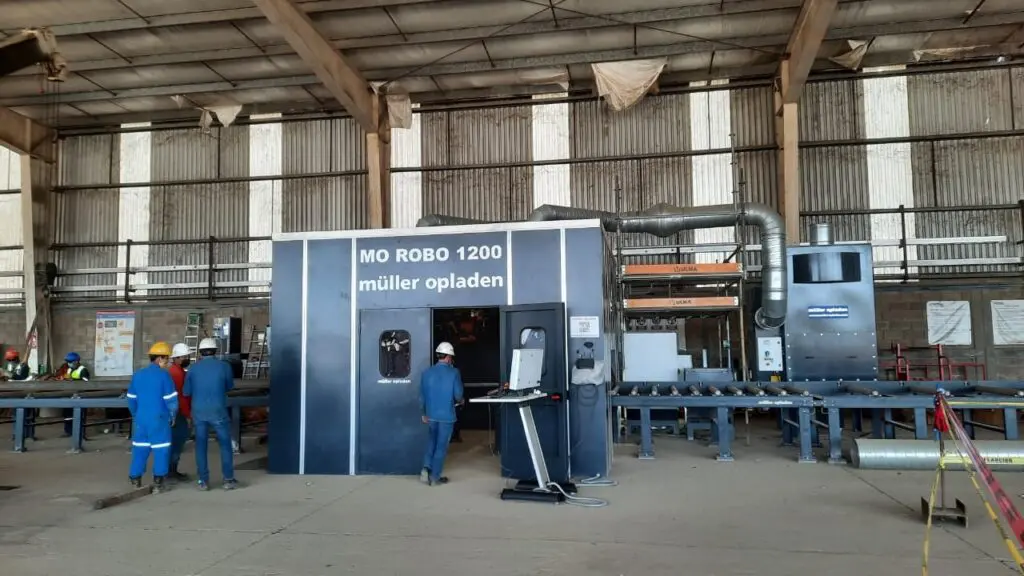

MO ROBO 1200

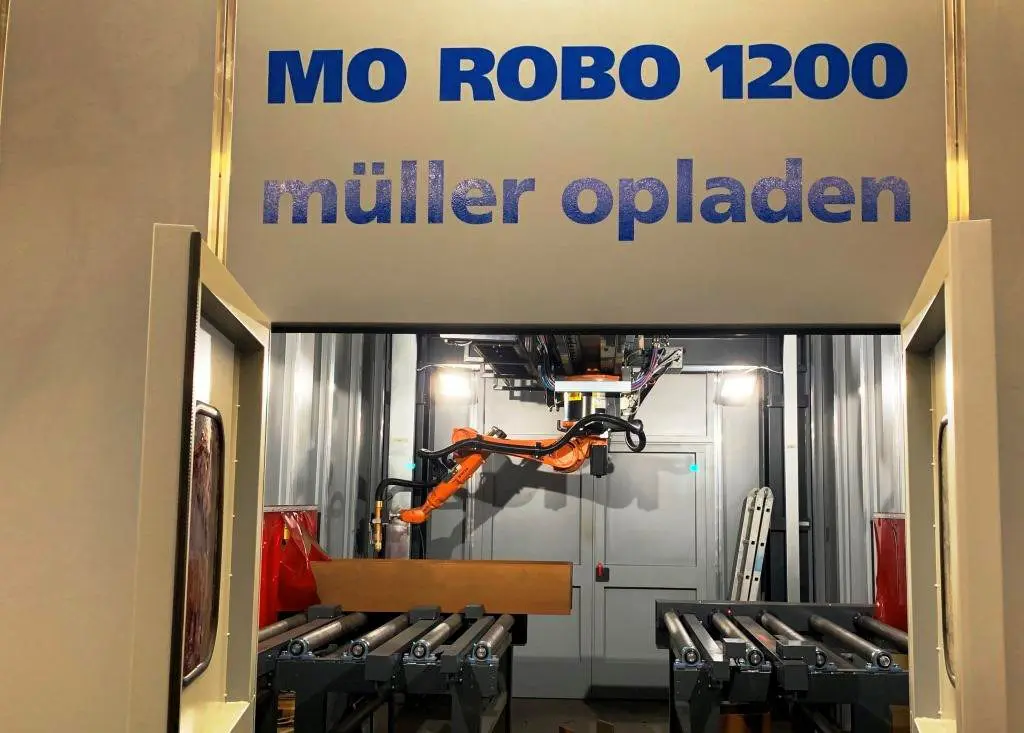

MO ROBO 1200
| MODEL | MO 600 ROBO | MO 1200 ROBO | |
| H/I Beam Size Range | mm | 100 x 50 – 610 x 305 | 100 x 50 – 1220 x 430 |
| T Beam Size Range | mm | N/A | 100 x 50 – 1100 x 400 |
| C/U Channel Size Range | mm | 100 x 50 – 610 x 305 | 100 x 50 – 1220 x 430 |
| L Angle Size Range | mm | 75 x 75 – 610 x 305 | 75 x 75 – 1220 x 430 |
| Square or Rectangular Section Size | mm | N/A | 100 x 100 – 610 x 610 |
| Maximum Workpiece Weight | kg | 8,000 | 12,000 |
| Wall Thickness Range (Plasma) | mm | 1 -80 | 1 – 80 |
| Torch Angle Range | Deg | ± 70 / 45 | ± 70 / 45 |
| Number of CNC Axis | 6 | 6 | |
| Length | mm | TBC | TBC |
| Width | mm | TBC | TBC |
| Height | mm | TBC | TBC |
| Weight | kg | 12,000 | 16,000 |
Features
- 3D robotic section plasma cutting
- 6 axis Kuka robot cell
- Full enclosure
- H, I, T, U, L section processing
- Infeed and length measuring conveyor
- Outfeed conveyor
- Kjellberg or Hypertherm plasma system
Options
Müller Opladen Gmbh have been manufacturing tube and pipe profiling machines since the 1950s. The MO ROBO is their 3D Robotic plasma cutting machine for coping and profiling structural steel and is capable of processing a huge range of sizes.
The machine integrates a 6 or 8 axis Kuka robot for high accuracy cutting of H-Beam, I-Beam, T-Section, U-Channel and L-Angles. The standard machine is equipped with a 12 meter infeed and length measuring conveyor, the robotic cell and a 12 meter outfeed conveyor.
This machine cuts using plasma with the option of both Kjellberg and Hypertherm plasma systems.
