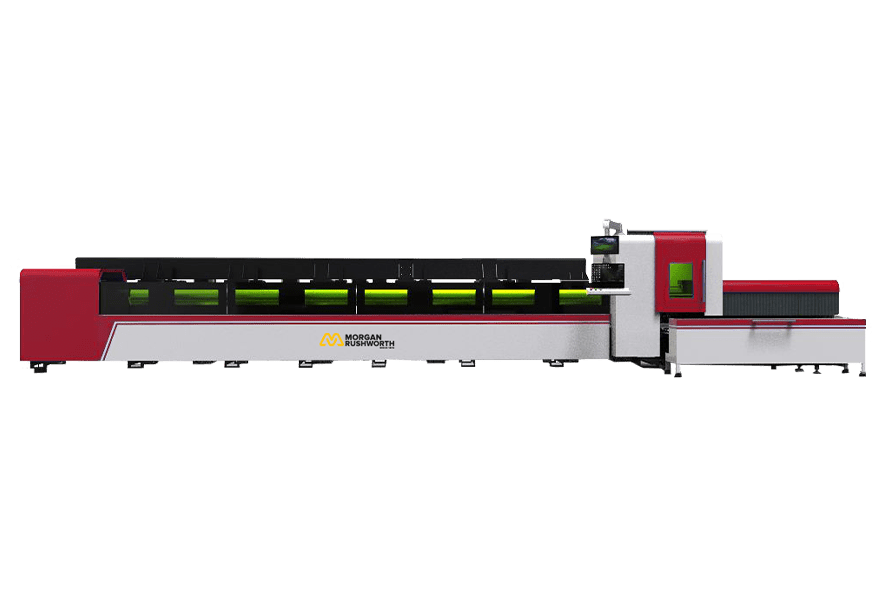

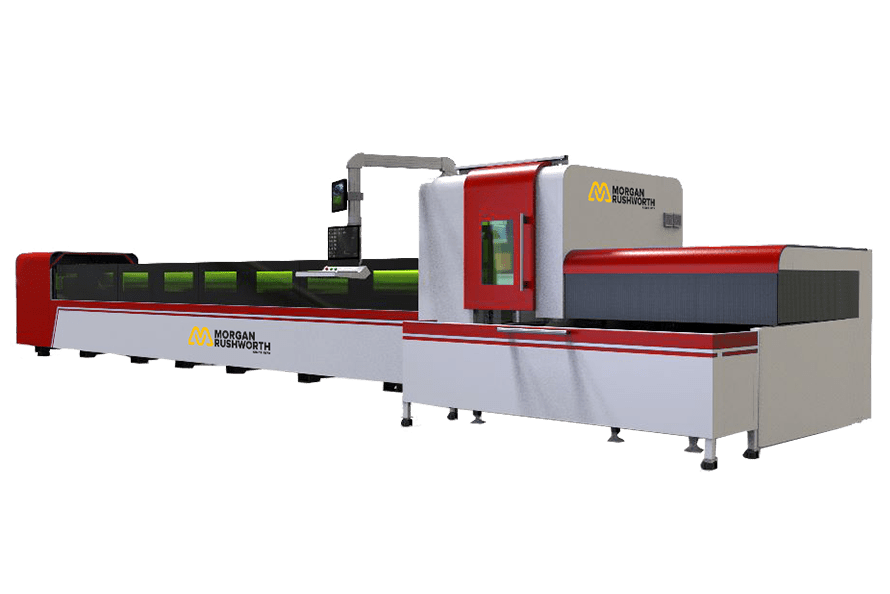

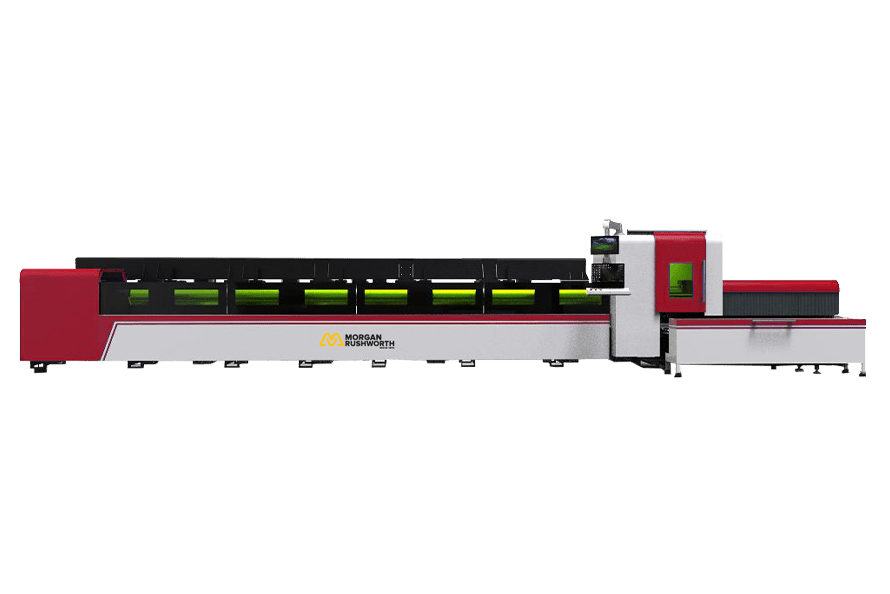

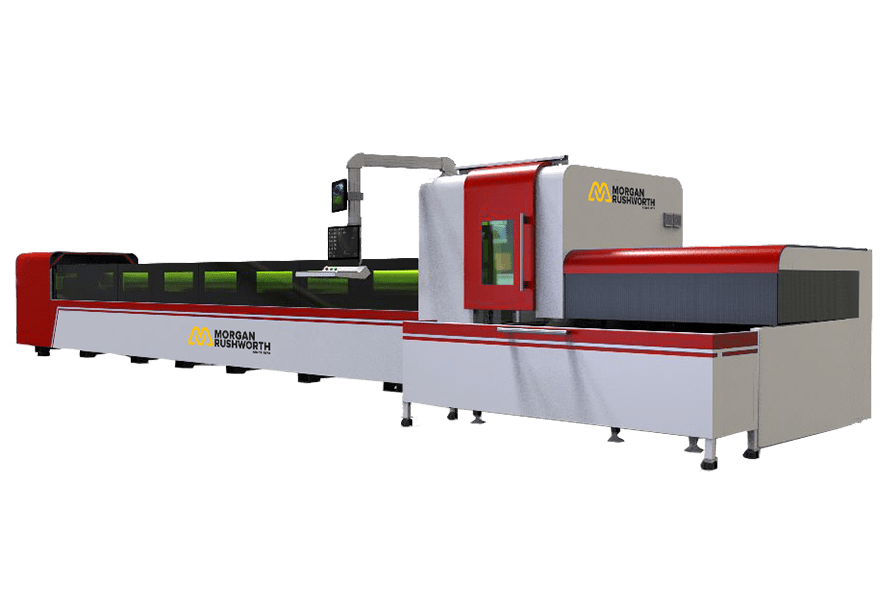

Morgan Rushworth XT Tube Fibre Laser
Introducing a new way to process Laser Cutting on tubes with the Morgan Rushworth XT Tube Fibre Laser. We re-imagined the whole conventional tube cutting process and developed the XT, providing a complete solution for complex industrial needs.
This dedicated Laser Tube Cutting System is to provide extreme precision, productivity, and quality. With a dedicated Laser Tube Cutting system, this machine is able to achieve superior results for the tube processing industry.
| XT6200 | XT6300 | XT8350 | |||
| Stock Code | M2501 | M2510 | M2520 | ||
| Max. Pipe Cutting Length | mm | 6100 | 6100 | 8100 | |
| Cutting Diameter | Round | Ø | Ø20 – Ø200 | Ø20 – Ø300 | Ø20 – Ø300 |
| Rectangle / Square | mm | 150 x 150 | 200 x 200 | 250 x 250 | |
| X-Axis Travel | mm | 450 | 450 | 450 | |
| Y-Axis Travel | mm | 6500 | 6500 | 8200 | |
| Z-Axis Travel | mm | 180 | 180 | 200 | |
| Max. Job Weight | kg | 160 | 2250 | 200 | |
| Master Chuck (B1-Axis) | mm | Dia. Size 200 | Dia. Size 300 | Dia. Size 300 | |
| Operation Manual / Auto | |||||
| Slave Chuck (B2-Axis) | Operation Manual / Auto | ||||
| X, Y Positioning Accuracy | mm/m | ±0.05 | |||
| X, Y Positioning Repeatability | mm/m | ±0.03 | |||
| Acceleration | m/s2 | 10 | |||
| Laser Power | kW | 1, 2, 3, 4 | |||
| Controller | Tube Pro / Eltron | ||||
Features
- Raytools Laser Cutting Head
- Enhanced 3D cutting with 360° flexibility
- CNC controlled intelligent self-centring
- Floating tube support and horizontal tube clamping
- Compact system with excellent throughput
- Enclosed workstation for work safety
- Ergonomic and proficient system
- Global standard components for easy service and maintenance
- Dynamic fume extractor for environmentally friendly operation
- Manual Tube Loading
Options
- 3D Bevel Cutting Head
- Auto Loader
- Auto Loading Table / Chain
- Extraction / Filtration Unit
- Lantek Cutting / Nesting Software
- Welding seam visual detection
- Deslag Option
- Auto Nozzle Cleaning
- CCTV Cameras
- Unloading Conveyor (4, 6 or 8m)
Introducing a new way to process Laser Cutting on tubes with the Morgan Rushworth XT Tube Fibre Laser. We re-imagined the whole conventional tube cutting process and developed the XT, providing a complete solution for complex industrial needs.
This dedicated Laser Tube Cutting System is to provide extreme precision, productivity, and quality. With a dedicated Laser Tube Cutting system, this machine is able to achieve superior results for the tube processing industry.

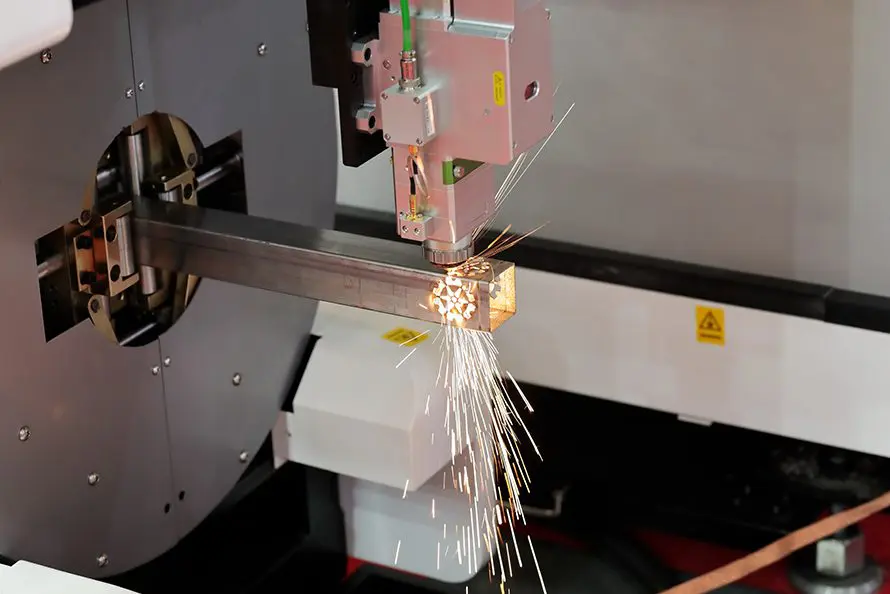

Designed for Precision:
The system is capable of delivering excellent edge quality, efficient cutting and cost effective processing.
Advanced Software:
The software provides flexibility for users to add, change or delete programs on the go.
Robust Chuck With Integrated Rotary Axis:
The chuck system is perfectly calibrated to attain high machining accuracy by avoiding any torsional stress in the tube.
More Shapes and Materials:
Process all manner of tubular profiles including Round, Square, Rectangular, Ellipse, Oval, D type & Triangle, U channel, L channel, C Channel, Angle steel, T angle, H angle, Flat bar

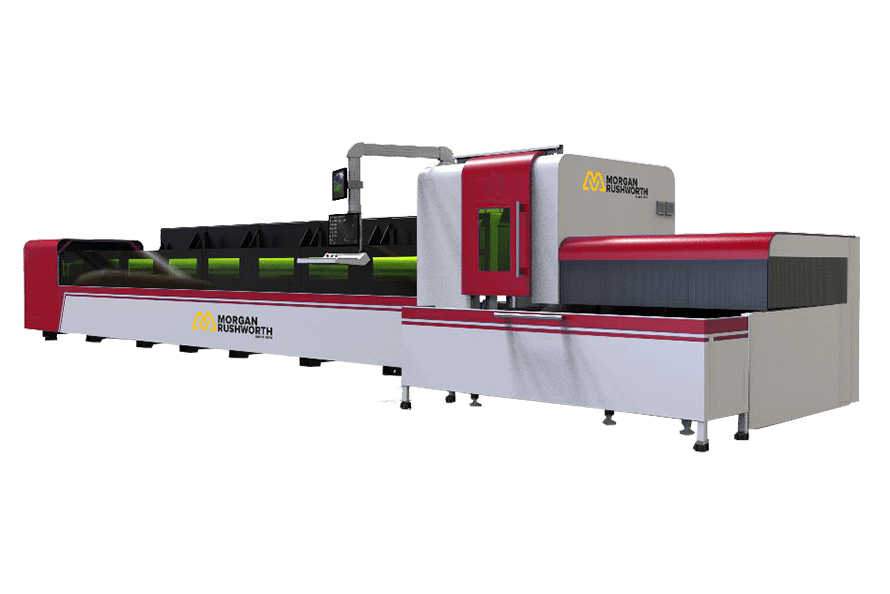

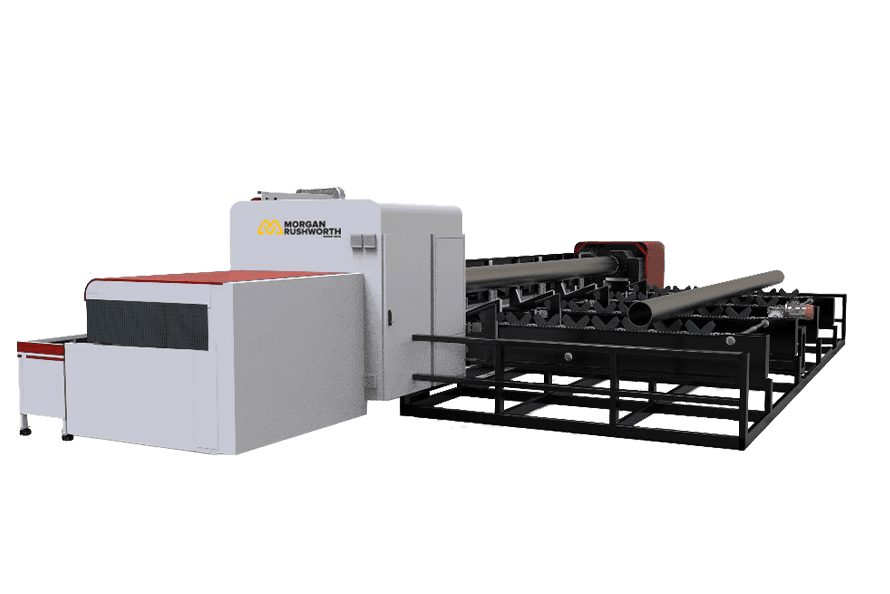

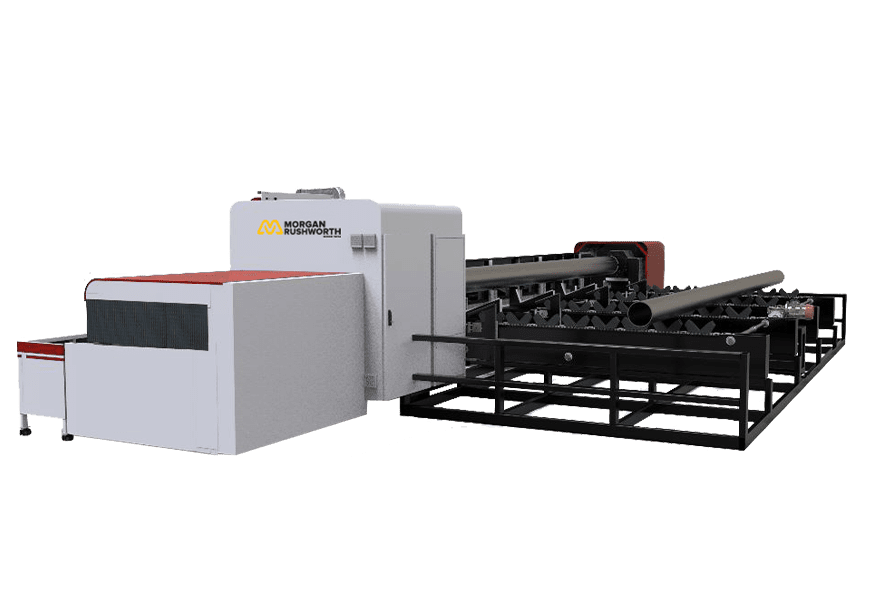

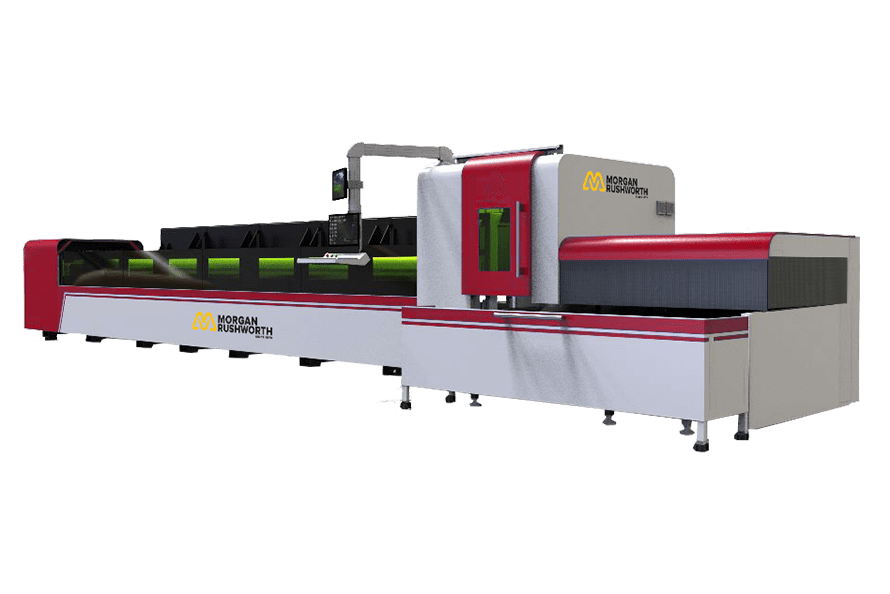

Optional loading systems for increased Productivity:
The Bundle or Table loading automated loaded and unloading systems can make rapid processing of any tubular material any easy and efficient process.
