Morgan Rushworth XPH Hybrid CNC Press Brake

Name: Morgan Rushworth XPH Hybrid CNC Press Brake
Brand: Morgan Rushworth

View Product Downloads / Full Specification Sheet

The Morgan Rushworth XPH range of hybrid press brakes are designed with an individual electro-hydraulic servo drive system for each of the left and right cylinders. With this system the hydraulics run on demand when the foot pedal is activated, rather than having a pump running continuously. This results in lower energy usage than a standard hydraulic machine as well as faster cycle times and extremely high accuracy.

All models are fitted with the ESA VIS-875W CNC control featuring a 21” touch screen and both numerical and 2D graphical program entry. These machines follow a rigorous design and manufacturing process to ensure minimum deflection of the machine frame under maximum working pressure. AKAS laser tooling guards are standard and offer a vastly improved operator experience without compromising safety. A comprehensive range of options are available to fully tailor the machine to requirements including 6-axis or 8-axis configurations.

View Product Downloads / Full Specification Sheet

Request A Quote

Gallery & Video

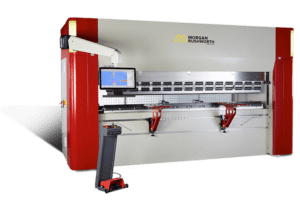

Morgan Rushworth XPH Hybrid CNC Press Brake image

Morgan Rushworth XPH Hybrid CNC Press Brake image 2

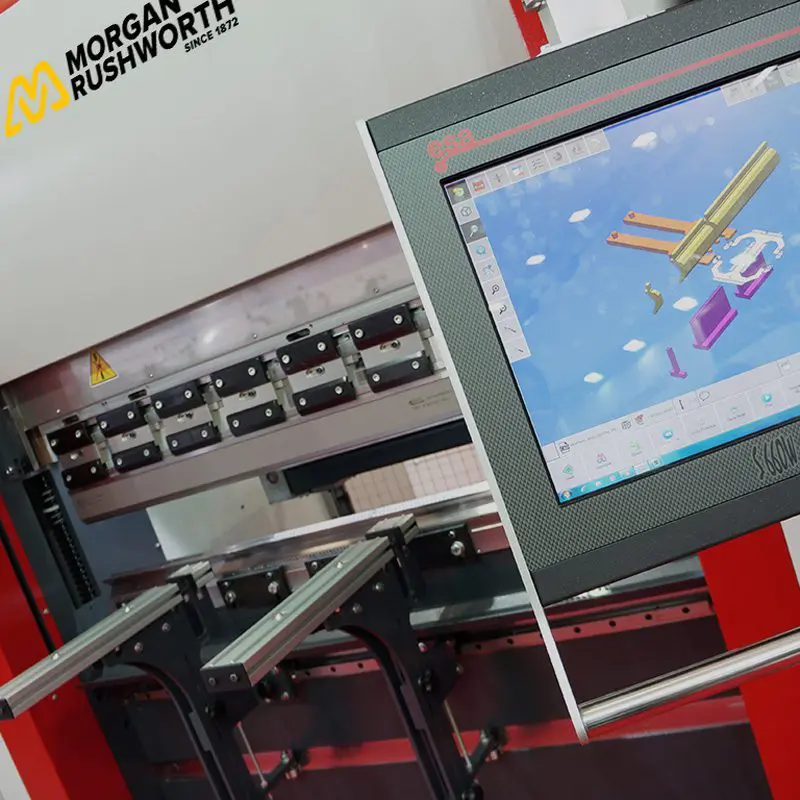

ESA VIS-875W Controller

Morgan Rushworth XPH Hybrid CNC Press Brake image 3

ESA 675 Controller

Morgan Rushworth XPH Hybrid CNC Press Brake image 4

Morgan Rushworth XPH Hybrid CNC Press Brake image 5

Morgan Rushworth XPH Hybrid CNC Press Brake image 6

Sheet Follower Arms (Optional)

Technical Specs

MODEL	STOCK CODE	BENDING POWER	BENDING LENGTH	DIST BETWEEN COLUMNS	Y APPROACH SPEED	Y WORKING SPEED	Y RETURN SPEED	TRAVEL IN X AXIS	*X AXIS SPEED*	TRAVEL IN R AXIS	R AXIS SPEED	NO OF BACK GAUGE FINGERS	NO OF SHEET SUPPORT ARMS	*OIL CAPACITY*	MOTOR POWER	STROKE	DAYLIGHT	THROAT DEPTH	TABLE HEIGHT	TABLE WIDTH	LENGTH	WIDTH	HEIGHT	WEIGHT

		Tonne	A mm	B mm	mm/sec	mm/sec	mm/sec	mm	mm/sec	mm	mm/sec			litres	kw	C mm	D mm	E mm	F mm	G mm	L mm	W mm	H mm	kg

XPH 3100/120	M5340	120	3100	2550	200	10	200	750	350	160	240	2	2	2 x 34.5	2 x 6.0	260	530	410	880	60	4,850	2,790	2,905	8,400
XPH 3100/160	M5341	160	3100	2550	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	260	530	410	880	60	4,850	2,800	2,905	9,700
XPH 3100/200	M5342	200	3100	2550	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	260	530	410	880	90	4,850	2,800	2,905	10,000
XPH 3100/240	M5343	240	3100	2550	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	260	530	410	880	90	4,850	2,810	2,905	11,000
XPH 3100/300	M5344	300	3100	2550	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	320	660	410	905	380	4,850	3,015	3,150	15,000
XPH 3700/160	M5345	160	3700	3250	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	260	530	410	880	60	5,450	2,800	2,905	10,700
XPH 3700/200	M5346	200	3700	3250	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	260	530	410	880	90	5,450	2,800	2,905	11,200
XPH 3700/240	M5347	240	3700	3250	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	260	530	410	880	90	5,450	2,810	2,905	13,500
XPH 3700/300	M5348	300	3700	3250	200	10	200	750	350	160	240	2	2	2 x 55	2 x 9.2	320	635	410	980	280	5,450	3,020	3,200	17,000
XPH 4100/160	M5349	160	4100	3550	200	10	200	750	350	160	240	4	4	2 x 55	2 x 9.2	260	530	410	880	90	5,850	2,800	2,905	12,000
XPH 4100/200	M5350	200	4100	3550	200	10	200	750	350	160	240	4	4	2 x 55	2 x 9.2	260	530	410	880	90	5,850	2,800	2,905	12,500
XPH 4100/240	M5351	240	4100	3550	200	10	200	750	350	160	240	4	4	2 x 55	2 x 9.2	260	530	410	880	90	5,850	2,810	2,905	14,000
XPH 4100/300	M5352	300	4100	3550	200	10	200	750	350	160	240	4	4	2 x 55	2 x 9.2	320	635	410	980	280	5,850	3,020	3,200	18,500

Morgan Rushworth Press Brake PBXS Diagram

Downloads

Features & Options

Features

Approximately 60% less energy use when idle
Approximately 45% less energy use during bending
Approximately 30% faster cycle times
ESA VIS-875W multi-axis CNC control with numerical and 2D graphical programming and 2D or 3D visualisation
Control mounted on height adjustable pendant arm
Fully synchronised CNC control of left and right upper beam cylinder position – Y1 + Y2 axis
CNC control of back gauge depth – X axis
CNC control of back gauge height – R axis
Manual side to side movement of back gauge fingers – Z axis
Euro style top tool holders with intermediates
Sectionalised goose neck top tool and multi vee bottom die
CNC bottom tool crowning system
AKAS laser tooling guards for enhanced ease of use

Options

Optional off line ESA Bend 3D Software with Control Viewer
Independent CNC control of side to side movement of back gauge fingers – Z1 + Z2 axis
Independent CNC tower back gauge system – X1 + R1 + Z1, X2 + R2 + Z2
Laser angle measurement system with live feedback to CNC control
Quick release top tool clamping system
Hydraulic top and bottom tool clamping system
Additional back gauge fingers
Additional front support arms
CNC sheet follower support arms
Parking area for sheet follower support arms – one per side
