Morgan Rushworth XLC Compact Fibre Laser Cutting Machines
The Morgan Rushworth XLC range of compact fibre lasers are equipped with a 1.5m x 1.5m cutting area with a manually operated transfer table, which simply sides in and out of the machine. Material can be easily loaded and unloaded outside of the machine enclosure, giving the option to load material by crane as well as manually.

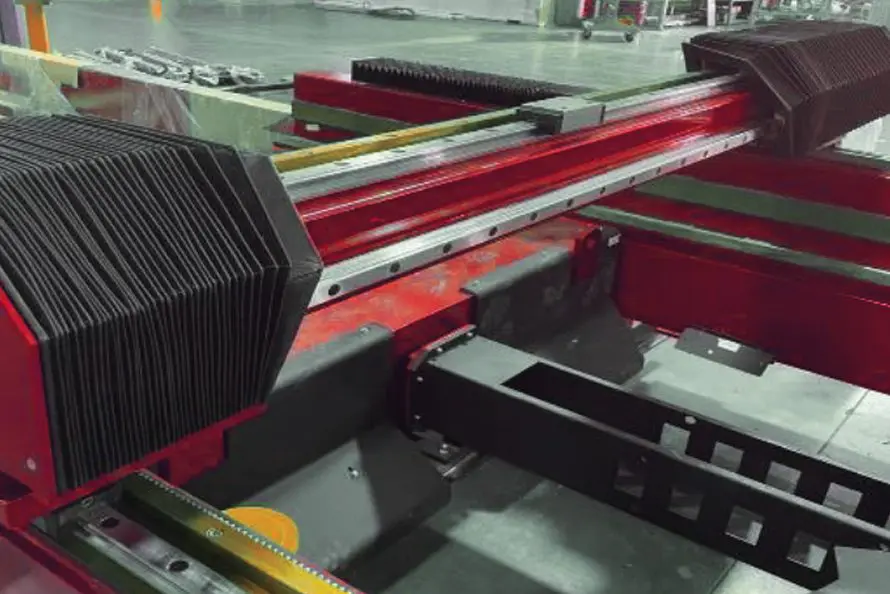

The range covers from 1.5kw up to 3kw with the Fuji motors and drives for the X & Y axis and a rigid gantry and frame structure, resulting in fast acceleration, fast positioning speeds and fast cutting times. The control is by Cypcut and includes software for drawing parts or importing DXF files. Class leading components ensure superior cut quality, high reliability and reduced down time
| BED SIZE | 1.5 metre x 1.5 metre | ||||
| Power Source | 1.5 kW IPG YLS | 2.0 kW IPG YLS | 3.0 kW IPG YLS | ||
| Maximum Cutting Capacity | Mild Steel | mm | 12 | 15 | 18 |
| Stainless Steel | mm | 4 | 8 | 10 | |
| Aluminium | mm | 3; | 6 | 8 | |
| Brass | mm | 3 | 5 | 6 | |
| Copper | mm | 2 | 3 | 5 | |
| X Axis Travel | mm | 1548 | |||
| Y Axis Travel | mm | 1548 | |||
| Z Axis Travel | mm | 150 | |||
| Rapid Tranverse (X and Y Axis) | m/min | 120 | |||
| Acceleration | 1.5G (15 m/s2) | ||||
| Maximum Sheet Size | mm | 1500 x 1500 | |||
| Maximum Table Capacity | kg | 220 | |||
| Positioning Accuracy | mm | ± 0.05 | |||
| Repeatability | mm | ± 0.02 | |||
| Transfer Table | Front-Loading Table | ||||
| Width | mm | 2,820 | |||
| Length | mm | 6,700 | |||
| Height | mm | 2,300 | |||
| Fume Extractor | m3/hour | 4,000 (Optional) | |||
Features
- Class leading IPG fibre laser source (1.5, 2 or 3kW)
- Raytools cutting head with auto focus and anti-collision functionality
- Fuji servo motors and drives

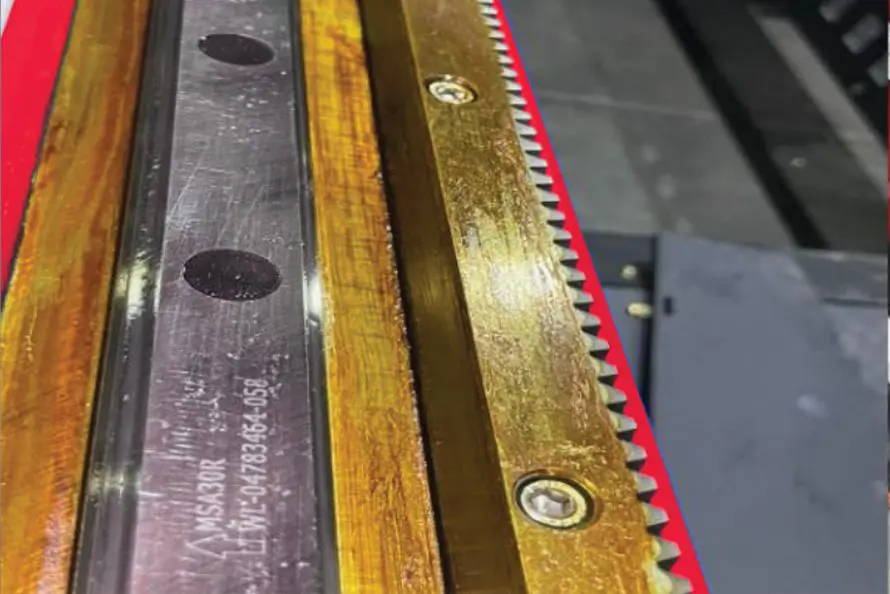

- Rack and pinion system with automatic lubrication
- Automatic gas selection system
- Cypcut controller
- Automatic sheet edge detection with skew allowance
- Manual table movement
- Door windows with laser protective material
Options

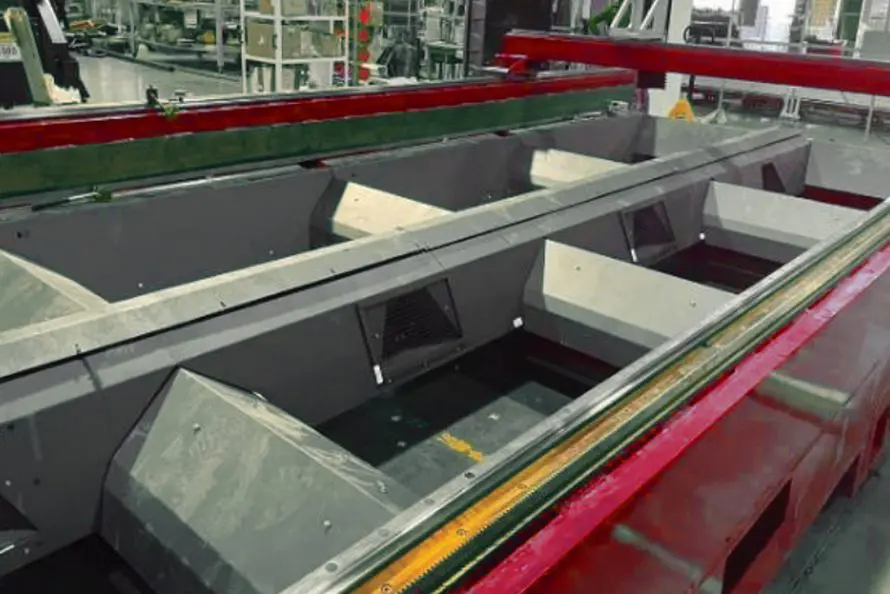

- Fume extractor with filters
