Morgan Rushworth SPM CNC Tube & Section Plasma Machine

The Morgan Rushworth SPM Tube Plasma profiling system is a highly innovative machine combining the low-cost benefits of mechanised air plasma cutting with CNC automation and nesting. With the ability to profile up to 300mm diameter round tube at 12 metres long, the SPM has the capability for most common tube working requirements. Combined with the durable and recognised Hypertherm Powermax system, the SPM automates many manual processes into one seamless CNC designed and controlled cutting operation.

Morgan Rushworth SPM CNC Tube & Section Plasma Machine imageMorgan Rushworth SPM CNC Tube & Section Plasma Machine image
Video thumbnail showing the Morgan Rushworth SPM CNC Tube & Section Plasma Machine
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 3

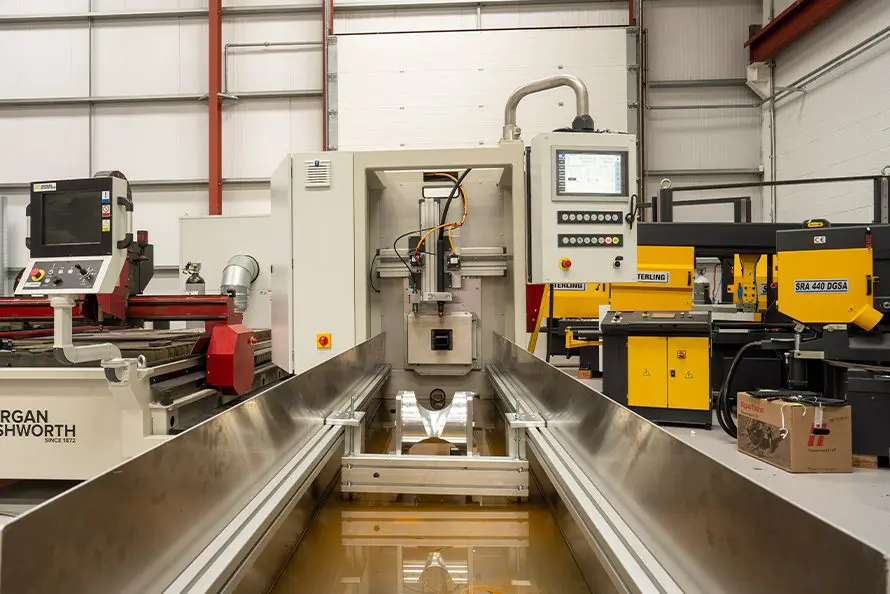

Front View
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 3
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 4

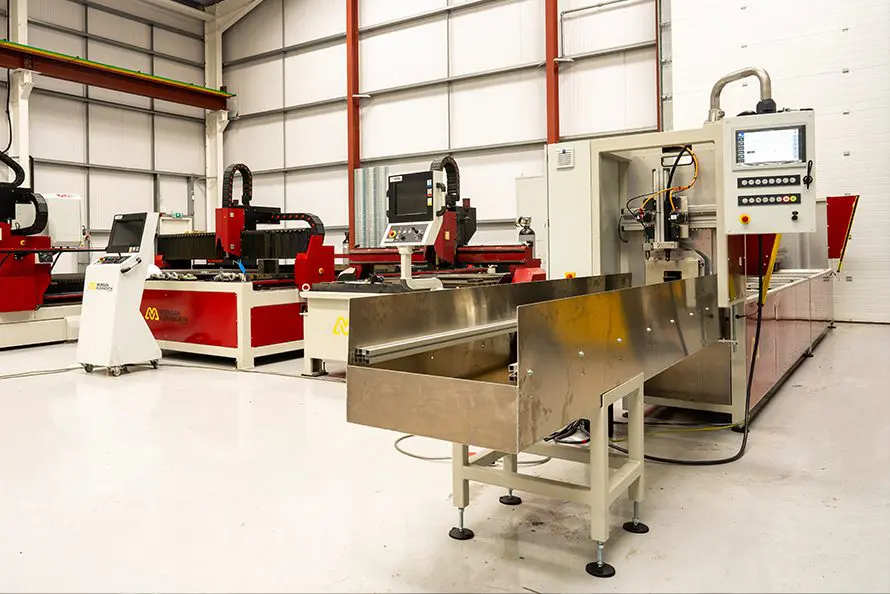

Morgan Rushworth SPM next to the Morgan Rushworth ACP and ECP Flat Bed Plasmas
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 4
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 5Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 5
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 6

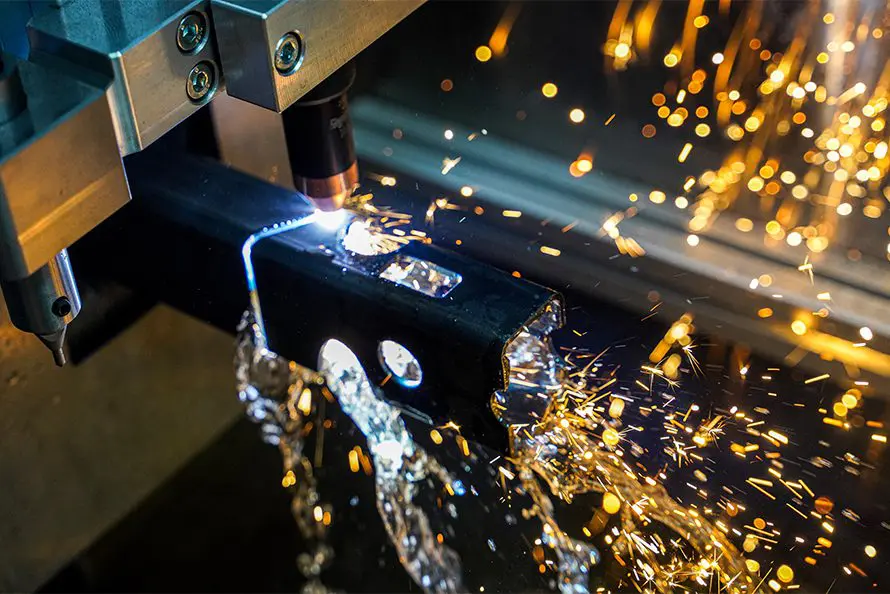

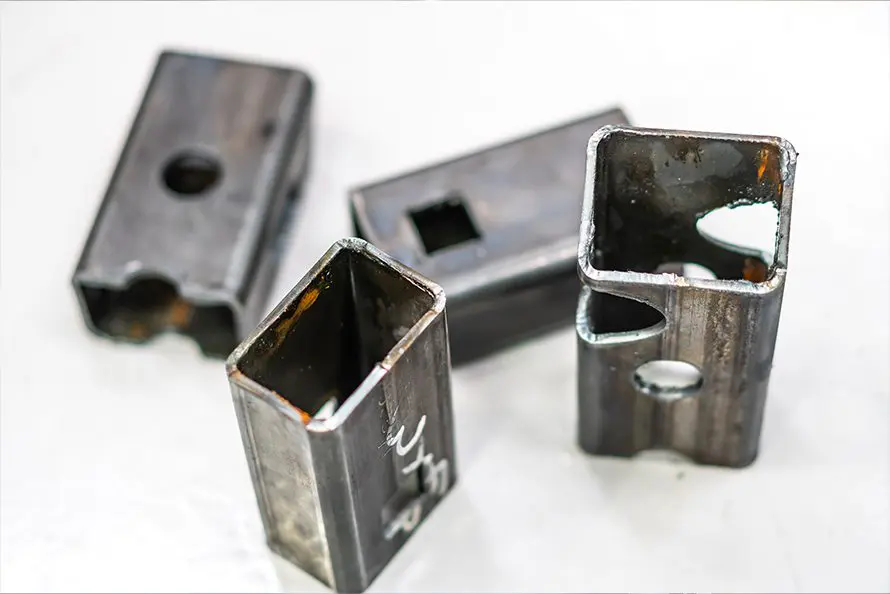

Cutting Samples
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 6
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 7

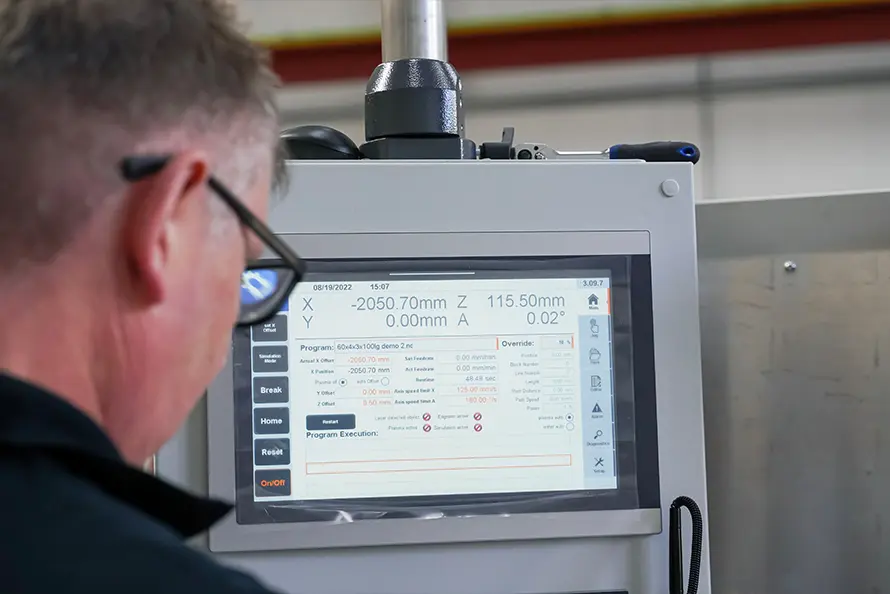

12" CNC Controller
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 7
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 8

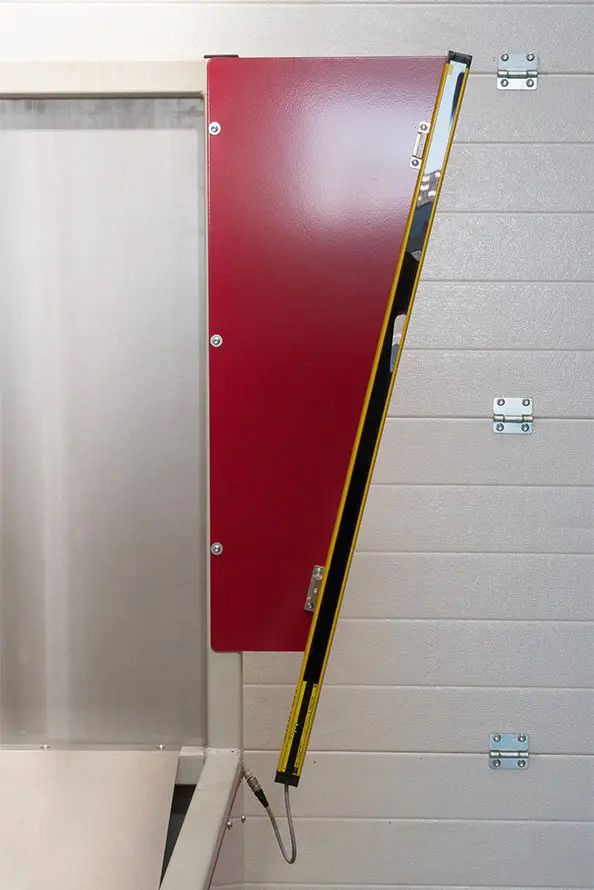

Laser Light Guard Curtain
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 8
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 9

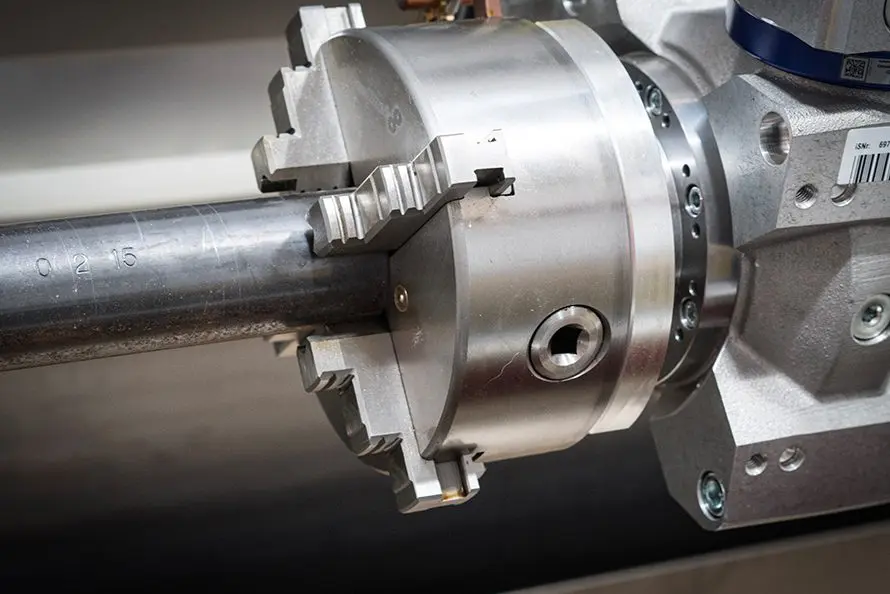

4 Jaw Chuck
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 9
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 10

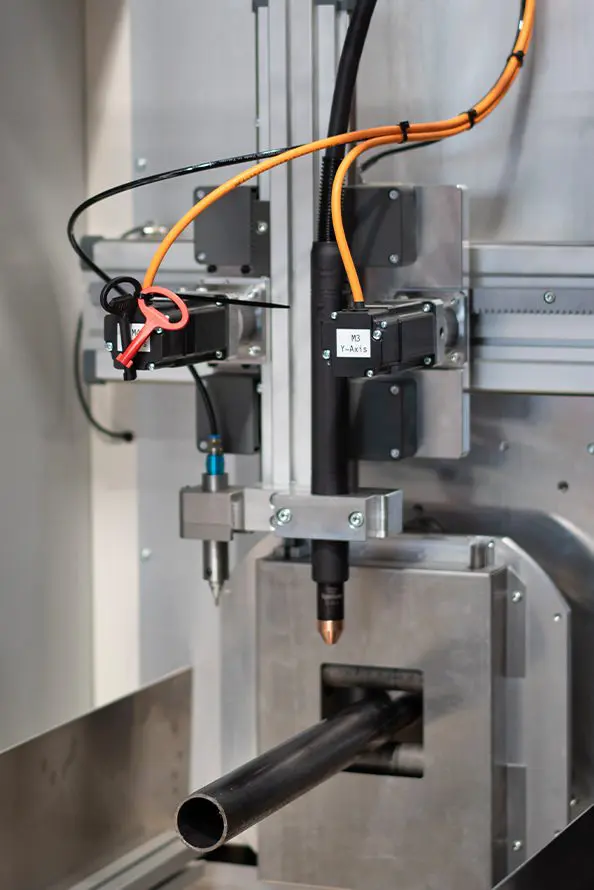

Plasma Torch & Optional Engraving Tool
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 10
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 11

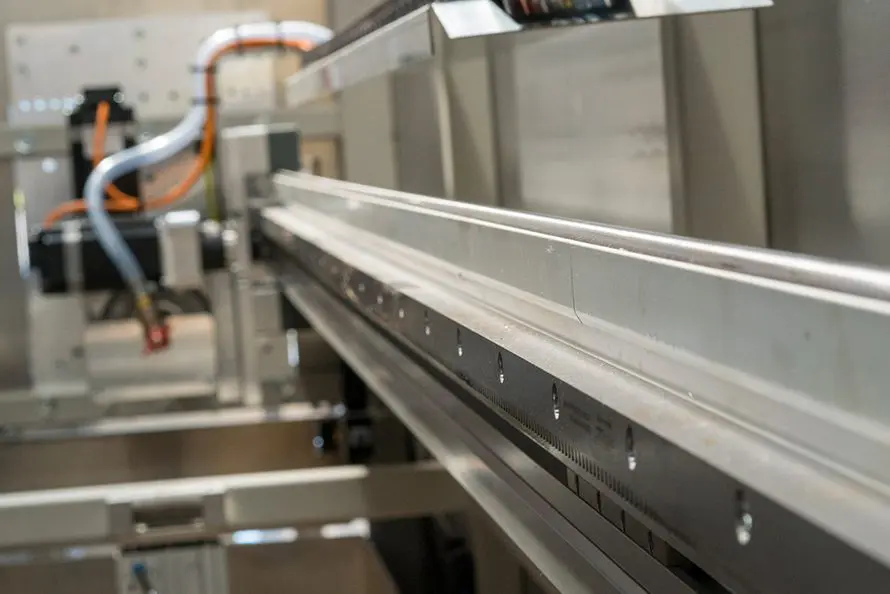

Linear Rail
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 11
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 12Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 12
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 13

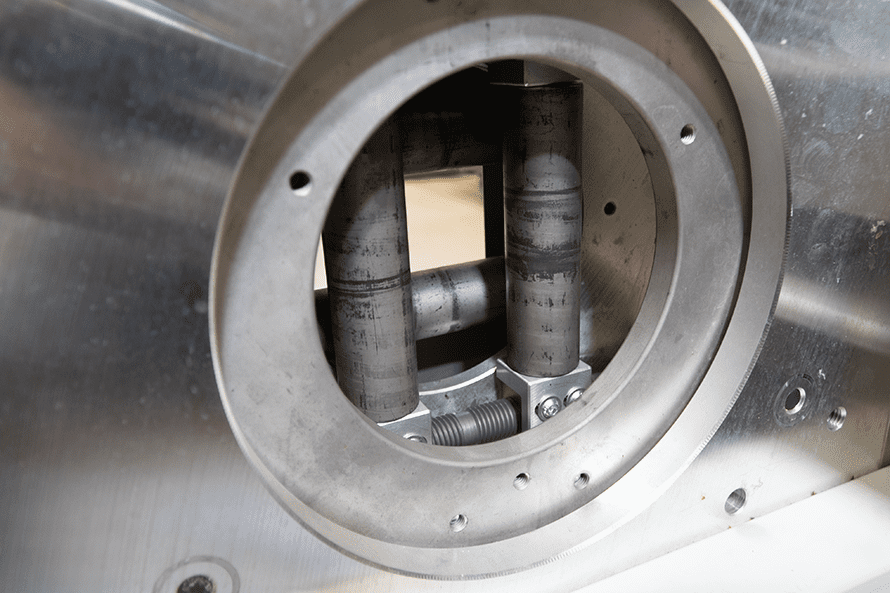

Centralising through-feed chuck at cutting station
Morgan Rushworth SPM CNC Tube & Section Plasma Machine image 13
MODEL   SPM 150 SPM 220 SPM 300
Round Tube mm 150 220 300
Square Tube mm 100 150 200
Maximum Part Weight kg 150 250 500
Maximum Feed mm/sec 125 250 250
Part length up to m 3, 6 or 9 3, 6, 9 or 12 6, 9 or 12
Drive Servo stepper Servo synchronous motor Servo synchronous motor
Gear / rack Hardened and ground Hardened and ground Hardened and ground
Loading Manual manual manual
Front gate drive x optional optional
4 jaws Chuck mm 160 200 250
Control System 12″ B&R Industrial PLC 12″ B&R Industrial PLC 12″ B&R Industrial PLC

Features

  • Multi part nesting on a bar for optimised material usage
  • Removes many traditional manual functions – sawing, cropping, grinding, notching, punching, drilling etc
  • CNC accuracy; No errors or need to rework
  • Tube Plasma cutting capability up to 12m length x 300mm diameter
  • Hypertherm Powermax Plasma Source 45a – 105a
  • Automated 4 Jaw Chuck Clamp & Feed carriage assembly from 3 to 12 metres
  • Linear motion & rack & pinion movement
  • Fully automated cutting process
  • Centralising through-feed chuck at cutting station
  • 12″ Touchscreen CNC Control allowing import and storage of cut files plus design of cut parts on the control
  • Fully CE protected operation cabin using Light beams
  • Engraving & Marking features available
  • Automatic Torch height control

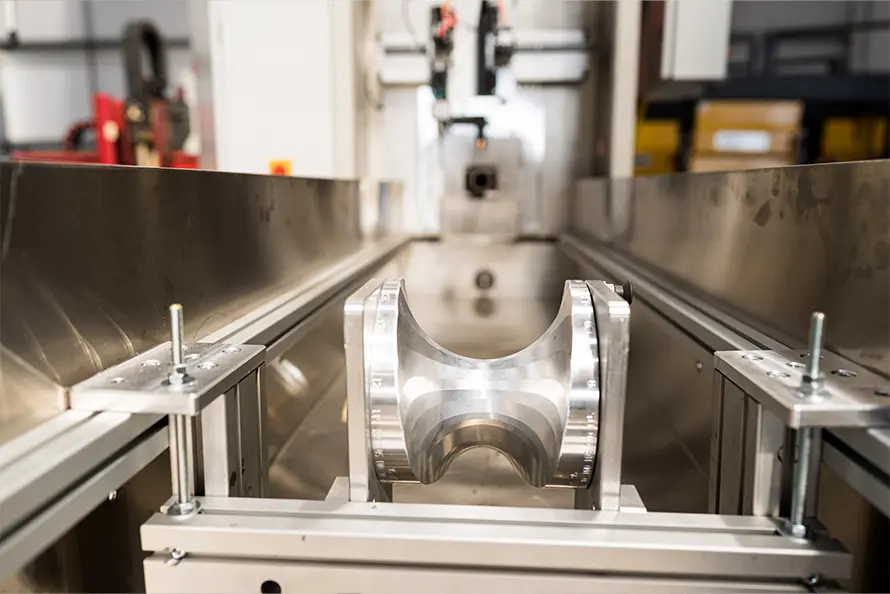

  • Automatic Pipe Support on infeed
  • Data import by USB & network

Options

  • Marking
  • Water Flush
  • Support Roller – Outfeed
