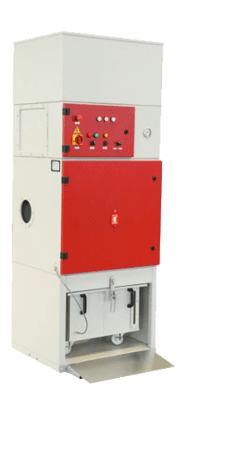

Morgan Rushworth SM Filter Unit
SM – Series filter units are designed for dedusting of dry dust, generated during various industrial operations (i.e. welding, mixing etc.) With Dust Class M standard cartridge filters, the filtered-clean air can be returned back to the workshop. This prevents heat loss and ensures environment friendly and healthy application.
| MODEL | SM-1500 | SM-2200 | SM-3000 | |
| Capacity | m3/h | 1500 | 2200 | 3000 |
| Fan Pressure | Pa | 2300 | 2300 | 2300 |
| Motor | kw | 1.5 | 2.2 | 3.0 |
| Filter Area | m2 | 20 | 30 | 40 |
| Dust Bin | litre | 100 | 130 | 130 |

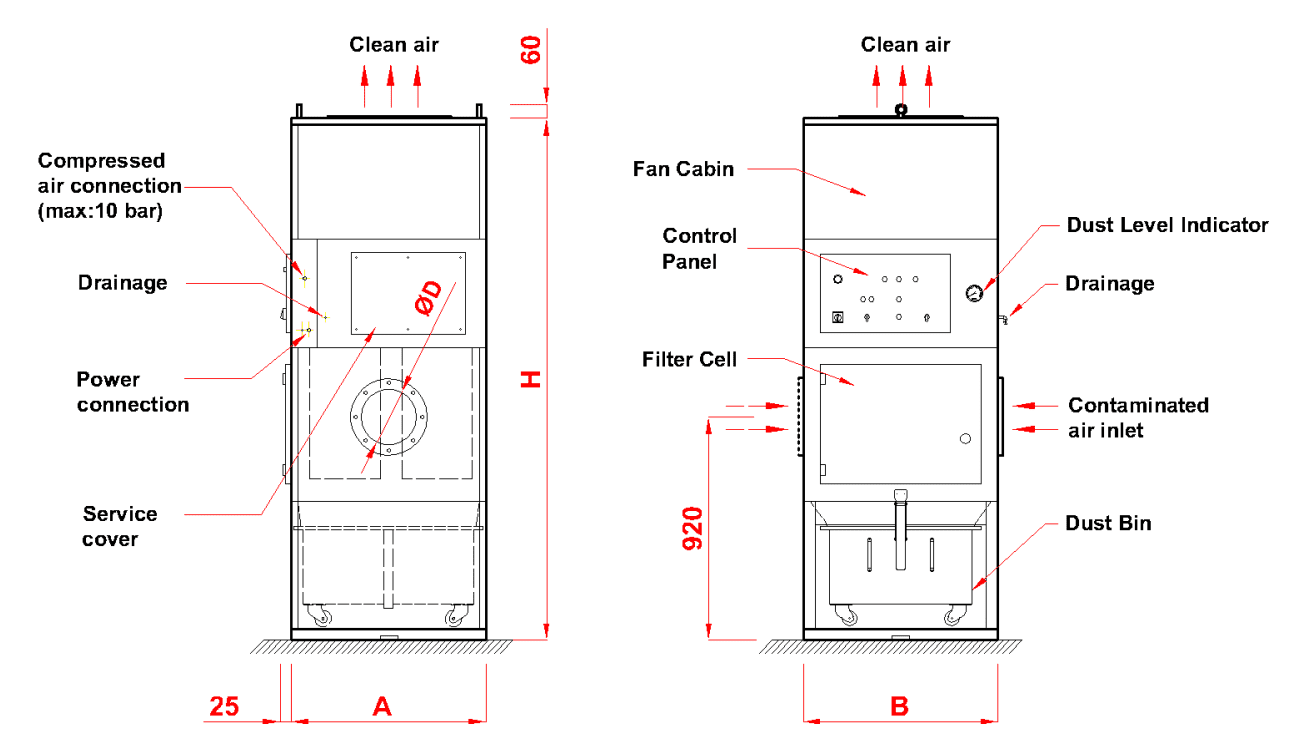

| A x B | mm | 650 x 800 | 840 x 800 | 840 x 800 |
| Height (H) | mm | 2138 | 2156 | 2200 |
| 0D | mm | 160 | 200 | 250 |
| Weight | kg | 211 | 242 | 258 |
Features
- High filtration efficiency with Dust Class: M certified (acc. to EN 60335-2-69) filter elements which arrests 0,2-2 micron particles with 99,9% efficiency.
- Maximum operational safety with fully integrated control panel and internal electrical wiring.
- Visual real-time dust level control of filter elements via coloured manometer.
- Depending on various industrial operations, SM – filter units can be equipped with optional Aluminium coated, ePTFE Teflon membrane, Flame Retardant Polyester and Stainless steel construction Propylene nonwoven filter elements, on request.
- Average 10000-15000 working hour lifespan with effective reverse jet pulse cleaning.
- The light-weight fan impellers are made of aluminium, which ensures long motor life-time.
- High efficient, backward curved fans confirming ERP 2015 with G2.5 balance grade (static and dynamic) are direct coupled to
motors. - OPTIONAL-Automatic PID control with pressure transmitter regulated VFD (Variable Frequency Drive) for fan speed control ensures energy saving with optimum performance.
