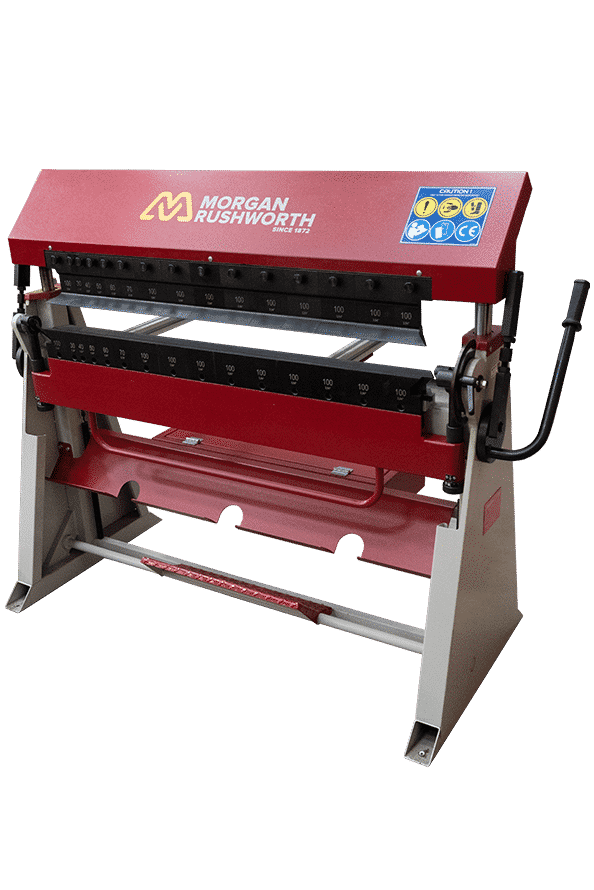

Morgan Rushworth SBT Box & Pan Folders
The Morgan Rushworth SBT manual folders have been designed with versatility as the first priority. Segmented high box tools, segmented folding beam tools and segmented bed tools ensures that as many different types of folds, such as Z’s can be completed as possible. This is unlike traditional box and pan folders that have segmented fingers only. A vertical clamping stroke of 200mm also ensure that deep boxes can be performed that would normally be impossible due to collision. Quick release tooling with fast treadle clamping further adds to the capability of the SBT folding machines.
| MODEL | SBT1050.15 | SBT1250.12 | |
| SKU | M2097 | M2098 | |
| Bending Length | mm | 1050 | 1250 |
| Capacity – Mild Steel | mm | 1.5 | 1.2 |
| Capacity – Stainless Steel | mm | 1 | 0.8 |
| Capacity – Aluminium | mm | 2.2 | 2 |
| Maximum Folding Angle <50mm Return | deg | 150 | 150 |
| Maximum Folding Angle >50mm Return | deg | 90 | 90 |

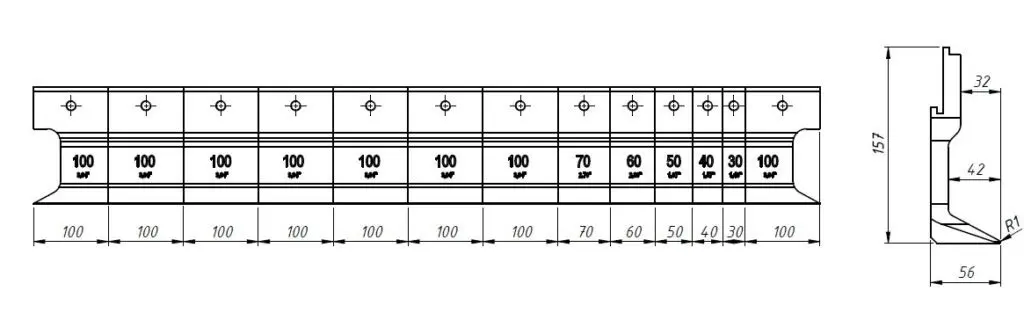

| Quantity & Size of Fingers | mm | 1 x 30, 1 x 40, 1 x 50 | 1 x 30, 1 x 40, 1 x 50 |
| 1 x 60, 1 x 70, 8 x 100 | 1 x 60, 1 x 70, 10 x 100 | ||
| Length | mm | 750 | 750 |
| Width | mm | 1300 | 1500 |
| Height | mm | 1515 | 1715 |
| Weight | kg | 280 | 315 |
Features

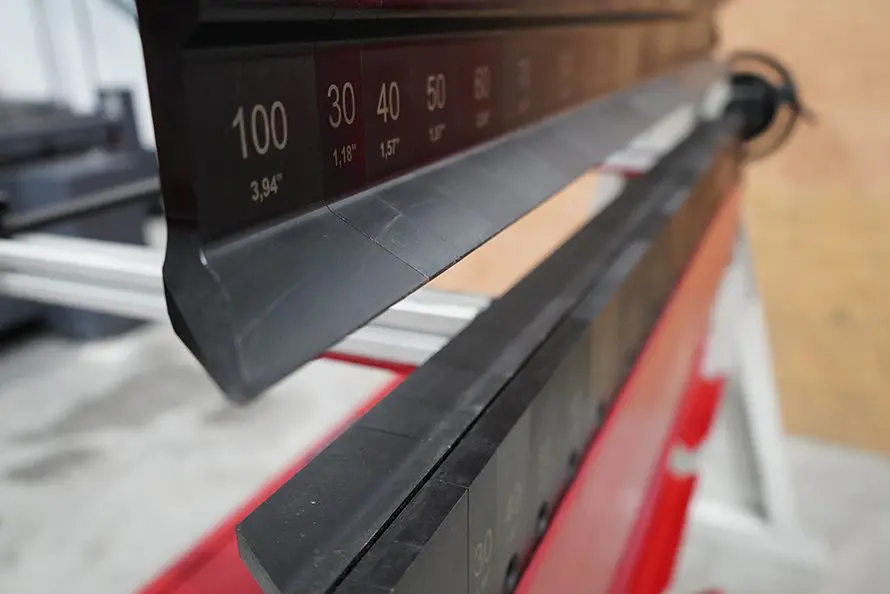

- Hardened segmented tooling to 42CrMo4, 60HRC laser induction hardened and ground
- Tooling with engraved numbering width

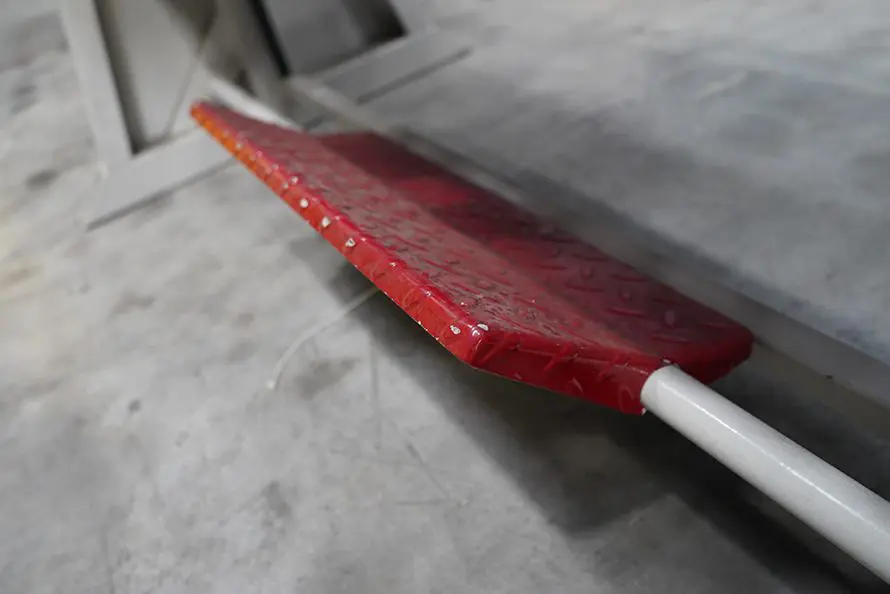

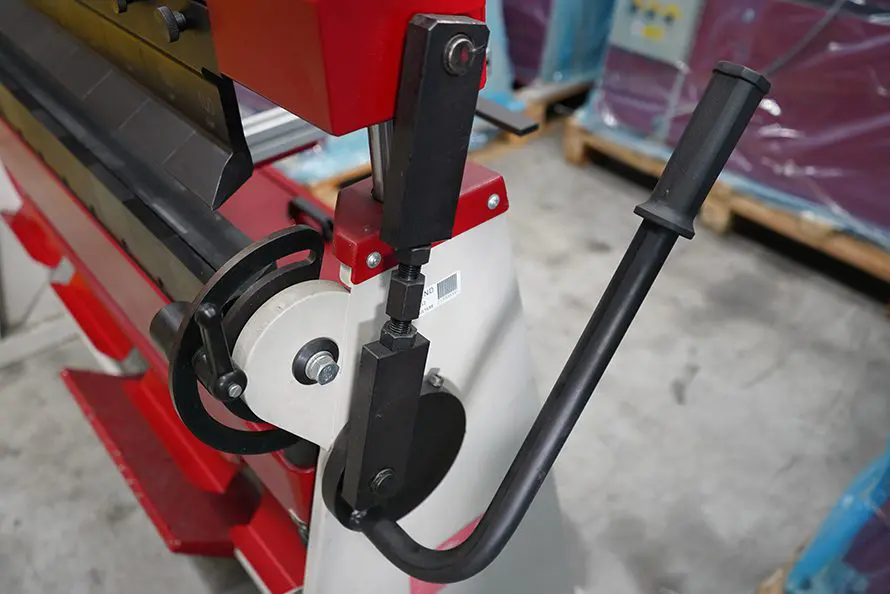

- Treadle Quick Clamping

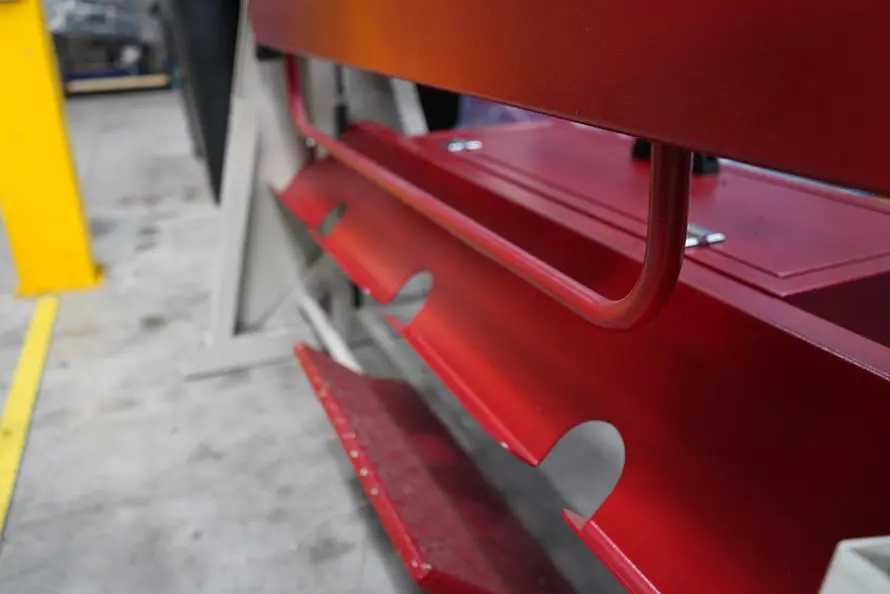

- Spring loaded folding beam return

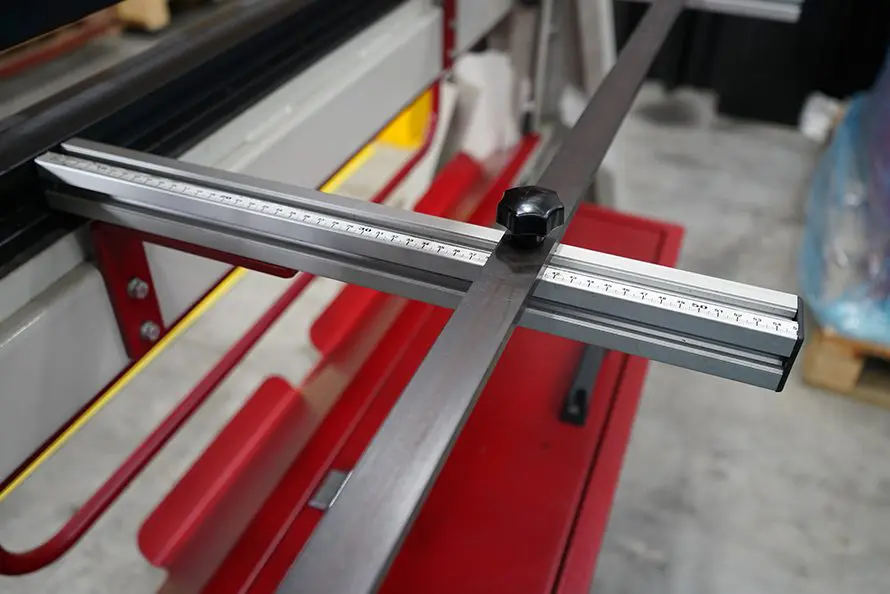

- 500mm manual back gauge

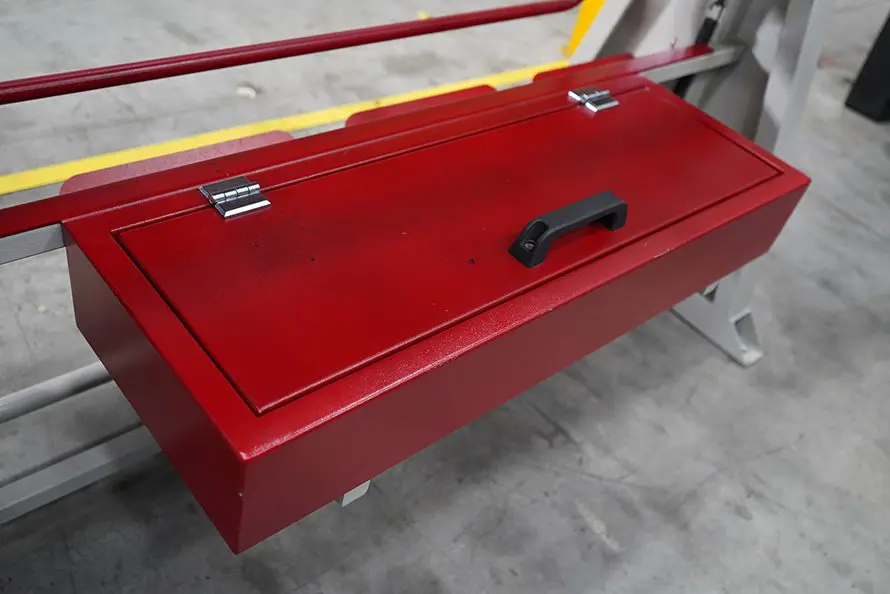

- Tool storage cabinet

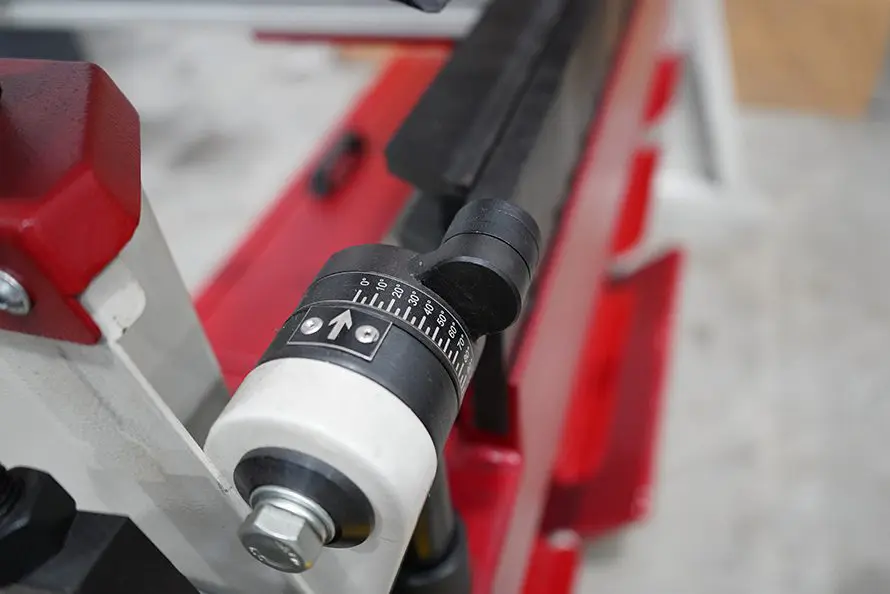

- Angle gauge with adjustable stop
Options
