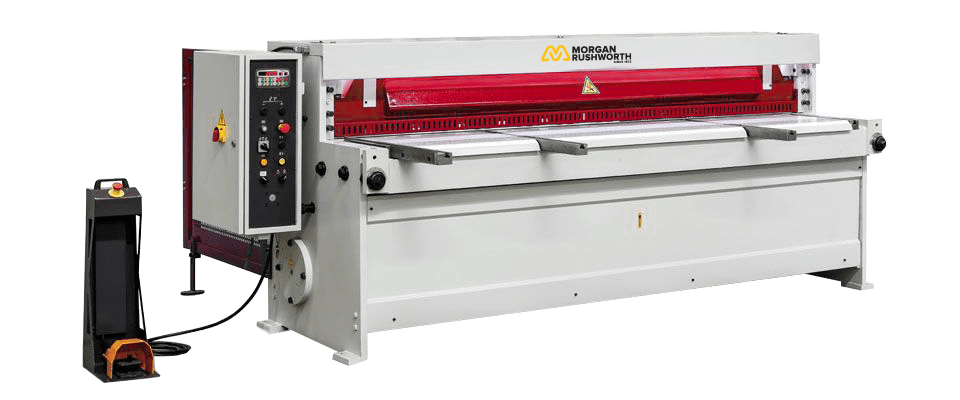

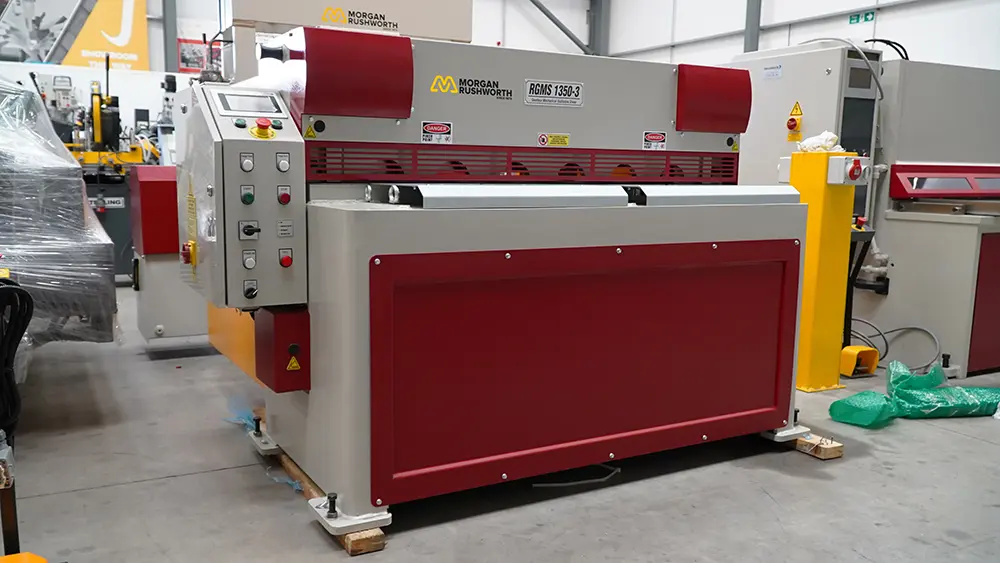

Morgan Rushworth RGMS Mechanical Guillotine Shear 415v
The Morgan Rushworth RGMS range of mechanical guillotines are designed for fast accurate cutting of mild steel up to 5mm. Now available in eleven capacities with either the standard manually operated back gauge or the optional advanced Elgo NC back gauge.
| MODEL | STOCK CODE | CUTTING LENGTH | CUTTING CAPACITY | CUTTING ANGLE | STROKES PER MINUTE | MOTOR | TABLE WIDTH | TABLE HEIGHT | BACKGAUGE ADJUSTMENT | LENGTH | WIDTH | HEIGHT | WEIGHT |
| mm | mm | kw | mm | mm | mm | mm | mm | mm | kw | ||||
| RGMS 1350/3.0 | M1039 | 1350 | 3 | 2°20′ | 35 | 3 | 420 | 850 | 750 | 1718 | 1370 | 1200 | 965 |
| RGMS 1550/3.0 | M1040 | 1550 | 3 | 2°20′ | 35 | 3 | 420 | 850 | 750 | 1950 | 1370 | 1200 | 990 |
| RGMS 2050/3.0 | M1041 | 2050 | 3 | 2°20′ | 35 | 3 | 420 | 850 | 750 | 2420 | 1370 | 1200 | 1250 |
| RGMS 2550/2.5 | M1042 | 2550 | 2.5 | 1°30′ | 35 | 3 | 420 | 850 | 750 | 2900 | 1370 | 1200 | 1370 |
| RGMS 3050/2.0 | M1043 | 3050 | 2 | 1°30′ | 35 | 3 | 420 | 850 | 750 | 3450 | 1370 | 1200 | 1600 |
| RGMS 1550/4.0 | M1044 | 1550 | 4 | 2°25′ | 41 | 7.5 | 450 | 850 | 750 | 1950 | 2300 | 1300 | 1500 |
| RGMS 2050/4.0 | M1045 | 2050 | 4 | 2°25′ | 41 | 7.5 | 450 | 850 | 750 | 2560 | 2300 | 1500 | 2600 |
| RGMS 2550/4.0 | M1046 | 2550 | 4 | 2°25′ | 41 | 7.5 | 450 | 850 | 750 | 3100 | 2300 | 1500 | 3100 |
| RGMS 3050/4.0 | M1047 | 3050 | 4 | 2°25′ | 41 | 7.5 | 450 | 850 | 750 | 3700 | 2300 | 1500 | 3550 |
| RGMS 1050/5.0 | M1048 | 1050 | 5 | 2°7′ | 34 | 7.5 | 450 | 850 | 750 | 1950 | 2300 | 1500 | 1700 |
| RGMS 1550/5.0 | M1049 | 1550 | 5 | 2°7′ | 34 | 7.5 | 450 | 850 | 750 | 1950 | 2300 | 1500 | 1900 |
Features
- Mono Block, welded steel frame rigid to deflection movement and of high tensile strength.
- Two sided blades manufactured with high-alloyed steel.

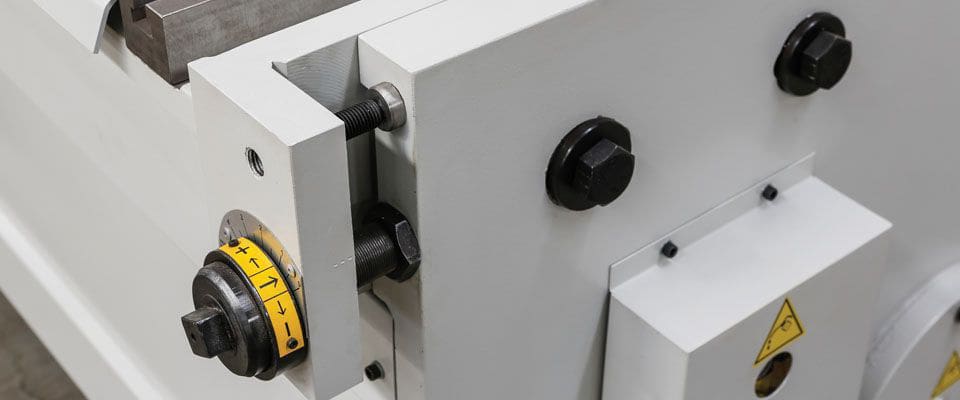

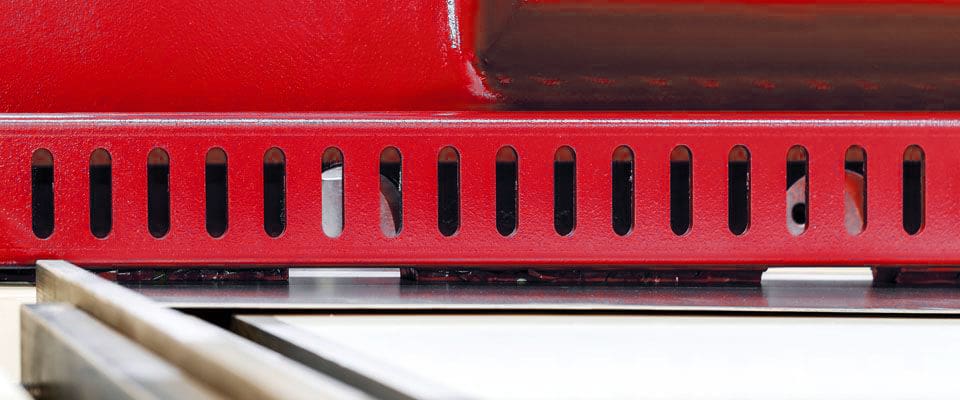

- Blade gap adjustment according to sheet thickness and type for quality cutting -4mm and 5mm models.
- Automatically activated hold down system avoiding sheet sliding during cutting action.

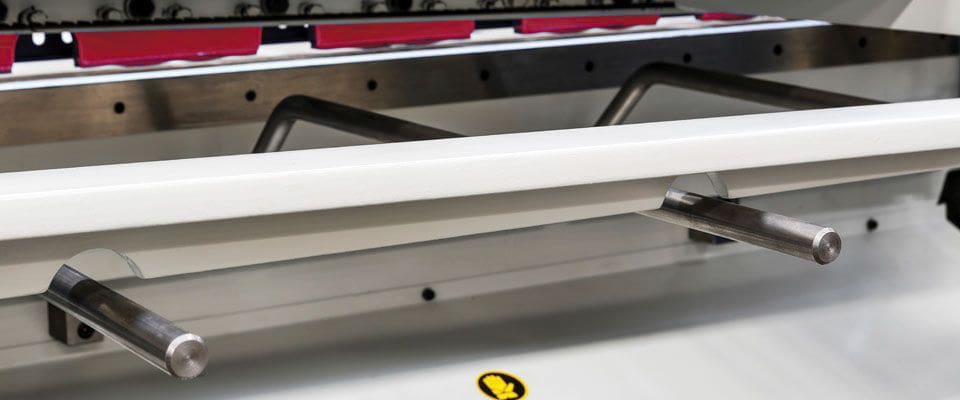

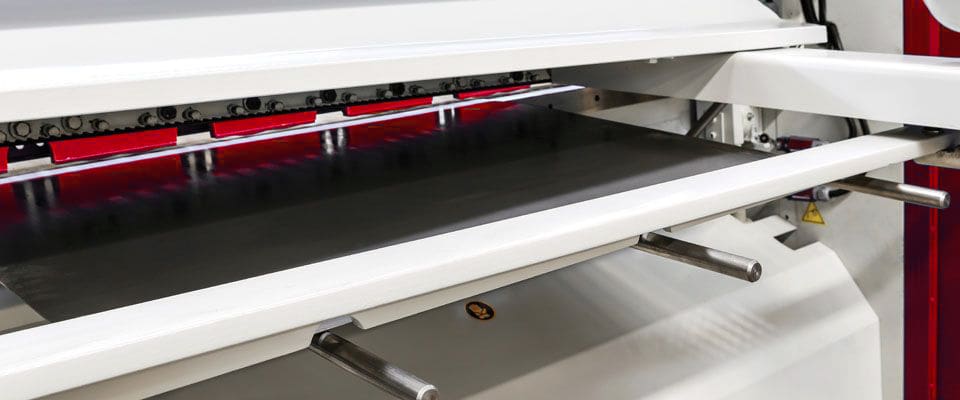

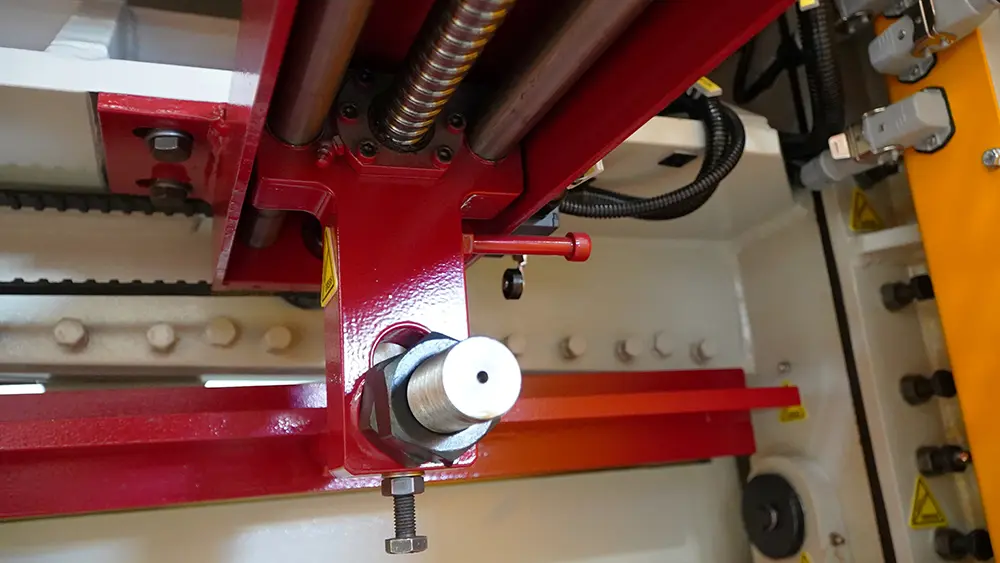

- Manual back gauge operated by hand wheel with distance counter.
- Support table with roller bearings – 4mm and 5mm models.

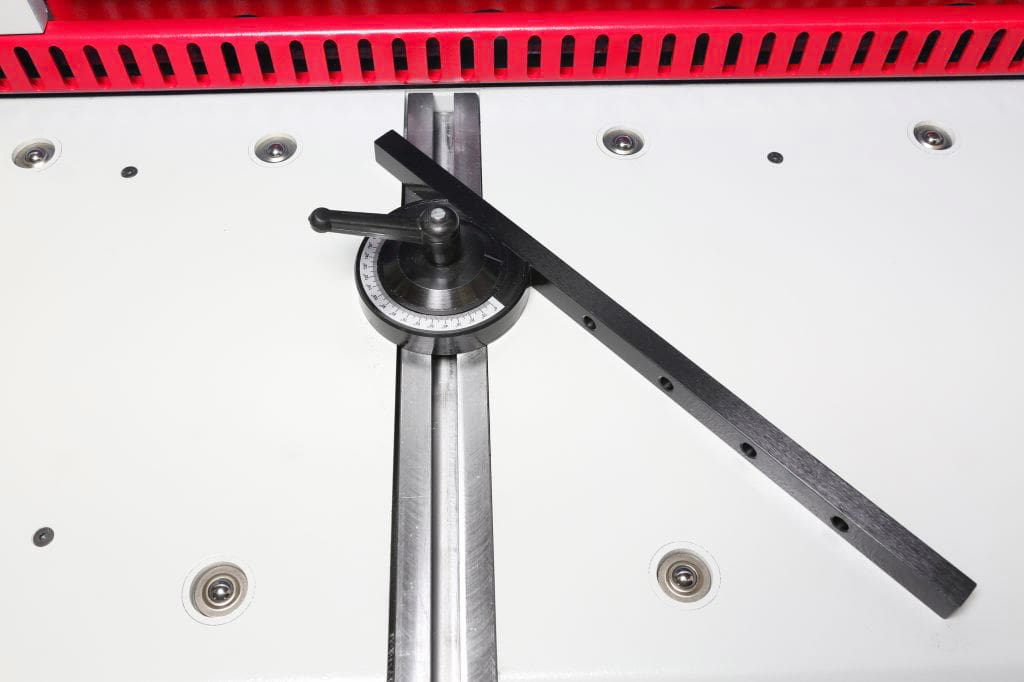

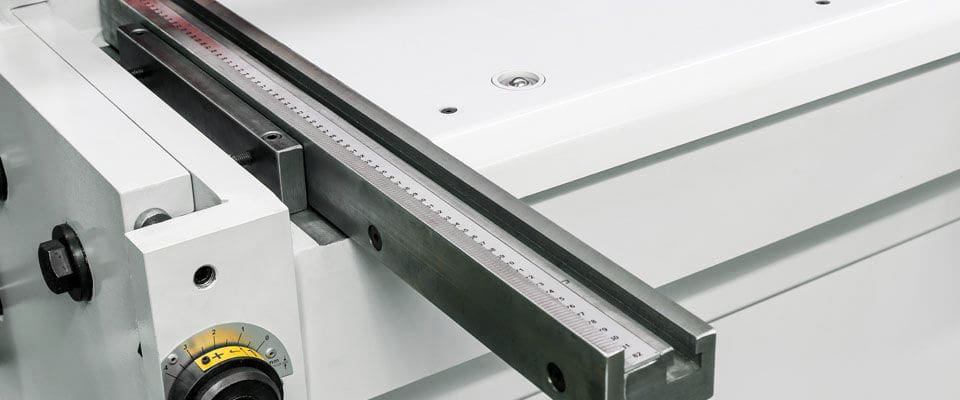

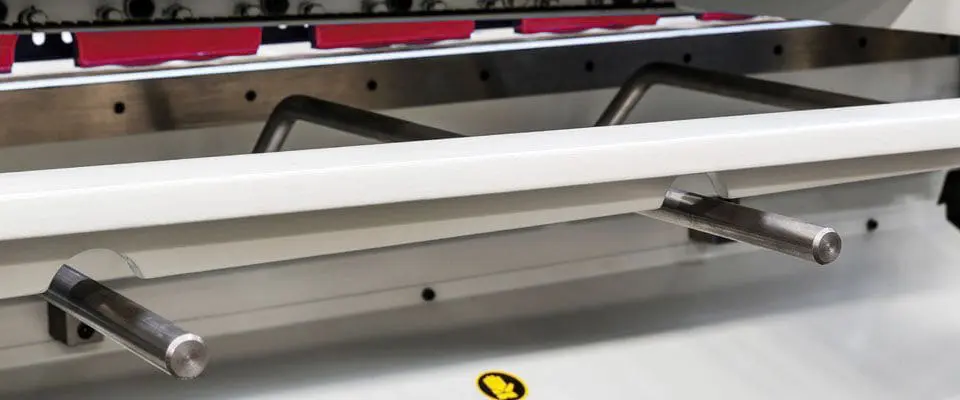

- Front support arms with ruler, suitable for long sheet cutting.
- Foot pedal available for single or continuous cutting.
Options
- Front support system with ruler up to 3 meters.
- Pneumatic sheet support and unloading system.
- 1000mm back gauge.
- Elgo NC programmable back gauge.
