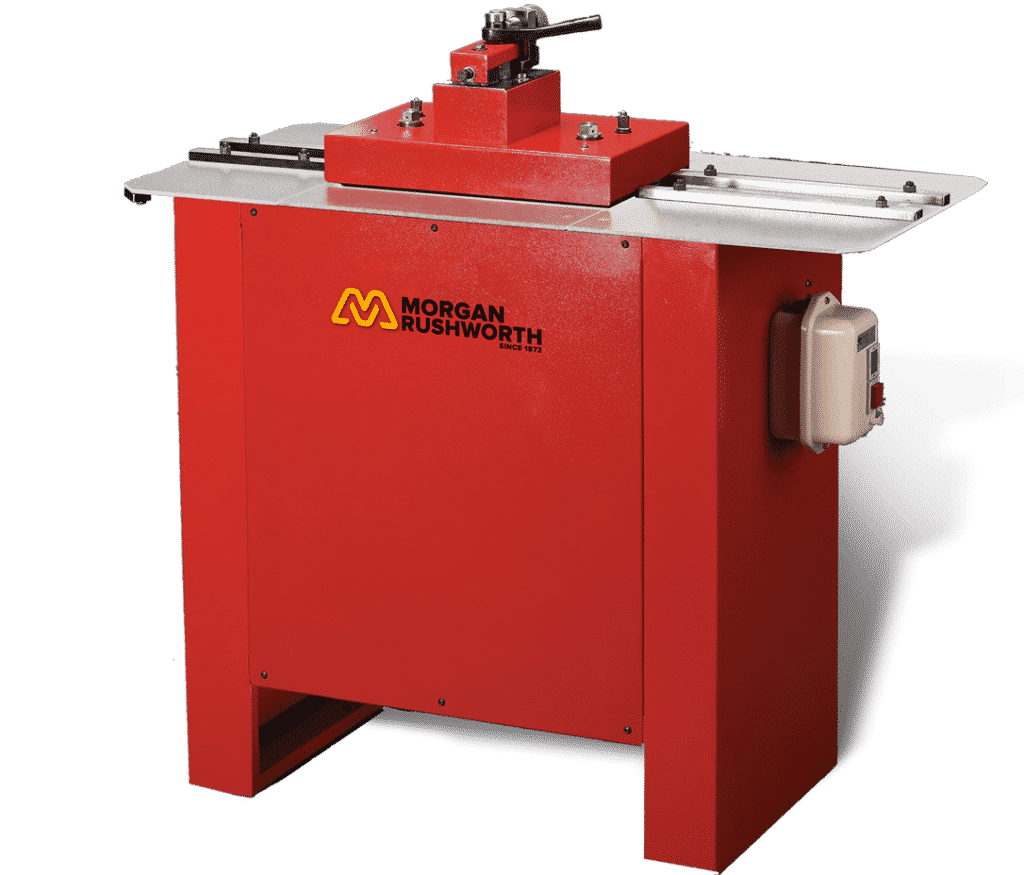

Morgan Rushworth RFF Roll Former & Flanger 415V
The Morgan Rushworth RFF 5/1.0 and RFF 7/1.6 are heavy duty roll forming and flanging machines designed to join straight or curved sheet metal material. A full range of tooling is available to achieve the various connection methods required.
| MODEL | RFF 5/1.0 | RFF 7/1.6 | |
| No. of stations | 5 | 7 | |
| Forming speed | m/min | 6 | 5 |
| Motor | kw | 0.75 | 1.5 |
| Length | mm | 1065 | 1460 |
| Width | mm | 510 | 620 |
| Height | mm | 1070 | 1130 |
| Weight | kg | 135 | 280 |
Features
- Type A Pittsburgh rolls fitted as standard
- Fast straight forming in one pass
- Available in 1.0mm and 1.6mm capacities
- Auxiliary drive shafts fitted to accept optional rolls
- As RF but with the useful feature of a flanging unit, forming roll type J, fitted to the top of the machine in order to perform radius joins.
Options
