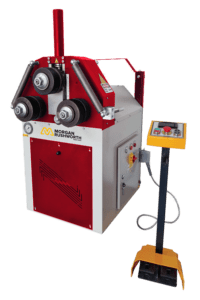

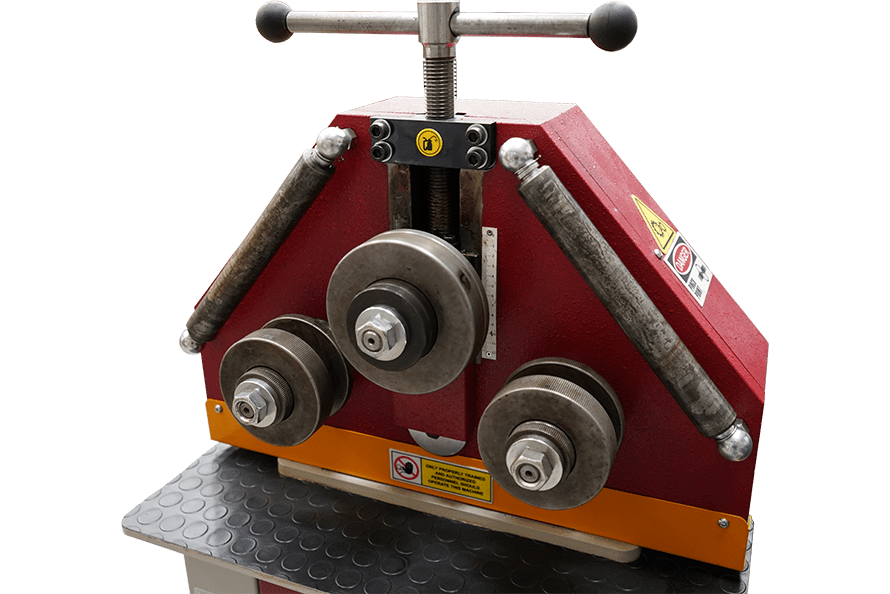

Morgan Rushworth PSR Ring Rolling Machine 240v / 415v

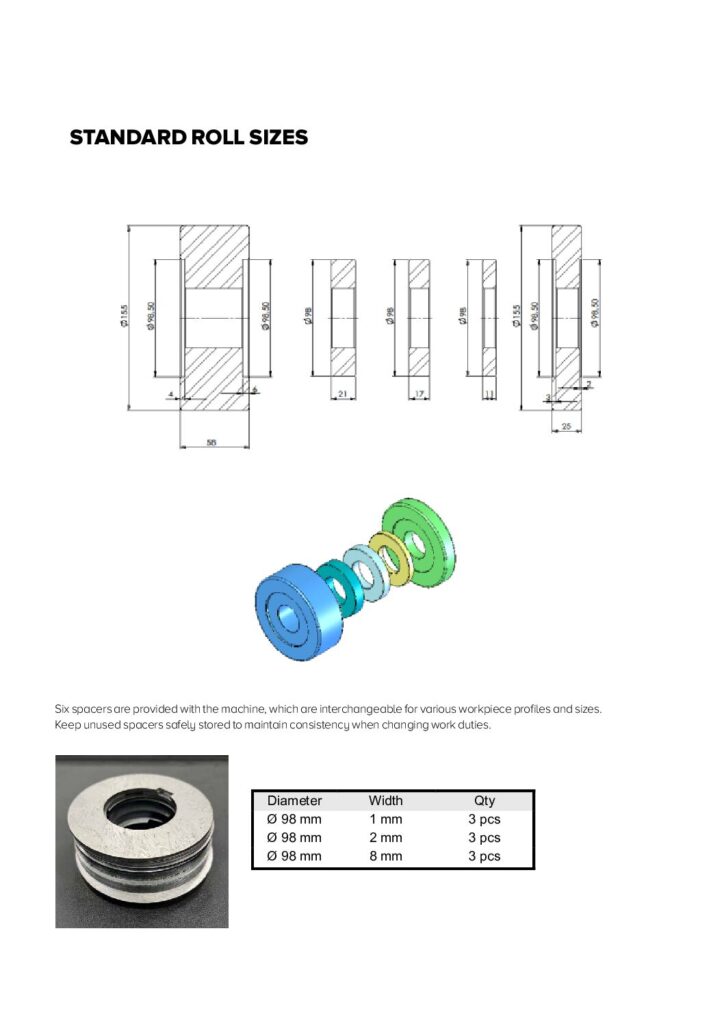

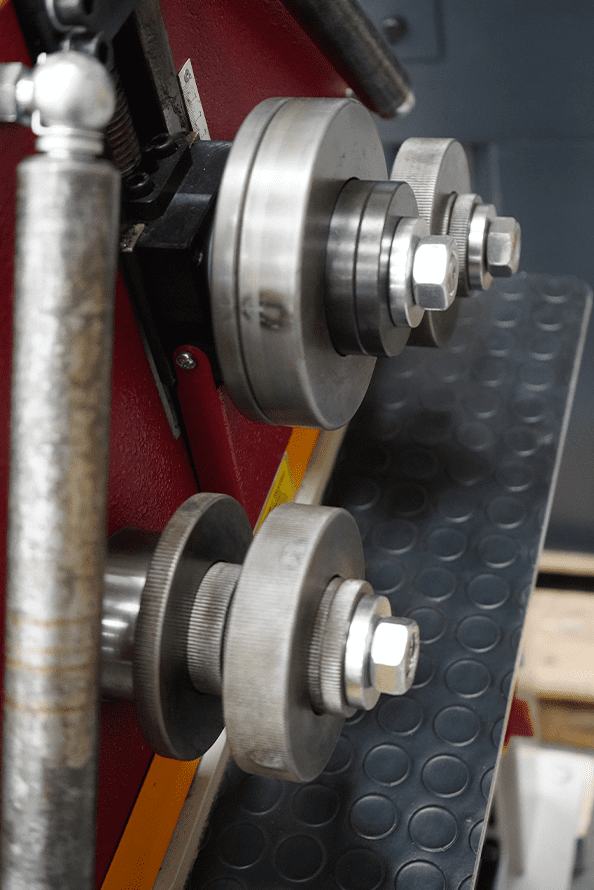

The Morgan Rushworth PSR Ring Rolling Machines are available in 240v and 415v configurations and feature shaft diameters of 30mm and 50mm. Both models include a comprehensive set of rolls designed for bending flat bar, flat bar on edge, round bar, square bar, and box section. This versatility makes them ideal for a wide range of bending tasks and applications.
With both bottom rolls powered, the machines provide smooth traction and consistent operation. The top adjustable idler roll determines the bending radius, allowing operators to achieve accurate, repeatable results. This combination of features ensures reliable performance and makes the PSR machines a dependable choice for diverse bending projects.
| MODEL | PSR 35/140 | PSR 50/155 | |
| STOCK CODE | M6012 | M6014 | |
| Shaft diameter | mm | 35 | 50 |
| Roll diameter | mm | 137 | 155 |
| Rolling speed | m/min | 2.1 | 4.3 |
| Power | kW | 0.75 | 1.5 |
| Length | mm | 670 | 730 |
| Width | mm | 530 | 830 |
| Height | mm | 1350 | 1350 |
| Weight | kg | 195 | 400 |

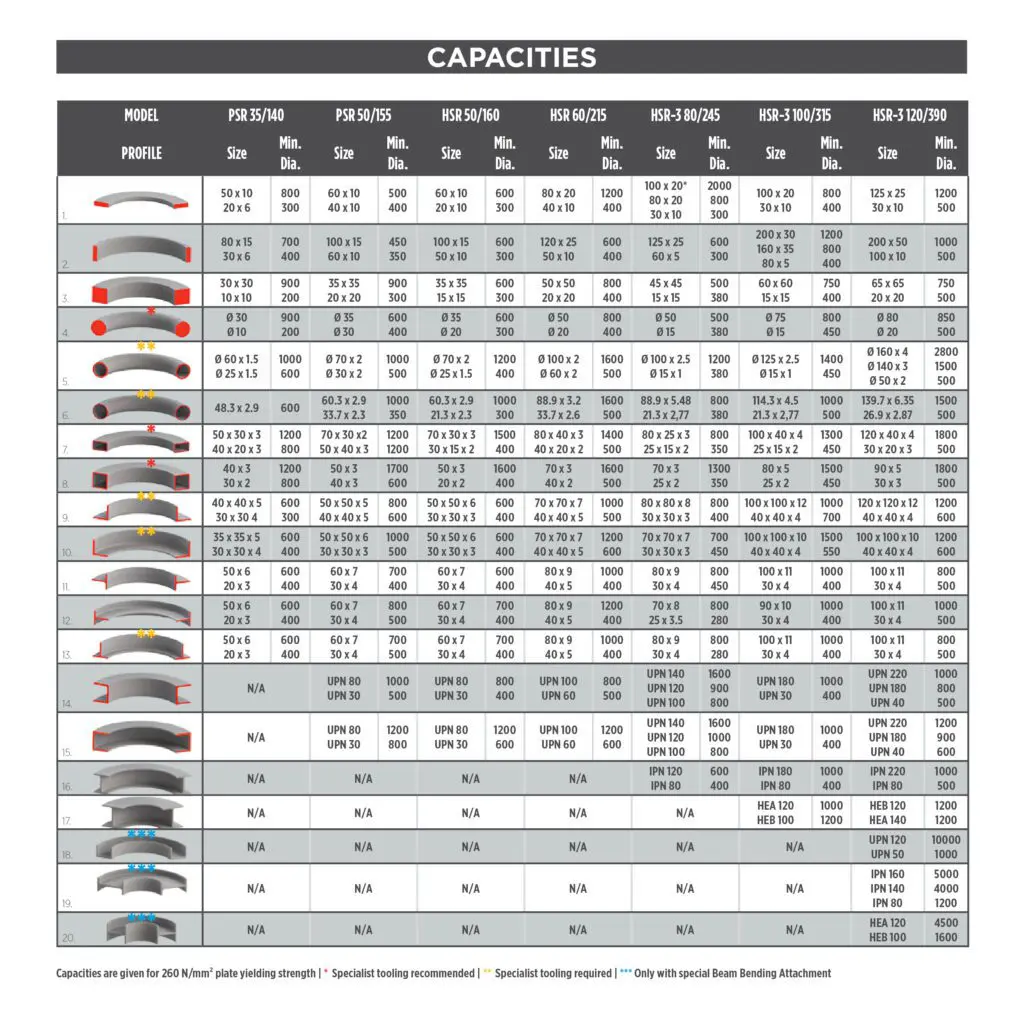

For bending capacities, see our capacities chart
Features
- Operates horizontally or vertically.
- Forward and reverse Foot Pedal.

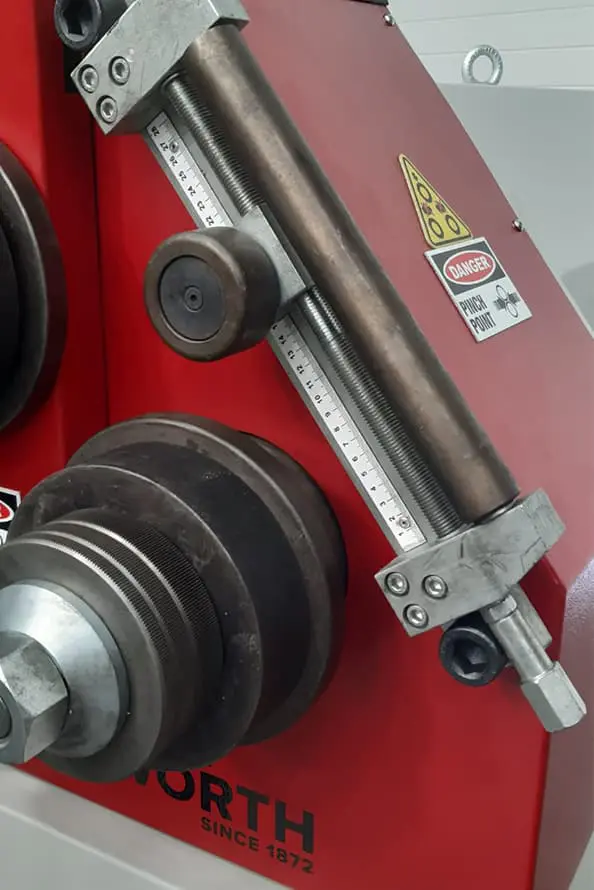

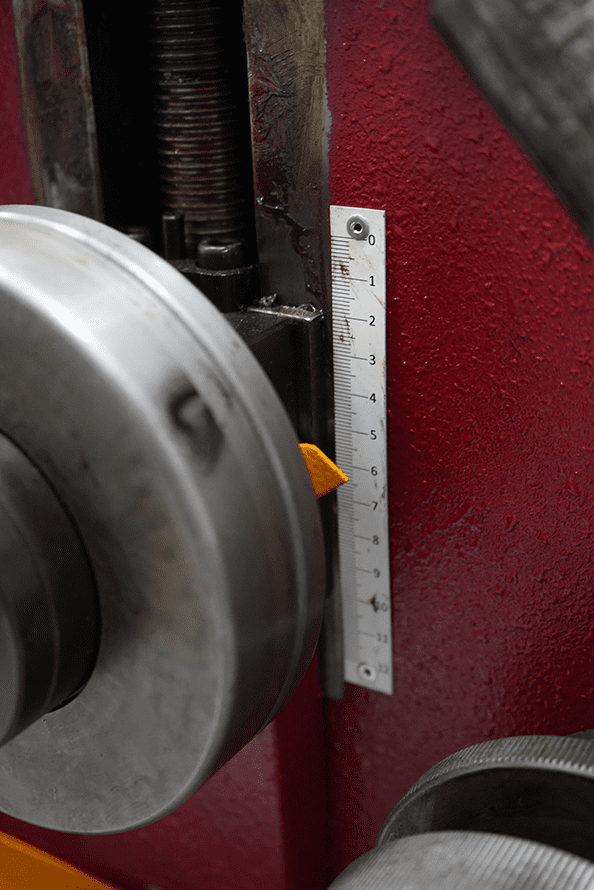

- Manual roll adjustment with pointer and scale roll position indicator.

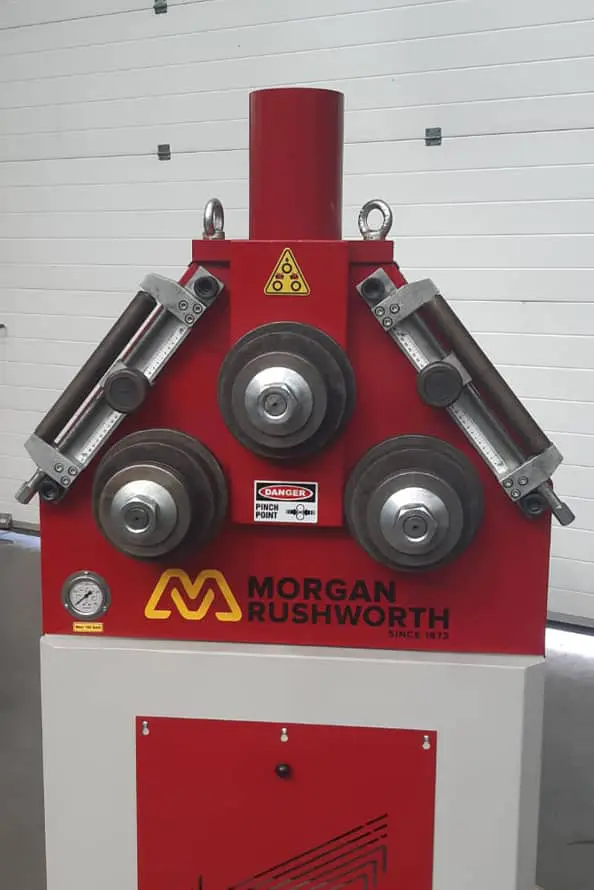

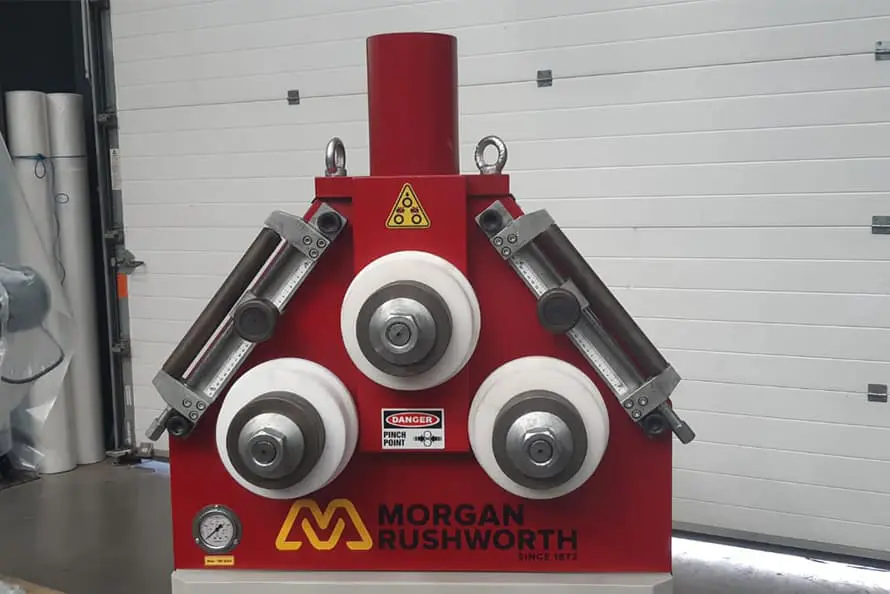

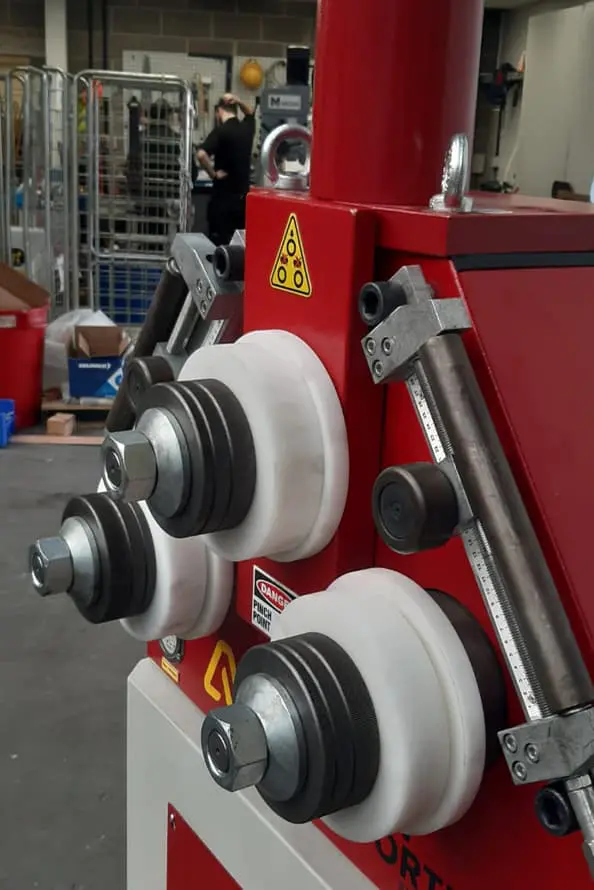

- Optional tube rolls available on request.
- A cost effective solution to out sourcing of sectional roller.
- Variable speed
Options
