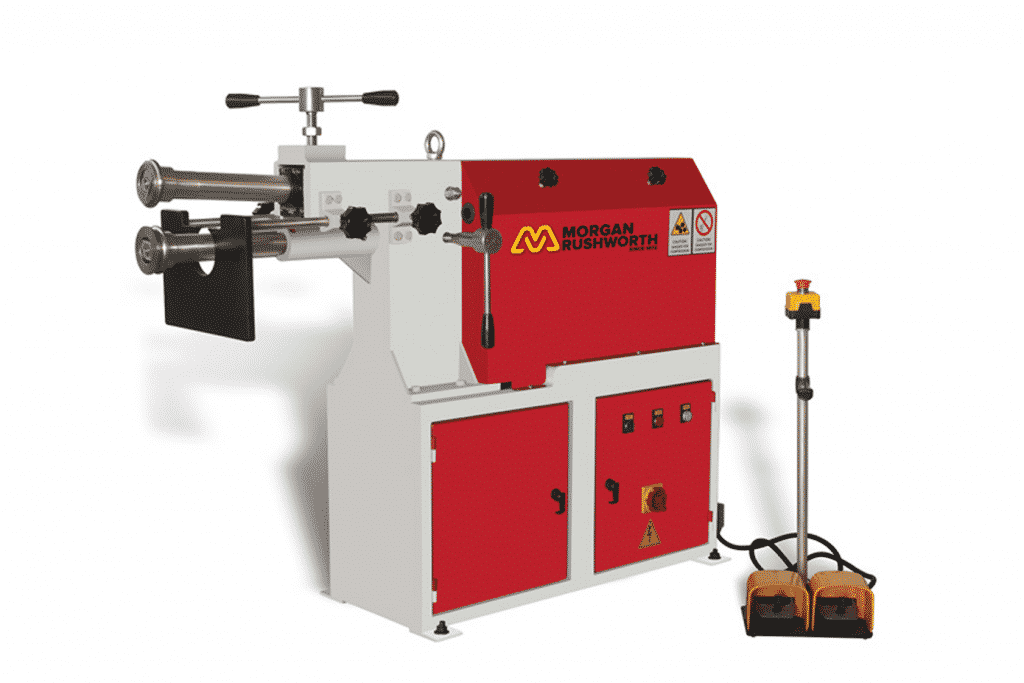

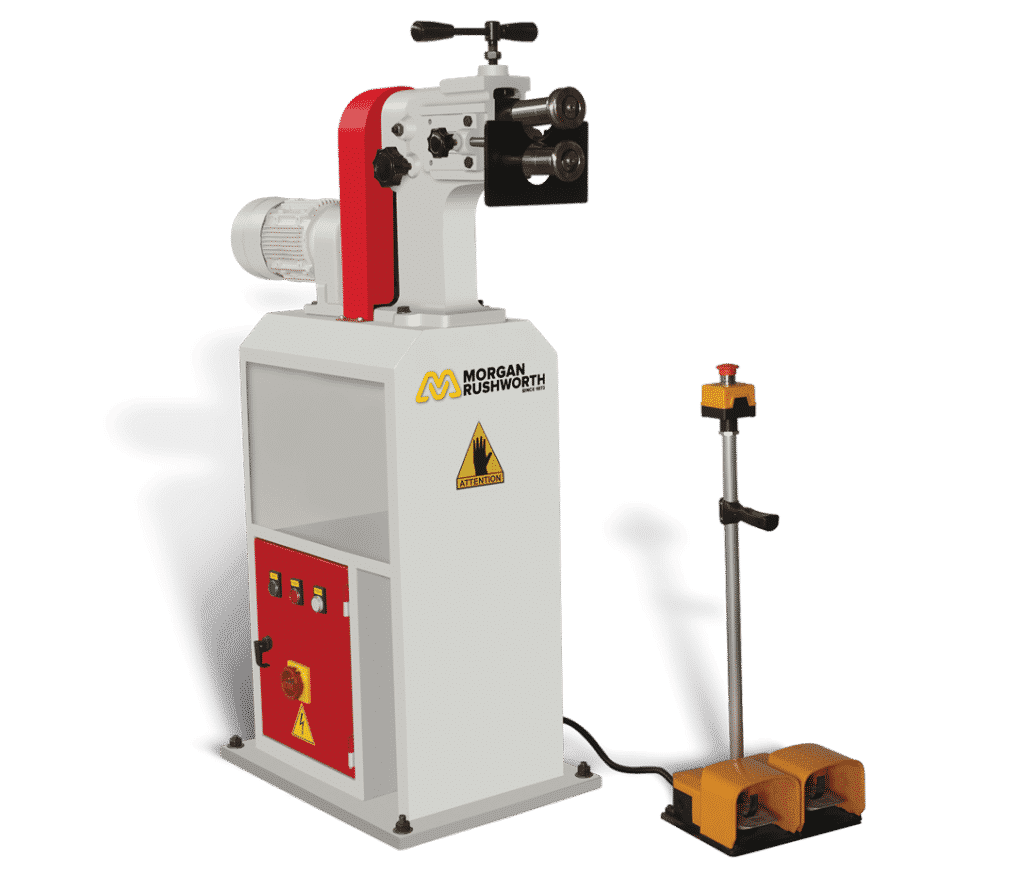

Morgan Rushworth PS Powered Swaging Machine

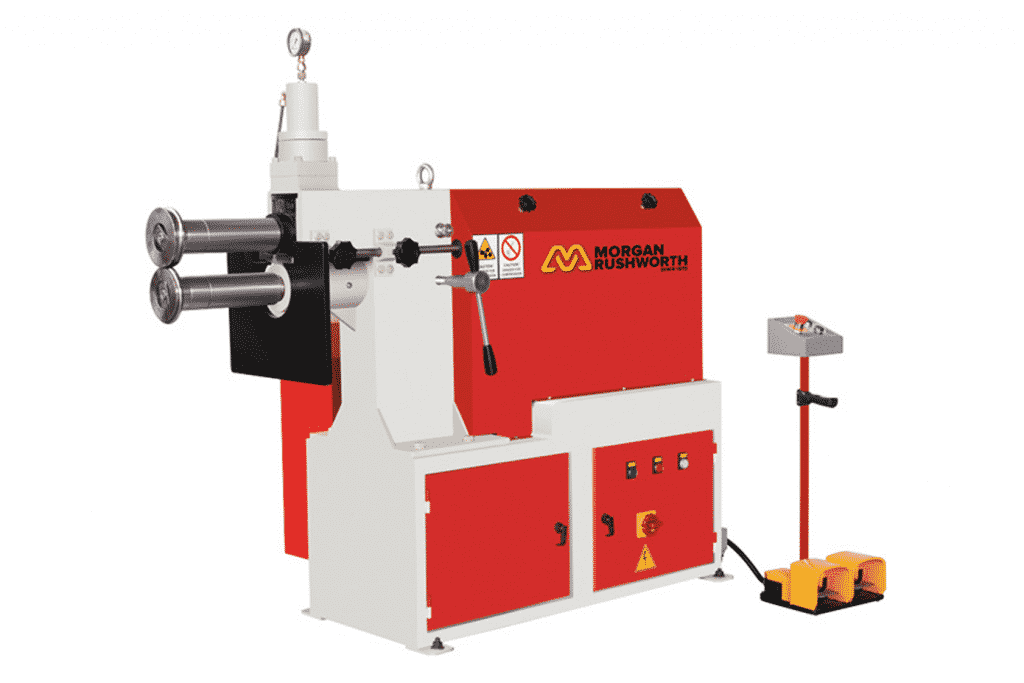

The Morgan Rushworth range of MS, PS and HPS swaging machines are available in manual, powered and hydraulic variants. Swaging machines are designed to form various shapes to sheet material and are particularly suited for tubular ductwork applications. Easily interchangeable rolls are included as standard equipment to form the specific shape required.
Apologies, but we have discontinued the entire range of Morgan Rushworth Swaging machines
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES
| MODEL | PS 250/1.25 | PS 260/2.5 | PS 260/4.0 | |
| STOCK CODE | M7009 | M7010 | M7011 | |
| Capacity | mm | 1.25 | 2.5 | 4 |
| Roll Diameter | mm | 62 | 92 | 132 |
| Throat depth with gauge | mm | 120 | 260 | 260 |
| Throat depth without gauge | mm | 260 | 500 | 500 |
| Motor | kw | 0.7 | 1.5 | 2.2 |
| Length | mm | 700 | 1200 | 1500 |
| Width | mm | 600 | 700 | 800 |
| Height | mm | 1300 | 1200 | 1200 |
| Weight | kg | 170 | 295 | 350 |
Features
- Steel welded frame
- Adjustable idler roll
- Adjustable end stop
- Reduction motor with brake – PS and HPS
- Hydraulic top roll adjustment – HPS 260
- 3 sets of standard rolls – PS 260, and HPS 260
- 5 sets of standard rolls – MS 250 and PS 250
- Optional special rolls available
