Morgan Rushworth PBXS CNC Hydraulic Press Brake

View Product Downloads / Full Specification Sheet

Request A Quote

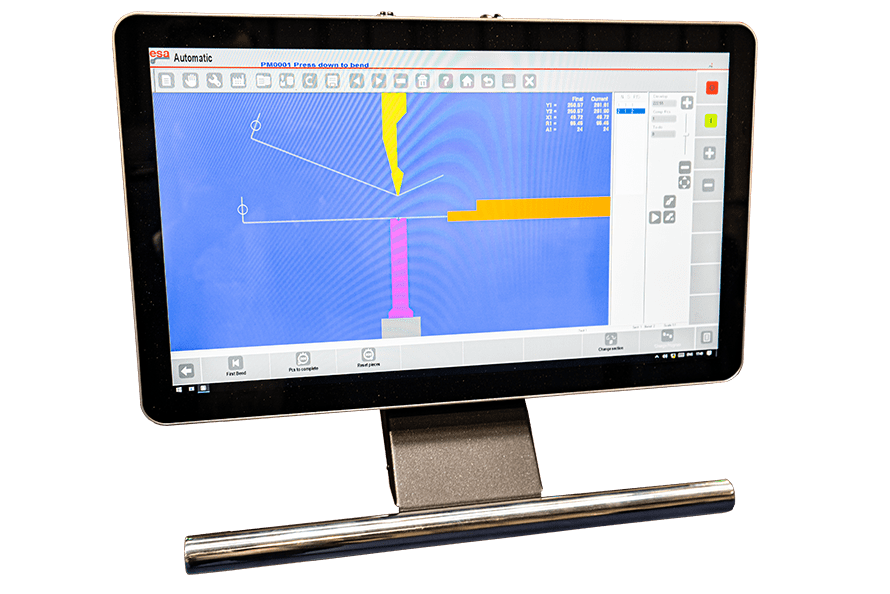

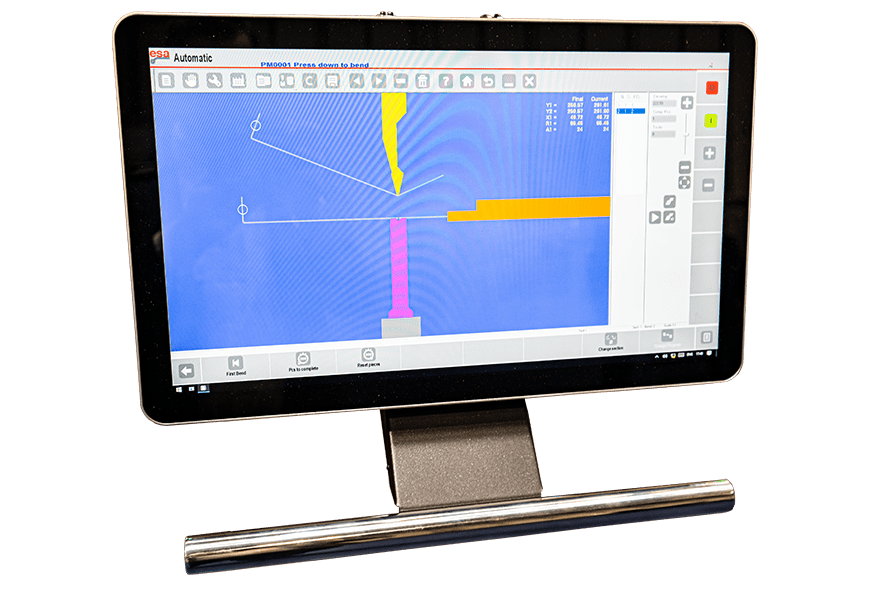

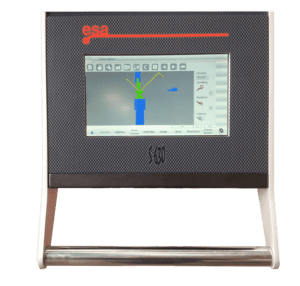

The Morgan Rushworth PBXS CNC hydraulic press brakes are fitted with the ESA S875 CNC Control featuring a 21” touch screen and both numerical and 2D graphical program entry. While data input into the CNC Control is very rapid, there is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production.

All axes are fully synchronised and accurate 0.01mm utilising proportional valve technology. Monoblock welded steel frame ensures minimum deflection under maximum load.

The range covers models from 40 tonnes through to 1000 tonnes capacity with bending lengths from 1250mm up to 8100mm in the standard design.

A comprehensive range of options are available to fully tailor the machine to requirements.

View Product Downloads / Full Specification Sheet

Request A Quote

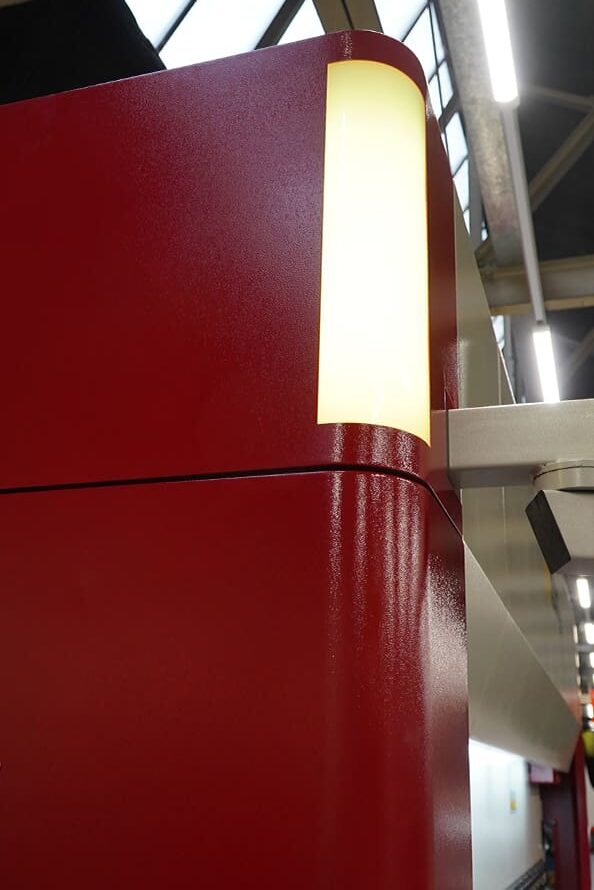

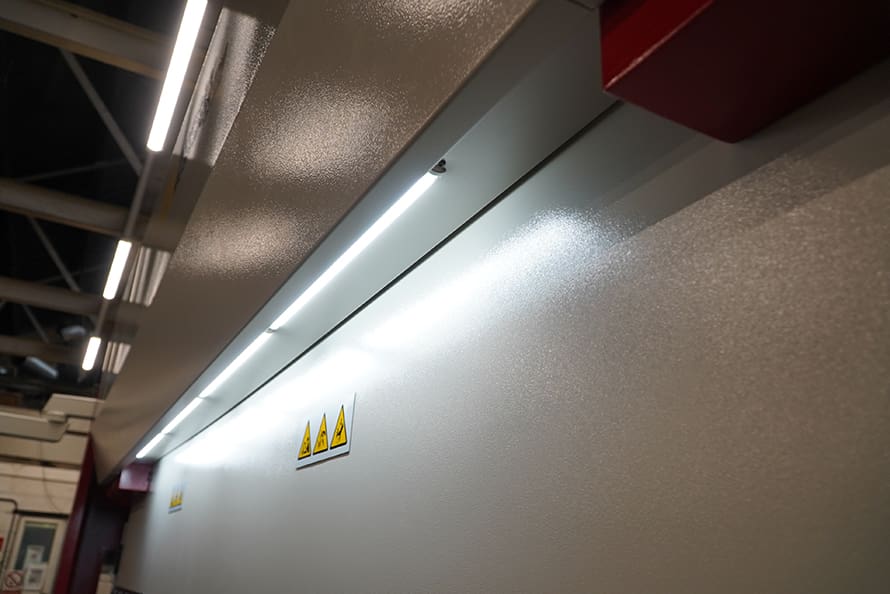

Gallery & Video

Morgan Rushworth PBXS CNC Hydraulic Press Brake imageMorgan Rushworth PBXS CNC Hydraulic Press Brake image
Baykal APHS CNC Hydraulic Pressbrake Rear ViewBaykal APHS CNC Hydraulic Pressbrake Rear View
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 3

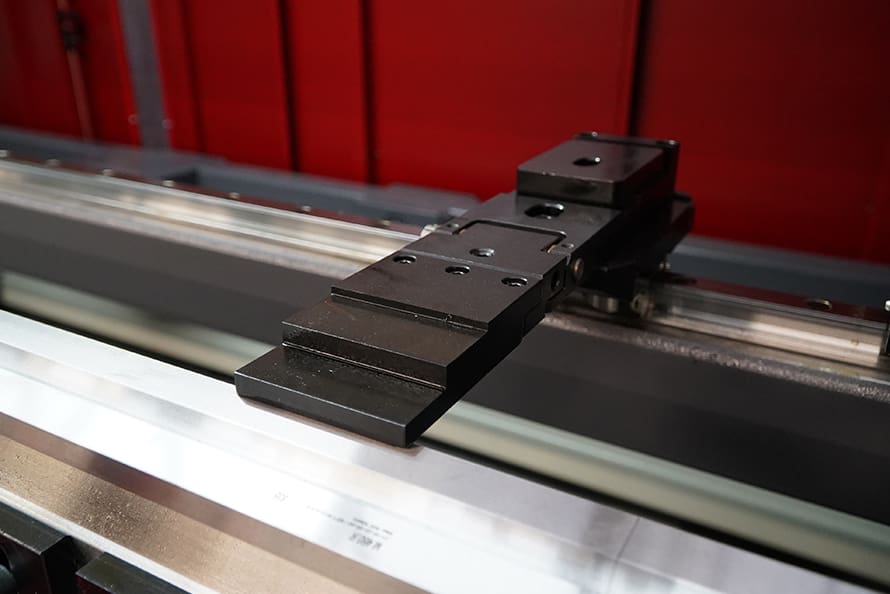

Standard Rear Backgauge Finger
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 3
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 4

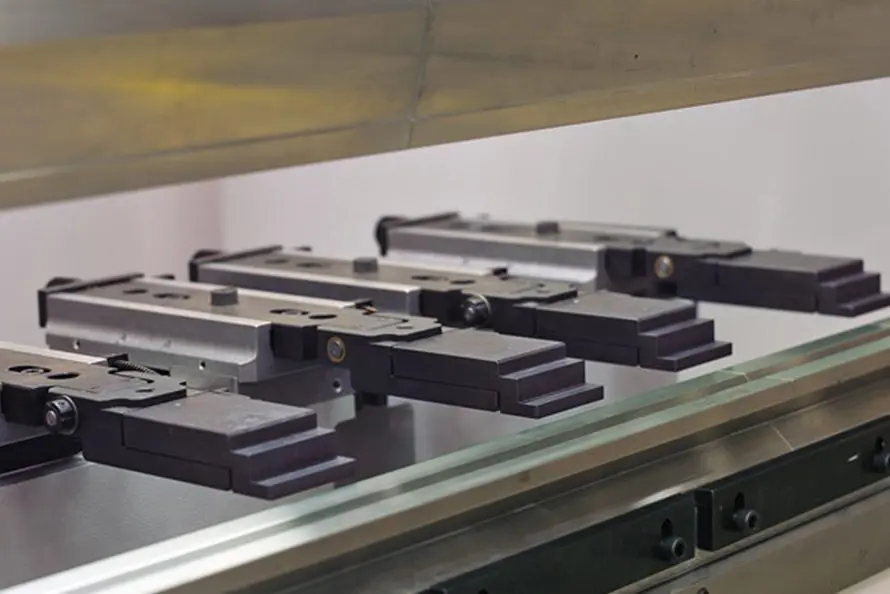

PBXS X+R Axis Backgauge Fingers (Optional)
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 4
Baykal APHS CNC Hydraulic Pressbrake DetailBaykal APHS CNC Hydraulic Pressbrake Detail
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 6

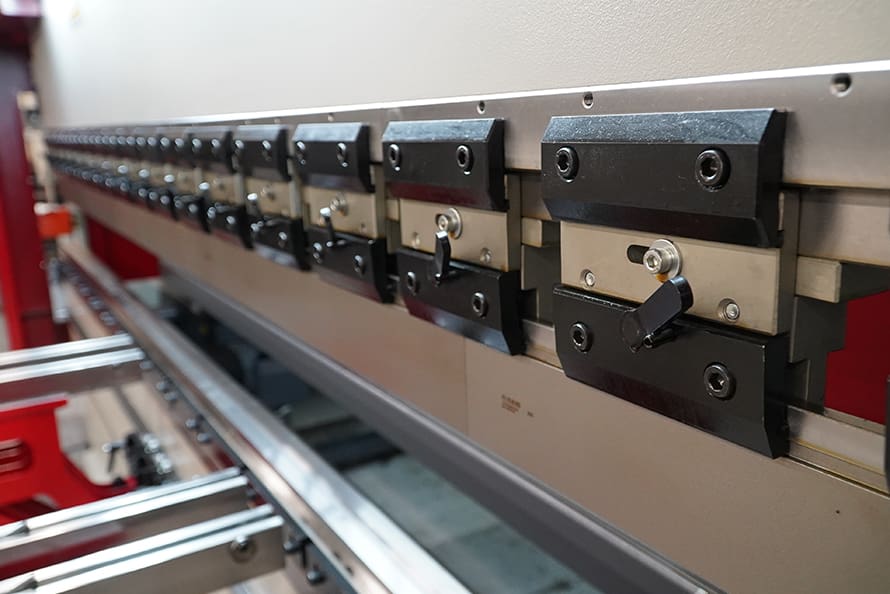

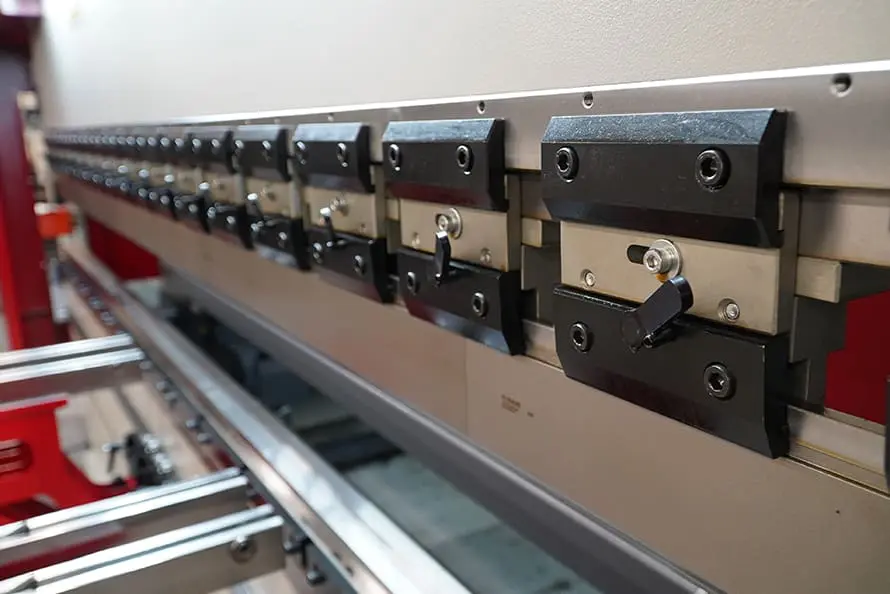

PBXS Quick Release Top Clamps
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 6

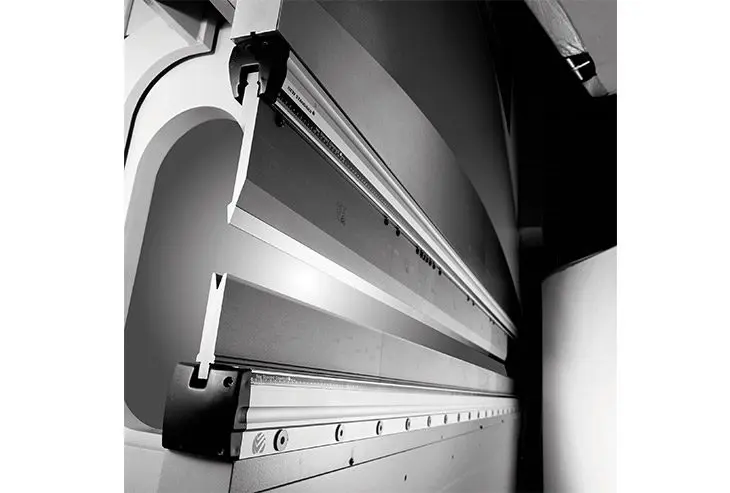

Optional Hydraulic Tool ClampingOptional Hydraulic Tool Clamping
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 8

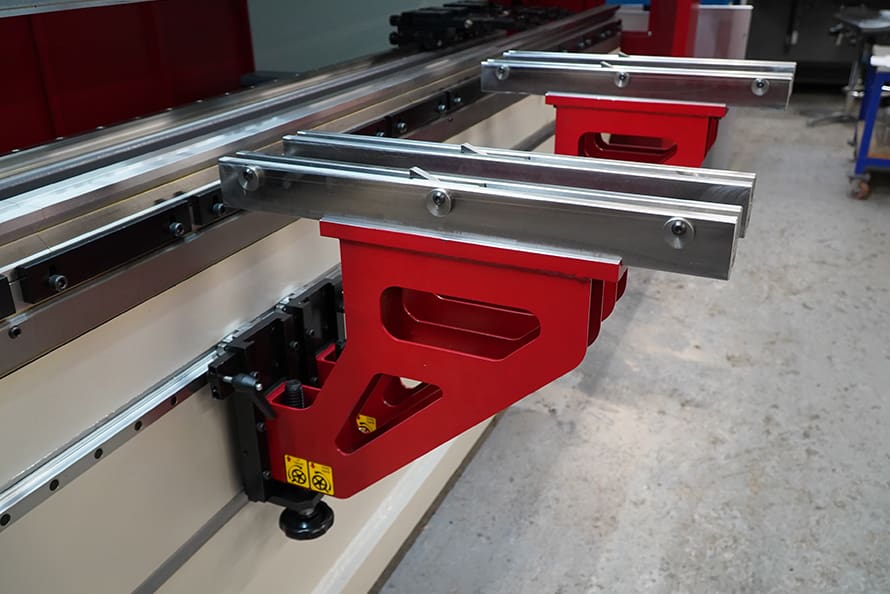

Sheet Support Arms
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 8
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 9
Sheet Follower Arms (Optional)
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 9
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 10
Manual Crowning (Optional)
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 10

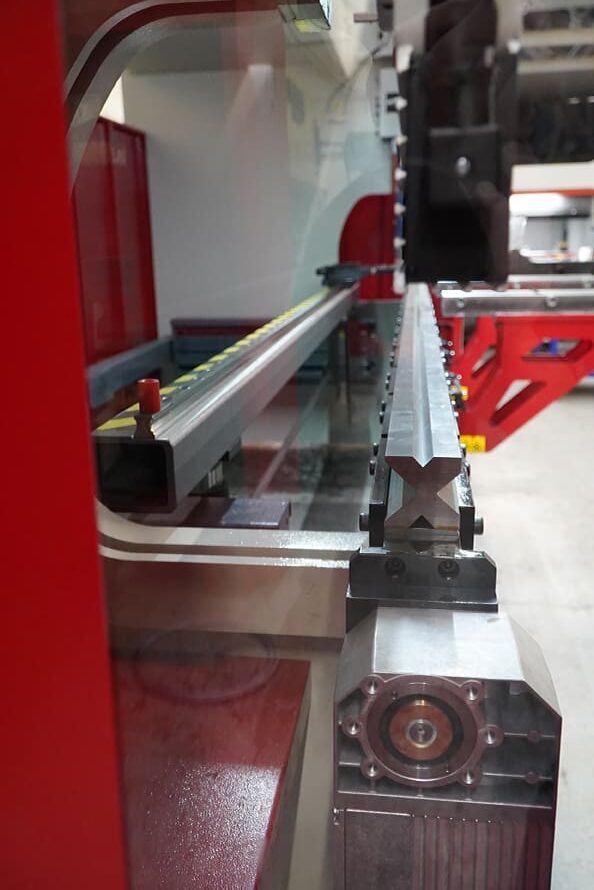

Optional CNC Crowning
CNC Crowning (Optional)
Optional CNC Crowning
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 12

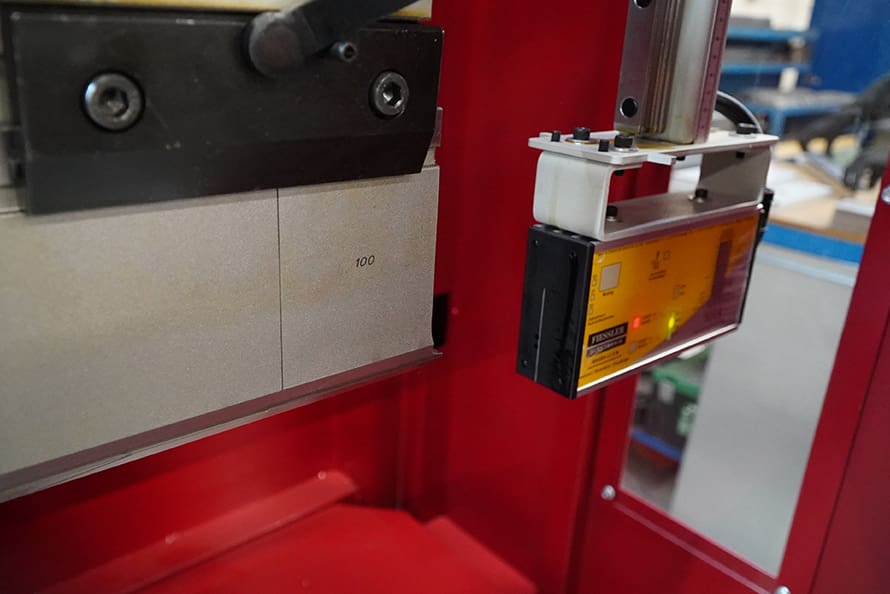

Laser Light Guard Protection
Morgan Rushworth PBXS CNC Hydraulic Press Brake image 12
Inside side view of press brake beam and toolingInside side view of press brake beam and tooling

Technical Specs

MODEL  STOCK CODE  BENDING POWER BENDING LENGTH DIST BETWEEN COLUMNS Y RAPID SPEED Y WORKING SPEED Y RETURN SPEED TRAVEL IN X AXIS SPEED OF X AXIS TRAVEL IN R AXIS (OPTIONAL) SPEED OF R AXIS (OPTIONAL) NO OF BACK GAUGE FINGERS NO OF SHEET SUPPORT ARMS OIL CAPACITY MOTOR POWER STROKE DAYLIGHT THROAT DEPTH TABLE HEIGHT TABLE WIDTH PIT DEPTH 1 PIT DEPTH 2 LENGTH WIDTH HEIGHT WEIGHT
  Tonne A mm B mm mm/sec mm/sec mm/sec mm/sec mm/sec mm/sec mm/sec     Litre kw C mm D mm E mm F mm G mm E1 mm E2 mm L mm W mm H mm kg
PBXS CNC 1250/40 M5200 40 1250 1070 160 10 130 1000 350 160 240 2 2 80 8 215 455 410 800 60 3000 2670 2250 3300
PBXS CNC 2100/60 M5201 60 2100 1600 150 10 130 1000 350 160 240 2 2 140 9.5 210 475 410 880 60 3850 2780 2542 5400
PBXS CNC 2600/60 M5202 60 2600 2050 160 10 130 1000 350 160 240 2 2 140 9.5 210 475 410 880 60 4350 2780 2542 6200
PBXS CNC 2600/90 M5203 90 2600 2050 150 10 130 1000 350 160 240 2 2 140 11.5 260 540 410 880 60 4350 2780 2605 7100
PBXS CNC 3100/90 M5204 90 3100 2550 160 10 130 1000 350 160 240 2 2 140 11.5 260 530 410 880 60 4850 2790 2605 7900
PBXS CNC 3100/120 M5205 120 3100 2550 160 10 130 1000 350 160 240 2 2 140 15 260 540 410 880 60 4850 2790 2905 8400
PBXS CNC 3100/160 M5206 160 3100 2550 160 10 130 1000 350 160 240 2 2 210 19 260 540 410 880 60 4850 2800 2905 9700
PBXS CNC 3100/200 M5207 200 3100 2550 150 10 130 1000 350 160 240 2 2 210 22.5 260 530 410 880 90 4850 2800 2905 10000
PBXS CNC 3100/240 M5208 240 3100 2550 130 10 120 1000 350 160 240 2 2 210 26 260 530 410 880 90 4850 2810 2905 11000
PBXS CNC 3100/300 M5209 300 3100 2550 110 8 100 1000 350 160 240 2 2 280 26 320 660 500 905 380 4850 3015 3150 15000
PBXS CNC 3100/440 M5256 440 3100 2550 80 8 70 1000 350 160 240 2 2 450 34 320 575 500 1005 450 4850 3260 3400 2200
PBXS CNC 3700/120 M5210 120 3700 3250 170 10 130 1000 350 160 240 2 2 210 15 260 530 410 870 60 5450 2830 2905 9400
PBXS CNC 3700/160 M5211 160 3700 3250 170 10 130 1000 350 160 240 2 2 210 19 260 530 410 880 60 5450 2800 2905 10700
PBXS CNC 3700/200 M5212 200 3700 3250 150 10 130 1000 350 160 240 2 2 210 22.5 260 530 410 880 90 5450 2800 2905 11200
PBXS CNC 3700/240 M5213 240 3700 3250 140 10 120 1000 350 160 240 2 2 210 26 260 530 410 880 90 5450 2810 2905 13500
PBXS CNC 3700/300 M5214 300 3700 3250 120 8 110 1000 350 160 240 2 2 280 26 320 635 500 980 280 5450 3020 3200 17000
PBXS CNC 4100/160 M5215 160 4100 3550 170 10 100 1000 350 160 240 4 2 210 19 260 530 410 880 60 5850 2800 2905 12000
PBXS CNC 4100/200 M5216 200 4100 3550 160 10 110 1000 350 160 240 4 2 210 22.5 260 530 410 880 90 5850 2800 2905 12500
PBXS CNC 4100/240 M5217 240 4100 3550 150 10 100 1000 350 160 240 4 2 210 26 260 530 410 880 90 5850 2810 2905 14000
PBXS CNC 4100/300 M5218 300 4100 3550 120 8 90 1000 350 160 240 4 2 280 26 320 635 500 980 280 5850 3020 3200 18500
PBXS CNC 4100/440 M5219 440 4100 3550 80 8 70 1000 350 160 240 4 2 450 34 320 590 500 955 380 5850 3435 3350 26000
PBXS CNC 6100/160 M5220 160 6100 5100 140 10 100 1000 350 160 240 4 4 240 19 260 510 500 1000 90 7850 3160 2850 20000
PBXS CNC 6100/240 M5221 240 6100 5100 140 10 100 1000 350 160 240 4 4 300 26 260 500 500 1100 90 7850 3160 3000 25000
PBXS CNC 6100/300 M5222 300 6100 5100 120 8 70 1000 350 160 240 4 4 300 26 320 560 500 1115 200 7850 3260 3280 30000
PBXS CNC 6100/380 M5223 380 6100 5100 90 8 70 1000 350 160 240 4 4 450 34 320 570 500 1100 240 7850 3410 3255 35000
PBXS CNC 6100/440 M5224 440 6100 5100 90 8 70 1000 350 160 240 4 4 450 34 320 570 500 1100 280 7850 3450 3700 39000
PBXS CNC 6100/500 M5225 500 6100 5100 80 8 70 1000 350 160 240 4 4 450 41 340 530 500 815 380 250 800 7850 3550 3500 48000
PBXS CNC 6100/600 M5226 600 6100 5100 80 7 70 1000 350 160 240 4 4 500 41 360 620 500 1050 380 370 1150 7850 3600 4100 55000
PBXS CNC 6100/800 M5255 800 6100 5100 70 6 60 1000 350 160 240 4 4 700 49 500 750 750 1050 500 600 1200 7850 4000 4750 70000
PBXS CNC 6100/1000 M5257 1000 6100 5100 70 6 60 1000 350 160 240 4 4 860 59 500 750 750 800 500 700 1500 7850 4100 4900 80000
PBXS CNC 8100/1000 M5258 1000 8100 6050 70 5 60 1000 350 160 240 4 4 860 59 500 750 750 800 500 700 1900 9850 4200 5000 95000

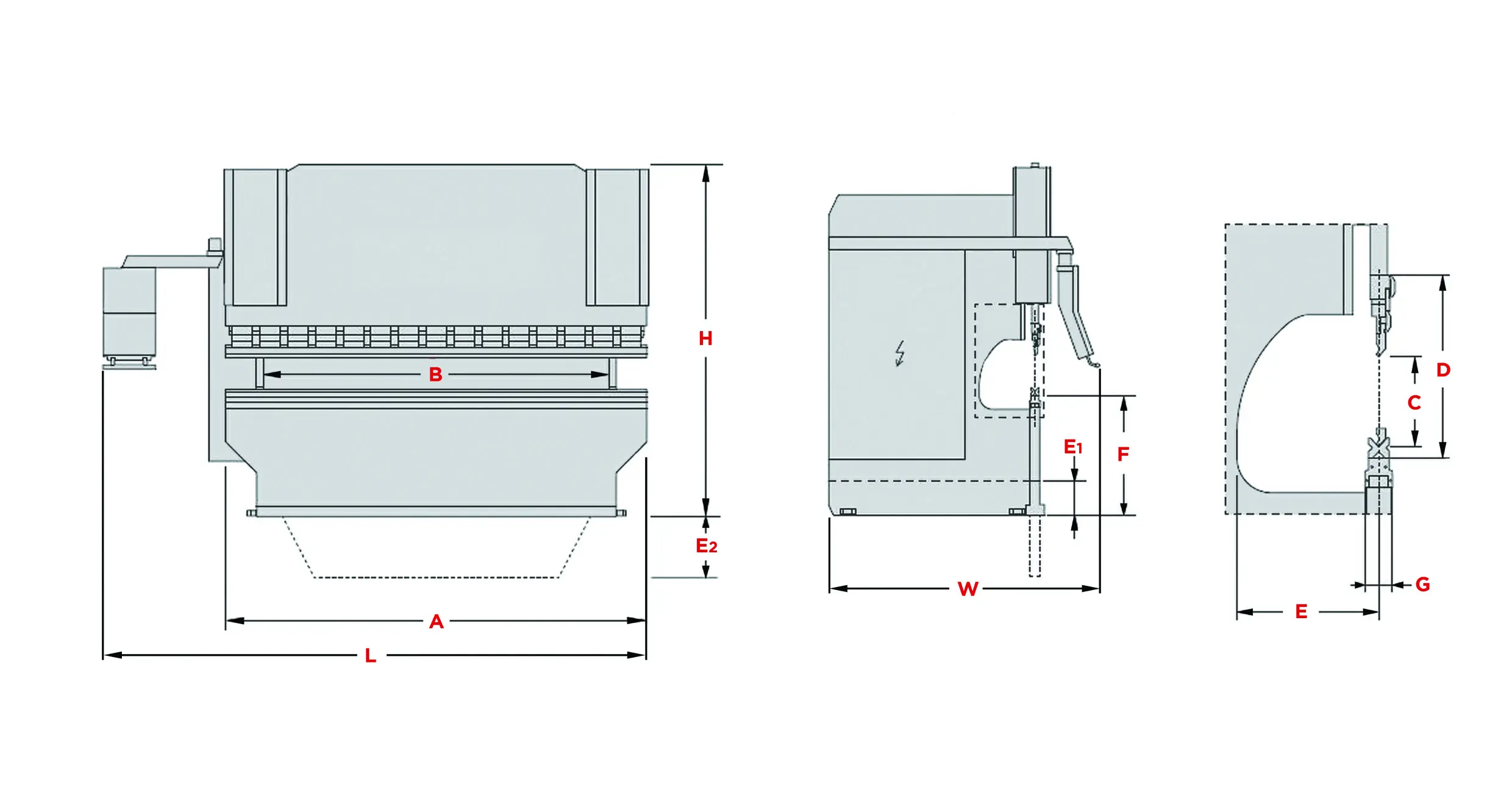

Morgan Rushworth Press Brake PBXS Diagram

Features & Options

Features

  • ESA S875 multi-axis CNC control with numerical and 2D graphical programming and 2D or 3D visualisation, mounted on pendant arm
  • Ideal for complex multi bending operations, especially where volume production with accurate repeatability is required
  • Fully synchronised CNC control for leftand right upper beam cylinder position – Y1 + Y2 axis
  • CNC control for backgauge depth – X axis
  • Manual adjustment of backgauge height – R axis
  • Manual side to side adjustment of backgauge fingers – Z axis
  • AKAS laser tooling guards for enhanced ease of use
  • Euro style quick release top tool holders with intermediate pieces including wedges for crowning, Sectionalised goose neck top tool and multi vee bottom die
  • Strong rigid welded mono block frame able to withstand deflection under maximum load
  • High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam
    comes under load
  • Hydraulic ram travel guided in low friction slideways
  • Large open height and generous ram stroke
  • Deep reinforced throat in side frames
  • High approach and return speeds for production bending
  • Front support arms with flip stop, adjustable on a linear rail

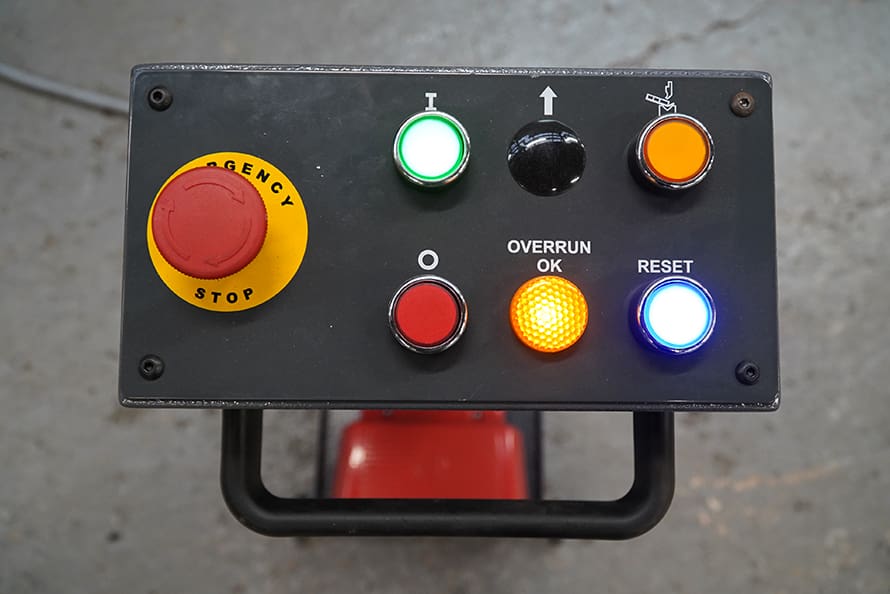

  • Dual foot switch console with emergency stop
  • Electrically interlocked side guards
  • Electrically interlocked rear access door

Options

  • Cybelec ModEva 12S 3D graphical CNC control
  • Cybelec ModEva 15S 3D graphical CNC control
  • Cybelec ModEva 15S 3D graphical touchscreen CNC control
  • Delem DA66W 2D graphical CNC control

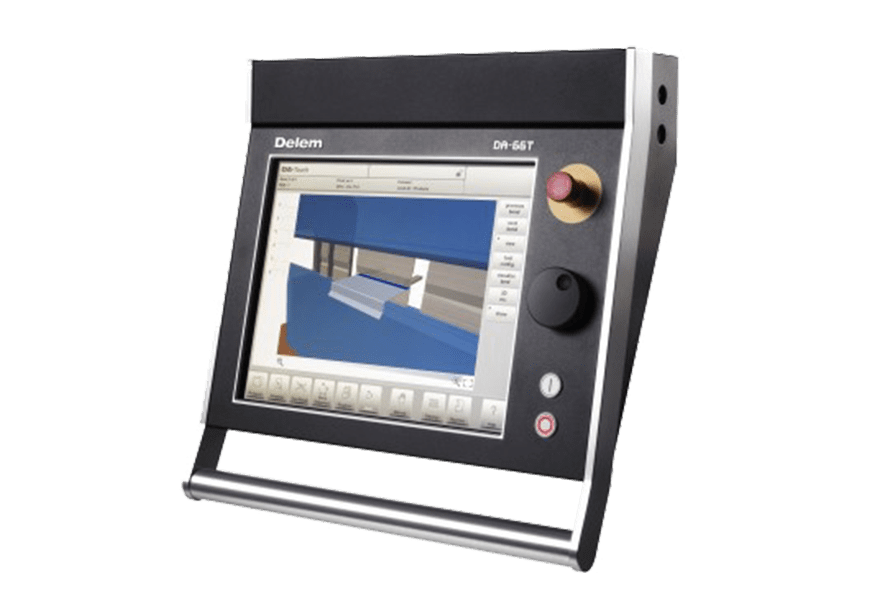

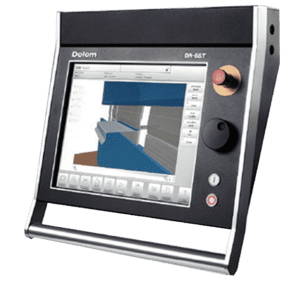

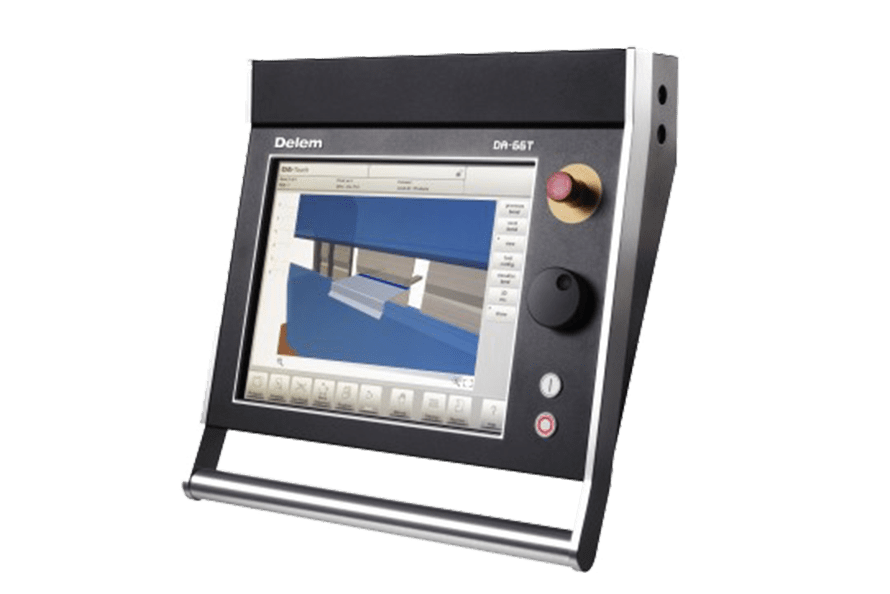

  • Delem DA66T 2D graphical touchscreen CNC control
  • Delem DA69W 3D graphical CNC control

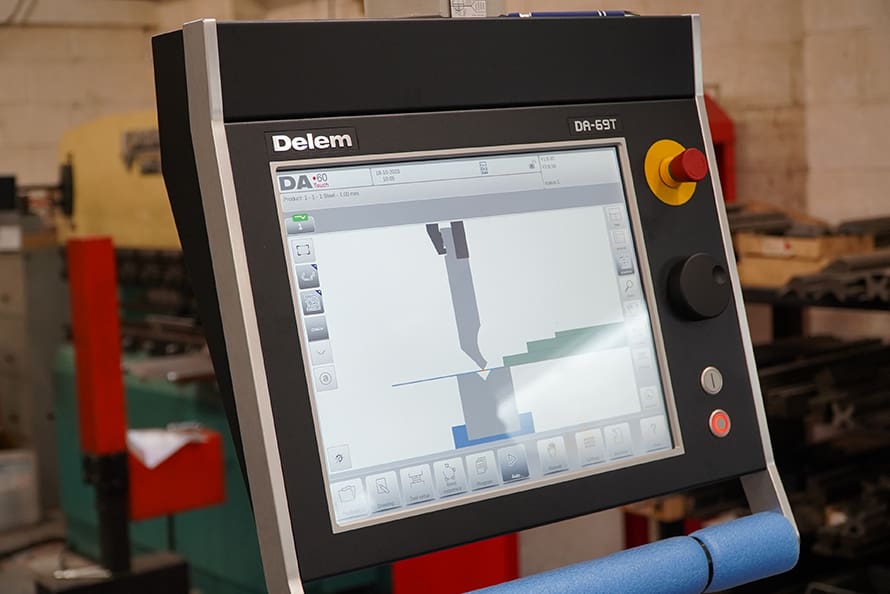

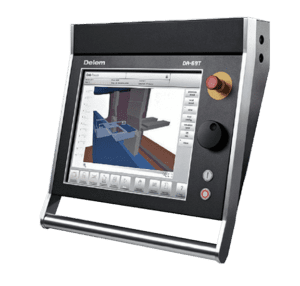

  • Delem DA69T 3D graphical touchscreen CNC control
  • X1 + X2, R or R1 + R2, Z or Z1 + Z2 axes
  • Additional Back Gauge Finger X Axis Backgauge
  • Additional Back Gauge Finger X, R Axis Backgauge
  • Hydraulic Release Top and Bottom Tooling Clamping System
  • Mechanical anti deflection table
  • CNC motorized anti deflection table
  • Brush table for front support arms
  • Additional sliding front support arms
  • Sheet follower support arms controlled by the CNC
  • Parking area for sheet follower support arms – one per side
  • Laser Angle Measuring System
