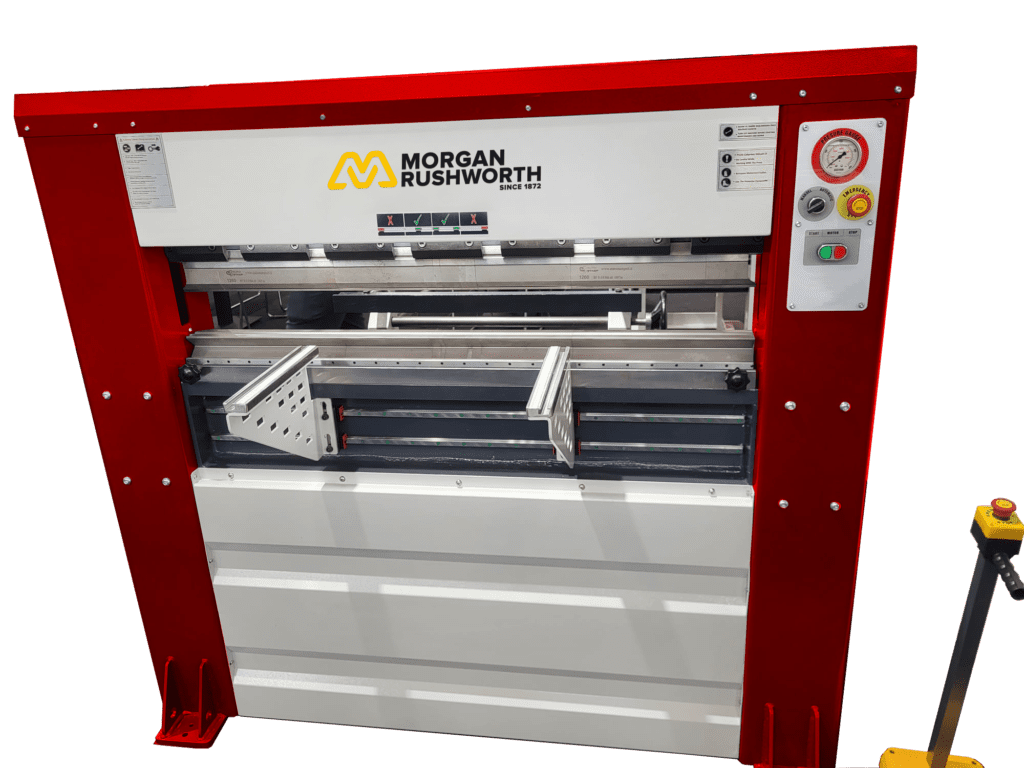

Morgan Rushworth PBSM Press Brake
This budget friendly Morgan Rushworth Mini Press Brake brings the power of a Press Brake in an affordable package, if you only need a short bending width. It’s compact size means it can fit into small workshops, and it’s basic operations make it simple and easy to use.
| MODEL | PBSM 1270/30 | |
| Bending Force / Power | Ton | 30 |
| Bending Capacity | mm | 3 |
| Bending Length | mm | 1270 |
| Stroke | mm | 150 |
| Motor | kw | 4 |
| Y Axis Rapid Speed | mm/sec | 26 |
| Y Axis Return Speed | mm/sec | 43 |
| Y Axis Working Speed | mm/sec | 5-26 |
| Length | mm | 1,800 |
| Width | mm | 1,400 |
| Height | mm | 1,600 |
| Weight | kg | 900 |
Features
- Heavy-Duty Steel Construction
- 150mm Light Curtain Safety Barrier
- Dual-Hand Push Button
- Adjustable Pressure Control
- Adjustable Stroke
- Manual Back Gauge
- Euro-Style Tooling
- Multi-Way V Die
Options
- PLC Controller
- Proportionate Valve System
- Stroke Table
- Extractor Piston
- Speed Control
- T-Sheet Table
