Morgan Rushworth PBS CNC Hydraulic Sheet Metal Press Brake
The new Morgan Rushworth PBS CNC range of hydraulic press brakes are fitted with the new ESA 640 Touch Screen CNC controller to enable off line programming from PC. Multi bend operations with complex forms can thus be effectively managed reducing operator error and over or under bending. The Y1 and Y2 axis are fully synchronised and accurate to 0.01mm with proportional valve technology. Monoblock welded steel frames ensures minimum deflection under maximum load. The PBS CNC range spans 1250mm x 40T up to 4100mm x 300T models. A comprehensive range of options including anti defection tables are available to fully ‘tailor’ machines to customer requirements.
| BENDING POWER | BENDING LENGTH | DIST BETWEEN COLUMNS | TRAVEL IN X AXIS | OIL CAPACITY | MOTOR POWER | STROKE | DAYLIGHT | THROAT DEPTH | TABLE HEIGHT | TABLE WIDTH | LENGTH | WIDTH | HEIGHT | WEIGHT | ||
| MODEL | STOCK CODE | Tonne | A mm | B mm | mm | Litre | kw | C mm | D mm | E mm | F mm | G mm | L mm | W mm | H mm | kg |
| PBS CNC 1250/40 | M5042 | 40 | 1250 | 1070 | 1000 | 80 | 8 | 215 | 455 | 410 | 800 | 60 | 3000 | 2670 | 2250 | 3300 |
| PBS CNC 2100/60 | M5043 | 60 | 2100 | 1600 | 1000 | 140 | 9.5 | 210 | 475 | 410 | 880 | 60 | 3850 | 2780 | 2542 | 5400 |
| PBS CNC 2600/60 | M5044 | 60 | 2600 | 2050 | 1000 | 140 | 9.5 | 210 | 475 | 410 | 880 | 60 | 4350 | 2780 | 2542 | 6200 |
| PBS CNC 2600/90 | M5045 | 90 | 2600 | 2050 | 1000 | 140 | 11.5 | 260 | 530 | 410 | 890 | 60 | 4350 | 2780 | 2605 | 7100 |
| PBS CNC 3100/90 | M5046 | 90 | 3100 | 2550 | 1000 | 140 | 11.5 | 260 | 530 | 410 | 880 | 60 | 4850 | 2790 | 2605 | 7900 |
| PBS CNC 3100/120 | M5047 | 120 | 3100 | 2550 | 1000 | 140 | 15 | 260 | 530 | 410 | 890 | 60 | 4850 | 2790 | 2905 | 8400 |
| PBS CNC 3100/160 | M5048 | 160 | 3100 | 2550 | 1000 | 210 | 19 | 260 | 530 | 410 | 890 | 60 | 4850 | 2800 | 2905 | 9700 |
| PBS CNC 3100/200 | M5049 | 200 | 3100 | 2550 | 1000 | 210 | 22.5 | 260 | 530 | 410 | 880 | 60 | 4850 | 2800 | 2905 | 10000 |
| PBS CNC 3100/240 | M5050 | 240 | 3100 | 2550 | 1000 | 210 | 26 | 260 | 530 | 410 | 880 | 60 | 4850 | 2810 | 2905 | 11000 |
| PBS CNC 3100/300 | M5051 | 300 | 3100 | 2550 | 1000 | 280 | 26 | 320 | 660 | 500 | 905 | 280 | 4850 | 3015 | 3150 | 15000 |
| PBS CNC 3700/120 | M5052 | 120 | 3700 | 3250 | 1000 | 210 | 15 | 260 | 530 | 410 | 870 | 60 | 5450 | 2830 | 2905 | 11000 |
| PBS CNC 3700/160 | M5053 | 160 | 3700 | 3250 | 1000 | 210 | 19 | 260 | 530 | 410 | 880 | 60 | 5450 | 2800 | 2905 | 11500 |
| PBS CNC 3700/200 | M5054 | 200 | 3700 | 3250 | 1000 | 210 | 22.5 | 260 | 530 | 410 | 880 | 60 | 5450 | 2800 | 2905 | 12000 |
| PBS CNC 3700/240 | M5055 | 240 | 3700 | 3250 | 1000 | 210 | 26 | 260 | 530 | 410 | 880 | 60 | 5450 | 2810 | 2905 | 13500 |
| PBS CNC 3700/300 | M5056 | 300 | 3700 | 3250 | 1000 | 280 | 26 | 320 | 635 | 500 | 980 | 280 | 5450 | 3020 | 3200 | 17000 |
| PBS CNC 4100/160 | M5057 | 160 | 4100 | 3550 | 1000 | 210 | 19 | 260 | 530 | 410 | 880 | 60 | 5850 | 2800 | 2905 | 12000 |
| PBS CNC 4100/200 | M5058 | 200 | 4100 | 3550 | 1000 | 210 | 22.5 | 260 | 530 | 410 | 880 | 60 | 5850 | 2800 | 2905 | 12500 |
| PBS CNC 4100/240 | M5059 | 240 | 4100 | 3550 | 1000 | 210 | 26 | 260 | 530 | 410 | 880 | 60 | 5850 | 2810 | 2905 | 14000 |
| PBS CNC 4100/300 | M5060 | 300 | 4100 | 3550 | 1000 | 280 | 26 | 320 | 635 | 500 | 980 | 280 | 5850 | 3020 | 3200 | 18500 |
Features
- Strong rigid welded Monoblock frame able to withstand deflection under load.
- Sick CE front light guards

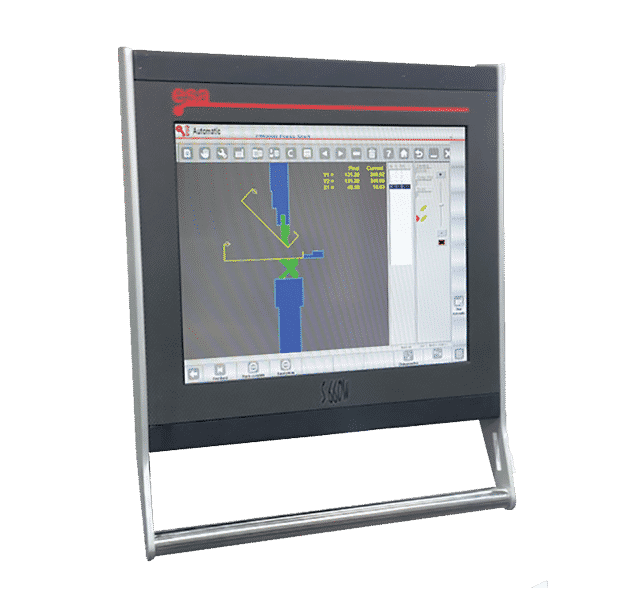

- User friendly ESA 630 Touch Screen CNC system with 2D auto bend sequence computations and large tool library.
- Full off line 2D graphical view programming software which can be transferred to the controller with USB flash disc.
- Ideal for multi bending of complex operations, especially where volume production with accurate repeatability is required.
- Bend accuracy at least five times higher than conventional press brakes.
- Fully synchronised Y1 and Y2 axis, accurate to 0.01mm with proportional valve technology.
- Hydraulic ram travel guided in low friction slideways.

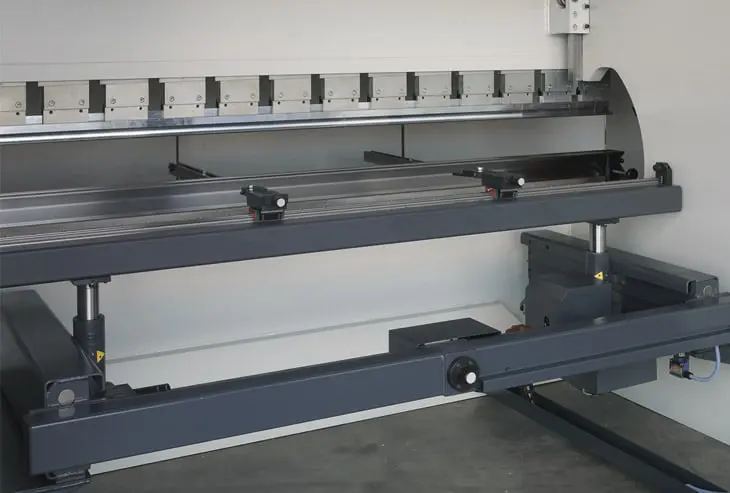

- Fast CNC back gauge with AC servo drive.

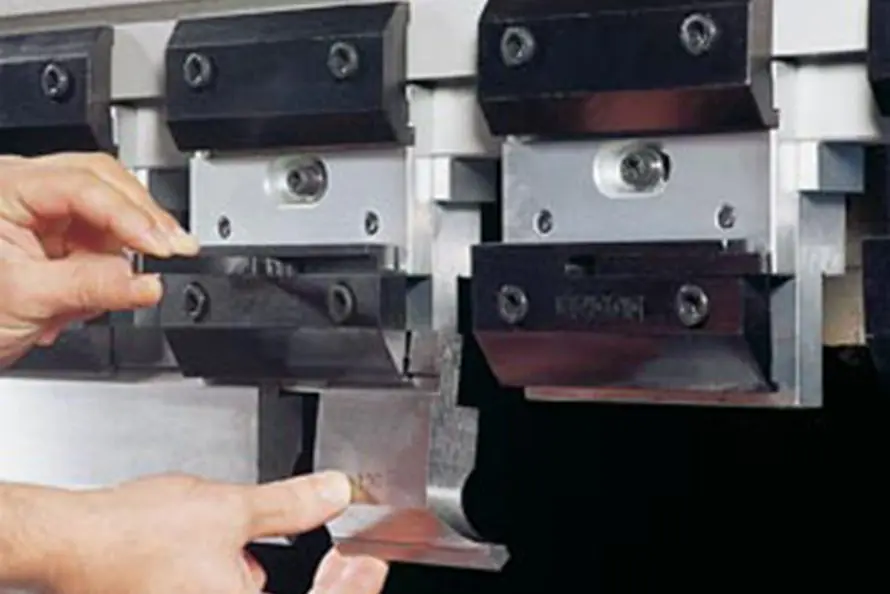

- Euro style top clamps with intermediaries and quick release tool clamps.
- Sectionalised goose neck top tool.
- Sectionalised multi vee bottom die.
- High stroke and daylight opening.
- Deep throat design.

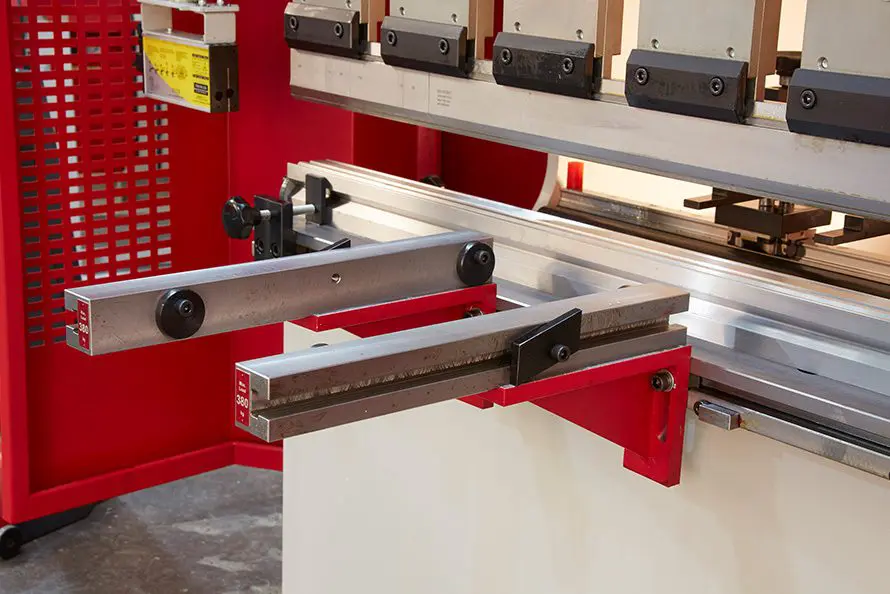

- Two front support arms on adjustable linear rail.
- Dual foot switch console with emergency stop.
- Swiveling pendant arm.

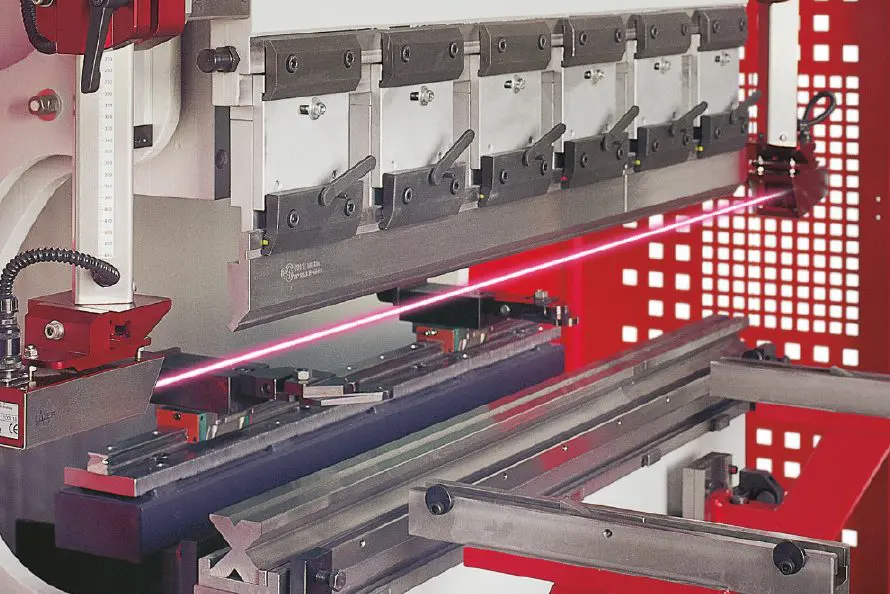

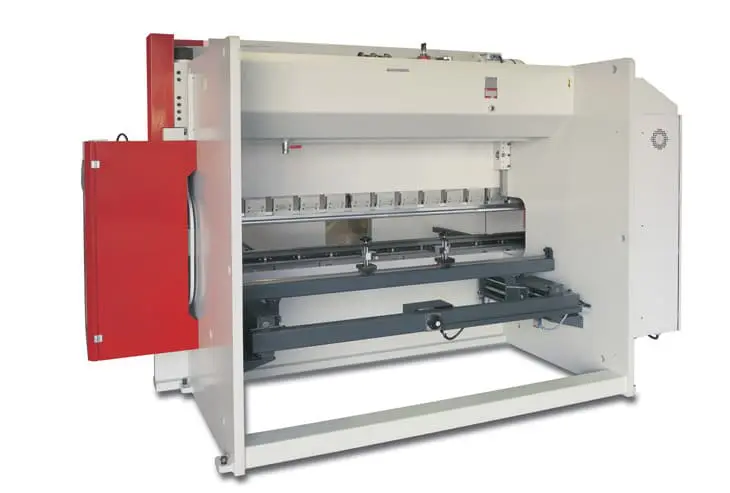

- Rear guard with photo cell safety beam.
- Ventilated electrical cabinet.

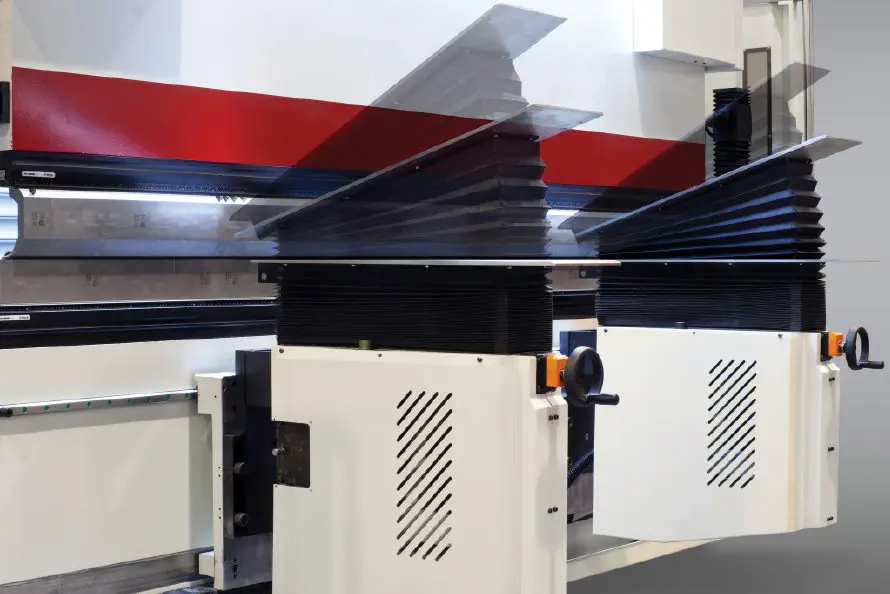

Options

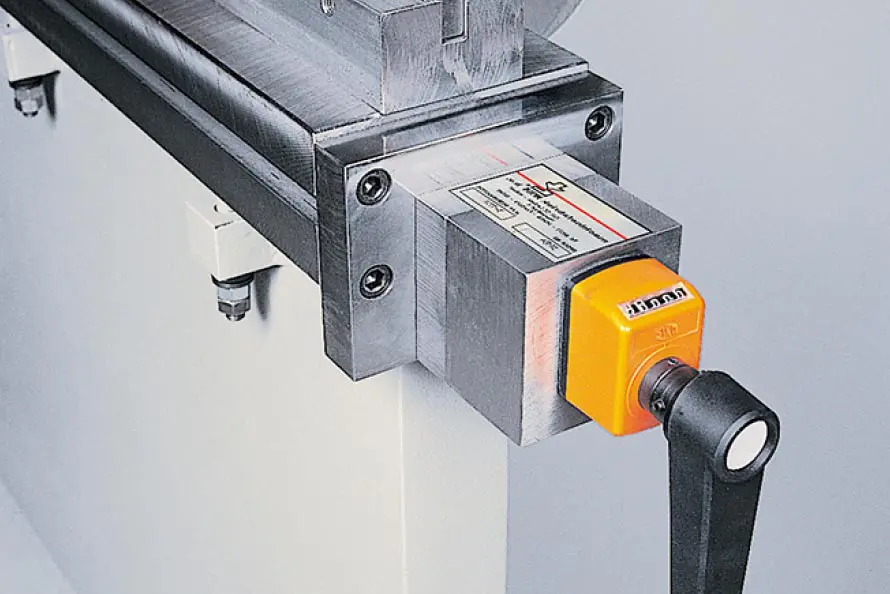

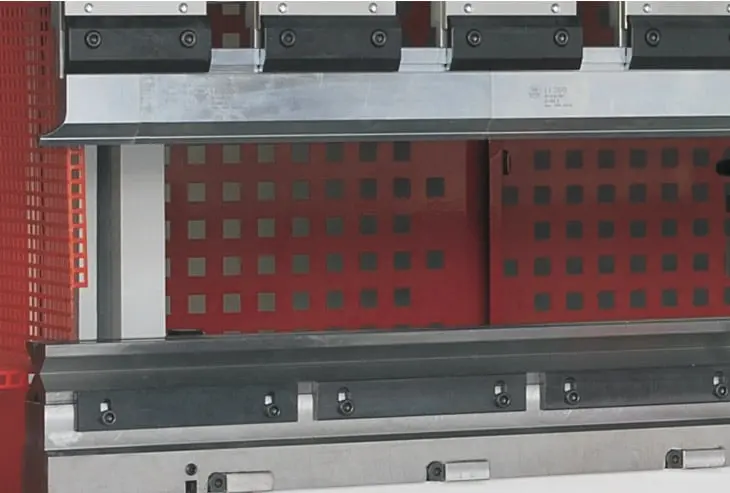

- Manual anti deflection table

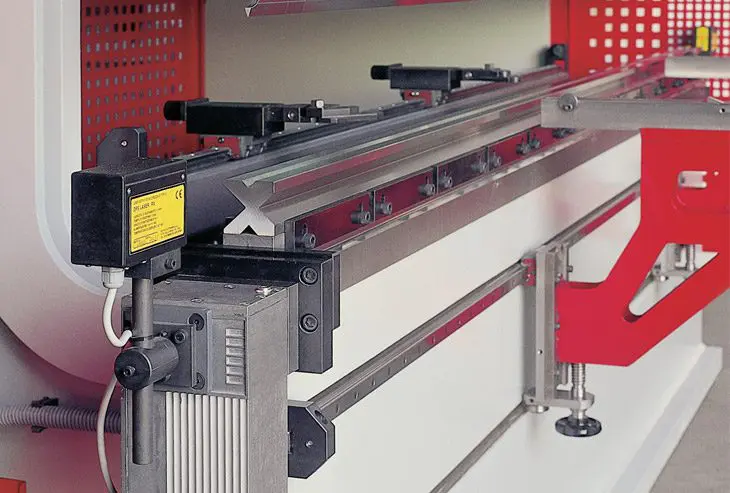

- CNC anti deflection table
- S540 2D colour graphical CNC controller

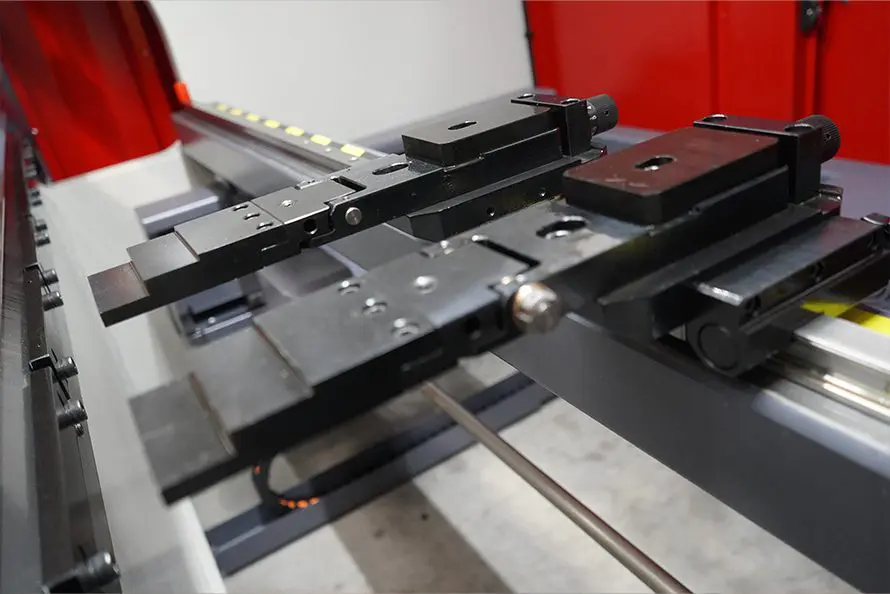

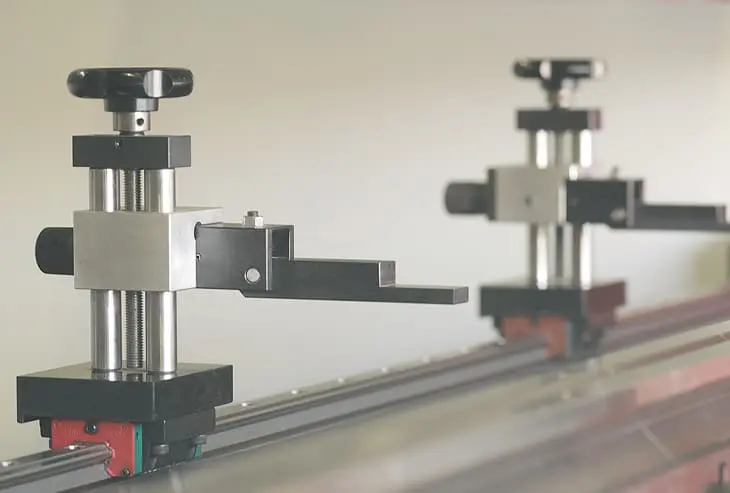

- Extra backgauge fingers
