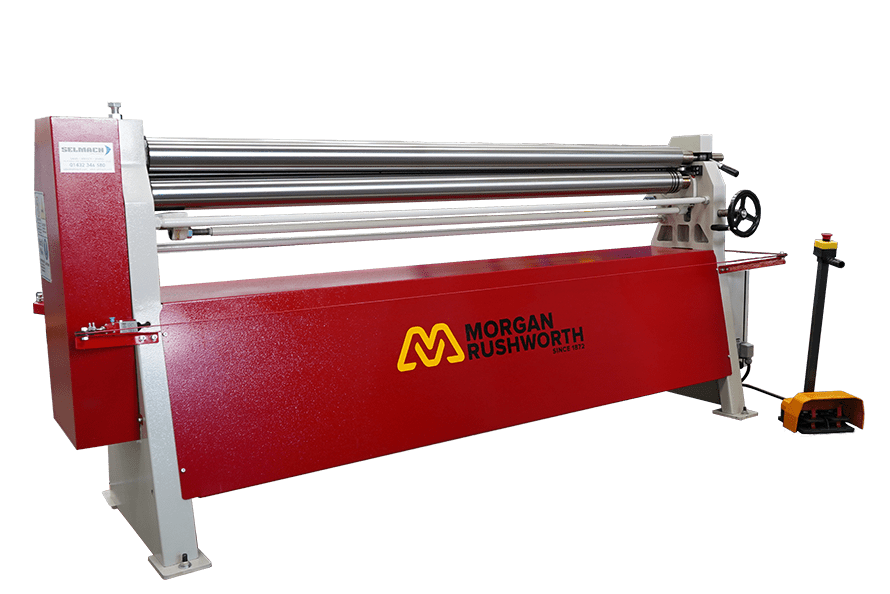

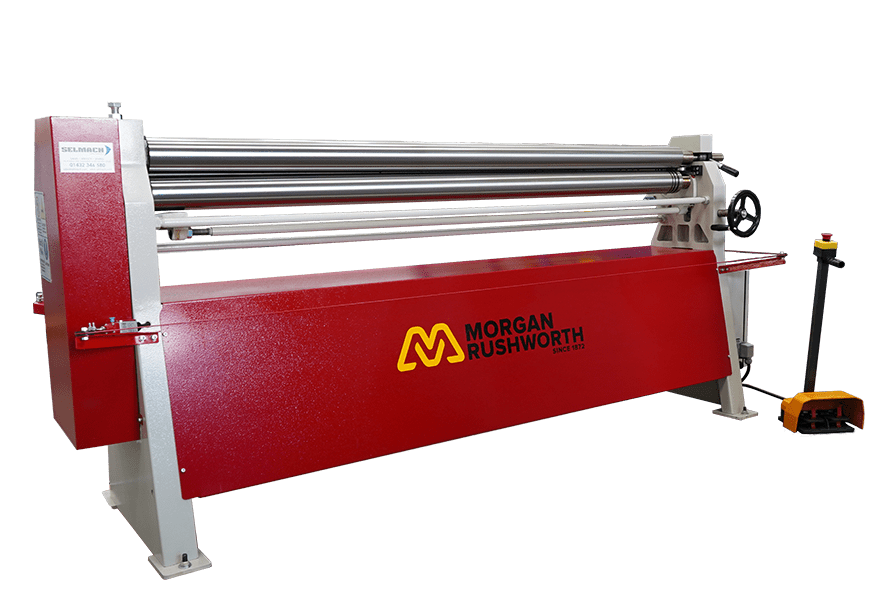

Morgan Rushworth PBR Powered Bending Roll

The Morgan Rushworth PBR powered top roll to slip models range from 1.0mm -5mm with a maximum bending length up to 2050mm. The rugged heavy duty cast iron frame ensures long working life. The asymmetric roll configuration enables pre bending capability.

Morgan Rushworth PBR Powered Bending Roll imageMorgan Rushworth PBR Powered Bending Roll image

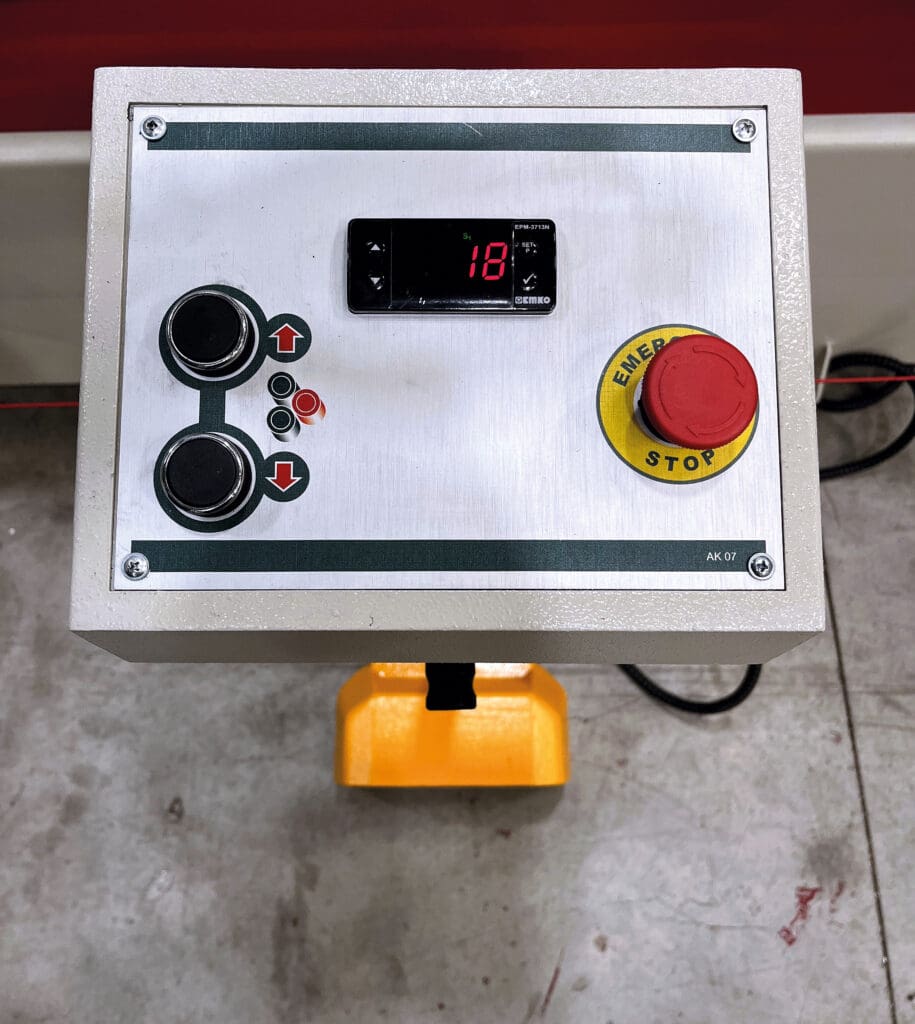

Morgan Rushworth SBR1050-110 Side Roll Controller
Optional Powered Side Roll Controller with digital readout
Morgan Rushworth SBR1050-110 Side Roll Controller

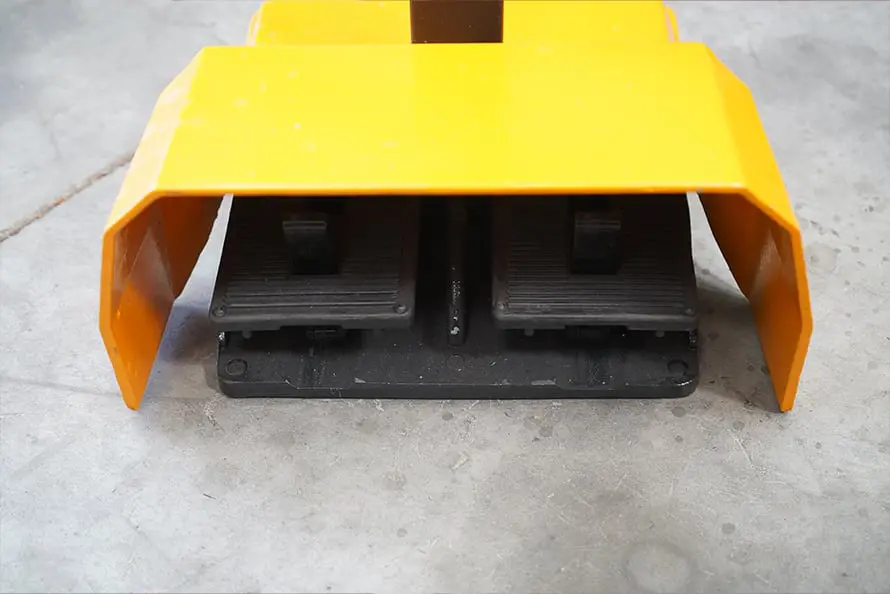

Morgan Rushworth SBR1050-110 Foot Pedal Controls
Foot Pedal Controls
Morgan Rushworth SBR1050-110 Foot Pedal Controls

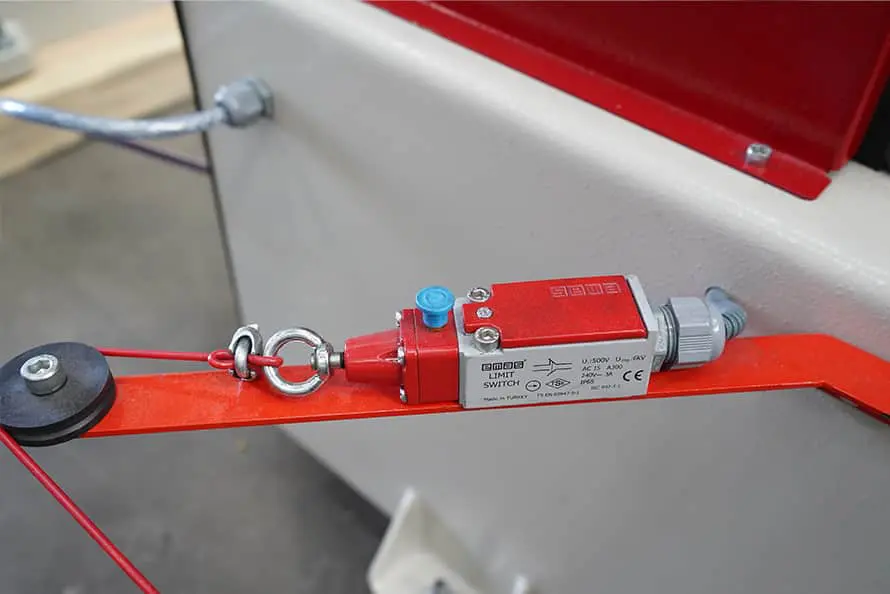

Morgan Rushworth SBR1050-110 Tripwire Safety System
Tripwire Safety System
Morgan Rushworth SBR1050-110 Tripwire Safety System

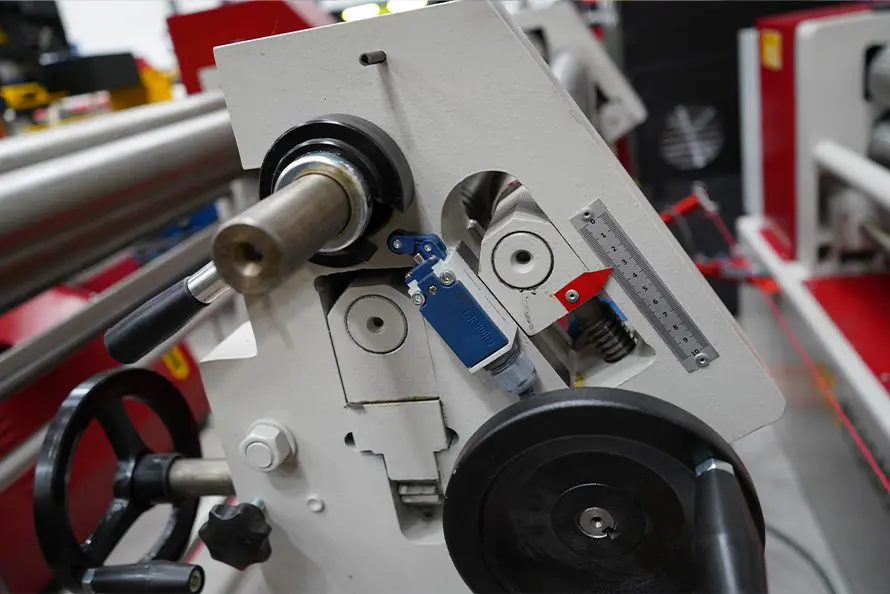

Morgan Rushworth PBR Powered Bending Roll image 5
Slip Roll Release
Morgan Rushworth PBR Powered Bending Roll image 5
Morgan Rushworth PBR Powered Bending Roll image 6

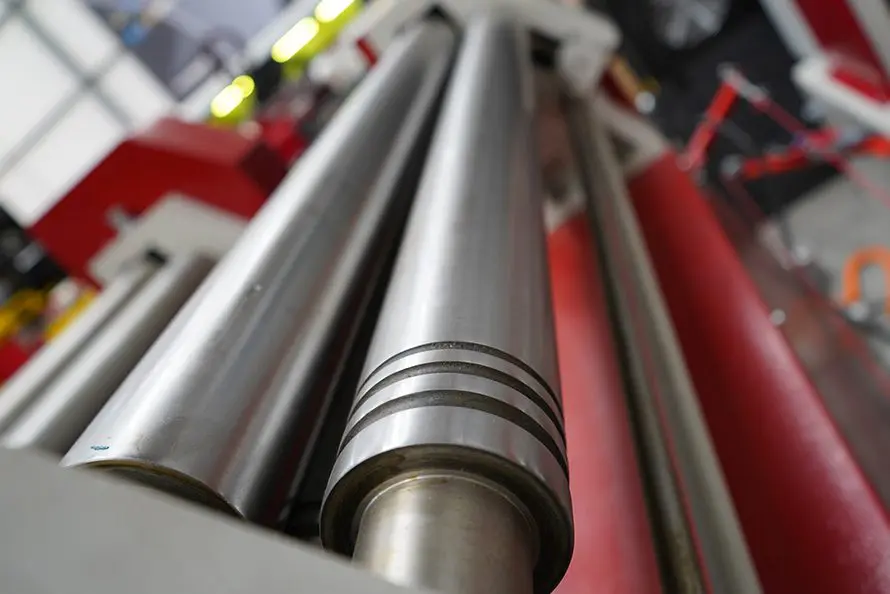

Close Up
Morgan Rushworth PBR Powered Bending Roll image 6

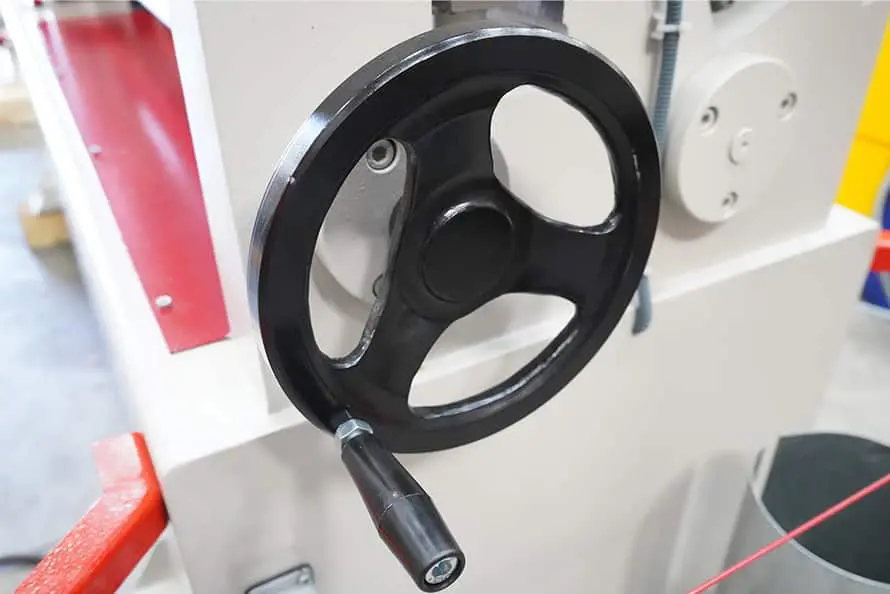

Morgan Rushworth SBR1050-110 Crank Handle
Crank Handle
Morgan Rushworth SBR1050-110 Crank Handle
Morgan Rushworth PBR Powered Bending Roll image 8
Round Bar Grooves
Morgan Rushworth PBR Powered Bending Roll image 8
Morgan Rushworth PBR Powered Bending Roll image 9
Cone Rolling Wheel
Morgan Rushworth PBR Powered Bending Roll image 9
MODEL STOCK CODE BENDINGLENGTH PRE BENDING MAX THICKNESS TOP ROLL DIA. MOTOR LENGTH HEIGHT WIDTH WEIGHT
mm mm mm mm kW mm mm mm kg
PBR 1050/70 M3010 1050 1.5 1.8 70 1.1 1800 1100 700 350
PBR 1050/90 M3011 1050 3 3.3 90 1.1 2100 1130 800 520
PBR 1250/75 M3012 1250 1.5 2 75 1.1 2300 1100 800 490
PBR 1250/90 M3013 1250 2.5 3 90 1.1 2350 1130 800 540
PBR 1550/70 M3014 1550 1 1.2 70 1.1 2100 1100 700 550
PBR 1550/90 M3015 1550 2.2 2.5 90 1.1 2600 1130 800 620
PBR 2050/95 M3016 2050 1.5 1.8 95 1.1 3030 1130 800 650

Capacities are given for 250 N/mm² plate yielding strength

Features

  • Top roll to slip
  • Powered bending
  • Cone bending
  • Crowned Rolls
  • Powered top and bottom roll with foot operated forward and reverse control
  • Brake motor
  • Manually adjusted side roll for up and down translation
  • Manual pinching of bottom roll

Options

  • With / Without body cover (PBR)
  • Induction hardened rolls
  • Parallel Rolls
  • Powered side roll up and down translation
  • DRO for side roll position
